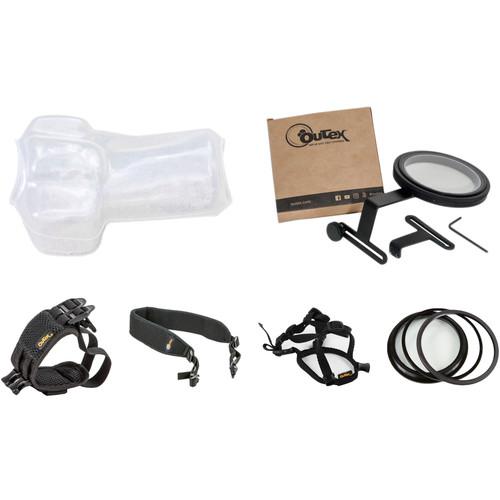

Product description This Underwater Camera Cover Kit from Outex comes with everything you need to use most full-body or battery-grip cameras underwater or in challenging conditions like driving rain or blowing sand. It has a large-sized silicone cover that measures 6.3" wide, 6.7" high, and 12.2" from the back of the camera to the front of the lens. It also includes a front glass port for a 67mm lens, a rear glass port for the viewfinder and LCD screen, wrist and neck straps, and the harness to which the straps attach. - Outex 130 Underwater Camera Cover (Large) The large Outex 130 Underwater Camera Cover is designed for use with most large-body and battery grip cameras. Measuring 6.3 x 6.7" with a maximum body-plus-lens length of 12.2", the stretchy, see-through, silicone-based cover has openings for an Outex Front Glass, which attaches to the lens, and Rear Glass, which attaches to the tripod mount or viewfinder. The camera's controls can be seen and operated right through the cover.
-
- Fits most large-body and battery grip cameras
- Measures 6.3 x 6.7" (camera body width x height), 12.2" (body plus lens)
- Malleable, see-through silicone-based proprietary material
- Camera controls can be seen and operated
- Has openings for an Outex Front Glass, which attaches to the lens, and Rear Glass, which attaches to the tripod mount or viewfinder
UPC: 095225635304 - Outex Wrist Strap for Strap Holder LCD The Outex Wrist Strap provides an alternative to a neck strap that still keeps your camera securely attached. The strap snaps onto the Outex Strap Holder LCD, the harness that fits on a camera inside an Outex underwater camera cover. UPC: 095225635687
- Outex Neck Strap for Strap Holder LCD This Neck Strap attaches to the Strap Holder LCD on an Outex underwater camera cover system. The padded strap has an adjustable length, and snaps easily on and off with side-release buckles. UPC: 095225635670
- Outex Strap Holder This Strap Holder is part of an Outex underwater camera cover system, and provides connection points for the Outex Neck Strap. The adjustable harness is equipped with side-release buckles for quick and easy attaching and detaching of the strap. UPC: 095225635663
- Outex Rear Glass for Underwater Camera Cover (86mm) This Rear Glass is compatible with any medium or large Outex silicone underwater camera cover. It attaches to the tripod mount on the underside of the camera, and its adjustable bracket allows you to place the 86mm lens where you can best see your LCD and/or viewfinder to operate your camera's controls. Simply pull the rear opening of the camera cover over the lip of the rear glass, slip on the O-ring, and thread on the outer ring to form the seal. These rings are made from anodized aluminum for durability and corrosion resistance. The assembly is depth-rated to 33'. UPC: 095225636592
- Outex Front Glass for Underwater Camera Cover (67mm Filter Thread) This Front Glass is compatible with any Outex silicone underwater camera cover. It screws onto any 67mm filter thread like a filter. Simply pull the front opening of the camera cover over the lip of the front glass, slip on the O-ring, and thread on the outer ring to form the seal. These rings are made from anodized aluminum for durability and corrosion resistance. The assembly is depth-rated to 33'. UPC: 095225635434
In the Box - 130 Underwater Camera Cover (Large) ddqutvxbwaasqxza
- Limited 60-Day Warranty
- Wrist Strap for Strap Holder LCD
- Neck Strap for Strap Holder LCD
- Rear Glass for Underwater Camera Cover (86mm)
- Front Glass for Underwater Camera Cover (67mm Filter Thread)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Outex Underwater Camera Cover Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Outex 130 Underwater Camera Cover (Large)
| Dimensions | 6.3 x 6.7" / 16 x 17 cm | | | | Box Dimensions (LxWxH) | 6.9 x 4.65 x 2.75" | - Outex Wrist Strap for Strap Holder LCD
| | | Box Dimensions (LxWxH) | 8.3 x 2.9 x 1.15" | - Outex Neck Strap for Strap Holder LCD
| | | Box Dimensions (LxWxH) | 12.1 x 3.85 x 1.4" | - Outex Strap Holder
| | | Box Dimensions (LxWxH) | 4.45 x 3.3 x 1.35" | - Outex Rear Glass for Underwater Camera Cover (86mm)
| Diameter | 86 mm | | Material of Construction | Lens: Glass
Rings: Anodized Aluminum | | Depth Rating | 33' / 10 m | | | | Box Dimensions (LxWxH) | 7.1 x 6.4 x 3.0" | - Outex Front Glass for Underwater Camera Cover (67mm Filter Thread)
| Thread Diameter | 67mm | | Depth Rating | 33' / 10 m | | | | Box Dimensions (LxWxH) | 4.5 x 4.3 x 0.9" |
