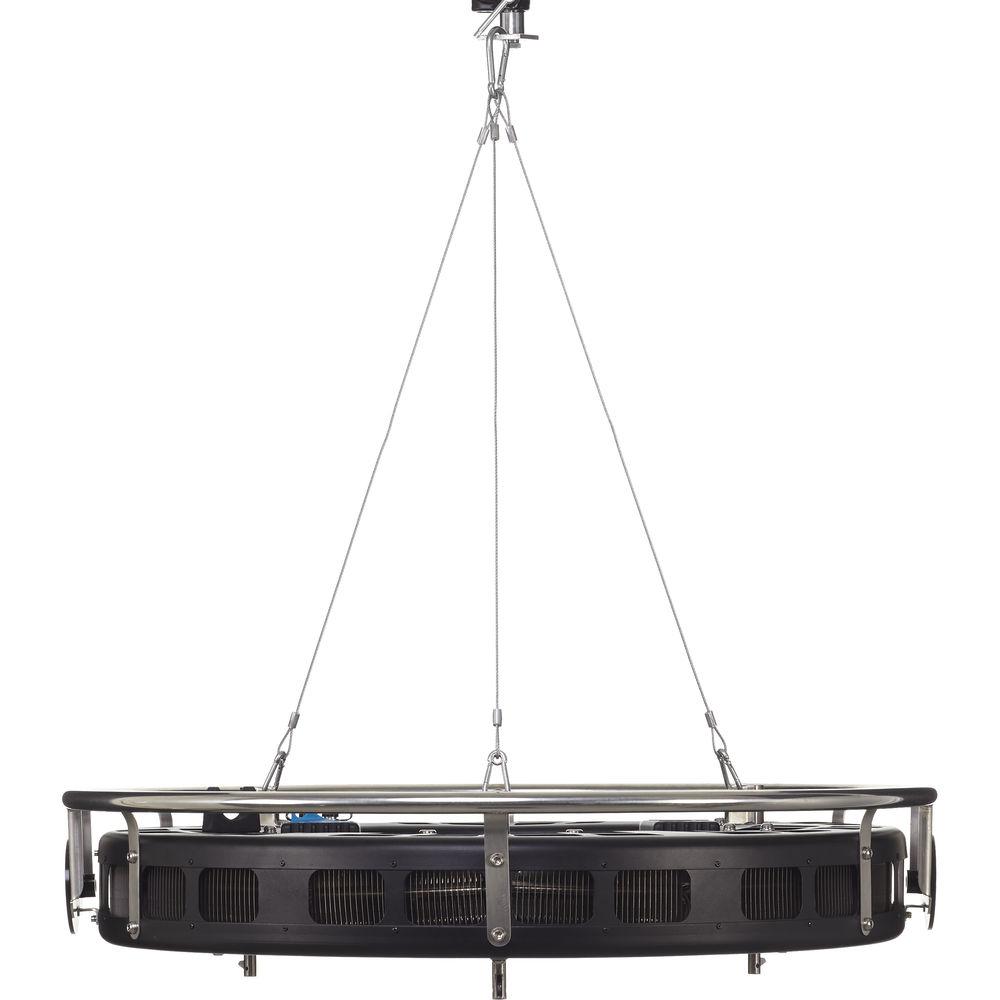

User Manual for Outsight 1200W Creamsource Sky Color Head Click to enlarge the picture
Contents of the user manual for the Outsight 1200W Creamsource Sky Color Head
- Product category: LED Lights Outsight
- Brand: Outsight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Outsight LED Lights
 |
User manual for the Outsight 1200W Creamsource Sky Color Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Outsight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Outsight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Outsight product will considerably shorten its lifespan!
|

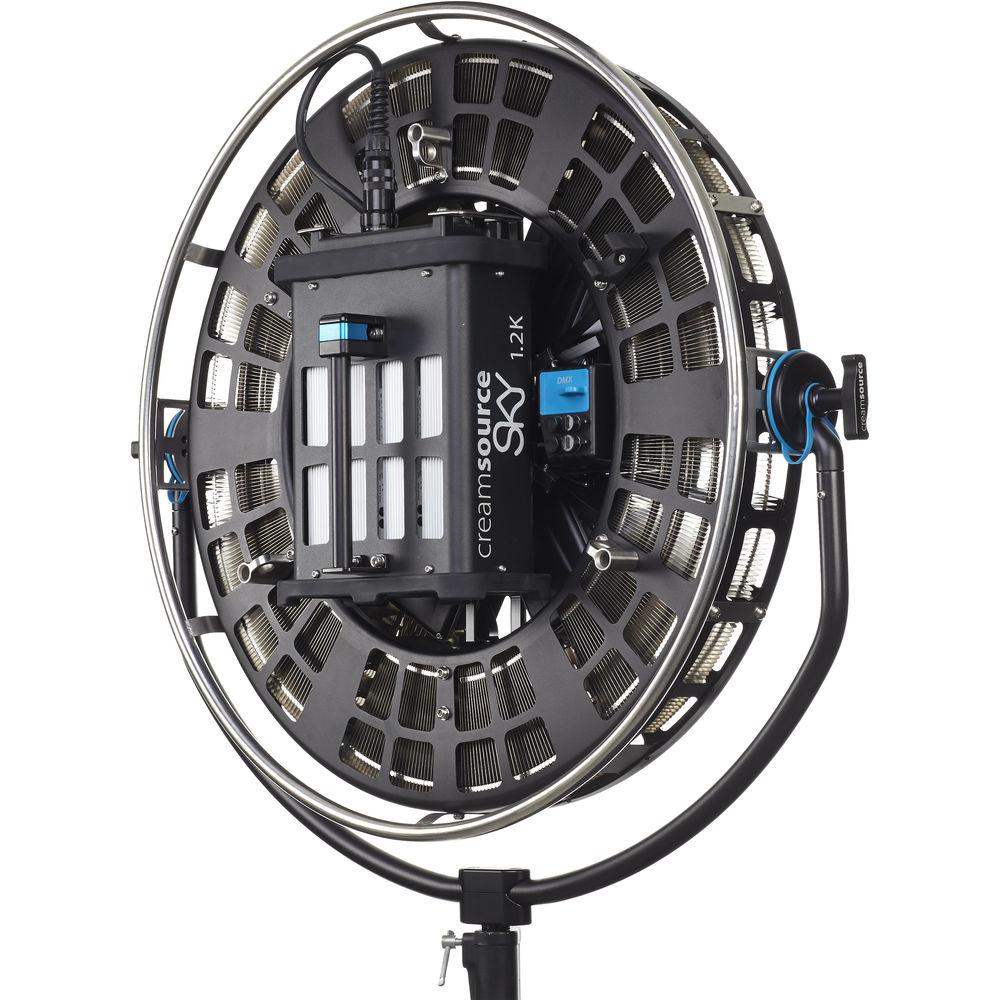

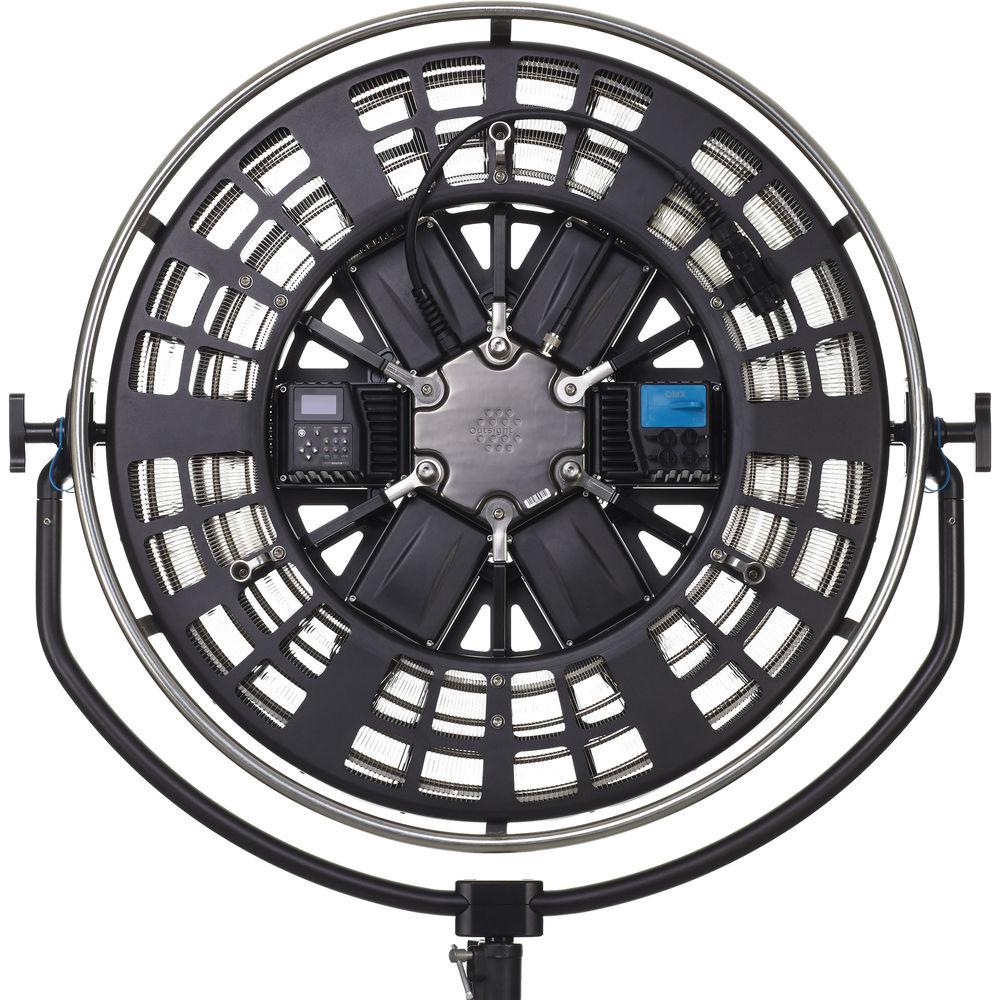

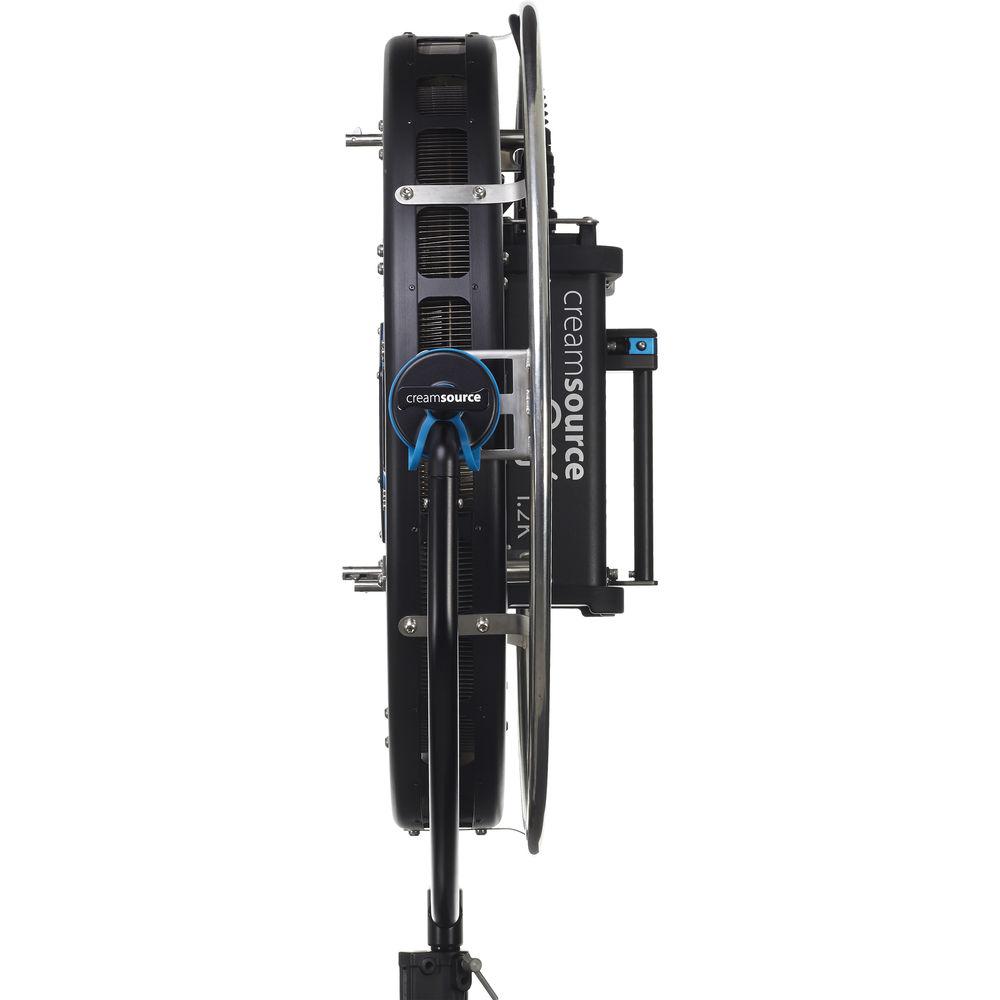

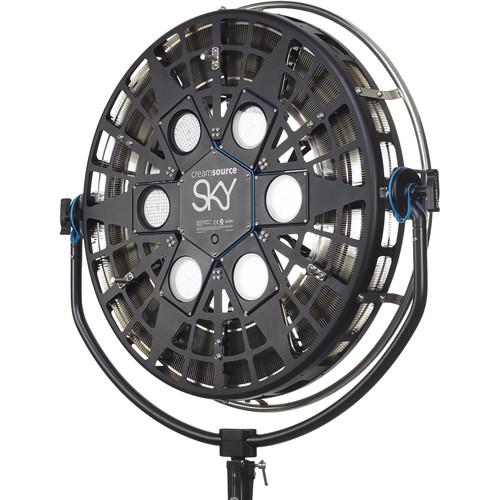

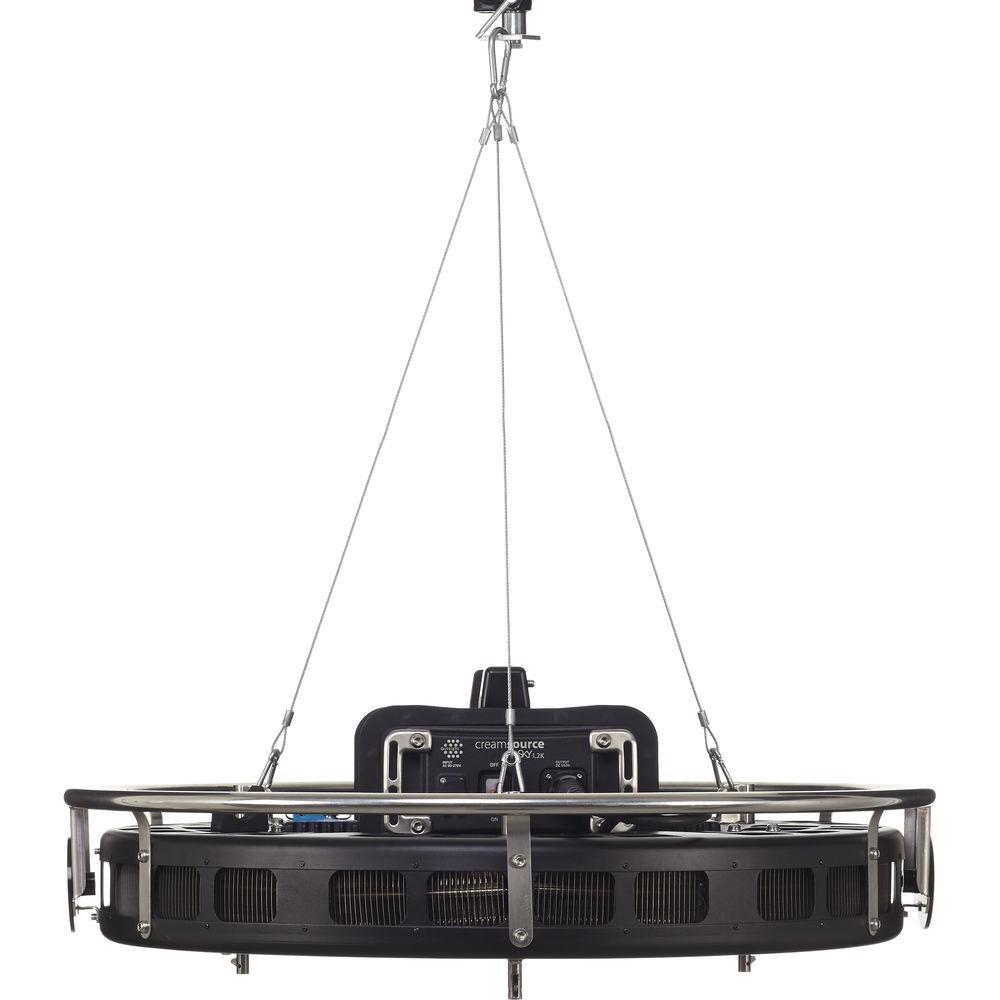

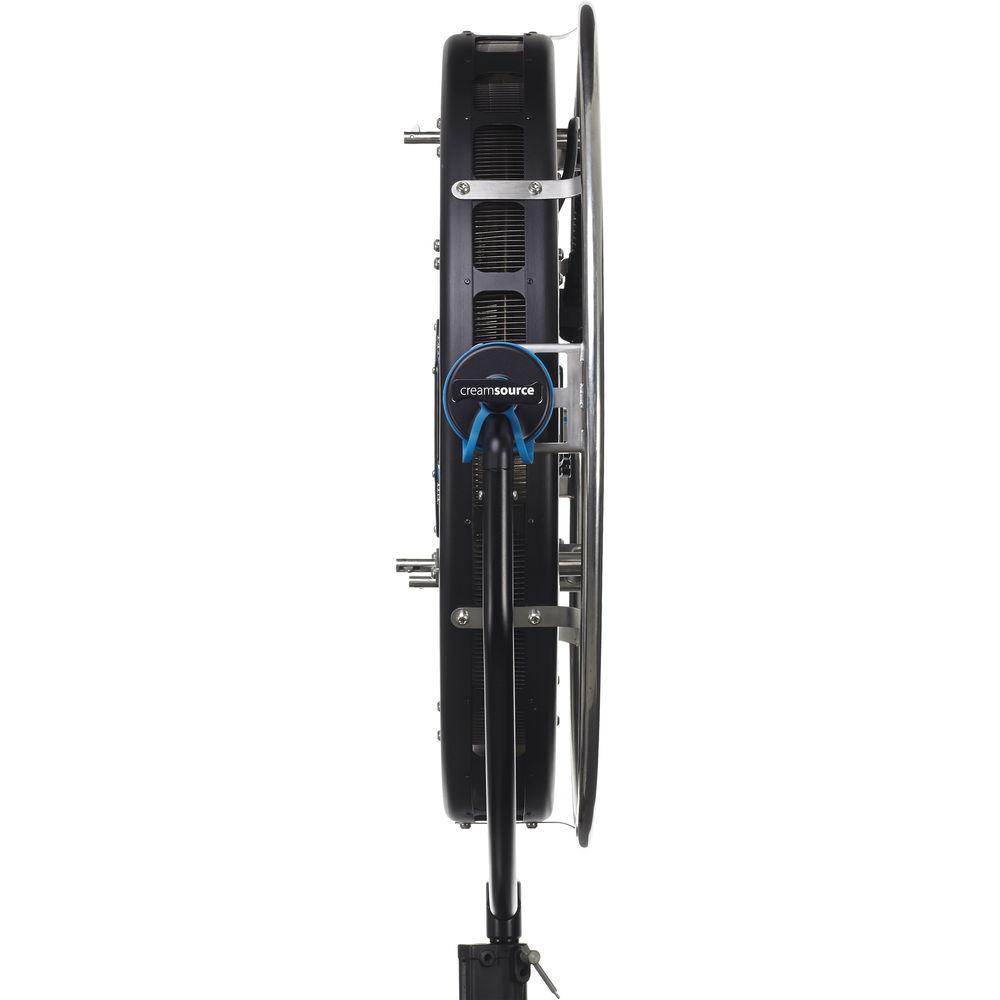

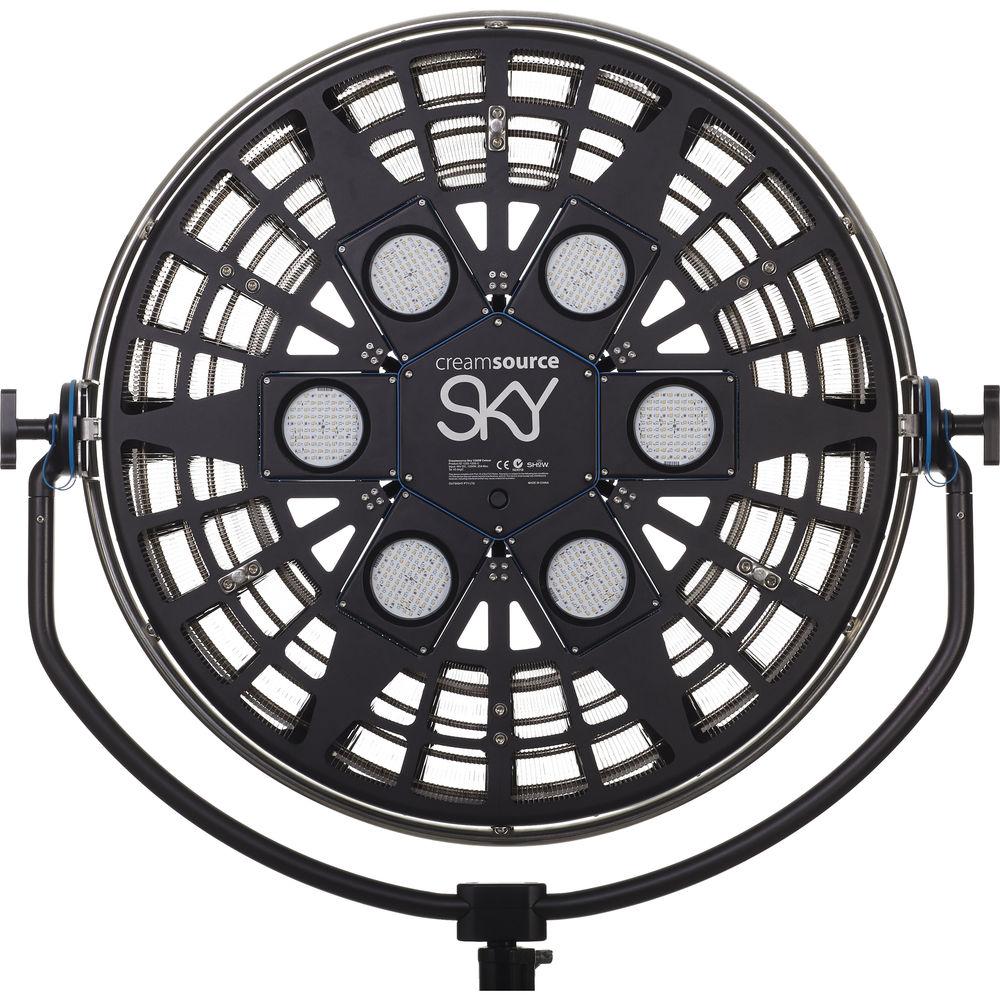

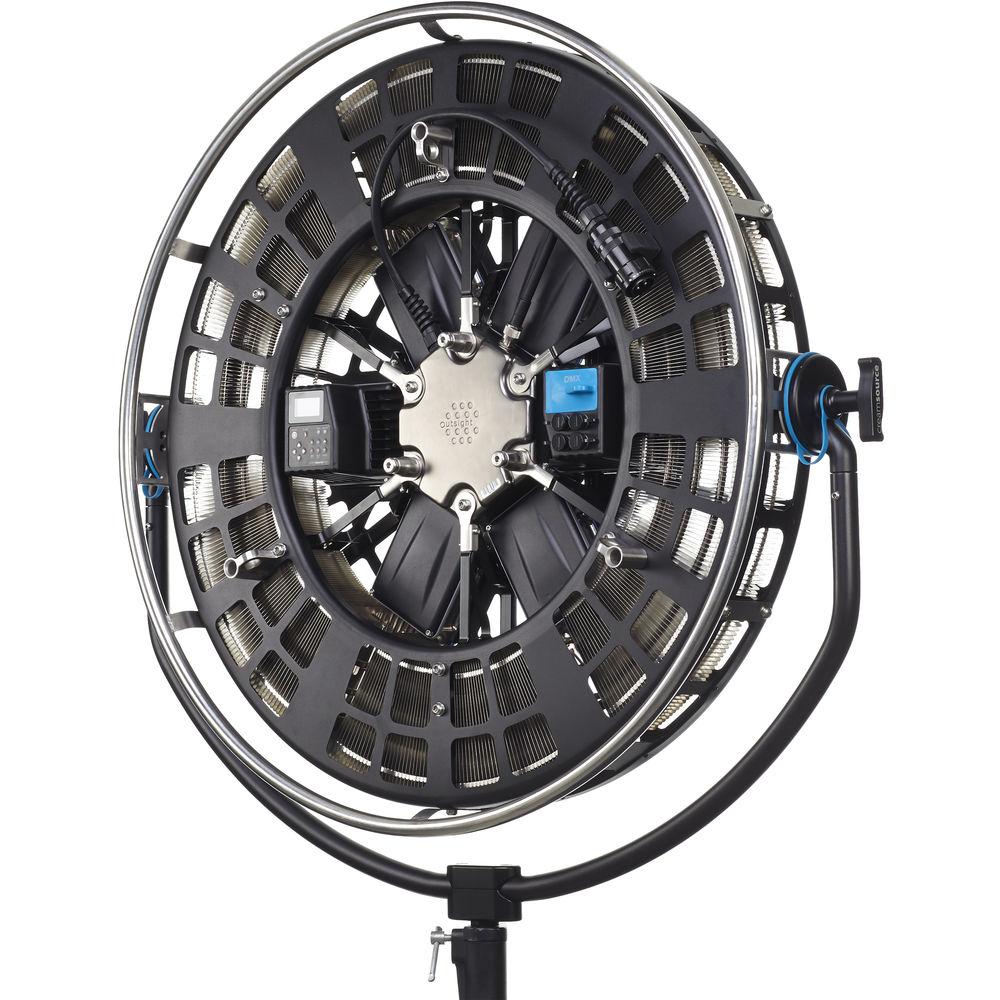

Product description Gear up for your next production with the Creamsource Sky from Outsight, a soft-light head covering the full color spectrum. Featuring a compact array of six LED engines, the Sky delivers a wide and even beam and boasts a luminous flux equivalent to that of a 5K tungsten fixture, but on a power draw of only 1200W. Color temperature is continuously adjustable from 2200 to 15,000K, with a typical CRI rating of 95 within the 3200 to 6500K range. The fixture's flexible color management system includes hue and saturation settings as well as direct RGBAW capability and full green/magenta axis control, enabling real-time dialing-in of any color and intensity.
Water-resistant and IP65-rated, the Sky is ideal for lighting scenes not only in the studio but also in the field. For further versatility, the Sky is DMX-compatible via its standard 5-pin XLR connectors, and is also equipped with built-in SHoWDMX, allowing for full wireless DMX control. A standard yoke is included for mounting the Sky on a stand. - Silent heatpipe cooling system
- Rear-mounted keypad and OLED display for onboard control
- Smooth dimming from 0-100%
- Over 1000 fps flicker-free in high-speed mode
- Accepts industry-standard diffusion skirts (available separately)
UPC: 686696588604 In the Box Outsight 1200W Creamsource Sky Color Head Standard Yoke for Mounting on Stand 6.6' Power Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Outsight 1200W Creamsource Sky Color Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOutsight Sky Specs | Material | Aluminum | | Light Source | 6x LED engines | | Color Range | 2200-15,000K | | CRI | Within 3200-6500K Range: Minimum 90, typical 95 | | TLCI | Within 3200-6500K Range: Minimum 90, typical 95 | | Beam Angle | 115° | | Photometrics | 3200K:
4727 lux @ 6.6' (2 m)
1253 lux @ 13.1' (4 m)
555 lux @ 19.69' (6 m)
308 lux @ 26.25' (8 m)
199 lux @ 32.8' (10 m)
5600K:
5031 lux @ 6.6' (2 m)
1333 lux @ 13.1' (4 m)
591 lux @ 19.69' (6 m)
328 lux @ 26.25' (8 m)
212 lux @ 32.8' (10 m) | | Mounting | 28 mm TV spigot | | Yoke | Removable | | User Interface | Rear-mounted on-board control keypad and OLED display | | Control | On-board interface, DMX via standard 5-pin XLR connectors, SHoWDMX wireless DMX built-in, wired remote control (available separately) | | Dimming | 0-100%, continuous | | Capability | Over 1000 fps flicker-free in high-speed mode | | Ambient Temperature | Max: 104°F (40°C) | | Cooling | Passive (silent) | | Lifespan | LED: 50,000 hours, estimated (L70) | | Power Input | Fixture: 48 VDC, max 25 A, 1200 W | | Operating Voltage | 90-260 VAC, 50/60 Hz, max 14 A | | IP Rating | IP65 | | Dimensions | 37 x 8" (94 x 20 cm) | | Weight | 50 lb (23 kg) | | | | Package Weight | 85.54 lb | | Box Dimensions (LxWxH) | 46.0 x 45.5 x 10.0" |
