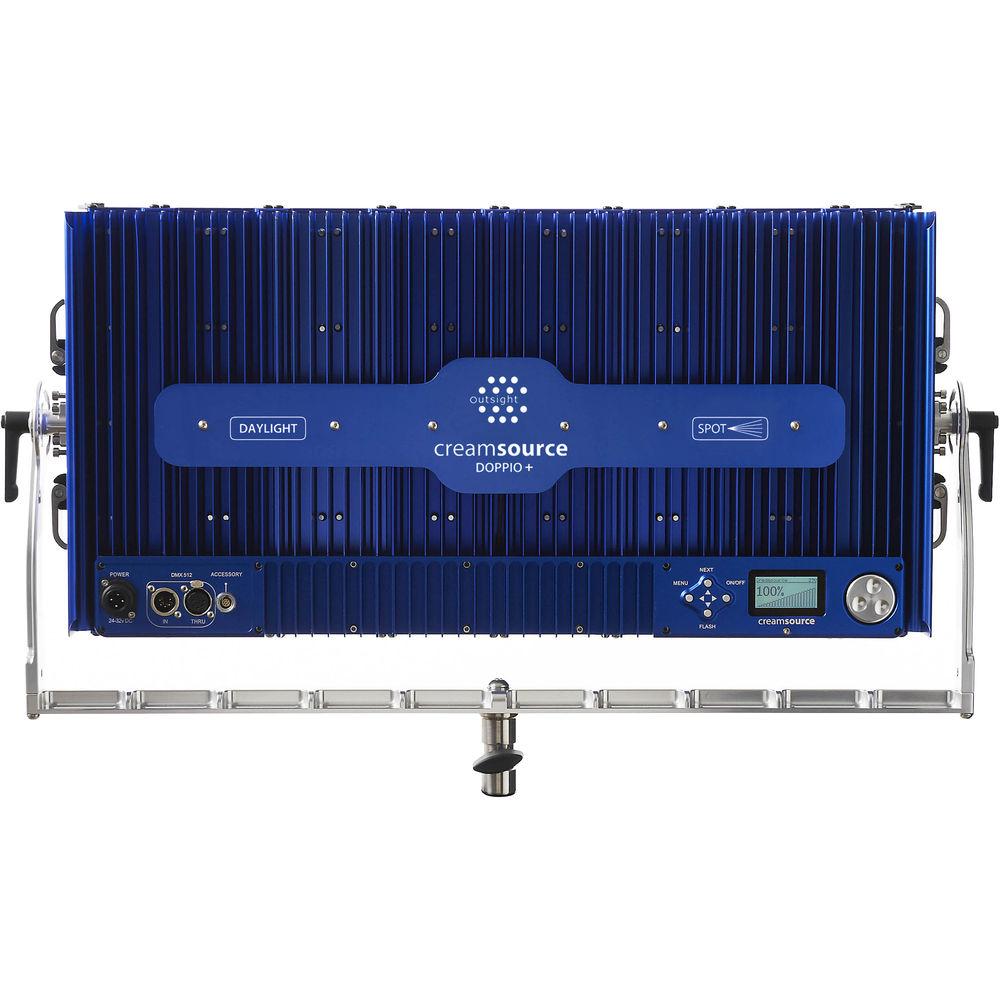

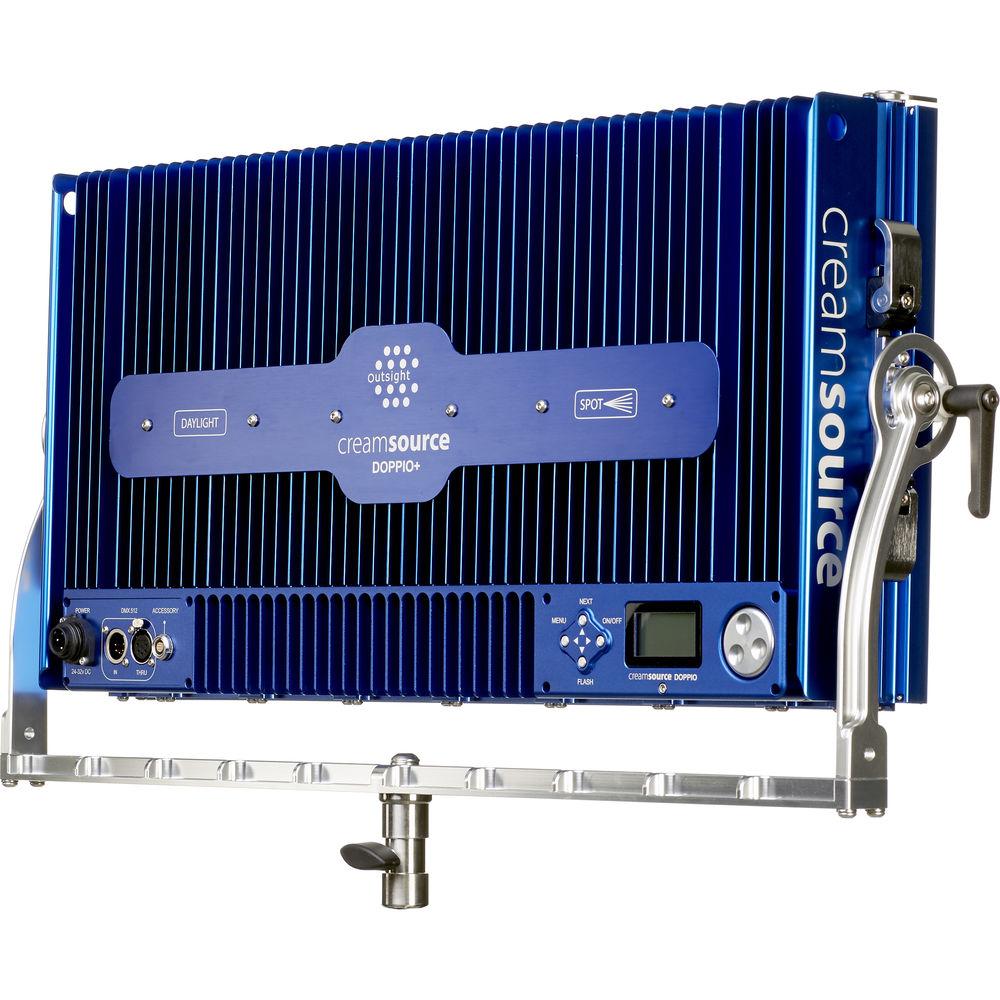

Product description Produce brilliant shots with help of the 360W Creamsource Doppio+ from Outsight, a compact Bender Bi-Color LED panel that delivers solid, flicker-free performance even at frame rates of over 1000 fps under normal circumstances. With a double-density array of 140 high-power LEDs projecting from a large output area, the Doppio attractively wraps your subjects in light, with a CRI/TLCI of 95 and an intensity that rivals that of a small HMI fixture, but on a power draw of only 360W. The Doppio's precision controls include smooth full-range dimming via the built-in dimmer or via the Creamsource remote (available separately), repeatable settings, and lightning, strobe & flash effects.
The Doppio is DMX-compatible, allowing you to control it from your lighting console without need for an external dimmer. Alternatively, the XLR connections can be used for linking several units in master/slave configuration if you want to run them in unison without any DMX programming. The LED panel uses a passive cooling system for silent operation.

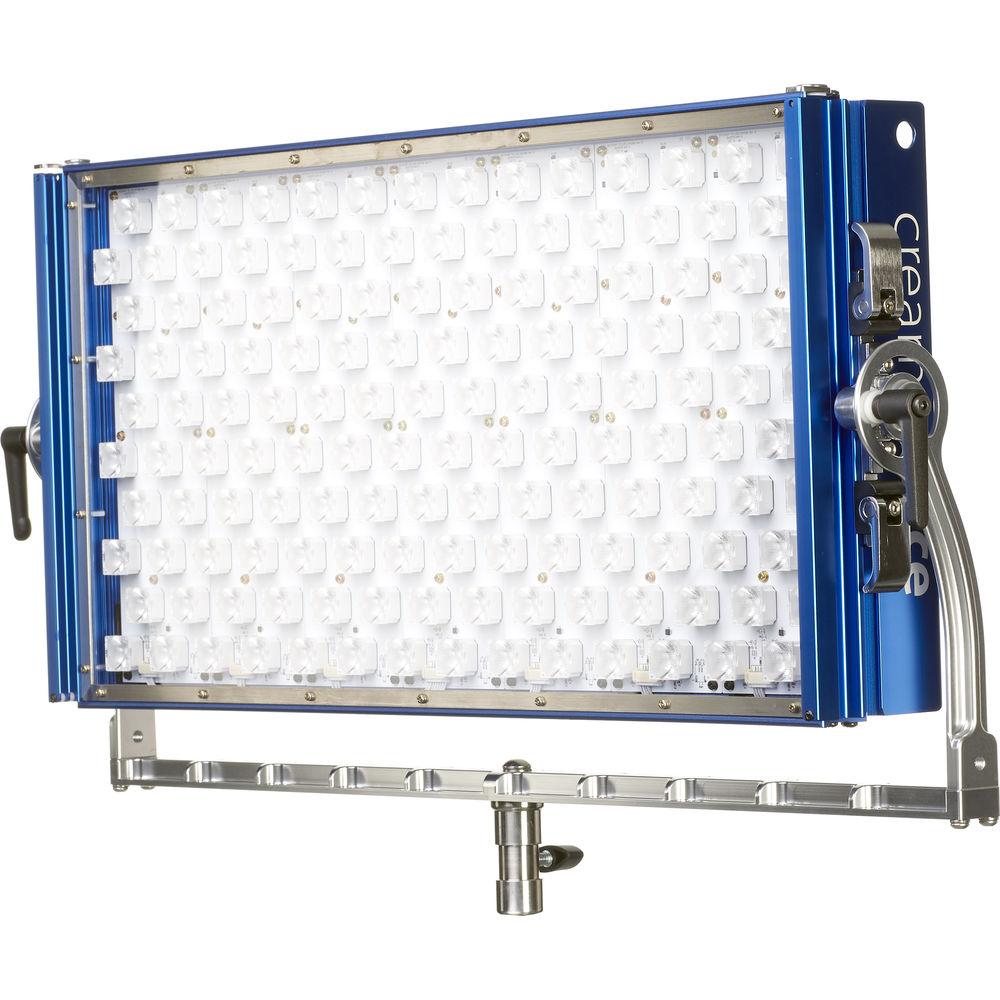

The Doppio's LEDs come fitted with 15° spot lenses, which make for a punchy and consistent beam that travels far, rolls off smoothly, and is free of hot spots. In situations in which you may want to widen the beam, the included 30° high-transmission laser-etched polycarbonate holographic lens can be easily dropped in front of your spot fixture to spread it to a flood. A wide selection of light-control tools is available to format the beam to attain the exact look you require.
Another special feature of the Doppio is that it enables you to control its built-in strobe, lightning, and timed flash effects from your camera via the fixture's accessory socket and the FlashBandit sync box (available separately). The use of this technology rules out flash banding even when shooting with CMOS or other rolling-shutter cameras, which are prone to exhibiting such issues.

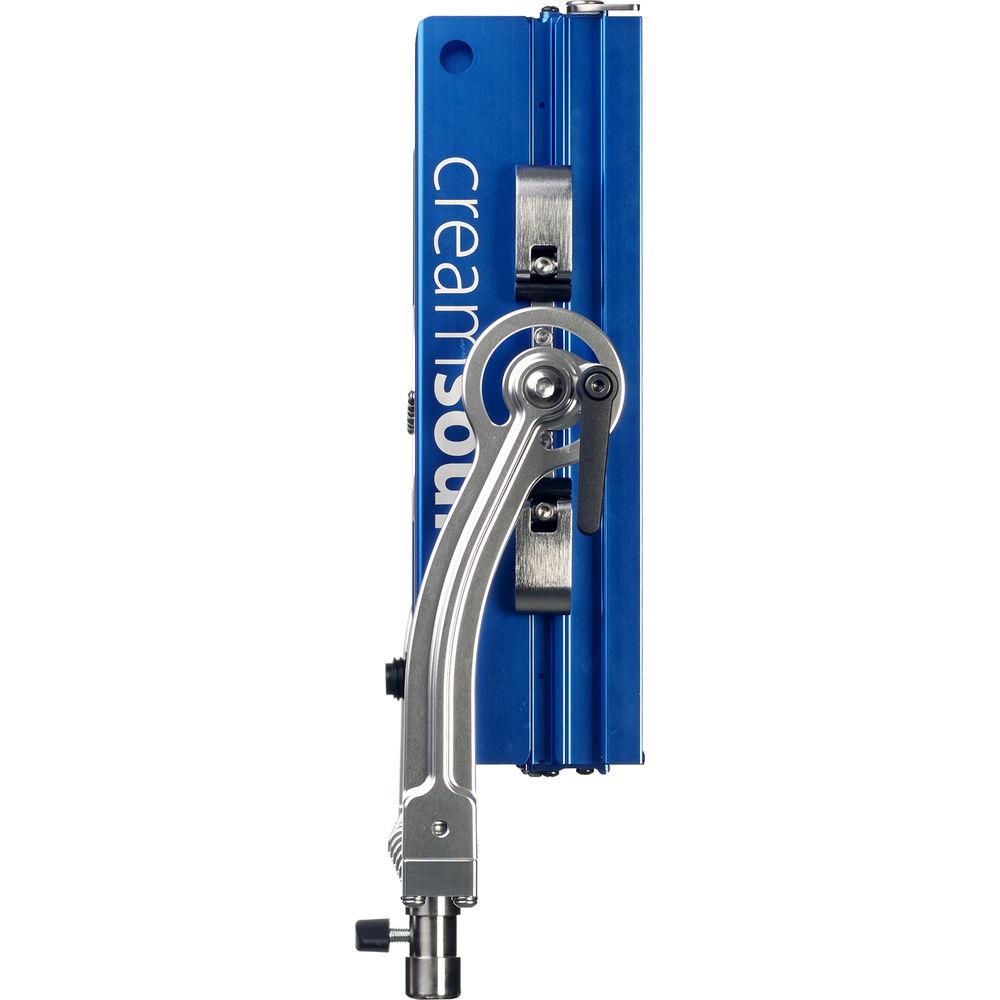

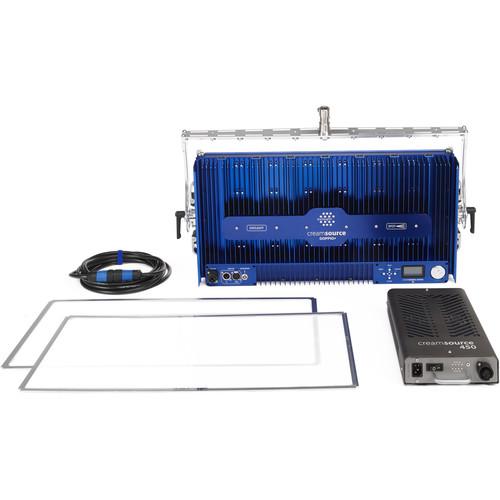

In addition to the holographic lens, the LED panel comes with a standard yoke for stand mounting, a 450W power supply, a 16' power lead, a gel frame, and an IEC power cable. UPC: 686696588024 In the Box Outsight Creamsource Doppio+ Bender Bi-Color 1x2 LED Panel Standard Yoke Holographic Lens for Creamsource LED Light (Medium Angle) 450W Power Supply for Creamsource Doppio LED Lights Creamsource Power Supply Lead (16') Gel Frame for Creamsource Doppio LED Light IEC Power Cable (US) Limited 3-Year Warranty on Fixture Limited 1-Year Warranty on Accessories Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Outsight Creamsource Doppio Bender Bi-Color 1x2 LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOutsight Doppio Specs | | | Beam Angle | 15° | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 95
TLCI 90 | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Number of LEDs | 140 | | Expected Lamp Life | 50,000 Hours (L70) | | Fixture Dimensions | 30.0 x 18.0 x 4.0" / 77.0 x 45.5 x 10.0 cm (Including Yoke)
26.5 x 13.5 x 4.0" / 65.4 x 33.2 x 10.0 cm | | Fixture Weight | 20.7 lb / 9.4 kg (Including Yoke) | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Wired Remote | | | | AC Input Power | 90 to 260 VAC, 50 / 60 Hz at 2.0 A | | DC Input Power | 24 to 32 VDC at 14.6 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 360 W | | | | IP Rating | IP20 | | Operating Temperature | 104°F / 40°C | | | | Package Weight | 40.0 lb | | Box Dimensions (LxWxH) | 31.5 x 20.0 x 9.0" |
