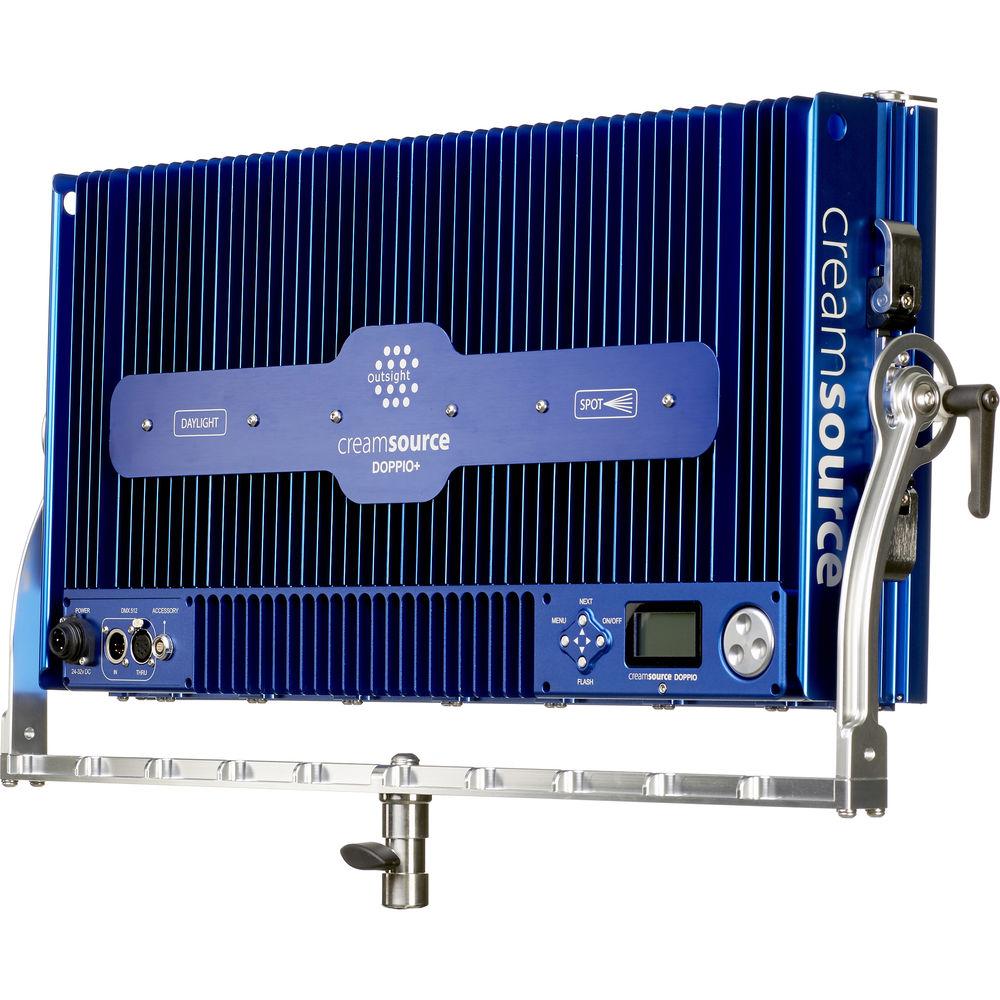

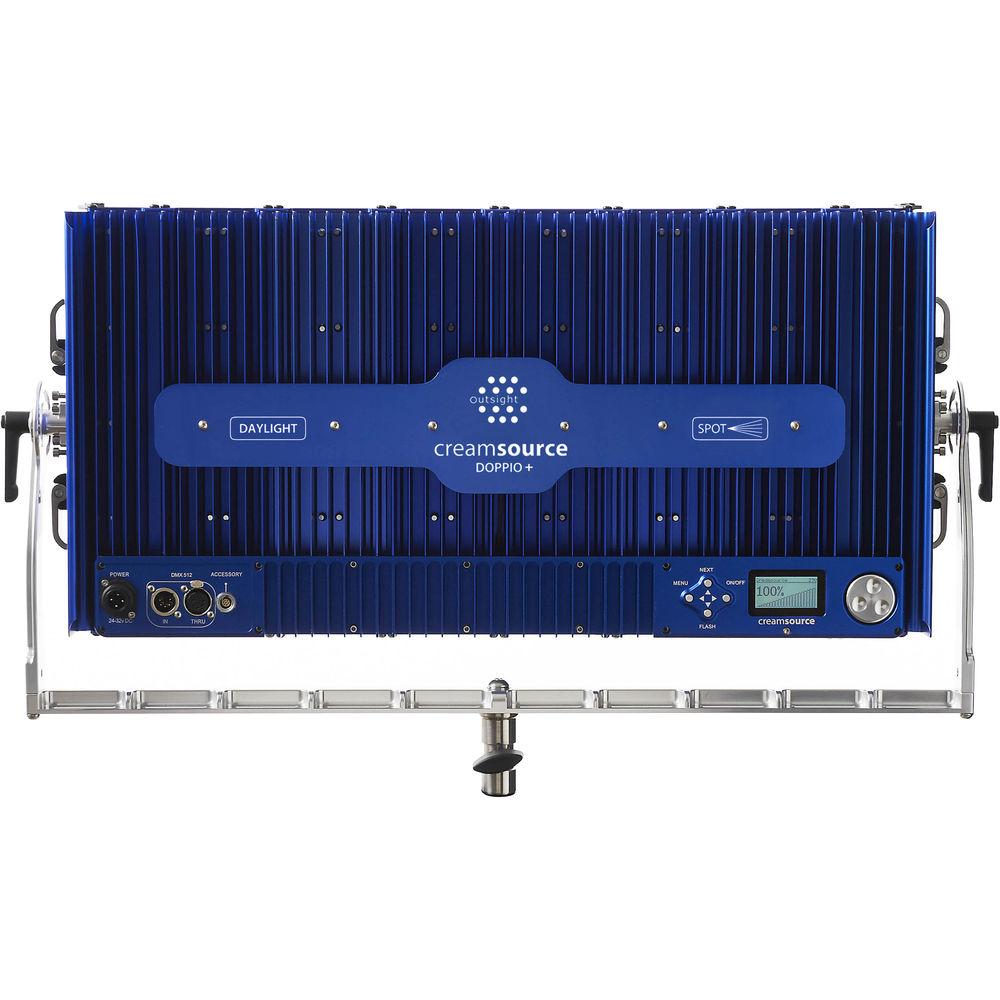

Product description Produce brilliant shots with help of the 360W Creamsource Doppio+ Daylight Gaffer Kit from Outsight. The Gaffer Kit includes a Doppio daylight (5600K) 1 x 2 panel and the following light-control tools: 30° and 60° laser-etched polycarbonate holographic lenses, a softbox, and a snap grid.

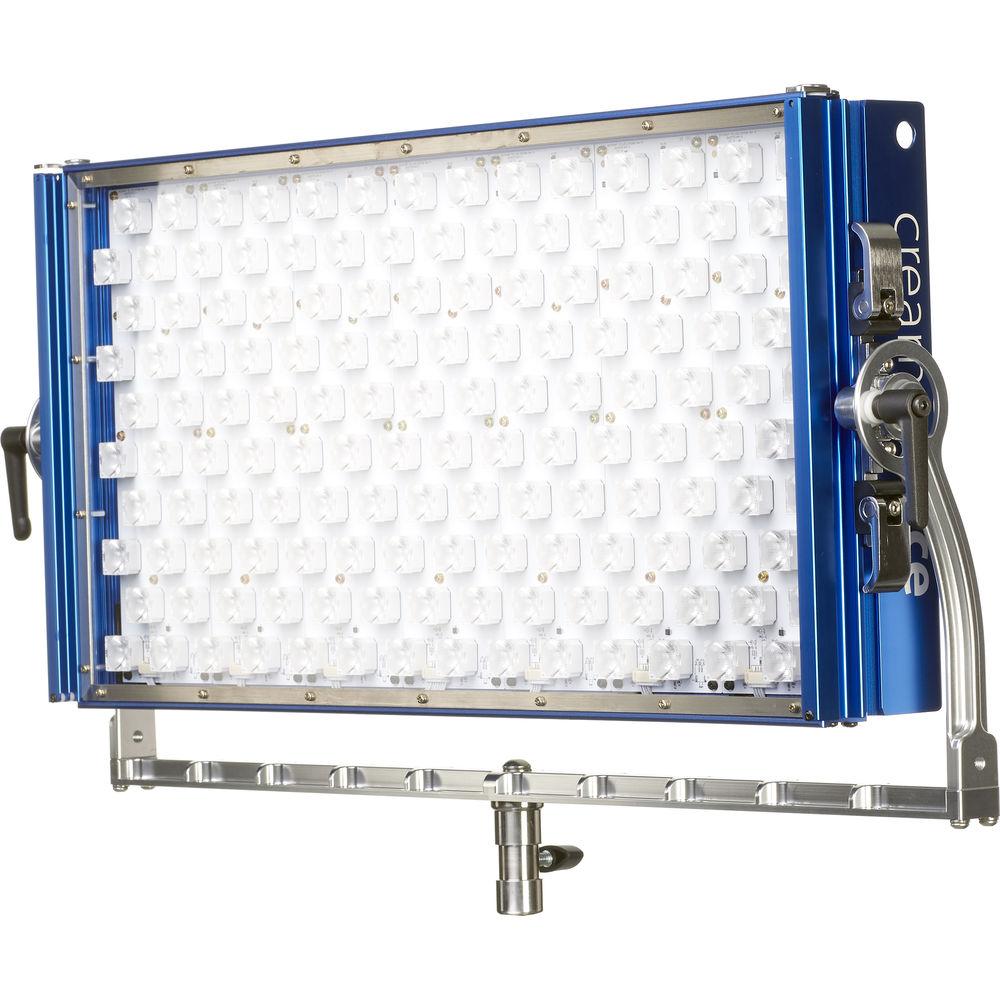

The Creamsource Doppio is a compact LED panel that delivers solid, flicker-free performance even at frame rates of over 100,000 fps when run at full power. With a double-density array of 140 high-power LEDs projecting from a large output area, the Doppio attractively wraps your subjects in light, with a CRI/TLCI of 95 and an intensity that rivals that of a small HMI fixture, but on a power draw of only 360W.

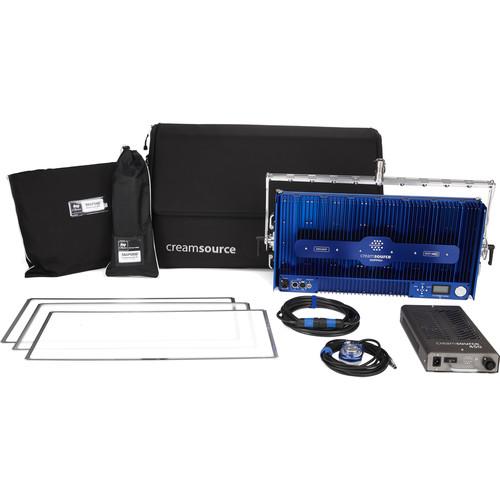

Use the kit's light-control tools to format the Doppio's beam to accommodate a variety of situations. The 30° and 60° holographic lenses spread the beam from spot to flood or wide flood. The Snapbag softens the light, and the snap grid tightens the beam pattern. Also included in the Gaffer Kit are a soft case and a Creamtwist wired remote, as well as a standard yoke for stand mounting, a 450W power supply, a 16' power lead, a gel frame, and an IEC power cable. - Creamsource Doppio+ Daylight 1x2 LED Panel Produce brilliant shots with help of the 360W Creamsource Doppio+ from Outsight, a compact daylight LED panel that delivers solid, flicker-free performance even at frame rates of over 100,000 fps when run at full power. With a double-density array of 140 high-power LEDs projecting from a large output area, the Doppio attractively wraps your subjects in light, with a CRI/TLCI of 95 and an intensity that rivals that of a small HMI fixture, but on a power draw of only 360W. The Doppio's precision controls include smooth full-range dimming via the built-in dimmer or via the Creamsource remote (available separately), repeatable settings, and lightning, strobe & flash effects.
The Doppio is DMX-compatible, allowing you to control it from your lighting console without need for an external dimmer. Alternatively, the XLR connections can be used for linking several units in master/slave configuration if you want to run them in unison without any DMX programming. The LED panel uses a passive cooling system for silent operation.
The Doppio's LEDs come fitted with 15° spot lenses, which make for a punchy and consistent beam that travels far, rolls off smoothly, and is free of hot spots. In situations in which you may want to widen the beam, the included 30° high-transmission laser-etched polycarbonate holographic lens can be easily dropped in front of your spot fixture to spread it to a flood. A wide selection of light-control tools is available to format the beam to attain the exact look you require.
Another special feature of the Doppio is that it enables you to control its built-in strobe, lightning, and timed flash effects from your camera via the fixture's accessory socket and the FlashBandit sync box (available separately). The use of this technology rules out flash banding even when shooting with CMOS or other rolling-shutter cameras, which are prone to exhibiting such issues.

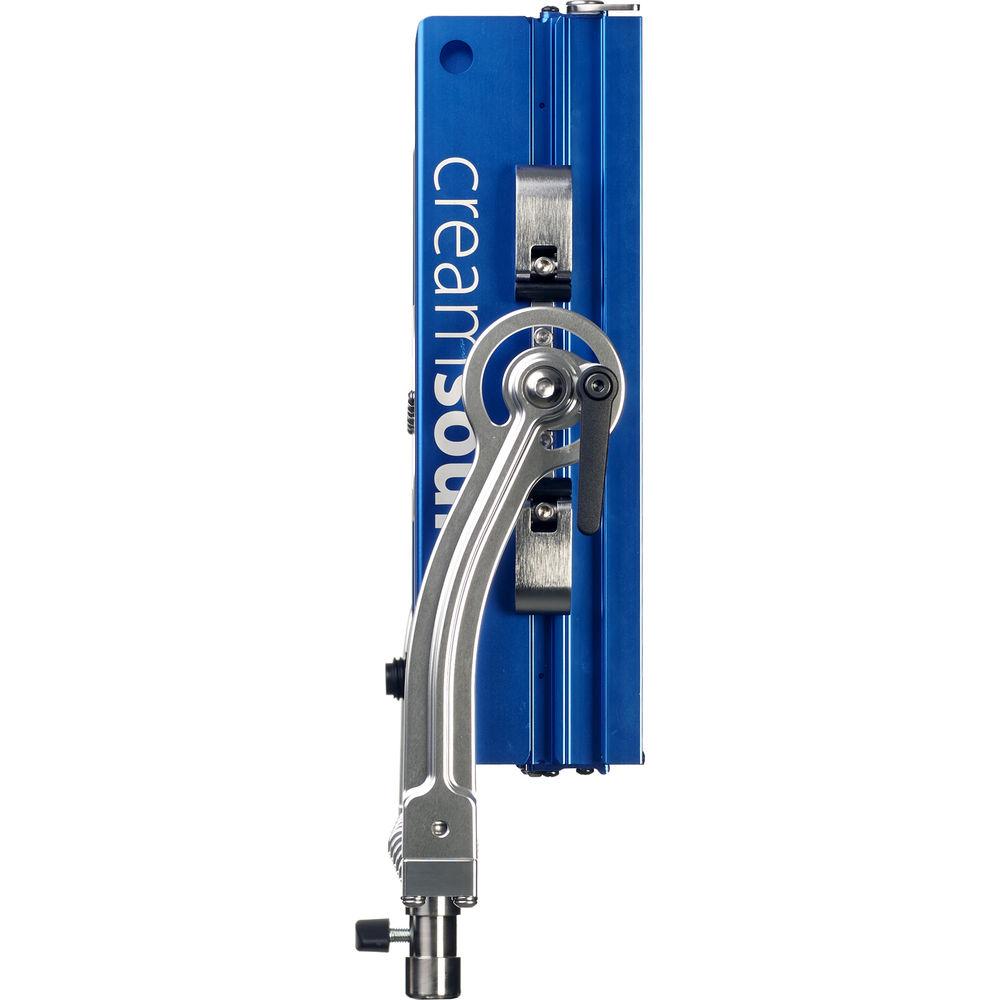

In addition to the holographic lens, the LED panel comes with a standard yoke for stand mounting, a 450W power supply, a 16' power lead, a gel frame, and an IEC power cable. UPC: 686696588017 - Softcase for Creamsource LED Light System Store and protect one Doppio light or two mini lights in this Softcase for Creamsource LED Light System from Outsight. This softcase features a large internal compartment for your equipment and smaller internal pockets for accessories like gel frames, lenses, a power supply, remote, barndoors, or a snapbag/snapgrid. The reinforced zippered lid keeps your contents secure when not in use and allows for easy access when retrieving your equipment. Side handles and a shoulder strap provide comfortable carrying methods for long or short hauls. Its lightweight internal plastic shell and durable nylon material will withstand harsh transportation conditions. UPC: 686696588161
- DoPchoice Snapbag for Creamsource Doppio LED Light DoPchoice Snapbag for Creamsource Doppio LED Light from Outsight snaps on the fixture in seconds instead of using tedious speedrings and creates a 35.4 x 23.6" soft light source that still retains a quality of crispness. One-piece construction guarantees a tight fit with no sagging when hung overhead. UPC: 686696588178
- DoPchoice Snap Grid 40° for Creamsource Doppio LED Light DoPchoice Snap Grid for Creamsource Doppio LED Light from Outsight snaps on the softbox in seconds and tunnels the light forward, tightening the beam pattern and controlling spill light. A tight fit ensures that there is no sagging when hung overhead. UPC: 686696588185
- Creamtwist Wired Remote for Creamsource Doppio & Mini Doppio LED Panels Run the show at your ease with the Creamtwist Wired Remote for Creamsource Doppio & Mini Doppio from Outsight, which puts fast and precise control of your LED panels' brightness and color temperature at your fingertips. Featuring two independent channels, this Wired Remote can control up to two single panels, or up to two daisy chains of panels linked via DMX cables. The device is encased in aircraft-grade aluminum, with all-metal buttons and an optical encoder. Versatile and convenient, it is equipped with a 1/4" mounting thread, as well as rubber feet for stable tabletop use. The built-in rubber-cased cable is 16', and its reach can be boosted to up to 180' with dedicated extension cables (available separately). UPC: 686696588499
- Holographic Lens for Creamsource LED Light (Wide Angle) This wide angle 60° Holographic Lens for Creamsource LED Light from Outsight is a laser etched polycarbonate accessory that will change the beam angle of the fixture. It will turn a native spot fixture into a wide flood and a native flood fixture into an ultra-wide flood. UPC: 686696588154
In the Box Bundle Items Creamsource Doppio+ Daylight 1x2 LED Panel wybvszydcssfs - Holographic Lens for Creamsource LED Light (Medium Angle)
- 450W Power Supply for Creamsource Doppio LED Lights
- Creamsource Power Supply Lead (16')
- Gel Frame for Creamsource Doppio LED Light
- Limited 3-Year Warranty on Fixture
- Limited 1-Year Warranty on Accessories
Softcase for Creamsource LED Light System wybvszydcssfs DoPchoice Snapbag for Creamsource Doppio LED Light DoPchoice Snap Grid 40° for Creamsource Doppio LED Light Creamtwist Wired Remote for Creamsource Doppio & Mini Doppio LED Panels Holographic Lens for Creamsource LED Light (Wide Angle) Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Outsight Creamsource Doppio Daylight 1 x 2 LED Panel Gaffer Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Creamsource Doppio+ Daylight 1x2 LED Panel
| | | Beam Angle | 15° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95
TLCI 90 | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Number of LEDs | 140 | | Expected Lamp Life | 50,000 Hours (L70) | | Fixture Dimensions | 30.0 x 18.0 x 4.0" / 77.0 x 45.5 x 10.0 cm (Including Yoke)
26.5 x 13.5 x 4.0" / 65.4 x 33.2 x 10.0 cm | | Fixture Weight | 20.7 lb / 9.4 kg (Including Yoke) | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Wired Remote | | | | AC Input Power | 90 to 260 VAC, 50 / 60 Hz at 2.0 A | | DC Input Power | 24 to 32 VDC at 14.6 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 360 W | | | | IP Rating | IP20 | | Operating Temperature | 104°F / 40°C | | | | Box Dimensions (LxWxH) | 31.1 x 19.29 x 8.86" | - Softcase for Creamsource LED Light System
| | | Closure Type | Hook-and-Loop Fastener, Zipper | | Carry and Transport Options | Handle
Shoulder Strap | | Material of Construction | Nylon, Plastic | | Exterior Dimensions (W x H x D) | 33.1 x 9.8 x 18.9" / 84 x 25 x 48 cm | | Weight | 14.9 lb / 6.7 kg | | | | Box Dimensions (LxWxH) | 33.7 x 20.1 x 12.3" | - DoPchoice Snapbag for Creamsource Doppio LED Light
| Shape | Rectangular | | Interior | Silver | | Requires Speed Ring | No | | Accepts Grids | Yes | | Removable Front Face | No | | Removable Interior Baffle | No | | Rectangular Dimensions | W: 35.4 x H: 23.6" / W: 90.0 x H: 60.0 cm | | Weight | 1.72 lb / 0.78 kg | | | | Box Dimensions (LxWxH) | 29.0 x 21.0 x 1.0" | - DoPchoice Snap Grid 40° for Creamsource Doppio LED Light
| Size | 15.35 x 5.12 x 3.15 (390 x 130 x 80 mm) | | Compatibility | Creamsource Doppio | | Beam Angle | 40° | | Requires Speed Ring | No | | Weight | 1.41 lb (0.64 kg) | | | | Box Dimensions (LxWxH) | 14.0 x 11.0 x 5.0" | - Creamtwist Wired Remote for Creamsource Doppio & Mini Doppio LED Panels
| Compatibility | Creamsource Doppio & Mini Doppio series | | Number of Channels | 2 | | Material | Remote: Aluminum
Cable Casing: Rubber | | Display | LED | | Cable Length | 16' (5 m) | | Mounting Thread | 1/4" | | Dimensions | 3.4 x 2.4 x 1.4" (8.5 x 6.0 x 3.5 cm) | | Weight | 1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 8.7 x 7.0 x 2.0" | - Holographic Lens for Creamsource LED Light (Wide Angle)
| | | Box Dimensions (LxWxH) | 28.8 x 14.6 x 0.3" |
