Product description

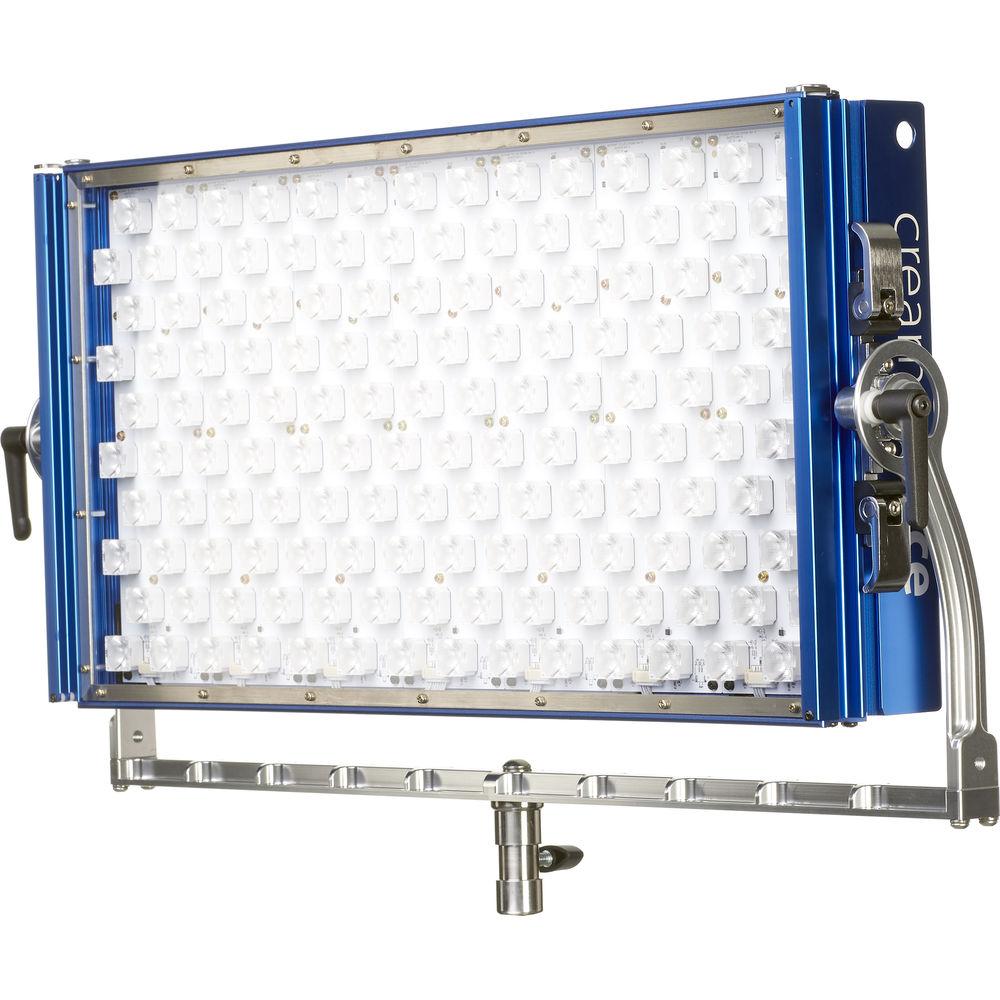

• Creamsource Doppio+ Tungsten 1x2 LED Panel Produce brilliant shots with help of the 360W Creamsource Doppio+ from Outsight, a compact tungsten LED panel that delivers solid, flicker-free performance even at frame rates of over 100,000 fps when run at full power. With a double-density array of 140 high-power LEDs projecting from a large output area, the Doppio attractively wraps your subjects in light, with a CRI of 95 and an intensity that rivals that of a small HMI fixture, but on a power draw of only 360W. The Doppio's precision controls include smooth full-range dimming via the built-in dimmer or via the Creamsource remote (available separately), repeatable settings, and lightning, strobe & flash effects.

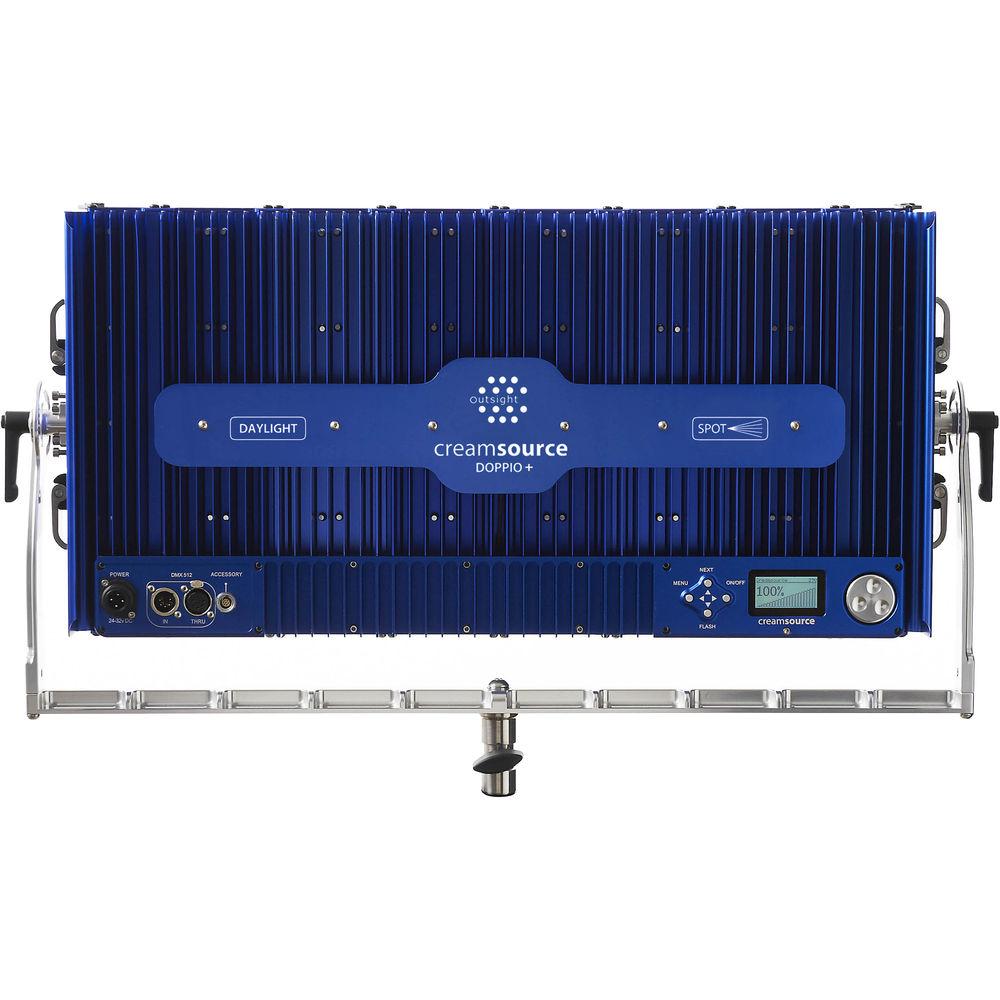

  The Doppio is DMX-compatible, allowing you to control it from your lighting console without need for an external dimmer. Alternatively, the XLR connections can be used for linking several units in master/slave configuration if you want to run them in unison without any DMX programming. The LED panel uses a passive cooling system for silent operation.

  The Doppio's LEDs come fitted with 15° spot lenses, which make for a punchy and consistent beam that travels far, rolls off smoothly, and is free of hot spots. In situations in which you may want to widen the beam, the included 30° high-transmission laser-etched polycarbonate holographic lens can be easily dropped in front of your spot fixture to spread it to a flood. A wide selection of light-control tools is available to format the beam to attain the exact look you require.

  Another special feature of the Doppio is that it enables you to control its built-in strobe, lightning, and timed flash effects from your camera via the fixture's accessory socket and the FlashBandit sync box (available separately). The use of this technology rules out flash banding even when shooting with CMOS or other rolling-shutter cameras, which are prone to exhibiting such issues.

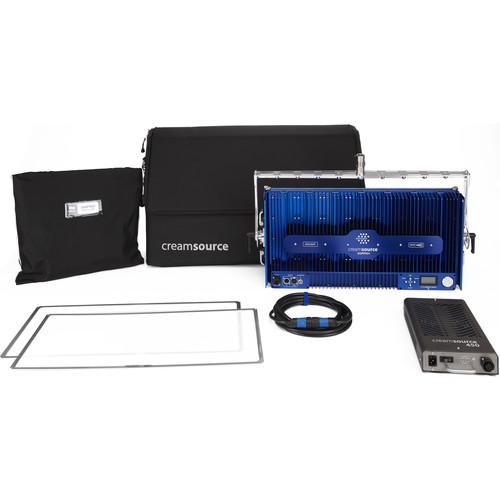

  In addition to the holographic lens, the LED panel comes with a standard yoke for stand mounting, a 450W power supply, a 16' power lead, a gel frame, and an IEC power cable. UPC: 686696588031
• Softcase for Creamsource LED Light System Store and protect one Doppio light or two mini lights in this Softcase for Creamsource LED Light System from Outsight. This softcase features a large internal compartment for your equipment and smaller internal pockets for accessories like gel frames, lenses, a power supply, remote, barndoors, or a snapbag/snapgrid. The reinforced zippered lid keeps your contents secure when not in use and allows for easy access when retrieving your equipment. Side handles and a shoulder strap provide comfortable carrying methods for long or short hauls. Its lightweight internal plastic shell and durable nylon material will withstand harsh transportation conditions. UPC: 686696588161
• DoPchoice Snapbag for Creamsource Doppio LED Light DoPchoice Snapbag for Creamsource Doppio LED Light from Outsight snaps on the fixture in seconds instead of using tedious speedrings and creates a 35.4 x 23.6" soft light source that still retains a quality of crispness. One-piece construction guarantees a tight fit with no sagging when hung overhead. UPC: 686696588178

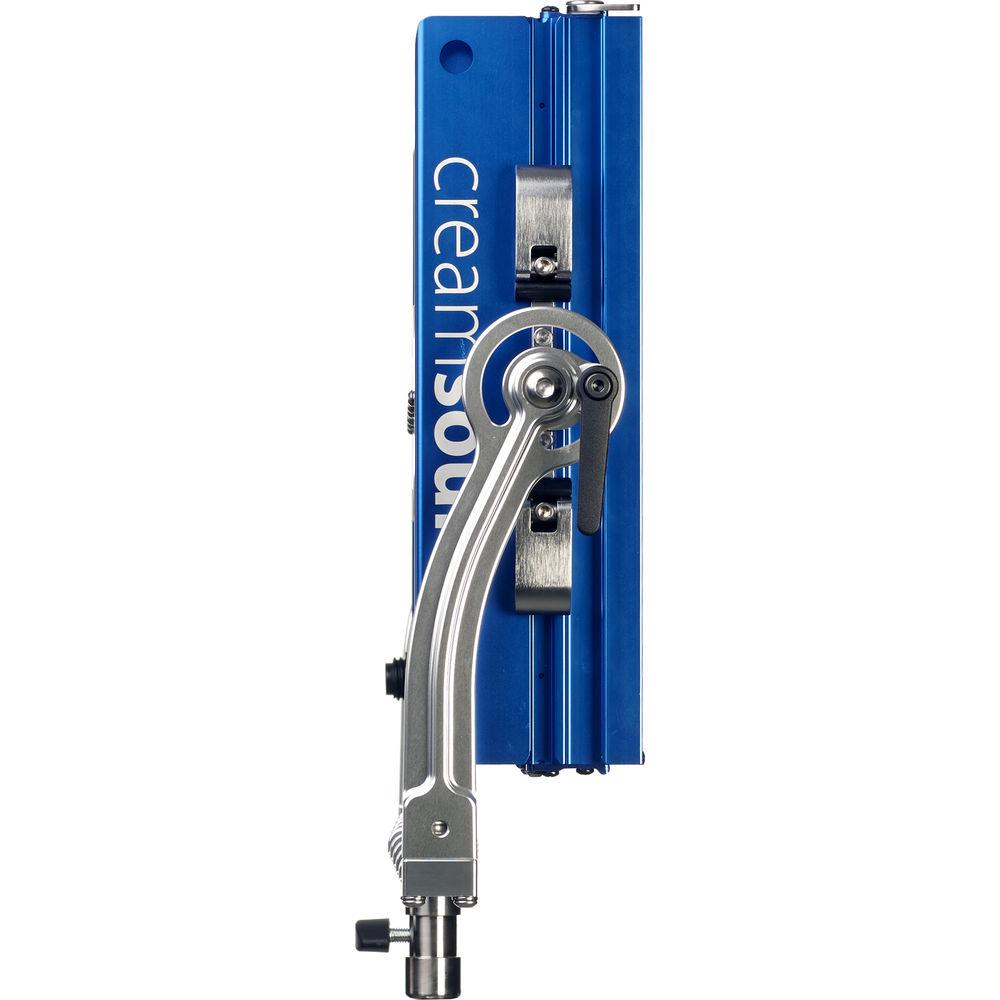

• Standard Yoke

• Holographic Lens for Creamsource LED Light (Medium Angle)

• 450W Power Supply for Creamsource Doppio LED Lights

• Creamsource Power Supply Lead (16')

• Gel Frame for Creamsource Doppio LED Light

• IEC Power Cable (US)

• Limited 3-Year Warranty on Fixture

• Limited 1-Year Warranty on Accessories

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Creamsource Doppio+ Tungsten 1x2 LED Panel

  Beam Angle	15°
  Color Temperature	3200K
  Color Accuracy Standard	CRI 95
  Cooling System	Fan/Passive Combo
  Dimming	Yes, 0 to 100% (Continuous)
  Display	LCD
  Housing Material	Aluminum
  Number of LEDs	140
  Expected Lamp Life	50,000 Hours (L70)
  Fixture Dimensions	30.0 x 18.0 x 4.0" / 77.0 x 45.5 x 10.0 cm (Including Yoke) 26.5 x 13.5 x 4.0" / 65.4 x 33.2 x 10.0 cm
  Fixture Weight	20.7 lb / 9.4 kg (Including Yoke)

  DMX Connector	5-Pin XLR

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX, Wired Remote

  AC Input Power	90 to 260 VAC, 50 / 60 Hz at 2.0 A
  DC Input Power	24 to 32 VDC at 14.6 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	360 W

  IP Rating	IP20
  Operating Temperature	104°F / 40°C

• Softcase for Creamsource LED Light System

  Closure Type	Hook-and-Loop Fastener, Zipper
  Carry and Transport Options	Handle Shoulder Strap
  Material of Construction	Nylon, Plastic
  Exterior Dimensions (W x H x D)	33.1 x 9.8 x 18.9" / 84 x 25 x 48 cm
  Weight	14.9 lb / 6.7 kg

  Box Dimensions (LxWxH)	33.7 x 20.1 x 12.3"

• DoPchoice Snapbag for Creamsource Doppio LED Light

  Shape	Rectangular
  Interior	Silver
  Requires Speed Ring	No
  Accepts Grids	Yes
  Removable Front Face	No
  Removable Interior Baffle	No
  Rectangular Dimensions	W: 35.4 x H: 23.6" / W: 90.0 x H: 60.0 cm
  Weight	1.72 lb / 0.78 kg

  Box Dimensions (LxWxH)	29.0 x 21.0 x 1.0"
