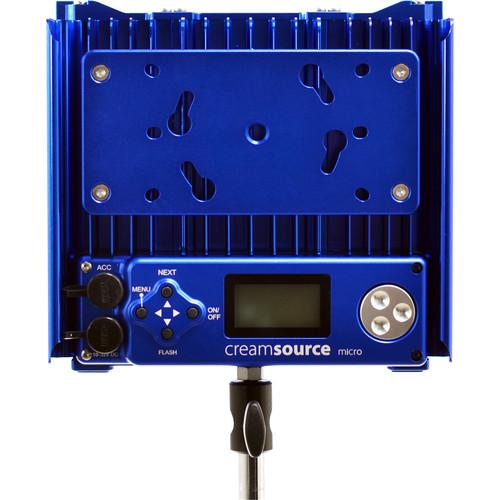

User Manual for Outsight Creamsource Micro Bender Basic Kit Click to enlarge the picture
Contents of the user manual for the Outsight Creamsource Micro Bender Basic Kit
- Product category: LED Lights Outsight
- Brand: Outsight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Outsight LED Lights
|
User manual for the Outsight Creamsource Micro Bender Basic Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Outsight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Outsight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Outsight product will considerably shorten its lifespan!
|
Product description The Creamsource Micro+ Bender Basic Kit from Outsight is built around the high performance 8.7 x 8.1 x 4.1" Micro+ LED light. Flexibility and control are at the heart of the Micro+ design. The light has a wide color temperature range that's variable from a warm 2700 to a cool 6500K to match other fixtures, ambient light conditions, or just for creative effect. Dimming is also continuously variable from 0-100%. Both functions are adjustable on the fixture or remotely via DMX or an optional remote control, while your settings are viewable on the graphic LCD display. The Micro+ also has a High Speed Mode providing flicker-free performance over 1000 fps and there's a sync input for triggering and syncing to your camera's shutter. The light has a tight 13-degree beam angle but optional lenses are available to widen the coverage.The Micro+ is seen but not heard. The unit's fanless, convection cooling makes it ideal for sound-sensitive situations, and foul weather is no problem either, thanks to the light's IP65 weatherproof rating. The fixture's 100-240 VAC power supply makes it ready for worldwide use, but you can also run it on an optional 90Wh battery when shooting in locations without AC power. The Creamsource Micro+ comes with a power supply and a 5/8" Baby Socket Mount. A yoke is available for separate purchase. UPC: 686696588666 In the Box Outsight Creamsource Micro+ Bender Basic Kit Creamsource Micro+ Fixture Power Supply for Creamsource Micro 5/8" Baby Socket Mount Limited 3-Year Warranty Specification PDF 225kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Outsight Creamsource Micro Bender Basic Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOutsight Micro Specs | Material | Aluminum | | Light Source | LED, 50,000 hours lamp life | | Color Temperature | 2700 to 6500K | | CRI | Typical 95, minimum 90 | | TLCI | Typical 95, minimum 90 | | Beam Angle | 13° (half-peak angle) | | Photometrics | 3200K:
51,800 lux / 4820 fc @ 3.3' (1 m)
16,700 lux / 1560 fc @ 6.6' (2 m)
7650 lux / 720 fc @ 9.8' (3 m)
4390 lux / 410 fc @ 13.1' (4 m)
5600K:
55,100 lux / 5120 fc @ 3.3' (1 m)
18,200 lux / 1700 fc @ 6.6' (2 m)
8360 lux / 780 fc @ 9.8' (3 m)
4720 lux / 440 fc @ 13.1' (4 m) | | Mounting | 5/8" Socket mount | | Yoke | Optional | | Filter | Rails: 2 x filter rails for secondary lenses and gels | | User Interface | High-precision digital rotary encoder, 4-button keypad, graphic LCD display | | Control | On-Board interface
DMX-512 with optional adapter cable
Optional wired remote control | | Dimming | 0 to 100%, Locally, via DMX or optional remote control | | Flicker Free | Over 1000 fps flicker-free in High Speed Mode | | Synchronization | Sync input for triggering and syncing to camera shutter | | Ambient Temperature | Maximum 104°F (40°C) | | Cooling | Passive (silent) | | Input | 10-32 VDC, Max 8 A (80 W) | | Power Supply | 100-240 VAC, 50/60 Hz, Max 1.3 A | | Power Consumption | 80 W | | Equivalent | Approximate equivalent of a 200 W HMI | | Protection Class | IP65 weatherproof for fixture
IP20 for power supply | | Dimensions | 8.7 x 8.1 x 4.1" (220 x 207 x 105 mm) | | Weight | 5.5 lb (2.5 kg) | | | | Package Weight | 10.25 lb | | Box Dimensions (LxWxH) | 12.0 x 11.5 x 9.0" |
