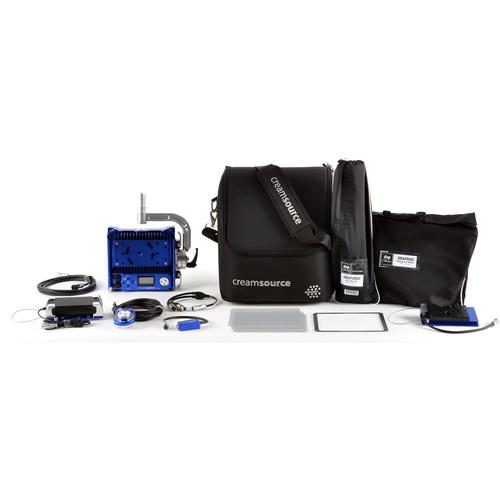

Product description The Creamsource Micro Gaffer Kit with Gold Mount Battery Plate from Outsight is packed with so many accessories for the Micro LED light that you'd be entitled to wonder if there are any left to offer. The kit is built around the bi-color, waterproof, high-CRI Micro LED fixture, with a yoke, 5,8" receiver, multi-voltage power supply and mount, and a 9.8' extension cable. To modify the light's tight 13-degree beam angle, 20, 60, and 100-degree holographic lenses are included as are a Snapbag softbox to soften the bright LEDs and a 40-degree Snapgrid to direct the beam spread. A converter for non-waterproof accessories is furnished, as well as a DMX adapter for remote control of the fixture. A wired remote control is also included. Besides AC current, the Micro can also run on batteries so a Gold mount battery plate is also supplied as is a padded case for the light. - Creamsource Micro+ Bender Essential Kit The Creamsource Micro+ Bender Essential Kit from Outsight is built around a variable color (2700 to 6500K) LED fixture. The kit includes a 8.7 x 8.1 x 4.1" Micro+ lamp head, yoke, multi-voltage power supply, power header cable, 60-degree lens, back mount for PSU, and a US power cable. Flexibility and control are at the heart of the Micro+ design. The light has a wide color temperature range that's variable from a warm 2700 to a cool 6500K to match other fixtures, ambient light conditions, or just for creative effect. Dimming is also continuously variable from 0-100%. Both functions are adjustable on the fixture or remotely via DMX or an optional remote control, while your settings are viewable on the graphic LCD display. The Micro+ also has a High Speed Mode providing flicker-free performance over 1000 fps and there's a sync input for triggering and syncing to your camera's shutter. The light has a tight 13-degree beam angle, but optional lenses are available to widen the coverage.The Micro+ is seen but not heard. The unit's fanless, convection cooling makes it ideal for sound-sensitive situations and foul weather is no problem either, thanks to the light's IP65 weatherproof rating. The fixture's 100-240 VAC power supply makes it ready for worldwide use but you can also run it on an optional 90Wh battery when shooting in locations without AC power. UPC: 686696588673
- Creamtwist Wired Remote for Creamsource Doppio & Mini Doppio LED Panels Run the show at your ease with the Creamtwist Wired Remote for Creamsource Doppio & Mini Doppio from Outsight, which puts fast and precise control of your LED panels' brightness and color temperature at your fingertips. Featuring two independent channels, this Wired Remote can control up to two single panels, or up to two daisy chains of panels linked via DMX cables. The device is encased in aircraft-grade aluminum, with all-metal buttons and an optical encoder. Versatile and convenient, it is equipped with a 1/4" mounting thread, as well as rubber feet for stable tabletop use. The built-in rubber-cased cable is 16', and its reach can be boosted to up to 180' with dedicated extension cables (available separately). UPC: 686696588499
- Creamsource Micro DMX Adapter Y Cable The Outsight Creamsource Micro DMX Adapter Y Cable enables DMX connection to your Creamsource Micro using standard 5-pin XLR connectors. It plugs into the 7-pin accessory socket of the Micro, providing in and out 5-pin DMX connections.
- This cable is not a simple Y-cable; instead it features a 7-pin male connector on one end and a 5-pin male and 5-pin female on the other
- The 7-pin male connector plugs into the accessory connector on your Creamsource Micro
- The cable provides DMX in and out via the male and female 5-pin XLR connectors
- This helps keep the Micro compact, as it doesn't have to accommodate two XLR-5-pin ports that would enlarge the fixture's size
UPC: 686696588840 - 20-Degree Medium-Spot Holographic Lens for Creamsource Micro Made from laser-etched lens material, the 20-Degree Medium-Spot Holographic Lens for Creamsource Micro from Outsight drops into the filter rail on the front of the fixture and expands the Micro's 13-degree spread to a medium-spot, 20-degree beam angle. Unlike diffusion material, the lens softens the light quality while transmitting 90% of the fixture's output. UPC: 686696588888
- 100-Degree Extra-Wide Angle Holographic Lens for Creamsource Micro Made from laser-etched lens material, the 100-Degree Extra-Wide Angle Holographic Lens for Creamsource Micro from Outsight drops into the filter rail on the front of the fixture and expands the Micro's 13-degree spread to a wide, 100-degree beam angle. Unlike diffusion material, the lens softens the light quality while transmitting 90% of the fixture's output. UPC: 686696588901
- Gel Frame for Creamsource Micro (Empty)
- Soft Padded Case with Rigid Internal Shell for Creamsource Micro
- DoPchoice Snapbag Softbox for Creamsource Micro
- DoPchoice 40 Degree Snapgrid for Snapbag
- Creamsource Micro Converter Cable for Non-Waterproof Accessories
- Single Anton Bauer Battery Mounting Plate for Creamsource Micro
In the Box Bundle Items Creamsource Micro+ Bender Essential Kit yswezwabzdszqwrfasraavqudrubxurtcwbvs - Power Supply for Creamsource Micro
- Yoke for Creamsource Micro
- Creamsource Micro Power Supply Lead (9.8')
- Power Supply Mounting Plate for Creamsource Micro
- 60-Degree Medium-Wide Angle Holographic Lens for Creamsource Micro
- Limited 3-Year Warranty on Fixture
- Limited 1-Year Warranty on Accessories
Gel Frame for Creamsource Micro (Empty) Soft Padded Case with Rigid Internal Shell for Creamsource Micro DoPchoice Snapbag Softbox for Creamsource Micro DoPchoice 40 Degree Snapgrid for Snapbag yswezwabzdszqwrfasraavqudrubxurtcwbvs Creamtwist Wired Remote for Creamsource Doppio & Mini Doppio LED Panels Creamsource Micro Converter Cable for Non-Waterproof Accessories yswezwabzdszqwrfasraavqudrubxurtcwbvs Creamsource Micro DMX Adapter Y Cable 20-Degree Medium-Spot Holographic Lens for Creamsource Micro 100-Degree Extra-Wide Angle Holographic Lens for Creamsource Micro Single Anton Bauer Battery Mounting Plate for Creamsource Micro
Also Includes - Limited 3-Year Warranty on Fixture
- Limited 1-Year Warranty on Accessories
Table of Contents
|
Upload User Manual
Have you got an user manual for the Outsight Creamsource Micro Gaffer Kit with Gold Mount Battery Plate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Creamsource Micro+ Bender Essential Kit
| Material | Aluminum | | Light Source | LED, 50,000-hour lamp life | | Color Temperature | 2700 to 6500K | | CRI | Typical 95, minimum 90 | | TLCI | Typical 95, minimum 90 | | Beam Angle | 13° (half-peak angle) | | Photometrics | 3200K:
51,800 lux / 4820 fc @ 3.3' (1 m)
16,700 lux / 1560 fc @ 6.6' (2 m)
7650 lux / 720 fc @ 9.8' (3 m)
4390 lux / 410 fc @ 13.1' (4 m)
5600K:
55,100 lux / 5120 fc @ 3.3' (1 m)
18,200 lux / 1700 fc @ 6.6' (2 m)
8360 lux / 780 fc @ 9.8' (3 m)
4720 lux / 440 fc @ 13.1' (4 m) | | Mounting | 3/8" threaded insert; 5/8" with included yoke | | Yoke | Yes, included | | Filter | Rails: 2 x filter rails for secondary lenses and gels | | User Interface | High-precision digital rotary encoder, 4-button keypad, graphic LCD display | | Control | On-board interface
DMX-512 with optional adapter cable
Optional wired remote control | | Dimming | 0 to 100%, locally, via DMX or optional remote control | | Flicker Free | Over 1000 fps flicker-free in High Speed Mode | | Synchronization | Sync input for triggering and syncing to camera shutter | | Ambient Temperature | Maximum 104°F (40°C) | | Cooling | Passive (silent) | | Input | 10-32 VDC, Max 8 A (80 W) | | Power Supply | 100-240 VAC, 50/60 Hz, Max 1.3 A | | Power Consumption | 80 W | | Equivalent | Approximate equivalent of a 200 W HMI | | Protection Class | IP65 weatherproof for fixture
IP20 for power supply | | Dimensions | 8.7 x 8.1 x 4.1" (220 x 207 x 105 mm) | | Weight | 5.5 lb (2.5 kg) without yoke | | | | Box Dimensions (LxWxH) | 12.1 x 11.3 x 9.3" | - Gel Frame for Creamsource Micro (Empty)
| | | Sub-type | Mounting accessory | | Recommended Use | Lighting system, lighting filter | | | | Box Dimensions (LxWxH) | 8.5 x 7.5 x 0.3" | - Soft Padded Case with Rigid Internal Shell for Creamsource Micro
| | | Box Dimensions (LxWxH) | 17.1 x 15.6 x 14.0" | - DoPchoice Snapbag Softbox for Creamsource Micro
| Shape | Square | | Interior | Silver | | Removable Front Face | Yes | | Rectangular Dimensions | W: 18.0 x H: 18.0" / W: 46.0 x H: 46.0 cm | | | | Box Dimensions (LxWxH) | 17.6 x 7.0 x 2.0" | - DoPchoice 40 Degree Snapgrid for Snapbag
| | | Box Dimensions (LxWxH) | 11.0 x 6.0 x 5.0" | - Creamtwist Wired Remote for Creamsource Doppio & Mini Doppio LED Panels
| Compatibility | Creamsource Doppio & Mini Doppio series | | Number of Channels | 2 | | Material | Remote: Aluminum
Cable Casing: Rubber | | Display | LED | | Cable Length | 16' (5 m) | | Mounting Thread | 1/4" | | Dimensions | 3.4 x 2.4 x 1.4" (8.5 x 6.0 x 3.5 cm) | | Weight | 1 lb (0.5 kg) | | | | Box Dimensions (LxWxH) | 8.7 x 7.0 x 2.0" | - Creamsource Micro DMX Adapter Y Cable
| | | Connector 1 | 7-Pin Breakout Male | | Connector 2 | 5-Pin XLR Female
5-Pin XLR Male | | Cable Length | 1' / 0.3 m | | Weight | 0.7 lb / 0.3 kg | | | | Box Dimensions (LxWxH) | 7.65 x 5.8 x 1.05" | - 20-Degree Medium-Spot Holographic Lens for Creamsource Micro
| Beam Angle | Actual Beam Spread: 24° | | Dimensions | 8.46 x 7.48 x 0.11" (215 x 190 x 3.0 mm) | | Weight | 3.52 oz (100 g) | | | | Box Dimensions (LxWxH) | 8.5 x 7.5 x 0.5" | - 100-Degree Extra-Wide Angle Holographic Lens for Creamsource Micro
| Beam Angle | Actual Beam Spread: 100° | | Dimensions | 8.46 x 7.48 x 0.11" (215 x 190 x 3.0 mm) | | Weight | 3.52 oz (100 g) | | | | Box Dimensions (LxWxH) | 8.4 x 7.4 x 0.3" | - Single Anton Bauer Battery Mounting Plate for Creamsource Micro
| | | Box Dimensions (LxWxH) | 8.6 x 7.0 x 1.9" | - Creamsource Micro Converter Cable for Non-Waterproof Accessories
