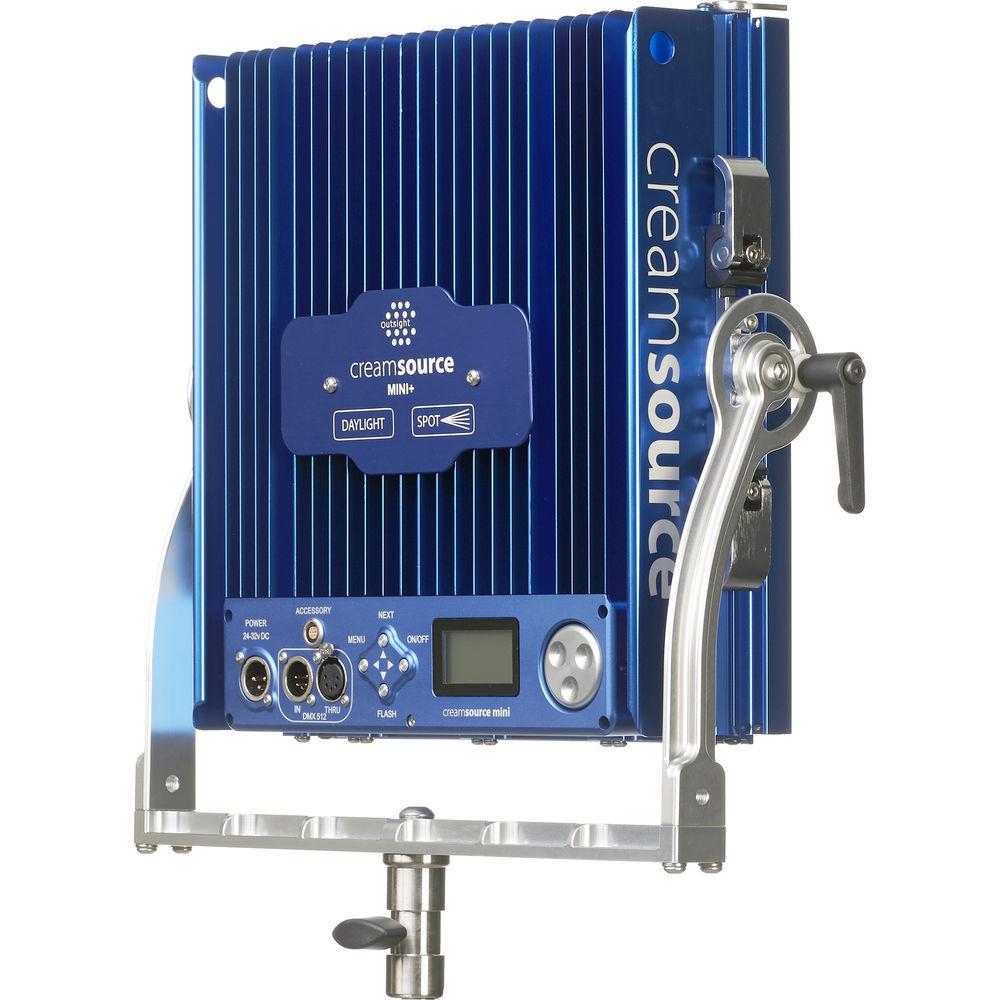

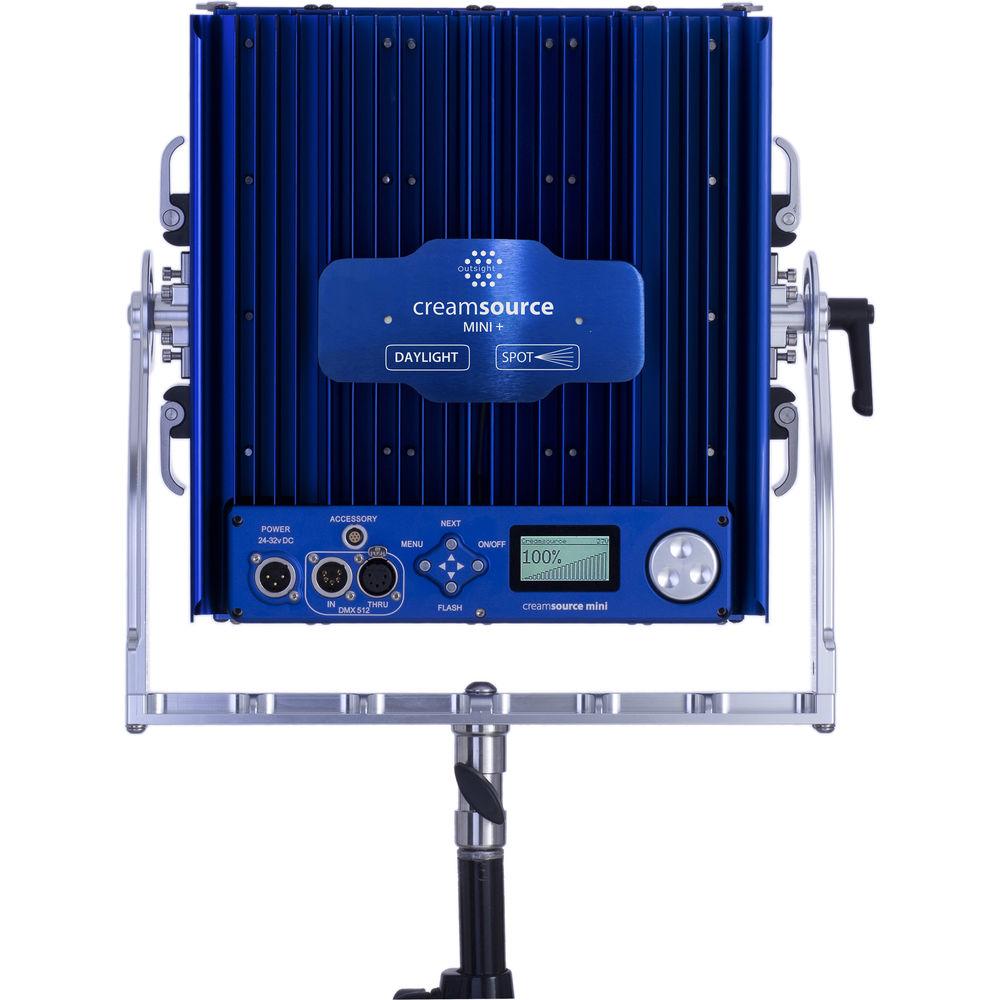

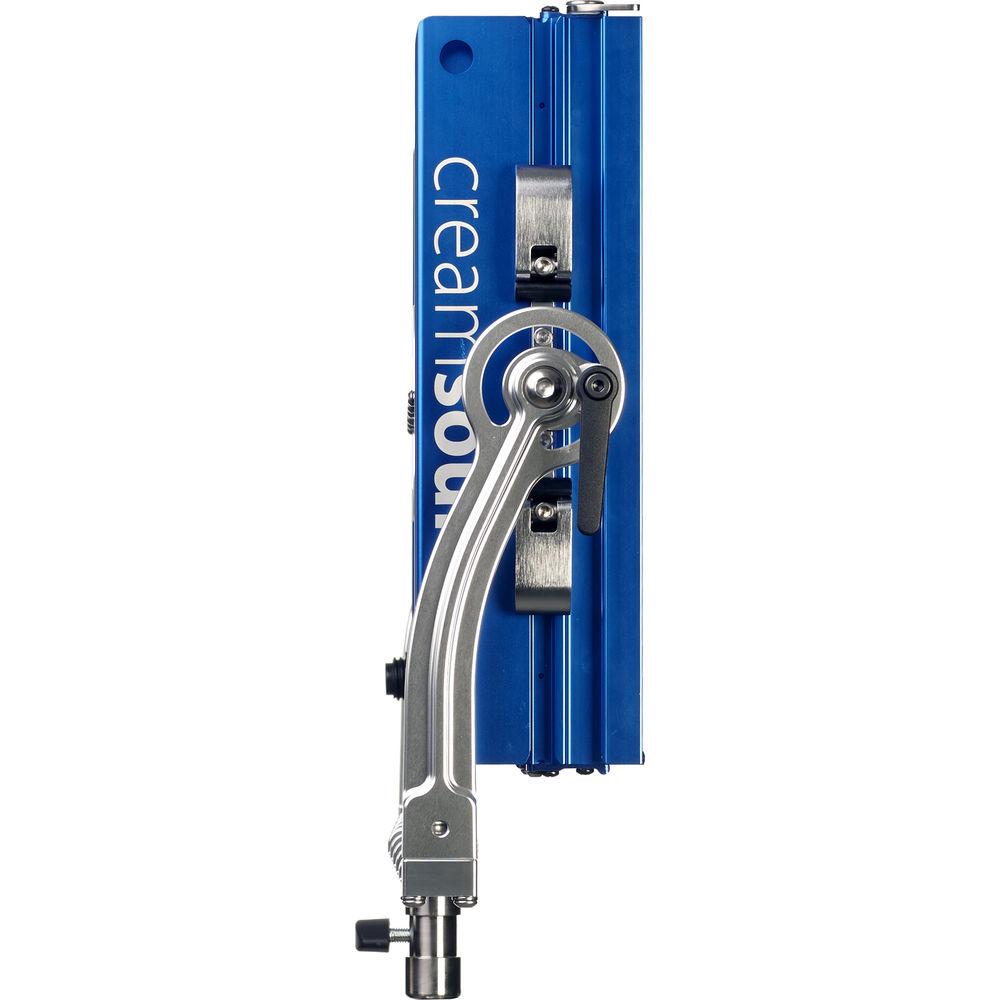

User Manual for Outsight Creamsource Mini Doppio Bender Bi-Color 1x1 LED Panel Click to enlarge the picture
Contents of the user manual for the Outsight Creamsource Mini Doppio Bender Bi-Color
- Product category: LED Lights Outsight
- Brand: Outsight
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Outsight LED Lights
 |
User manual for the Outsight Creamsource Mini Doppio Bender Bi-Color contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Outsight product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Outsight user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Outsight product will considerably shorten its lifespan!
|

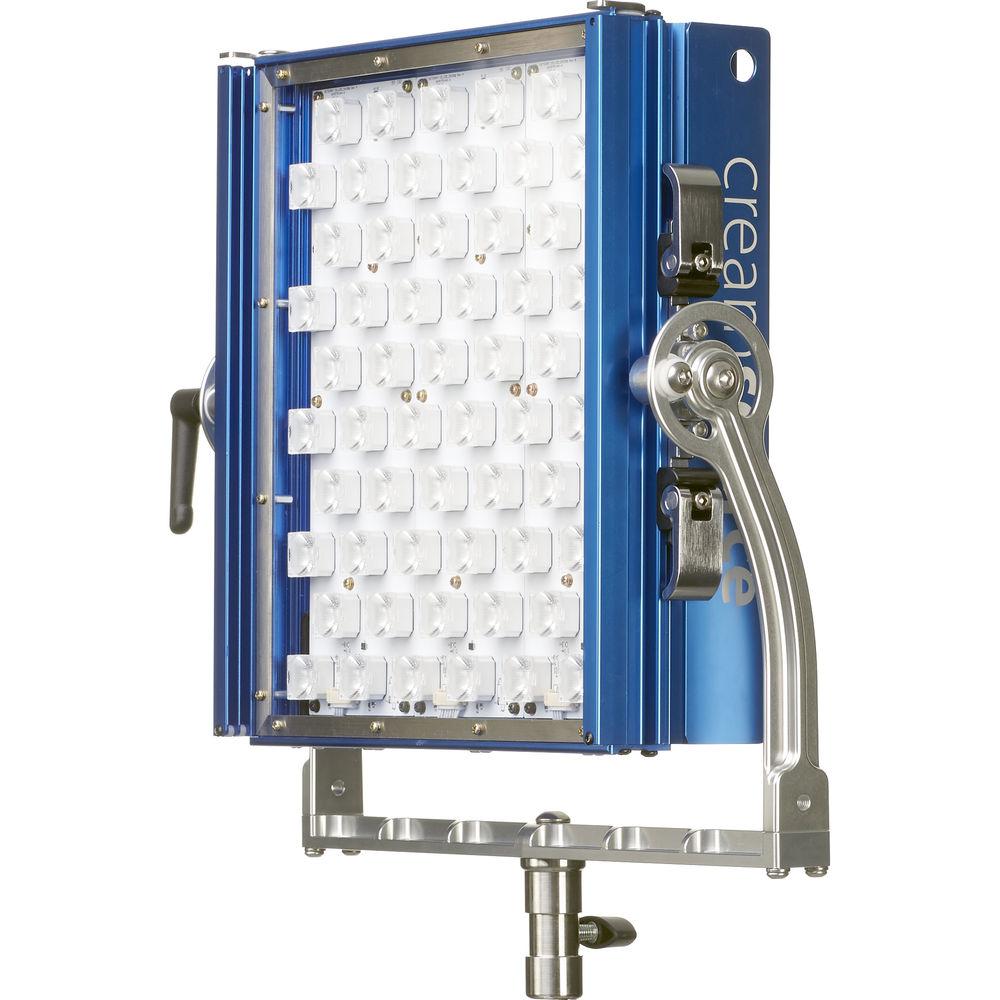

Product description Produce brilliant shots with help of the 155W Creamsource Mini Doppio+ from Outsight, a compact 1x1 Bender Bi-Color LED panel that delivers solid, flicker-free performance even at frame rates of over 1000 fps under normal circumstances. With a double-density array of 60 high-power LEDs projecting from a large output area, the Creamsource Mini Doppio attractively wraps your subjects in light, with a CRI/TLCI of 95 and an intensity that rivals that of a small HMI fixture, but on a power draw of only 155W. The Bender Bi-Color allows you to dial in any color temperature within the range of 2700 to 6500K. The Mini Doppio's precision controls include smooth full-range dimming via the built-in dimmer or via the Creamsource remote (available separately), repeatable settings, and lightning, strobe & flash effects.
The Mini Doppio is DMX-compatible, allowing you to control it from your lighting console without need for an external dimmer. Alternatively, the XLR connections can be used for linking several units in master/slave configuration if you want to run them in unison without any DMX programming. The LED panel uses a passive cooling system for silent operation.
The Mini Doppio's LEDs come fitted with 13° spot lenses, which make for a punchy and consistent beam that travels far, rolls off smoothly, and is free of hot spots. In situations in which you may want to widen the beam, the included 30° high-transmission laser-etched polycarbonate holographic lens can be easily dropped in front of your spot fixture to spread it to a flood. A wide selection of additional light-control tools is available to format the beam to attain the exact look you require.
Another special feature of the Creamsource Mini Doppio is that it enables you to control its built-in strobe, lightning, and timed flash effects from your camera via the fixture's accessory socket and the FlashBandit sync box (available separately). The use of this technology rules out flash banding even when shooting with CMOS or other rolling-shutter cameras, which are prone to exhibiting such issues.

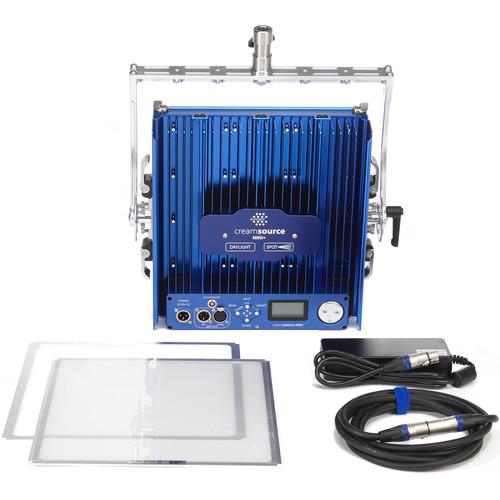

In addition to the holographic lens, the LED panel comes with a standard yoke for stand mounting, a 160W power supply, a 10' power lead, a gel frame, and an IEC power cable. AB and V-mount plates are available separately for running the Creamsource Mini with battery power. UPC: 686696588291 In the Box Outsight Creamsource Mini Doppio+ Bender Bi-Color 1x1 LED Panel Standard Yoke 160W Power Supply for Creamsource Mini Doppio LED Panels Creamsource Mini Power Supply Lead (10') Holographic Lens for Creamsource Mini LED Light (Medium Angle) Gel Frame for Creamsource Mini LED Light IEC Power Cable (US) Limited 3-Year Warranty on Fixture Limited 1-Year Warranty on Accessories Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Outsight Creamsource Mini Doppio Bender Bi-Color 1x1 LED Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOutsight Mini Doppio Specs | | | Beam Angle | 13° | | Color Temperature | 2700 to 6500K | | Color Accuracy Standard | CRI 95
TLCI 90 | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Number of LEDs | 60 | | Expected Lamp Life | 50,000 Hours (L70) | | Fixture Dimensions | 14.7 x 15.4 x 4.0" / 39.2 x 45.5 x 10.0 cm (Including Yoke)
12.5 x 13.4 x 4.0" / 30.7 x 33.2 x 10.0 cm | | Fixture Weight | 11.4 lb / 5.2 kg (Including Yoke) | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Wired Remote | | | | AC Input Power | 90 to 260 VAC, 50 / 60 Hz at 2.0 A | | DC Input Power | 24 to 32 VDC at 6.3 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 155 W | | | | IP Rating | IP20 | | Operating Temperature | 104°F / 40°C | | | | Package Weight | 19.3 lb | | Box Dimensions (LxWxH) | 31.0 x 20.3 x 8.9" |
