Outsight Creamsource Mini Doppio Bender Bi-Color

User Manual for Outsight Creamsource Mini Doppio Bender Bi-Color 1x1 LED Panel Pro Kit

• Product category: LED Lights Outsight
• Brand: Outsight
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Outsight LED Lights

Product description

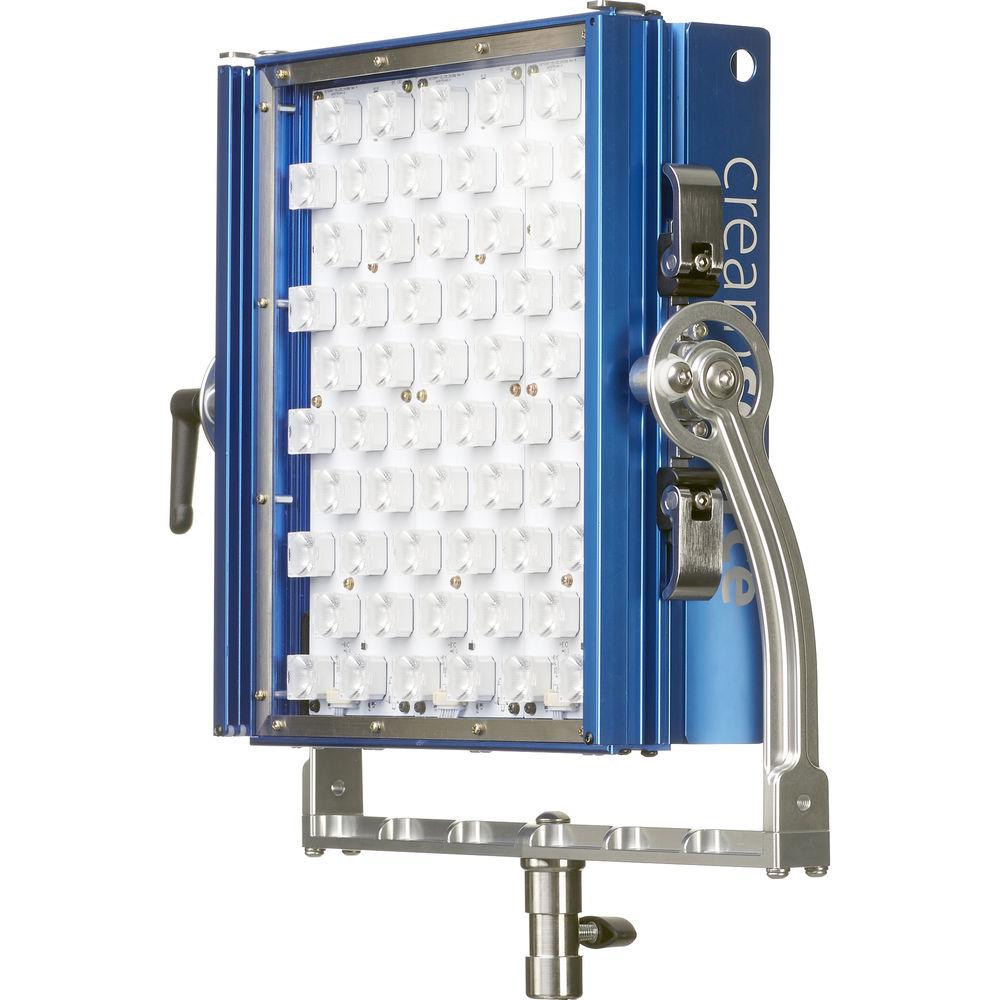

• Creamsource Mini Doppio+ Bender Bi-Color 1x1 LED Panel Produce brilliant shots with help of the 155W Creamsource Mini Doppio+ from Outsight, a compact 1x1 Bender Bi-Color LED panel that delivers solid, flicker-free performance even at frame rates of over 1000 fps under normal circumstances. With a double-density array of 60 high-power LEDs projecting from a large output area, the Creamsource Mini Doppio attractively wraps your subjects in light, with a CRI/TLCI of 95 and an intensity that rivals that of a small HMI fixture, but on a power draw of only 155W. The Bender Bi-Color allows you to dial in any color temperature within the range of 2700 to 6500K. The Mini Doppio's precision controls include smooth full-range dimming via the built-in dimmer or via the Creamsource remote (available separately), repeatable settings, and lightning, strobe & flash effects.

  The Mini Doppio is DMX-compatible, allowing you to control it from your lighting console without need for an external dimmer. Alternatively, the XLR connections can be used for linking several units in master/slave configuration if you want to run them in unison without any DMX programming. The LED panel uses a passive cooling system for silent operation.

  The Mini Doppio's LEDs come fitted with 13° spot lenses, which make for a punchy and consistent beam that travels far, rolls off smoothly, and is free of hot spots. In situations in which you may want to widen the beam, the included 30° high-transmission laser-etched polycarbonate holographic lens can be easily dropped in front of your spot fixture to spread it to a flood. A wide selection of additional light-control tools is available to format the beam to attain the exact look you require.

  Another special feature of the Creamsource Mini Doppio is that it enables you to control its built-in strobe, lightning, and timed flash effects from your camera via the fixture's accessory socket and the FlashBandit sync box (available separately). The use of this technology rules out flash banding even when shooting with CMOS or other rolling-shutter cameras, which are prone to exhibiting such issues.

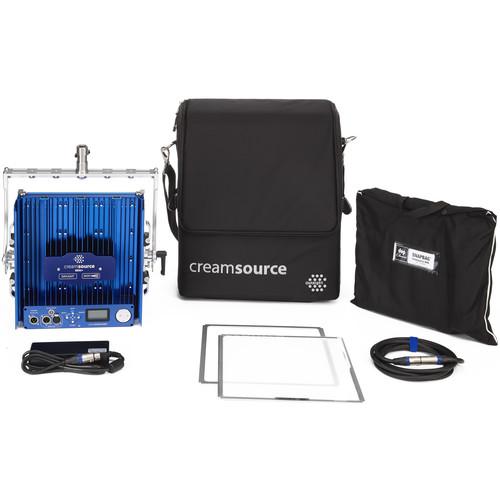

  In addition to the holographic lens, the LED panel comes with a standard yoke for stand mounting, a 160W power supply, a 10' power lead, a gel frame, and an IEC power cable. AB and V-mount plates are available separately for running the Creamsource Mini with battery power. UPC: 686696588291
• Creamsource Mini Softbag The Creamsource Mini Softbag from Outsight is a savvy way to store and protect your Creamsource Mini LED fixture. Made of nylon with a plastic inner shell, the 20.1 x 17.1 x 12.2" case is sturdy enough for air freight. The interior has pocketed internal partitions that hold one Mini, gel frames, lenses, a power supply, remote, barndoors, Snapbag/Snapgrid, and battery mount. Carrying options include side handles and a shoulder strap. UPC: 686696588468
• DoPchoice Snapbag for Creamsource Mini LED Light DoPchoice Snapbag for Creamsource Mini LED Light from Outsight snaps on the fixture in seconds instead of using tedious speedrings and creates a 23.6 x 23.6" soft light source that still retains a quality of crispness. One-piece construction guarantees a tight fit with no sagging when hung overhead. UPC: 686696588475

• Standard Yoke

• 160W Power Supply for Creamsource Mini Doppio LED Panels

• Creamsource Mini Power Supply Lead (10')

• Holographic Lens for Creamsource Mini LED Light (Medium Angle)

• Gel Frame for Creamsource Mini LED Light

• IEC Power Cable (US)

• Limited 3-Year Warranty on Fixture

• Limited 1-Year Warranty on Accessories

• Shoulder Strap

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Creamsource Mini Doppio+ Bender Bi-Color 1x1 LED Panel

  Beam Angle	13°
  Color Temperature	2700 to 6500K
  Color Accuracy Standard	CRI 95 TLCI 90
  Cooling System	Fan/Passive Combo
  Dimming	Yes, 0 to 100% (Continuous)
  Display	LCD
  Housing Material	Aluminum
  Number of LEDs	60
  Expected Lamp Life	50,000 Hours (L70)
  Fixture Dimensions	14.7 x 15.4 x 4.0" / 39.2 x 45.5 x 10.0 cm (Including Yoke) 12.5 x 13.4 x 4.0" / 30.7 x 33.2 x 10.0 cm
  Fixture Weight	11.4 lb / 5.2 kg (Including Yoke)

  DMX Connector	5-Pin XLR

  Fixture Mount	Combination 1-1/8" Stud and 5/8" Receiver
  Accessory Mount	None

  Remote Control Type	DMX, Wired Remote

  AC Input Power	90 to 260 VAC, 50 / 60 Hz at 2.0 A
  DC Input Power	24 to 32 VDC at 6.3 A
  Power Source	AC Adapter, External Battery
  Max Power Consumption	155 W

  IP Rating	IP20
  Operating Temperature	104°F / 40°C

  Box Dimensions (LxWxH)	31.0 x 20.3 x 8.9"

• Creamsource Mini Softbag

  Closure Type	Zipper
  Carry and Transport Options	Hand Strap Shoulder Strap
  Material of Construction	Nylon, Plastic
  Exterior Dimensions (W x H x D)	20.1 x 17.1 x 12.2" / 510 x 435 x 310 mm
  Weight	9.5 lb / 4.3 kg

  Box Dimensions (LxWxH)	21.9 x 18.8 x 13.0"

• DoPchoice Snapbag for Creamsource Mini LED Light

  Shape	Square
  Interior	Silver
  Requires Speed Ring	No
  Accepts Grids	Yes
  Removable Front Face	No
  Removable Interior Baffle	No
  Rectangular Dimensions	W: 23.6 x H: 23.6" / W: 60.0 x H: 60.0 cm
  Weight	1.43 lb / 0.65 kg

  Box Dimensions (LxWxH)	28.0 x 15.0 x 14.0"
