Product description Produce brilliant shots with help of the 155W Creamsource Mini Doppio+ Daylight Pro Kit from Outsight. The Pro Kit includes a Mini Doppio daylight (5600K) 1x1 panel and two workhorse light-control tools: a 30°, laser-etched, polycarbonate holographic lens, and a softbox.

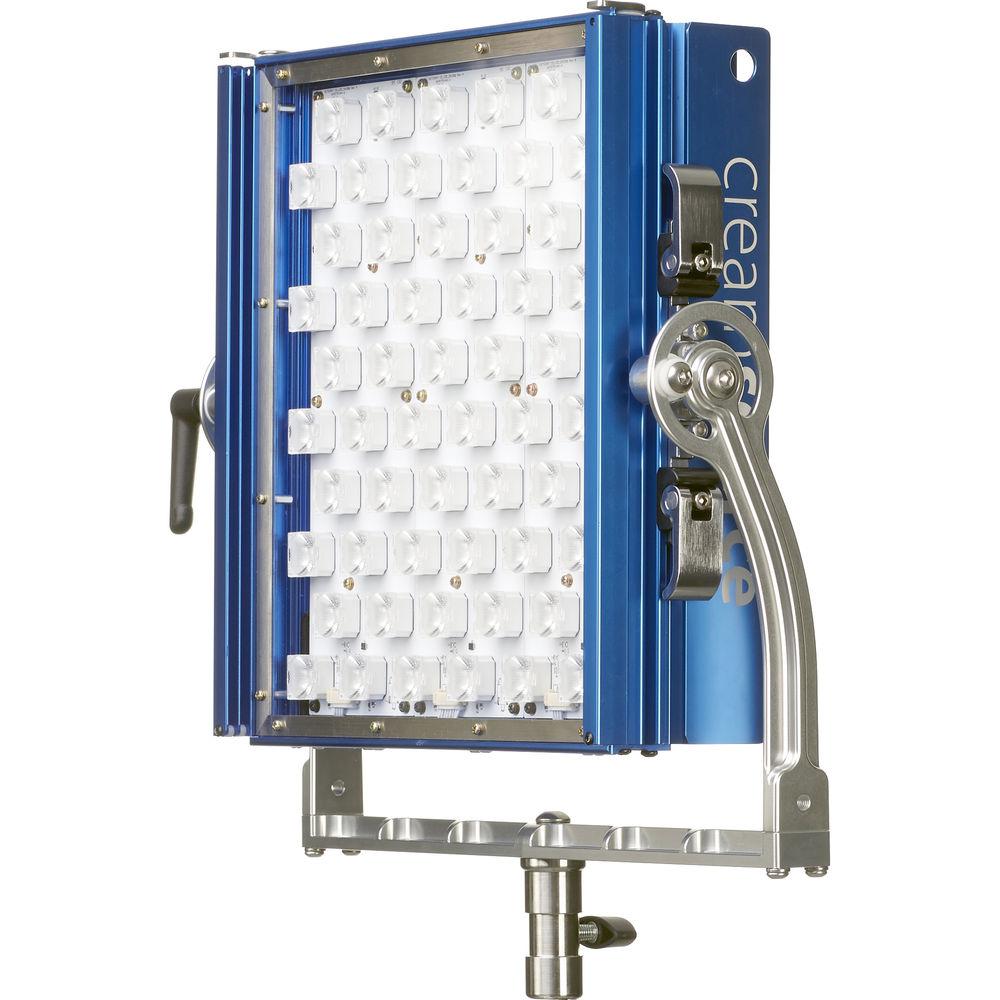

The Creamsource Mini Doppio is a compact LED panel that delivers solid, flicker-free performance even at frame rates of over 100,000 fps when run at full power. With a double-density array of 60 high-power LEDs projecting from a large output area, the Mini Doppio attractively wraps your subjects in light, with a CRI/TLCI of 95 and an intensity that rivals that of a small HMI fixture, but on a power draw of only 155W.
Use the kit's light-control tools to format the Mini Doppio's beam to accommodate a variety of situations. The 30° holographic lens spreads the beam from spot to flood, while the Snapbag softens the light. Also included in the Pro Kit are a soft case and a gel frame, as well as a standard yoke for stand mounting, a 160W power supply, a 10' power lead, and an IEC power cable. - Creamsource Mini Doppio+ Daylight 1x1 LED Panel Produce brilliant shots with help of the 155W Creamsource Mini Doppio+ from Outsight, a compact 1x1 daylight LED panel that delivers solid, flicker-free performance even at frame rates of over 100,000 fps when run at full power. With a double-density array of 60 high-power LEDs projecting from a large output area, the Creamsource Mini Doppio attractively wraps your subjects in light, with a CRI/TLCI of 95 and an intensity that rivals that of a small HMI fixture, but on a power draw of only 155W. The Mini Doppio's precision controls include smooth full-range dimming via the built-in dimmer or via the Creamsource remote (available separately), repeatable settings, and lightning, strobe & flash effects.

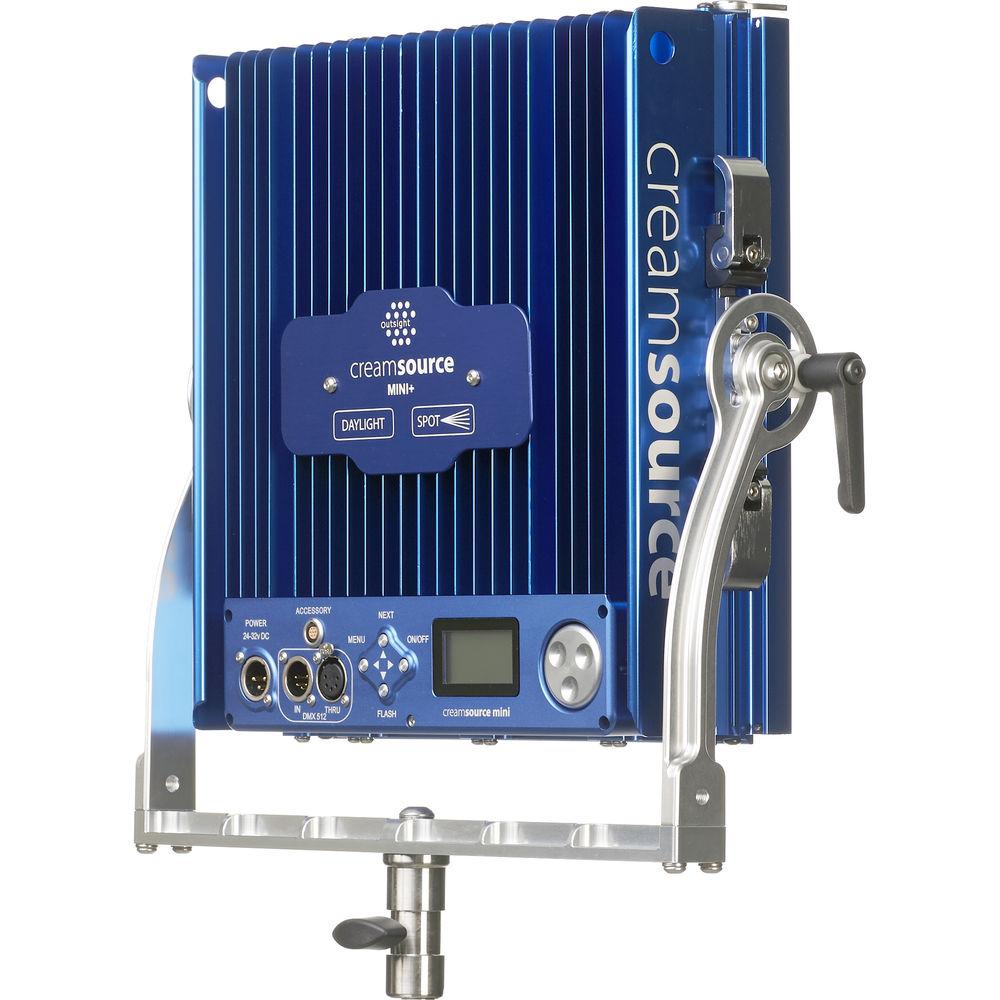

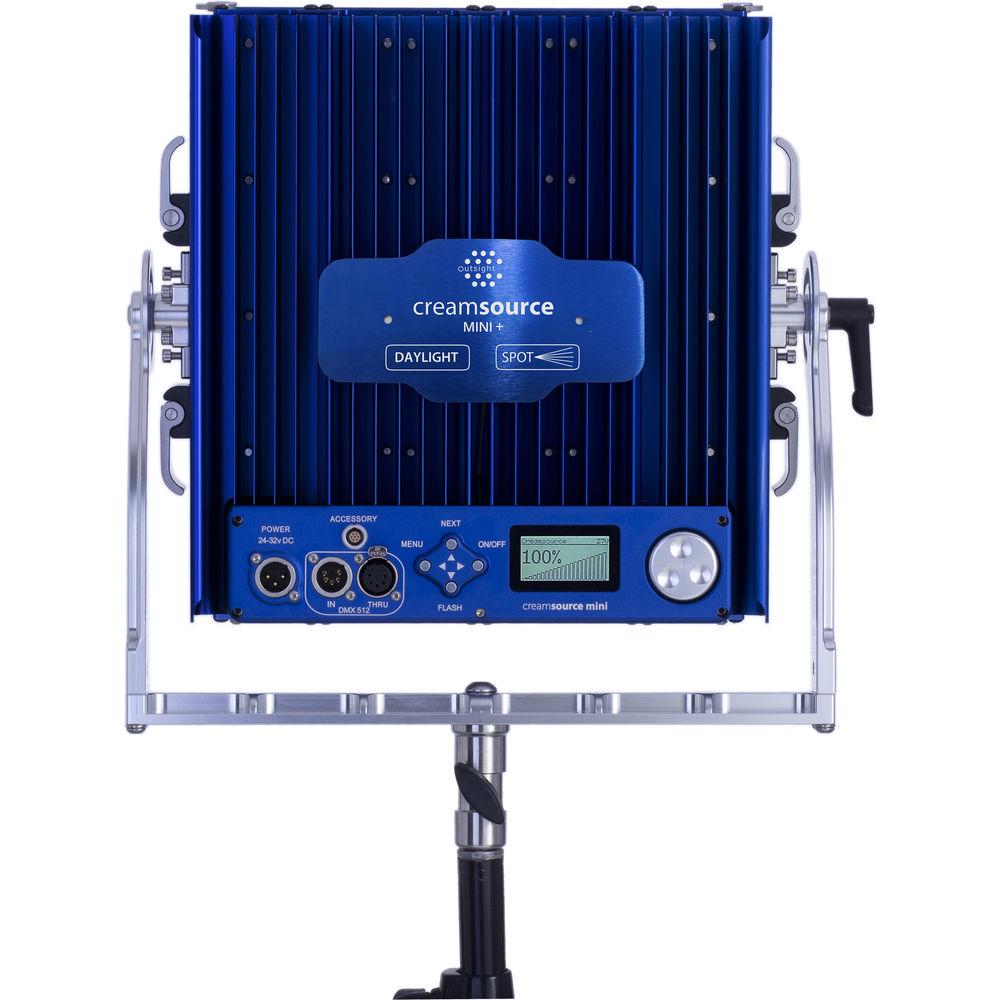

The Mini Doppio is DMX-compatible, allowing you to control it from your lighting console without need for an external dimmer. Alternatively, the XLR connections can be used for linking several units in master/slave configuration if you want to run them in unison without any DMX programming. The LED panel uses a passive cooling system for silent operation.
The Mini Doppio's LEDs come fitted with 13° spot lenses, which make for a punchy and consistent beam that travels far, rolls off smoothly, and is free of hot spots. In situations in which you may want to widen the beam, the included 30° high-transmission laser-etched polycarbonate holographic lens can be easily dropped in front of your spot fixture to spread it to a flood. A wide selection of additional light-control tools is available to format the beam to attain the exact look you require.
Another special feature of the Creamsource Mini Doppio is that it enables you to control its built-in strobe, lightning, and timed flash effects from your camera via the fixture's accessory socket and the FlashBandit sync box (available separately). The use of this technology rules out flash banding even when shooting with CMOS or other rolling-shutter cameras, which are prone to exhibiting such issues.

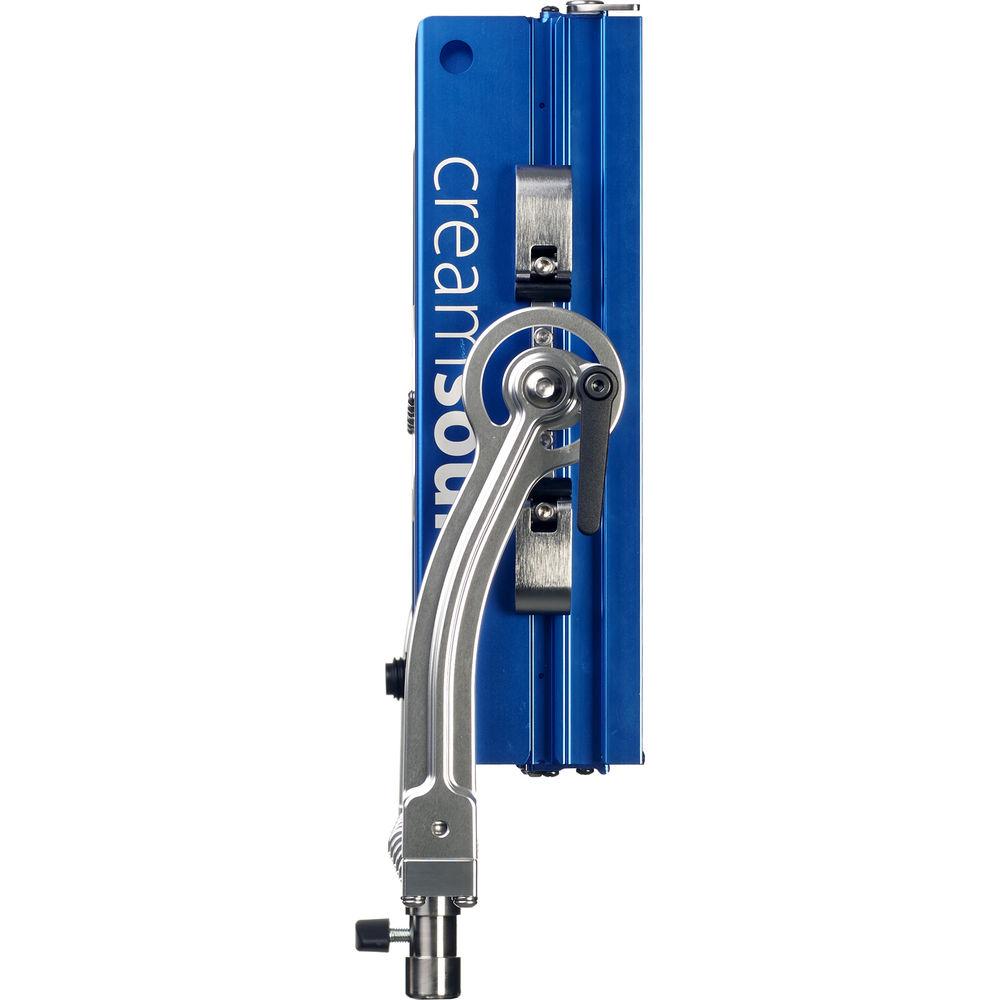

In addition to the holographic lens, the LED panel comes with a standard yoke for stand mounting, a 160W power supply, a 10' power lead, a gel frame, and an IEC power cable. AB and V-mount plates are available separately for running the Creamsource Mini with battery power. UPC: 686696588284 - Creamsource Mini Softbag The Creamsource Mini Softbag from Outsight is a savvy way to store and protect your Creamsource Mini LED fixture. Made of nylon with a plastic inner shell, the 20.1 x 17.1 x 12.2" case is sturdy enough for air freight. The interior has pocketed internal partitions that hold one Mini, gel frames, lenses, a power supply, remote, barndoors, Snapbag/Snapgrid, and battery mount. Carrying options include side handles and a shoulder strap. UPC: 686696588468
- DoPchoice Snapbag for Creamsource Mini LED Light DoPchoice Snapbag for Creamsource Mini LED Light from Outsight snaps on the fixture in seconds instead of using tedious speedrings and creates a 23.6 x 23.6" soft light source that still retains a quality of crispness. One-piece construction guarantees a tight fit with no sagging when hung overhead. UPC: 686696588475

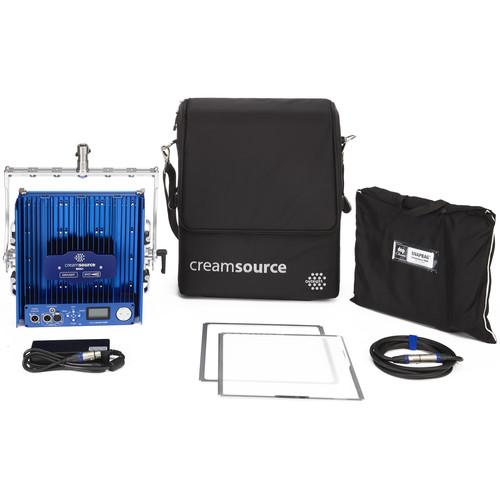

In the Box Bundle Items Creamsource Mini Doppio+ Daylight 1x1 LED Panel uufzxfcq - 160W Power Supply for Creamsource Mini Doppio LED Panels
- Creamsource Mini Power Supply Lead (10')
- Holographic Lens for Creamsource Mini LED Light (Medium Angle)
- Gel Frame for Creamsource Mini LED Light
- Limited 3-Year Warranty on Fixture
- Limited 1-Year Warranty on Accessories
Creamsource Mini Softbag DoPchoice Snapbag for Creamsource Mini LED Light Brochure PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Outsight Creamsource Mini Doppio Daylight 1x1 LED Panel Pro Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Creamsource Mini Doppio+ Daylight 1x1 LED Panel
| | | Beam Angle | 13° | | Color Temperature | 5600K | | Color Accuracy Standard | CRI 95
TLCI 90 | | Cooling System | Fan/Passive Combo | | Dimming | Yes, 0 to 100% (Continuous) | | Display | LCD | | Housing Material | Aluminum | | Number of LEDs | 60 | | Expected Lamp Life | 50,000 Hours (L70) | | Fixture Dimensions | 14.7 x 15.4 x 4.0" / 39.2 x 45.5 x 10.0 cm (Including Yoke)
12.5 x 13.4 x 4.0" / 30.7 x 33.2 x 10.0 cm | | Fixture Weight | 11.4 lb / 5.2 kg (Including Yoke) | | | | Fixture Mount | Combination 1-1/8" Stud and 5/8" Receiver | | Accessory Mount | None | | | | Remote Control Type | DMX, Wired Remote | | | | AC Input Power | 90 to 260 VAC, 50 / 60 Hz at 2.0 A | | DC Input Power | 24 to 32 VDC at 6.3 A | | Power Source | AC Adapter, External Battery | | Max Power Consumption | 155 W | | | | IP Rating | IP20 | | Operating Temperature | 104°F / 40°C | | | | Box Dimensions (LxWxH) | 19.7 x 17.4 x 8.8" | - Creamsource Mini Softbag
| | | Closure Type | Zipper | | Carry and Transport Options | Hand Strap
Shoulder Strap | | Material of Construction | Nylon, Plastic | | Exterior Dimensions (W x H x D) | 20.1 x 17.1 x 12.2" / 510 x 435 x 310 mm | | Weight | 9.5 lb / 4.3 kg | | | | Box Dimensions (LxWxH) | 21.9 x 18.8 x 13.0" | - DoPchoice Snapbag for Creamsource Mini LED Light
| Shape | Square | | Interior | Silver | | Requires Speed Ring | No | | Accepts Grids | Yes | | Removable Front Face | No | | Removable Interior Baffle | No | | Rectangular Dimensions | W: 23.6 x H: 23.6" / W: 60.0 x H: 60.0 cm | | Weight | 1.43 lb / 0.65 kg | | | | Box Dimensions (LxWxH) | 28.0 x 15.0 x 14.0" |
