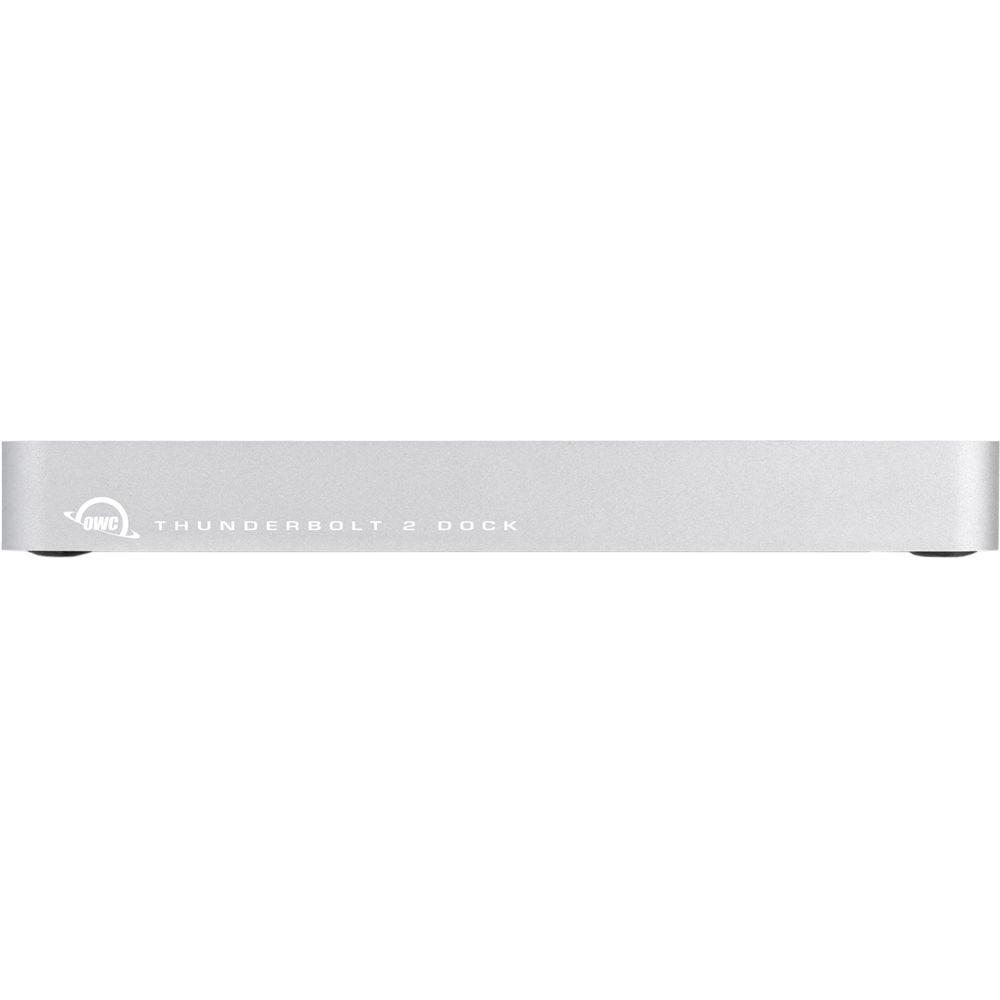

User Manual for OWC Other World Computing 12 Port Thunderbolt 2 Dock Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing 12 Port
- Product category: Docking Stations & Port Replicators OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Docking Stations & Port Replicators
 |
User manual for the OWC Other World Computing 12 Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|

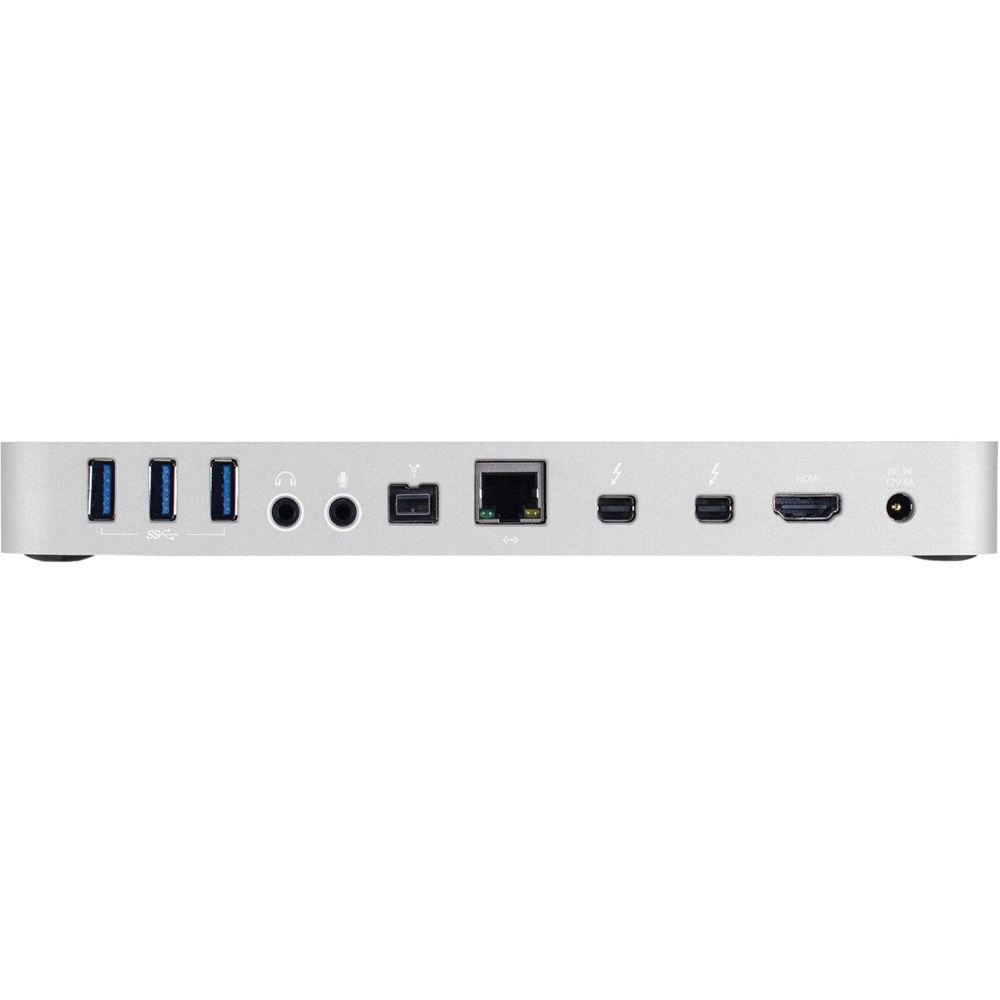

Product description Connect a variety of Thunderbolt 2, USB 3.0, FireWire 800, HDMI, Gigabit Ethernet, and 3.5mm audio peripherals to your Mac system using the 12 Port Thunderbolt 2 Dock from OWC / Other World Computing. This dock contains 2 x Thunderbolt 2 (20 Gb/s) ports, 5 x USB 3.0 (5 Gb/s) ports, 1 x FireWire 800 (800 Mb/s) ports, 1 x HDMI 1.4b port, 1 x 3.5mm mic/line in port, and 1 x 3.5mm audio/line out port.
In addition to allowing device connectivity to be expanded beyond the limits of your system, this 12-port dock performs several other functions. For example, two of its USB 3.0 ports are equipped as high-power charging ports for devices such as smartphones, tablets, and virtually any device that may be charged via USB. The Thunderbolt 2 ports will allow up to five Thunderbolt devices to be daisy-chained together, plus a display. The FireWire 800 port will allow up to 63 devices to be daisy-chained together, while the Gigabit Ethernet port will provide a wired network connection to systems that lack an Ethernet port, such as a MacBook Air or a MacBook Pro with Retina display. Additionally, the HDMI 1.4b port supports resolutions up to 4K/30 Hz, and there is DisplayPort 1.2 support for resolutions up to 4K/60 Hz. Lastly, the mic/line in and audio/line out ports will allow items such as microphones, headphones, speakers, and other 3.5mm-compatible accessories to be connected to your system.
The 12 Port Thunderbolt 2 Dock is compatible with any Thunderbolt-equipped Mac running OS X 10.9.4 or later. It operates using an included universal auto-switching 100-240 VAC power supply. - 2 x Thunderbolt 2 Ports
- Dual Thunderbolt 2 ports can provide up to 20 Gb/s of bandwidth and allow users to connect and daisy-chain up to five Thunderbolt devices plus a display
- 5 x USB 3.0 Ports

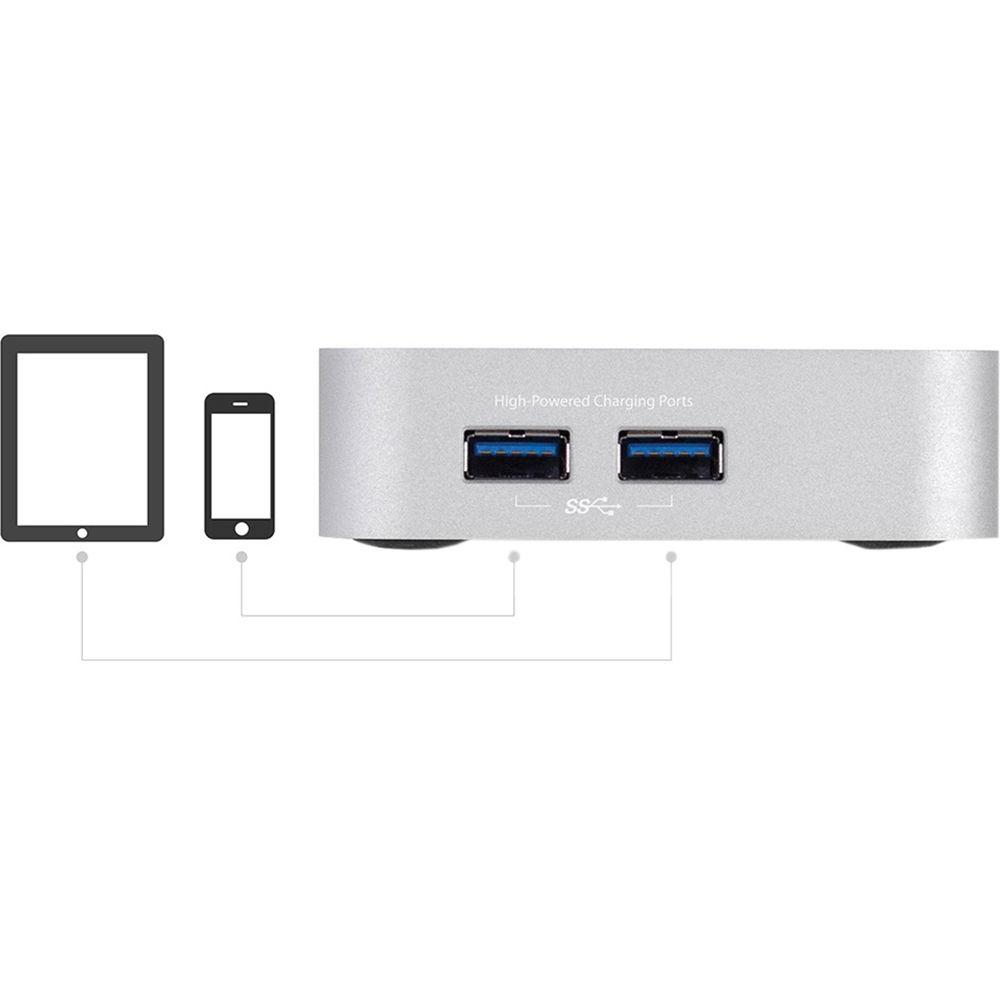

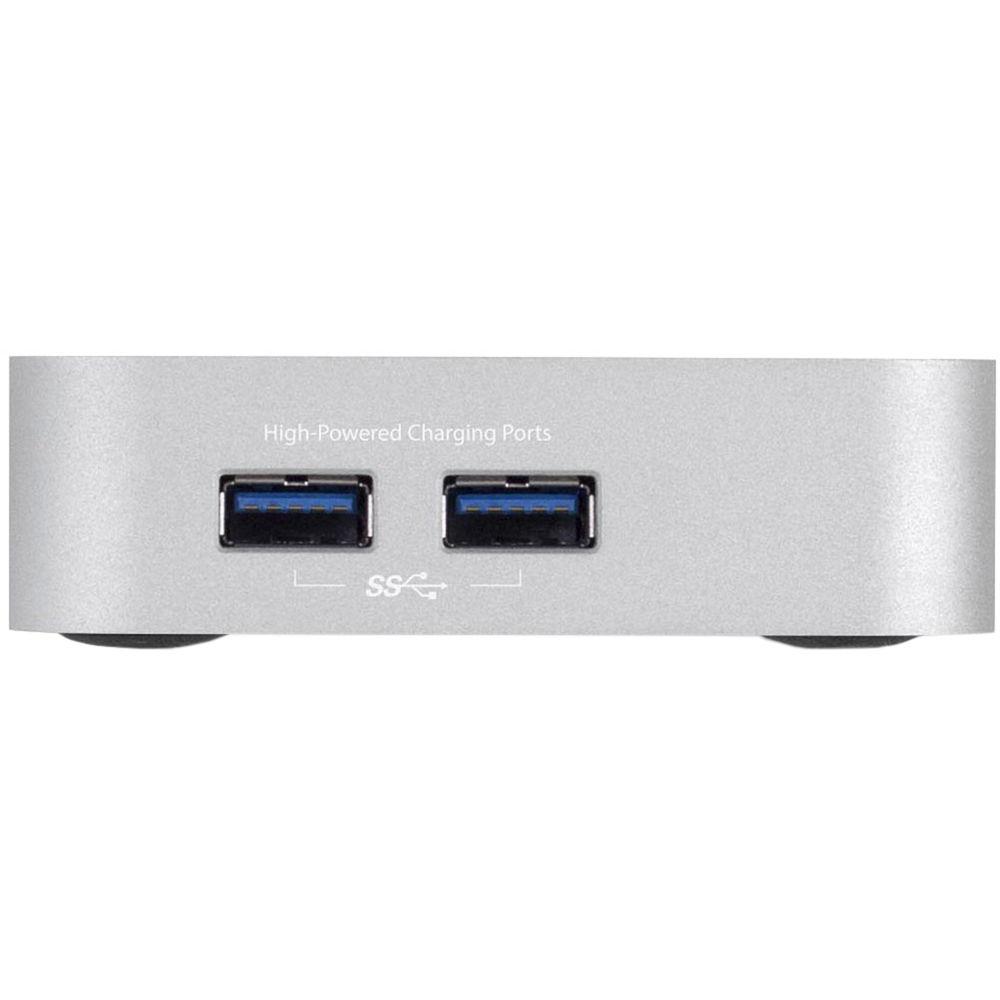

- Five USB 3.0 ports can provide up to 5 Gb/s of bandwidth and allows users to connect compatible devices to their system. Additionally, two of the USB 3.0 ports double as high-powered charging ports for devices that may be charged via USB
- 1 x FireWire 800 Port
- The single FireWire 800 port can provide up to 800 Mb/s of bandwidth and allows up to 634 devices to be daisy-chained to this system
- 1 x HDMI 1.4b
- HDMI 1.4b supports resolutions up to 4K/30 Hz for displaying video on an external display, TV, or projector
- DisplayPort 1.2
- DisplayPort 1.2 is also supported, with resolutions up to 4K/60 Hz
- 1 x Gigabit Ethernet
- The Gigabit Ethernet port will provide a wired network connection to systems without an Ethernet port, such as a MacBook Air or MacBook Pro with Retina display
- 2 x 3.5mm Audio Jacks
- The 1 x Mic/Line In port and 1 x Audio/Line Out port allow devices such as microphones, headphones, speakers, and more to be connected to your system
Notes - Dual monitor support requires the use of at least one Thunderbolt display. If you connect a display to the HDMI port, then the only display that will work through the Thunderbolt port is a Thunderbolt display. If you are not using the HDMI port, then you can use a Mini Display Port cable or adapter to connect a display to the Thunderbolt port
- DVI, VGA, DisplayPort, and other connections require the use of a Mini DisplayPort cable or adapter
- USB 3.0 ports are only bootable on Mid 2013 and later Macs
- Thunderbolt, FireWire, and Ethernet, are bootable on all Macs with a Thunderbolt port
- Charging iPad 1, 2, 3, and also Apple SuperDrive support are enabled by OWC Thunderbolt 2 Dock drivers
UPC: 812437020793 In the Box OWC / Other World Computing 12 Port Thunderbolt 2 Dock AC Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing 12 Port Thunderbolt 2 Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCTB2DOCK12P Specs | | | USB | 3 x USB 3.1 Gen 1 Type-A
2 x USB 3.1 Gen 1 Type-A | | Thunderbolt | 2 x Thunderbolt 2 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | 1 x FireWire 800 (9-Pin) | | Display | 1 x HDMI 1.4b | | Audio | 1 x 1/8" / 3.5 mm Headphone
1 x 1/8" / 3.5 mm Microphone | | Memory Card Slots | None | | | | Data Transfer Rate | 20 Gb/s Thunderbolt 2
5 Gb/s USB 3.0/USB 3.1 Gen 1
800 Mb/s FireWire 800 | | Operating System Support | macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 6 A | | | | Dimensions | 9.05 x 0.98 x 3.54" / 23 x 2.5 x 9 cm | | Weight | 0.8 lb / 0.4 kg | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 12.9 x 6.6 x 3.6" |
