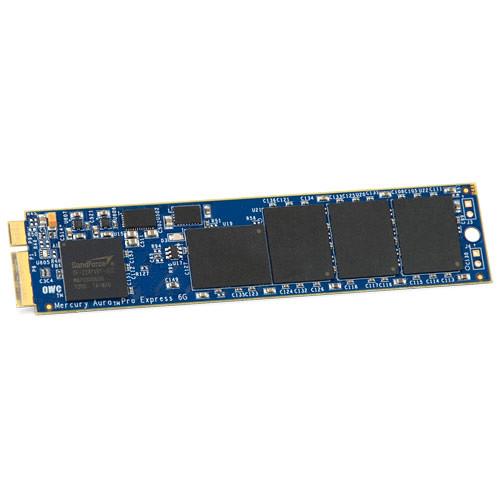

User Manual for OWC Other World Computing 120GB Aura 6G PCIe Internal SSD for MacBook Air Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing 120GB Aura
- Product category: Internal Drives OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Internal Drives
|
User manual for the OWC Other World Computing 120GB Aura contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More Add 120GB of SSD storage to your 11" or 13" MacBook Air with the 120GB Aura 6G PCIe Internal SSD for MacBook Air (Mid 2012) from OWC / Other World Computing. This drive is compatible with the 1.7 and 2.0 GHz 11" MacBook Air released in June 2012 (MacBookAir5,1), the 1.8 and 2.0 GHz 13" iMac released in June 2012 (MacBookAir5,2), and the 1.7 GHz 13" MacBook Air released in July 2012 (MacBookAir4,2). It is NOT compatible with the 1.4 and 1.6 GHz 11" MacBook Air released in October 2010 (MacBookAir3,1), the 1.86 and 2.13 GHz 13" MacBook Air released in October 2010 (MacBookAir3,2), the 1.6 and 1.8 GHz 11" MacBook Air released in July 2011 (MacBookAir4,1), and the 1.7 and 1.8 GHz 13" MacBook Air released in July 2011 (MacBookAir4,2).
Built using a SandForce SF2281 Series processor and Tier 1 Major Multi-Level Cell (MLC) High-Performance Sync-NAND Flash storage, this SSD connects to your iMacBook Air using a PCIe interface and features no moving parts, helping to protect it from accidental bumps and drops, as well as achieve faster data transfer speeds. Having no moving parts also means that this SSD will receive less wear and tear, as there are no read and write heads for the SSD media to come into contact with. In terms of speed, this drive offers read speeds up to 501 MB/s, write speeds up to 503 MB/s, and random 4K reads and writes up to 60,000 Input/Output Operations per Second (IOPS).
Also featured is 7% over provisioning with 8GB allocated to real-time data redundancy and error correction, less than 1 per 1016 non-recoverable read errors per bits read, 128-bit AES data encryption, read and write latencies of less than 0.1 ms, and OS dependent TRIM support. OWC's 120GB Aura 6G PCIe Internal SSD for MacBook Air (Mid 2012) is protected by a limited 3-year warranty. DuraClass Technologies - DuraWrite Technology optimizes writes to the flash memory over conventional controllers, helping to increase the overall endurance and reliability of the complete SSD. Intelligent block management and wear leveling also extends the overall endurance. This also helps achieve a higher mean time between failures (MTBF)
- Intelligent Block Management & Wear Leveling system automatically distributes data evenly across the entire SSD
- Intelligent Read Disturb Management spreads the active read/write across the flash components, helping to eliminate data corruption caused by constant use
- Intelligent "Recycling" for advanced free space management gradually re-writes data across the SSD over time to help ensure data does not become corrupted
- RAISE (Redundant Array of Independent Silicon Elements) helps protect the data on your drive, much like having a RAID setup
- ECC protection for long data retention and drive life
Compatibility - 11" MacBook Air (June 2012)
- Model ID: MacBookAir5,1 1.7 GHz, 2.0 GHz
- 13" MacBook Air (June 2012)
- Model ID: MacBookAir5,2
1.8 GHz, 2.0 GHz - 13" MacBook Air (July 2012, Education Model)
- Model ID: MacBookAir4,2
1.7 GHz UPC: 812437020151 In the Box OWC / Other World Computing 120GB Aura 6G PCIe Internal SSD for MacBook Air (Mid 2012) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing 120GB Aura 6G PCIe Internal SSD for MacBook Air in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCSSDA2A6G120 Specs | | | Drive Capacity | 120.00 GB | | Pre-Format | None | | | | Interface | PCIe (Unspecified Type) | | Random Read Speed | 60,000 IOPS (4 KB Files) | | Random Write Speed | 60,000 IOPS (4 KB Files) | | Sequential Read Speed | 501 MB/s | | Sequential Write Speed | 503 MB/s | | Latency | 0.1 ms (Read) | | | | Drive Type | SSD | | Form Factor | Propietary | | Noise Level | 0.0 dB (Active)
0.0 dB (Idle) | | | | Flash Controller | SandForce SF-2281 | | Flash Memory Type | Multi-Level Cell (MLC) | | Flash Memory Grade | Grade A / Tier 1 | | SMART Support | Yes | | TRIM Support | Yes | | | | ECC Recovery | 55 Bytes per 512 Bytes | | Encryption | 128-Bit AES Hardware Encryption | | Non-Recoverable Read Errors per Bits Read | 1 in 1016 | | | | Power Draw | 1.2 W (Idle)
3.0 W (Active) | | | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | -40 to 185°F / -40 to 85°C | | | | Certifications | RoHS, as per Manufacturer | | | | Package Weight | 0.085 lb | | Box Dimensions (LxWxH) | 6.2 x 4.0 x 0.4" |
