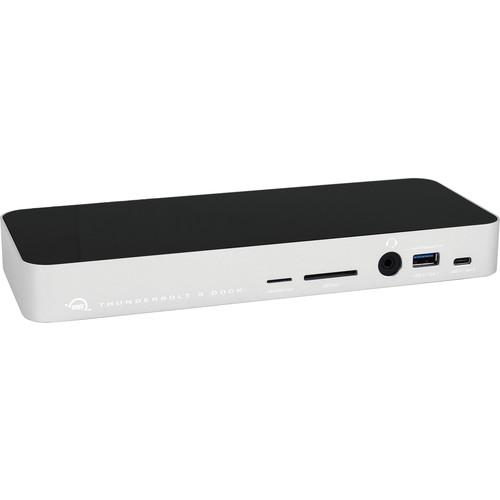

Product description Expand Your MacBook This Year with the OWC 14-Port Thunderbolt" 3 Dock Read More The silver 14-Port Thunderbolt 3 Dock from OWC / Other World Computing is designed to provide a combination of ports, convenience, and power to your computer via its included Thunderbolt 3 cable. With an integrated pair of Thunderbolt 3 ports, this dock allows a data transfer rate that can reach up 40 Gb/s, which is also capable of supporting dual 4K or single 5K displays. Moreover, extending or mirroring your system's screen to an external monitor is possible with this dock's Mini DisplayPort 1.2 port.
Connecting to wired peripherals with OWC's 14-Port Thunderbolt 3 Dock is easy with five USB 3.1 Gen 1 USB Type-A ports, a single USB 3.1 Gen 2 USB Type-C port, microSD and SD card reader slots, and a Gigabit Ethernet jack. If you like to switch between systems when you work, you can rest easy since the 14-Port Thunderbolt 3 Dock is compatible with Windows and Mac. Furthermore, this dock is designed to be compact and minimize desk clutter while you charge your computer and mobile devices simultaneously with its 85W power supply. - Connect, Work, Disconnect, or Go

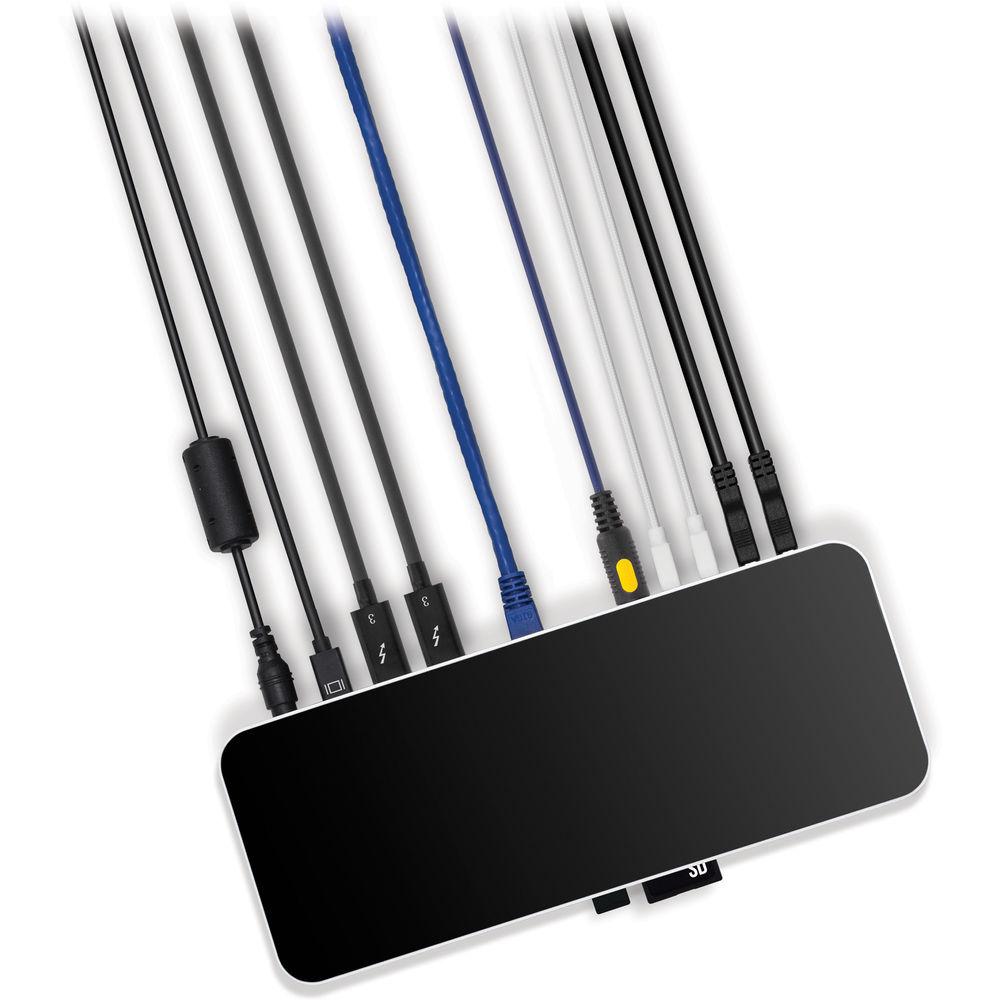

- The Other World Computing 14-Port Thunderbolt 3 Dock is designed to make portability and productivity easy. With a single connection to your computer, the OWC Thunderbolt 3 Dock allows you to connect to peripherals, whether you need to walk away from your desk or come back.
- A Plethora of Ports

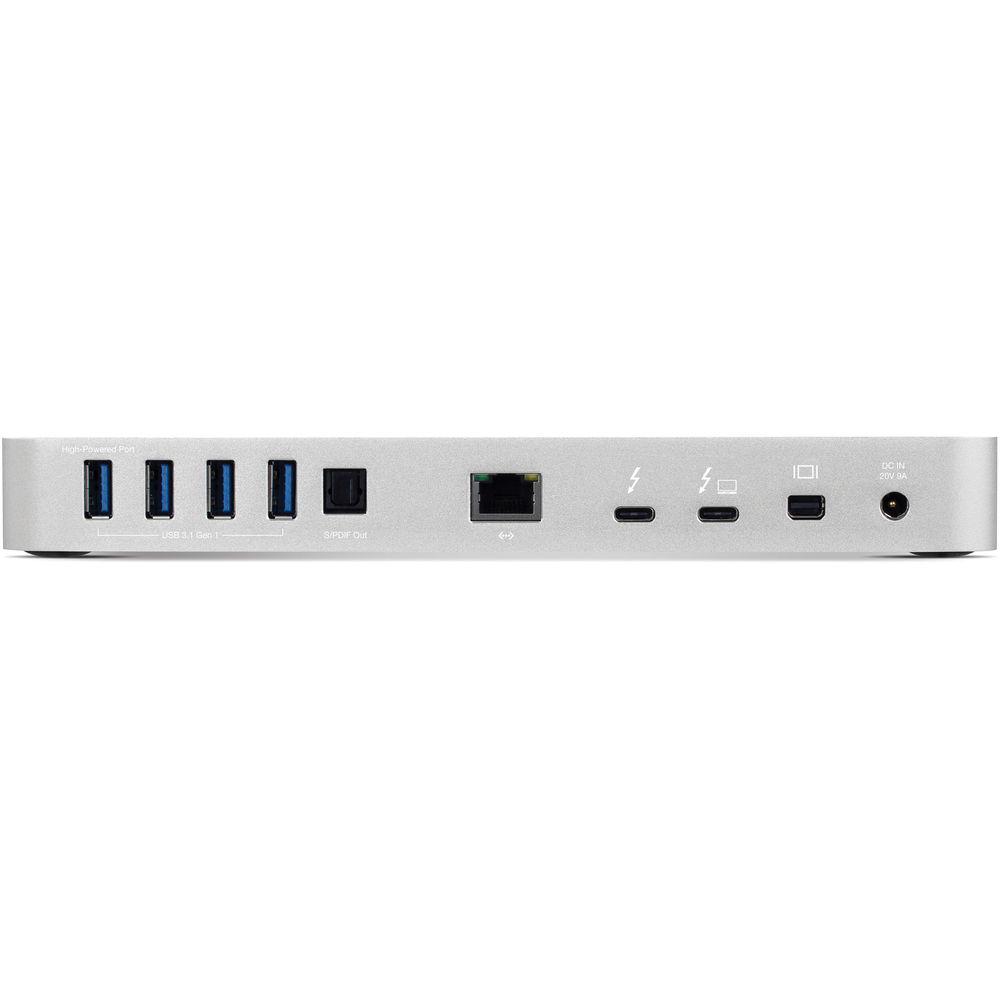

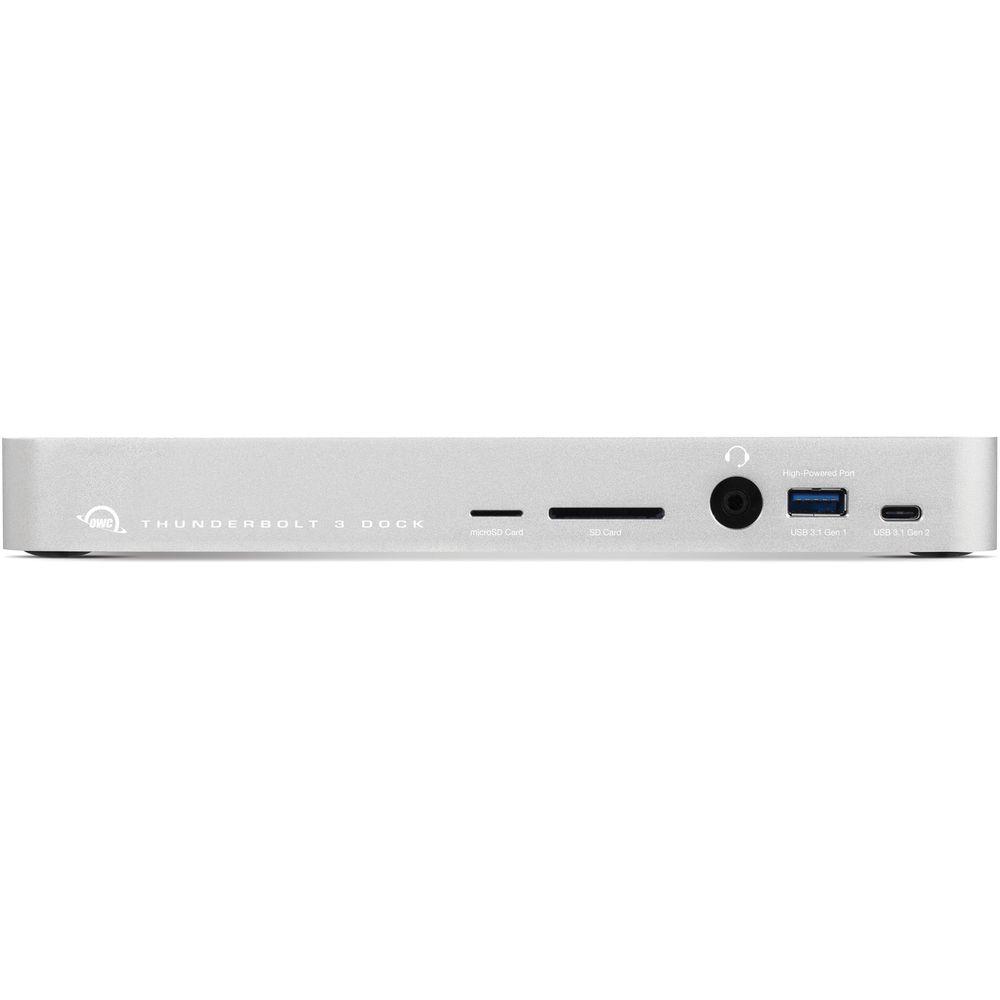

- With its 14 ports of connectivity, the OWC Thunderbolt 3 Dock delivers convenience while keeping desktops clutter-free. The docking station's front is designed for easy connection to your portable devices, headphones and media cards, while the rear features a multitude of ports for your static devices so cables can stay out of sight.
- Powered Ports
- The OWC Thunderbolt 3 Dock provides 85W of power to your computer via the Thunderbolt 3 connection and has multiple high-power USB ports to charge your mobile devices.
- Designed to Last
- This dock is designed with functional ports to expand your system's possibilities as well as a durable, aluminum build.
UPC: 810586030533 In the Box OWC / Other World Computing 14-Port Thunderbolt 3 Dock (Silver) 0.5m Thunderbolt 3 Cable External Power Supply and Power Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing 14-Port Thunderbolt 3 Dock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCTB3DK14PSL Specs | | | USB | 5 x USB 3.1 Gen 1 Type-A
1 x USB 3.1 Gen 2 Type-C | | Thunderbolt | 2 x Thunderbolt 3 | | Ethernet | 1 x RJ45 (10/100/1000 Mbps) | | FireWire | None | | Display | 1 x Mini DisplayPort 1.2 | | Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo | | Memory Card Slots | 1 x SDXC (UHS-II [312 MB/s])
1 x microSD (Unspecified Type) (UHS-II [312 MB/s]) | | | | System Connection | 2 x Thunderbolt 3 Type-C Female | | Connection Type | Detachable Cable | | | | Chipset | Intel DSL6540 | | Number of Displays Supported | 2 | | Maximum Resolution Supported | 5120 x 2880 at 60 Hz (Single Display) | | Data Transfer Rate | 40 Gb/s Thunderbolt 3 | | Operating System Support | Windows, macOS/OS X | | UASP Support | No | | | | Power Source | AC Adapter | | Maximum Power Consumption | 85 W (AC Adapter) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Operating Temperature | 32 to 104°F / 0 to 40°C (Recommended) | | Storage Temperature | -4 to 158°F / -20 to 70°C | | | | Enclosure Material | Aluminum | | Lock Slot | No | | Dimensions | 9.06 x 3.5 x 0.98" / 230 x 89 x 25 mm | | Weight | 1.1 lb / 522 g | | | | Package Weight | 3.535 lb | | Box Dimensions (LxWxH) | 12.3 x 5.1 x 3.7" |
