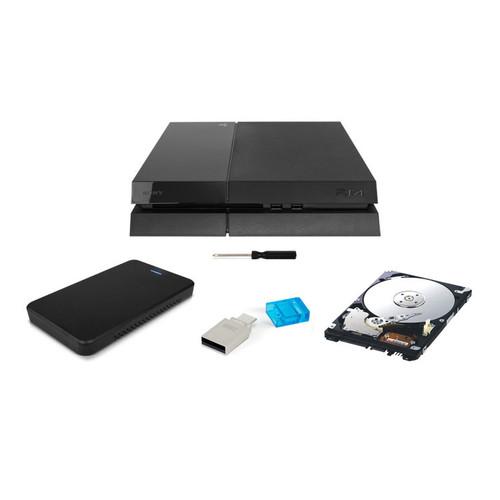

User Manual for OWC Other World Computing 2TB DIY Hard Drive Upgrade Bundle for the PlayStation 4 Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing 2TB DIY
- Product category: External Drives OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing External Drives
|
User manual for the OWC Other World Computing 2TB DIY contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description The 2TB DIY Hard Drive Upgrade Bundle for the PlayStation 4 from OWC / Other World Computing is a manufacturer's kit that includes several items that may be used to upgrade and maintain your PlayStation 4. Using the 2TB 2.5" hard drive, with a rotational speed of 5400 rpm and a height of 9.5mm, the internal storage of your PlayStation 4 may be quadrupled from the stock 500GB drive that is natively included with all models. Once you remove the stock 500GB drive, it may be placed in the included OWC Express 2.5" Portable USB 3.0 Enclosure, which interfaces with the included mini-USB 3.0 Type-B cable, allowing users to connect the drive to their PlayStation 4, where it may be used to transfer any current content to the new 2TB drive, as well as perform system backups, system restores, or be reformatted for use with almost any Windows or Mac system. Also included is an 8GB Dual USB Flash drive, which once formatted as FAT32, may be used to reinstall the OS and system files onto your PlayStation 4, once they have been downloaded from Sony's website. Other items included in this kit are a Philips #1 screwdriver and a carrying sleeve. Protection is provided by a limited 1-year warranty with a 48-hour turnaround. - Express 2.5" Portable USB 3.0 Enclosure Kit for SATA HDDs & SSDs (Black) The black Express 2.5" Portable USB 3.0 Enclosure Kit for SATA HDDs & SSDs from OWC / Other World Computing is designed to house a separately sold SATA III 6 Gb/s, SATA II 3 Gb/s, or SATA I 1.5 Gb/s hard drive or solid state drive so you can store and carry your music, photos, and personal data wherever you go. You simply insert a 2.5" drive up to 9.5mm in height into the ventilated enclosure to build a portable hard drive. This device supports USB 3.0 connectivity and is also backwards compatible with USB 2.0 and USB 1.1 connectivity.
The Express 2.5" Portable USB 3.0 Enclosure Kit includes a USB 3.0 cable and a carrying sleeve, and is compatible with systems running Windows, Mac, and Linux operating systems. Please be aware that USB bus power is only compatible when a USB 3.0 or 2.0 connection is utilized, and SSDs are only supported via USB 3.0. UPC: 718122776375 - 2TB Spinpoint M9T 2.5" Mobile SATA Internal Hard Drive (OEM) The 2TB Spinpoint M9T 2.5" Mobile SATA Internal Hard Drive (OEM) from Seagate is a mobile SATA drive that delivers high capacity in a thin design to give customers a solution for external and mobile applications. The 2.5" drive is just 9.5mm thin and has a capacity of 2TB.
- Max. 667GB formatted capacity per disk
- SATA Native Command Queuing feature
- TuMR/PMR head with FOD technology
- SATA 6Gb/s interface support
- Load/unload head technology
- ATA Security Mode feature set
- ATA S.M.A.R.T. feature set
In the Box Bundle Items Express 2.5" Portable USB 3.0 Enclosure Kit for SATA HDDs & SSDs (Black) cwwvyzvzxzvdtdtcvawsxzcwva 2TB Spinpoint M9T 2.5" Mobile SATA Internal Hard Drive (OEM)
Also Includes - 8GB Dual USB Flash Drive
- Philips #1 Screwdriver
- Mini-USB 3.0 Type-B Cable
- Carrying Sleeve
- Limited 1-Year Hard Drive Warranty
- Limited 1-Year Drive Enclosure Warranty
User Manual PDF 73.3kbcwwvyzvzxzvdtdtcvawsxzcwva Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing 2TB DIY Hard Drive Upgrade Bundle for the PlayStation 4 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Express 2.5" Portable USB 3.0 Enclosure Kit for SATA HDDs & SSDs (Black)
| Number of Bays | 1 x 2.5" | | Maximum 2.5" SATA Drive Height | 9.5 mm | | Connections | 1 x USB Mini-B (USB 3.1 Gen 1 (5 Gb/s)) | | Compatible Drive Interface | SATA | | Operating System Support | Linux, Windows, macOS/OS X | | | | Bridge Chipset | ASMedia ASM1053E | | Dimensions (W x H x D) | 3.1 x 5.1 x 0.6" / 7.8 x 13.0 x 1.4 cm | | Weight | 2.0 oz / 56.0 g | | | | Box Dimensions (LxWxH) | 6.1 x 4.4 x 1.5" | - 2TB Spinpoint M9T 2.5" Mobile SATA Internal Hard Drive (OEM)
| Drive Configurations | Capacity: 2 TB
Interface: SATA 6Gb/s (3Gb/s, 1.5Gb/s)
Rotational Speed: 5400 rpm
Cache: 32MB | | Performance Specifications | Average Seek Time (typical): 12 ms
Average Latency: 5.6 ms
Drive Ready Time (typical): 3.5 ms
Data Transfer Rate:
- Media to/from Buffer (max): 169 MB/s
- Buffer to/from Host (max): 600 MB/s | | Reliability | Nonrecoverable Read Error: 1 sector in 1014 bits
Controlled Ramp Load/Unload: > 600,000 | | Acoustics | Idle: 2.5 bels
Performance Seek: 2.7 bels | | Power Requirements | Voltage: +5V ± 5%
Spin-up Current (max): 1000 mA
Read/Write (avg): 2.3 W
Low Power Idle (avg): 0.7 W
Standby (avg): 0.18 W
Sleep (avg): 0.18 W | | Environmental Specifcations | Temperature
- Operating: 32 to 140°F / 0 to 60°C
- Nonoperating: -40 to 158°F / -40 to 70°C
Humidity (non-condensing)
- Operating: 5% to 90%
- Nonoperating: 5% to 95%
Linear Shock (1/2-sine pulse)
- Operating (2 ms): 300 Gs
- Non-operating (1 ms): 900 Gs
Vibration (10 to 500Hz, random)
- Operating: 1.5 Grms
Altitude (relative to sea level)
- Operating: -1,000 x 10,000' / -305 x 3,048 m
- Non-operating: -1,000 x 40,000' / -305 x 12,192 m | | Physical Dimensions | Height: 9.5 mm ± 0.2 mm (0.374" ± 0.008")
Width: 69.85mm ± 0.25mm (2.75" ± 0.01")
Length: 100.35mm +0.2/−0.25mm (3.951" +0.008"/−0.010")
Weight (max): 130.00 g (0.29 lb) | | | | Box Dimensions (LxWxH) | 8.9 x 6.1 x 2.7" |
