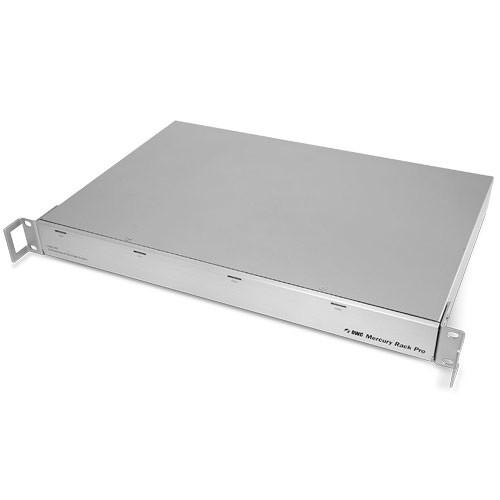

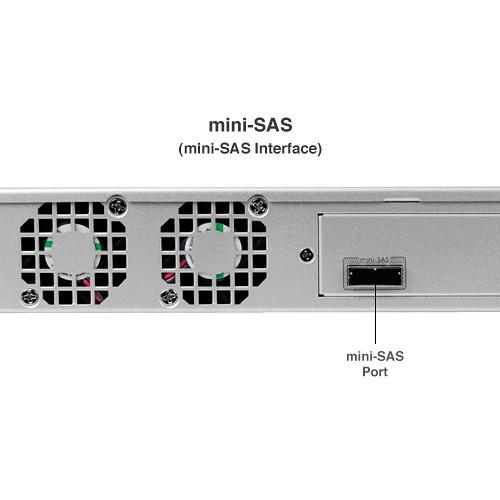

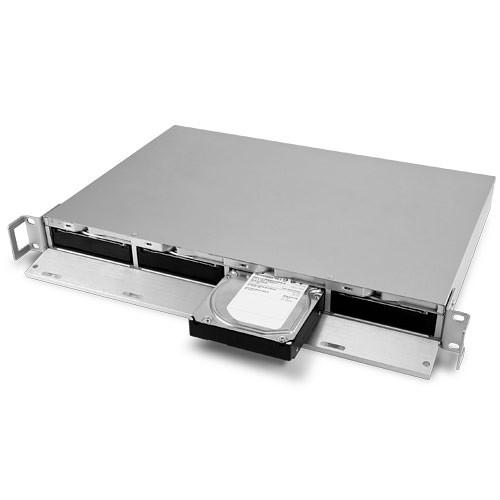

Product description RAID Arrays for Photography and Pro Video Read More If you need massive amounts of storage to meet the demands of server, audio production, and video production environments, the 40TB Mercury Rack Pro 4-Bay Mini-SAS Enterprise Class Storage Solution from OWC / Other World Computing provides users with up to 40TB of storage that is spread out over its four 3.5" SATA drive bays, each of which is equipped with a 10TB 3.5" 7200 rpm SATA hard drive with a 64MB cache, or 256MB of total cache. The Mercury Rack Pro has one external Mini-SAS interface, which helps to not only reduce cable clutter, but provides four full channels of data (one per drive) using an included 3.3' Mini-SAS cable, which provides data transfer rates of up to 2,400 MB/s or 24 Gb/s.
While the Mercury Pro is primarily designed for rackmount use and has a 1RU form factor, it can be converted to a desktop form factor using the included anti-skid and vibration dampening feet. This system is compatible with both Windows and Mac OS and included Drive Guide software will format the drives for either OS. The system is also RAID-ready, supports JBOD, and operates using an included 100 ~ 240 V power supply that runs at 50/60 Hz. Cooling is accomplished using three 4cm brushless, constant-speed fans, and also included are rack-mounting handles and screws for rack/desktop conversion. Please bear in mind that rack rails are not included. General Features - Great Performance
- Using fast SATA drive mechanisms, this unit delivers solid performance. With the addition of a separately sold high-speed external Mini-SAS card, it is possible to achieve data transfer speeds up to 2,400 MB/s (24 Gb/s)
- High Reliability
- Designed using high quality components, the OWC Mercury Rack Pro has a limited 5-year warranty and is built to last
- Flexible Form
- The OWC Mercury Rack Pro can be converted to a desktop form-factor via a Phillips screwdriver by simply removing the rack ears and installing the included anti-skid, vibration-dampening feet
- Software Included
- Intech Hard Disk SpeedTools Utilities OEM (For Mac OS 8.6 - X only)
ProSoft Engineering Data Backup for Mac OS X v10.2.8 or later
NovaStor NovaBACKUP for Windows 2000 or later
Over 1.5GB of freeware, shareware, and public domain software is installed In the Box OWC / Other World Computing 40TB Mercury Rack Pro 4-Bay Mini-SAS Enterprise Class Storage Solution (4 x 10TB) Integrated ROHS, CE, and FCC Compliant Power Supply 3.3' / 1.0m Mini-SAS cable Rack Mounting Handles Anti-Skid, Vibration Dampening Desktop Mounting Feet Screws for Rack / Desktop Conversion 6 Months of Complimentary Level 1 Data Recovery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing 40TB Mercury Rack Pro 4-Bay Mini-SAS Enterprise Class Storage Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWMRPMSS4B40.0E Specs | | | Interfaces Supported | Unit provides one external Mini-SAS port, supporting speeds up to 24 Gb/s, or 2,400 MB/s
Enclosure uses 3.5" Serial ATA (SATA) hard drives | | RAID / JBOD Support | RAID-ready and JBOD; 4 independent drive channels | | Standard Mechanism | 4 x 10 TB Seagate Enterprise Capacity Hard Disk Drives | | Drive Rotation Speed | 7200 rpm | | Drive Cache Size | 64 MB per drive, 256 MB total for the solution | | Format | Included Drive Guide Software will format drive for either OS X or Windows | | Macintosh System Requirements | Mini-SAS Cable Included: A 3.3' Mini-SAS cable is included and is required for use with SATA/SAS 6 Gb/s drives due to signal integrity requirements. Longer cable lengths are not supported. When using SATA/SAS 3 Gb/s drives, longer cable lengths (sold separately) can be used External Mini-SAS: Macintosh with an external Mini-SAS port via a 3rd party controller card interface (not included). External Mini-SAS requires Mac OS X 10.2 or later, including Mavericks 10.9.x Time Machine Compatible: Mac OS X 10.5 and later | | Windows System Requirements | Mini-SAS Cable Included: An included 3.3' Mini-SAS cable is required for use with SATA/SAS 6Gb/s drives due to signal integrity requirements. Longer cable lengths are not supported. When using SATA/SAS 3 Gb/s drives, longer cable lengths (sold separately) can be used External Mini-SAS: Windows with an external Mini-SAS via port via a 3rd party controller card interface (not included). External Mini-SAS requires Microsoft Windows 2000 or XP | | Cooling | 3 x 4 cm brushless, constant speed fans | | Power Supply | UL Listed U.S./International Adjustable 100 ~ 240 V, 50/60 Hz, 200 W (maximum) input power supply (power cords for international use sold separately) | | Dimensions | 11.9 x 17.3 x 1.7" / 30.2 x 43.9 x 4.3 cm
11.9 x 17.3 x 2.2" / 30.2 x 43.9 x 5.6 cm (with feet)
11.9 x 19.2 x 1.7" / 30.2 x 48.8 x 4.3 cm (with rack mounting handles) | | Weight | 10.0 lb / 4.5 kg (approximate weight) | | | | Temperature | Operating: 41 to 107°F / 5 to 42°C Non-Operating: -40 to 149°F / -40 to 65°C | | Relative Humidity | Operating: 8 - 90% RH, (non-condensing)
Non-Operating: 5 - 95% RH (non-condensing) | | Shock | Operating: 65 G @ 2 ms
Non-Operating: 175 G @ 2 ms | | Vibration | Operating: 1.0 G (5 - 300 Hz)
Non-Operating: 5.0 G (5 - 500 Hz) | | | | Package Weight | 21.5 lb | | Box Dimensions (LxWxH) | 21.5 x 16.0 x 10.0" |
