User Manual for OWC Other World Computing 480GB Aura 6G PCIe Internal SSD for iMac Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing 480GB Aura
- Product category: Internal Drives OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Internal Drives
|
User manual for the OWC Other World Computing 480GB Aura contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|

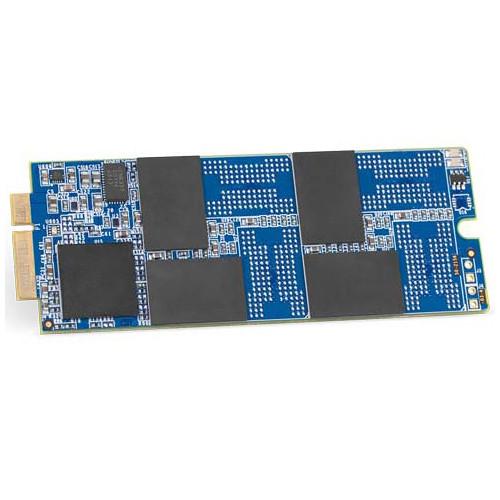

Product description Add 480GB of SSD storage to your 21.5" or 27" iMac with the 480GB Aura 6G PCIe Internal SSD for iMac (Late 2012-Early 2013) from OWC / Other World Computing. This drive is compatible with the 2.9 and 3.1 GHz 21.5" iMac released in October 2012 (iMac13,1), the 2.9, 3.2, and 3.4 GHz Core i7 27" iMac released in October 2012 (iMac13,2), and the 3.3 GHz Core i3 21.5" iMac released in March 2013 (iMac13,1). It is NOT compatible with the 2.7 GHz 21.5" iMac released in October 2012 (iMac13,1).
Built using a SandForce SF2281 processor and Tier 1 Asynchronous MLC NAND Flash storage, this SSD connects to your iMac using a PCIe interface and features no moving parts, helping to protect it from accidental bumps and drops, as well as achieve faster data transfer speeds. Having no moving parts also means that this SSD will receive less wear and tear, as there are no read and write heads for the SSD media to come into contact with. In terms of speed, this drive offers read speeds up to 501 MB/s, write speeds up to 503 MB/s, and up to 60,000 random 4K Input/Output Operations per Second (IOPS).
Also featured is 7% over provisioning ECC recovery, less than 1 per 1016 non-recoverable read errors per bits read, 128-bit AES data encryption, read and write latencies of less than 0.1 ms, and OS dependent TRIM support. OWC's 480GB Aura 6G PCIe Internal SSD for iMac includes a Torx SSD mounting screw, an OWC pick (for screen separation), and adhesive strips (for screen re-attachment). It is protected by a limited 3-year warranty. General Features - SandForce SF2281 processor controller delivers high performance and reliability
- Aggressive data management helps keep drive working at full potential even when filled
- Hardware error correction yields improved data retention and drive health
- Gold-standard compression and even data distribution helps maximize write performance and drive endurance
Compatibility - 21.5" iMac (October 2012)
- Model ID: iMac13,1
2.9 GHz, 3.1 GHz - 27" iMac (October 2012)
- Model ID: iMac13,2
2.9 GHz, 3.2 GHz, 3.4 GHz i7 - 21.5" iMac (March 2013)
- Model ID: iMac13,1
3.3 GHz i3 UPC: 812437021769 In the Box OWC / Other World Computing 480GB Aura 6G PCIe Internal SSD for iMac (Late 2012-Early 2013) Torx SSD Mounting Screw OWC Pick for Screen Separation Adhesive Strips for Screen Re-Attachment Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing 480GB Aura 6G PCIe Internal SSD for iMac in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCSSDIM12D480 Specs | | | Drive Capacity | 480.00 GB | | Pre-Format | None | | | | Interface | PCIe (Unspecified Type) | | Maximum Read Speed | 501 MB/s | | Maximum Write Speed | 503 MB/s | | Random Read Speed | 60,000 IOPS (4 KB Files) | | Latency | 0.1 ms (Read)
0.1 ms (Write) | | | | Drive Type | SSD | | Form Factor | Propietary | | | | Flash Controller | SandForce SF-2281 | | Flash Memory Type | Asynchronous Multi-Level Cell (MLC) | | Flash Memory Grade | Grade A / Tier 1 | | SMART Support | Yes | | TRIM Support | Yes | | | | ECC Recovery | 55 Bytes per 512 Bytes | | Encryption | 128-Bit AES Hardware Encryption | | Non-Recoverable Read Errors per Bits Read | < 1 in 1016 | | | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | -67 to 302°F / -55 to 150°C | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.3 x 5.4 x 1.0" |
