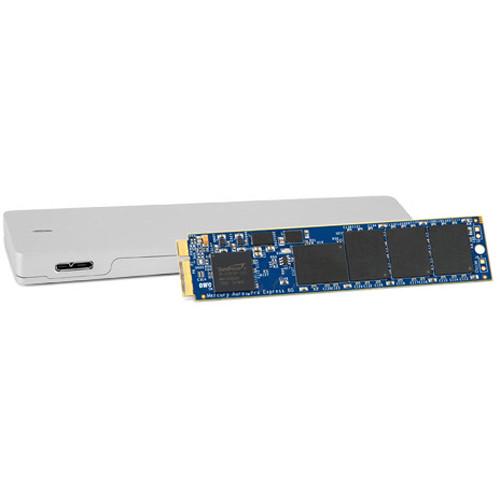

User Manual for OWC Other World Computing 480GB Aura Pro Solid State Drive and Envoy Storage Solution Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing 480GB Aura
- Product category: Internal Drives OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Internal Drives
|
User manual for the OWC Other World Computing 480GB Aura contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description The OWC 480GB Aura Pro Solid State Drive and Envoy Storage Solution incorporates SandForce DuraClass technology such as DuraWrite that extends the endurance of your Solid State Drive (SSD). Thanks to the Intelligent Block Management & Wear Leveling, data is distributed evenly across the entire SSD.The Intelligent Read Disturb Management spreads the active read/write across the flash components eliminating data corruption caused by constant use. Also, Intelligent "Recycling" is suited for advanced free space management that gradually re-writes data across the SSD over time to ensure data never gets corrupted.The Envoy storage solution is a sleek and portable external storage solution designed to complement the MacBook Air - in both appearance and performance. Its high-speed USB 3.0 interface is capable of speeds up to 500 Mb/s to ensure your workflow moves as fast as you do, and is backwards compatible with USB 2.0. Its bus-powered design means no AC power adapter is required making it a portable Plug and Play solution. Aura Pro 6G - Provides up to nearly 8x the capacity over factory SSDs
- 480GB storage capacity holds loads of data
- RAISE (Redundant Array of Independent Silicon Elements) protects the data on your drive similar to having a RAID setup.
- Best-in-Class ECC Protection for longest data retention and drive life
- DuraWrite technology optimizes writes to the flash memory over conventional controllers increasing the overall endurance and reliability of the complete SSD
- Intelligent Block Management and wear leveling extends the overall robustness of the system resulting in a higher MTTF
Envoy Storage Solution - Integrated power/activity LED light
- Non-skid rubber feet for secure placement on any surface
- Durable painted aluminum body complements Mac aluminum finish
UPC: 794504770520 In the Box OWC / Other World Computing 480GB Aura Pro Solid State Drive and Envoy Storage Solution Envoy USB 2.0/3.0 Enclosure Carrying Case USB 3.0 Standard A to Micro-B Connector Cable Pentalobe Compatible Driver Torx T-5 Screwdriver Limited 3-Year Warranty on Aura Pro 6G Limited 1-Year Warranty on Envoy Enclosure Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing 480GB Aura Pro Solid State Drive and Envoy Storage Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCSSDAP2A6K480 Specs | | | Interface | PCIe (Unspecified Type) | | Random Write Speed | 60,000 IOPS (4 KB Files) | | Sequential Write Speed | 503 MB/s | | | | Drive Type | SSD | | Form Factor | Propietary | | Noise Level | 0.0 dB (Active)
0.0 dB (Idle) | | | | Flash Controller | SandForce SF-2281 | | Flash Memory Type | Multi-Level Cell (MLC) | | Flash Memory Grade | Grade A / Tier 1 | | SMART Support | Yes | | TRIM Support | Yes | | | | ECC Recovery | 55 Bytes per 512 Bytes | | Encryption | 128-Bit AES Hardware Encryption | | Non-Recoverable Read Errors per Bits Read | 1 in 1016 | | | | Power Draw | 1.2 W (Idle)
3.0 W (Active) | | | | Operating Temperature | 32 to 158°F / 0 to 70°C | | Storage Temperature | -67 to 302°F / -55 to 150°C | | | | Interface | 1 x USB 3.0 Micro-B | | Chipset | ASMedia 1053e | | | | Certifications | ENERGY STAR, RoHS, as per Manufacturer | | Dimensions (W x H x D) | 1.8 x 5.9 x 0.5" / 45.5 x 149.9 x 11.7 mm | | Weight | 1.5 oz / 42.5 g | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 7.4 x 3.8 x 1.9" |
