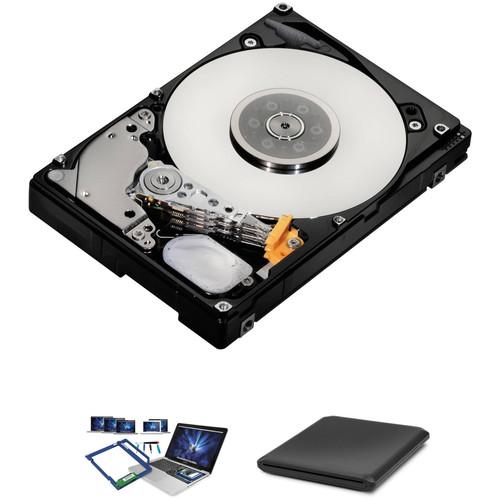

User Manual for OWC Other World Computing Converter Bracket Kit with 1TB Hard Drive and External Optical Drive Enclosure Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing Converter Bracket
- Product category: Internal Drives OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Internal Drives
|
User manual for the OWC Other World Computing Converter Bracket contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description Hard Drives by Application: Which Is Best for You? Read More Data Doubler Optical to Hard Drive Converter Bracket Kit with 1TB Hard Drive and External Optical Drive Enclosure is a Kit that makes adding extra internal storage to your Mac notebook easy. This kit will allow you to add 1TB of storage in place of the optical disc drive that is occupying your Mac notebook. This kit also allows you to convert your internal optical drive to an external optical drive with the included enclosure.
To add extra storage to your compatible Mac notebook*, insert the 1TB drive into the adapter bracket, remove your notebook's optical drive, and then insert the bracket with the drive. Thereafter, you can configure the drive via Apple's Disk Utility program and you will have plenty of options. Also, once you've removed the optical drive, you can place it into the enclosure. The enclosure allows you to continue using the optical drive with your Mac notebook. It utilizes a USB 2.0 interface for connecting it to your notebook. Note: Please refer to the bracket's specifications to carefully note whether or not your MacBook or MacBook Pro is compatible with the converter bracket. - OWC / Other World Computing Data Doubler Optical to SATA HD Converter Bracket for Mac Laptops The OWC Data Doubler Optical to SATA HD Converter Bracket for Mac Laptops is an exceptional tool if you want to replace your MacBook or MacBook Pro's internal SuperDrive with your own slim 2.5" SATA hard drive or solid state drive.* The converter bracket is made from black anodized aluminum and comes with a PCB circuit board. The circuit board can mount any 2.5" SATA HDD or SDD that's also 9.5 mm tall. It's compatible with SATA 1.5Gbps, 3Gbps, and 6Gbps drives.
OWC makes the process of installing the converter bracket and replacing your Mac's original optical drive easy. The entire converter bracket assembly fits into a MacBook or MacBook Pro 5.25" optical drive bay. To facilitate installation, a five piece toolkit, a set of screws, and a detailed installation guide are included.
Once installed, your drive will be recognized like any other high speed SATA storage device and can be setup and partitioned using the Apple Disk Utility Program. You can also custom design how you want your internal storage to perform. Note: *Please refer to the specifications tab to carefully note whether or not your MacBook or MacBook Pro is compatible with the converter bracket. - Allows you to replace your MacBook or MacBook Pro's internal SuperDrive with your own slim 2.5" SATA hard drive or solid state drive 1
Please Note: *Please refer to the specifications tab to carefully note whether or not your MacBook or MacBook Pro is compatible with the converter bracket. close - The bracket is made from black anodized aluminum and comes with a PCB circuit board that can mount any 2.5" SATA HDD or SDD that's also 9.5 mm tall
- Your drive will be recognized like any other high speed SATA storage device and can be setup and partitioned using the Apple Disk Utility Program
- Configure your drive in a number of ways. For example, the below are a few options:
Creating an individual volume with its own desktop icon
Combining a new drive with the existing internal drive for one larger volume (SPAN)
Combining a new matching drive with existing internal for high-performance RAID-0 Stripe volume
Configuring a new drive as a Time Machine backup drive
Formatting one drive for the Mac OS and the other dedicated for Windows - To facilitate a fast, successful installation, a five piece toolkit, a set of screws, and a detailed installation guide are also included
UPC: 718122776276 - OWC / Other World Computing SuperSlim USB 2.0 9.5mm Optical Drive External Enclosure The SuperSlim USB 2.0 9.5mm Optical Drive External Enclosure from OWC / Other World Computing turns any 9.5mm slot-loading internal optical drive into an external solution. The enclosure makes CD, DVD, and/or Blu-ray disc burning and playing easy with Mac and Windows PCs. It's bus powered, meaning there's no AC adapter needed, and ultra-thin and lightweight for easy transport in your gear bag. While the SuperSlim is a very attractive option for MacBook, and MacBook Pro owners wishing to retask a removed Apple SuperDrive, it is also a great choice for any 9.5mm optical drive even those with mounting tabs.
Please note optical drive not included - Makes CD, DVD, and/or Blu-ray disc burning and playing easy with both Macs and Windows PCs
- Attractive option for MacBook, and MacBook Pro owners looking to retask a removed Apple SuperDrive, but also a great choice for any 9.5mm optical drive—even those with mounting tabs
- Bus powered, no AC adapter required, and ultra-thin and lightweight for easy transport in your gear bag
- When equipped with an Apple SuperDrive, provides CD/DVD write speeds equal to or exceeding those of an internally installed optical drive in a 2011 MacBook Pro
UPC: 718122778270 In the Box - Data Doubler Optical to SATA HD Converter Bracket for Mac Laptops zvzydqrubzxbbavbcrtteztub
- Interposer Board
- Screws (5 pieces, 3x Phillips #00, 2x Phillips #1)
- Toolkit: Nylon Spudger, Phillips #00, Straight Blade 1.8 mm, Torx T8, Torx T6
- Detailed Installation Guide w/ Model Specific Instructions & Step by Step Photos
- 1-Year Limited Warranty
- SuperSlim USB 2.0 9.5mm Optical Drive External Enclosure
Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Converter Bracket Kit with 1TB Hard Drive and External Optical Drive Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - OWC / Other World Computing Data Doubler Optical to SATA HD Converter Bracket for Mac Laptops
| | | Compatible | Supports the following drives:
SATA, SATA 3G, SATA 6G interface 2.5" hard drives or solid state drives of up to 9.5mm (Super Slim) height
Compatible MacBook Pro Models:
MacBook Pro 17" "Early 2009", "Mid 2009", "Early 2010", and "Early 2011"
Models include:
MacBookPro5,2 | 2.66GHz, 2.8GHz, 2.93GHz, 3.06GHz
MacBookPro6,1 | 2.53GHz, 2.66GHz, 2.8GHz
MacBookPro8,3 | 2.2GHz, 2.3GHz
MacBook Pro 15" "Late 2008", "Mid 2009", "Early 2010" "Early 2011" "Late 2011" and "Mid 2012"
Models include:
MacBookPro5,1 | 2.4GHz, 2.53GHz, 2.66GHz, 2.8GHz, 2.93GHz
MacBookPro5,3 | 2.66GHz, 2.8GHz, 3.06GHz
MacBookPro5,4 | 2.53GHz
MacBookPro6,2 | 2.4GHz, 2.53GHz, 2.66GHz, 2.8GHz
MacBookPro8,2 | 2.0GHz, 2.2GHz, 2.3GHz
MacBookPro8,2 | 2.2GHz, 2.3GHz
MacBook Pro9,1 | 2.3GHz, 2.6GHz, 2.7GHz
MacBook Pro 13" "Mid 2009" "Early 2010" "Early 2011" "Late 2011" and "Mid 2012"
Models include:
MacBookPro5,5 | 2.26GHz, 2.53GHz
MacBookPro7,1 | 2.4GHz, 2.66GHz
MacBookPro8,1 | 2.3GHz, 2.7GHz
MacBookPro8,1 | 2.4GHz, 2.8GHz
MacBookPro9,2 | 2.5GHz, 2.9GHz
MacBook 13" "Late 2008"
Models include:
MacBook5,1 | 2.0GHz, 2.4GHz
MacBook 13" "Late 2009" and "Early 2010"
Models include:
MacBook 6,1 | 2.26GHz
MacBook7,1 | 2.4GHz | | Dimension (DxWxH) | 5 x 5 x 3" / 12.7 x 12.7 x 7.62cm | | Weight | 2.4 oz / 68.03g | | | | Box Dimensions (LxWxH) | 9.1 x 6.9 x 2.0" | - OWC / Other World Computing SuperSlim USB 2.0 9.5mm Optical Drive External Enclosure
| Chipset | Sunplus | | Data Transfer Rate | USB 2.0 - 480 Mbps (60 MB/s) | | Drive | Requires any 9.5 mm (0.37") SATA slim slot loading optical drive mechanism | | Interface | Drive: SATA (Serial ATA) | | Port | Configuration: USB 2.0 - 1x mini "B" port | | Cooling | Quiet fan-less ventilation | | System Requirements | Macintosh:
Mac OS 8.6 or later and an available USB 2.0/1.1 port
USB 2.0 functionality requires Mac OS X 10.2.8 or later
Apple's DVD Player application only works with an internal optical drive or Apple's external SuperDrive
Windows:
Windows 98SE or later and an available USB 2.0/1.1 port
USB 2.0 functionality requires Windows 2000 or later | | Power Supply | Bus power via USB on most computers with standard USB 2.0 port
Optional AC Adapter - not required for most applications, provided computer bus supplies appropriate power needs | | Operating Temperature | 5.0 - 50° C (41 - 122° F) | | Storage Temperature | -45 - 65° C (-49 - 149° F) | | Relative Humidity | Operating: 10 - 90% non-condensing
Storage: 5.0 - 95% non-condensing | | Dimensions (DxWxH) | 5.85 x 5.72 x 0.6" (14.9 x 14.5 x 1.5 cm) | | Weight | 0.26 lb (0.12 kg) | | | | Box Dimensions (LxWxH) | 7.3 x 7.1 x 3.1" |
