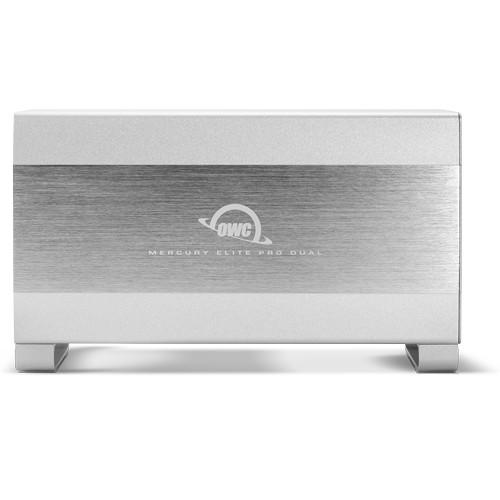

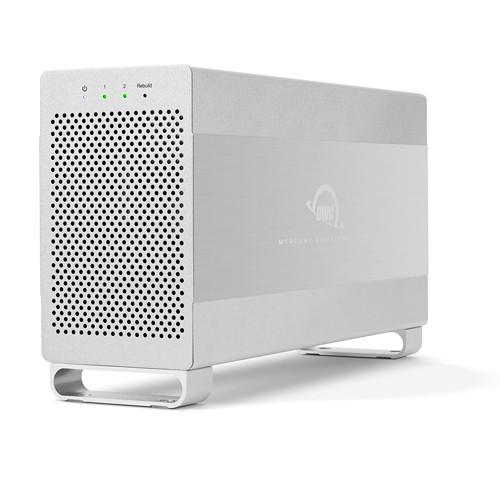

User Manual for OWC Other World Computing Mercury Elite Pro Dual 2-Bay USB 3.0 RAID Enclosure Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing Mercury Elite
- Product category: Hard Drive Enclosures & Docks OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Enclosures & Docks
 |
User manual for the OWC Other World Computing Mercury Elite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description Add USB 3.0 and eSATA 6G storage to your compatible Windows or Mac system with the Mercury Elite Pro Dual 2-Bay USB 3.0 RAID Enclosure from OWC / Other World Computing. This enclosure is pre-configured for RAID 0 via hardware and is designed for creative workflows, HD video, project archives, and system backups in environments ranging from production studios to home offices. When configured as RAID 0, this enclosure provides data transfer speeds up to 407 MB/s.
Within the enclosure are two SATA III 3.5" drive bays. While no drives are included with the Mercury Elite Pro Dual, they are required for use and once installed, can be hardware configured as RAID 0, 1, SPAN, or Independent modes, each of which offers performance, data redundancy, or a combination of both. However, please be aware this enclosure is hardware configured as a RAID 0 volume, which provides increased read and write speeds, but no data redundancy. Another advantage of this enclosure shipping with no drives is that users will be able to outfit it with drives of their choice.

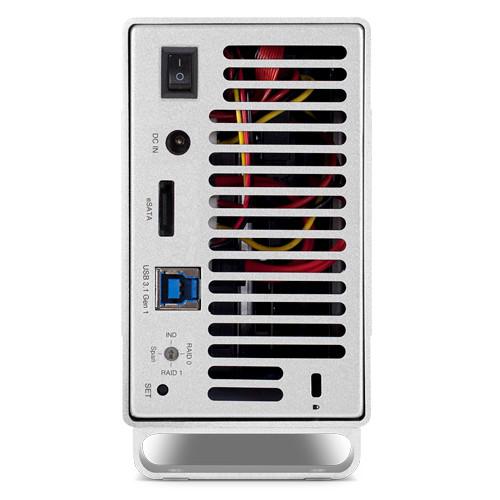

This volume will be recognized on systems running OS X 10.6.8 and later, as well as Windows XP and later. When connected to a compatible Mac via USB, the Mercury Elite Pro Dual may also be used as a boot drive, and connectivity is achieved using an integrated 5 Gb/s USB 3.0 Type-B port, or an integrated 6 Gb/s eSATA 6G port. For those who do not have USB 3.0, the USB 3.0 port is backwards compatible with USB 2.0 at speeds up to 480 Mb/s. To help ensure a smooth operating environment, the enclosure uses a cooling fan, and its included 100~240 VAC power supply runs at 50/60 Hz to help ensure worldwide compatibility.
Also included with the with the OWC Mercury Elite Pro Dual is a 2.0' USB 3.0 Type-B to Type-A cable, a 3.3' eSATA 6G cable, and a power cable. Protection is provided by a limited 3-year warranty that includes complimentary Level 1 data recovery for one year. General Features - Hardware RAID Workhorse
- Reliable hardware RAID maximizes the full potential of two 3.5" 7200 rpm hard drives in the Mercury Elite Pro Dual. It comes configured in high-speed RAID 0 mode for the high sustained throughput from your drives. With speeds up to 407 MB/s, that's fast enough for HD video workflows. Configure the Mercury Elite Pro Dual in RAID 1 mode for the extra security of mirrored data, set up a span of the two drives, or use them independently.
- Performance by Design

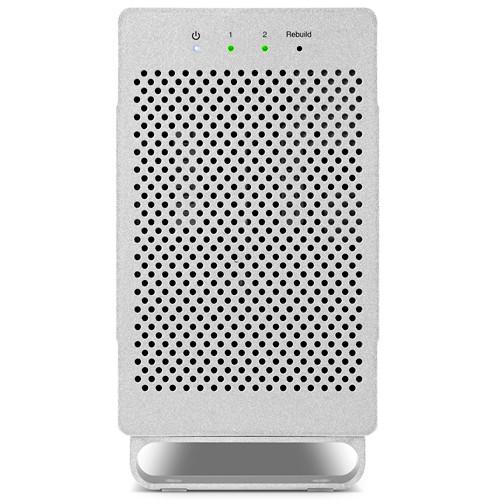

- Mercury Elite Pro Dual features both high-speed USB 3.0 (also known as USB 3.0) and eSATA 6G ports to offer the connectivity and versatility to work with your current equipment at fast speeds. A second-generation, free-flowing brushed-aluminum chassis with a high-performance fan delivers cool, quiet operation. In addition, drive-activity LEDs give you an instant snapshot of the status of your RAID, and intelligent power management helps conserve energy and reduce wear by automatically spinning down the drives when inactive.
UPC: 812437023718 In the Box OWC / Other World Computing Mercury Elite Pro Dual 2-Bay USB 3.0 RAID Enclosure 2.0' / 0.6m USB 3.0 Type-B to Type-A Cable 3.3' / 1.0m eSATA 6G Cable External Power Supply and Power Cable Complimentary 1-Year Level 1 Data Recovery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Mercury Elite Pro Dual 2-Bay USB 3.0 RAID Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCMED3ER0GB Specs | Number of Bays | 2 x 3.5" | | Compatible Drive Interface | SATA III | | RAID Modes | RAID 0, 1 | | Operating System Support | Windows, macOS/OS X | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 4 A | | | | Operating Temperature | 41 to 107°F / 5 to 42°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | | | Dimensions (W x H x D) | 5.3 x 2.8 x 8.9" / 134.6 x 71.1 x 226.1 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 11.417 x 11.024 x 4.095" |
