User Manual for OWC Other World Computing Mercury Elite Pro Dual 24TB 2-Bay Thunderbolt 2 RAID Array Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing Mercury Elite
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing Mercury Elite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|

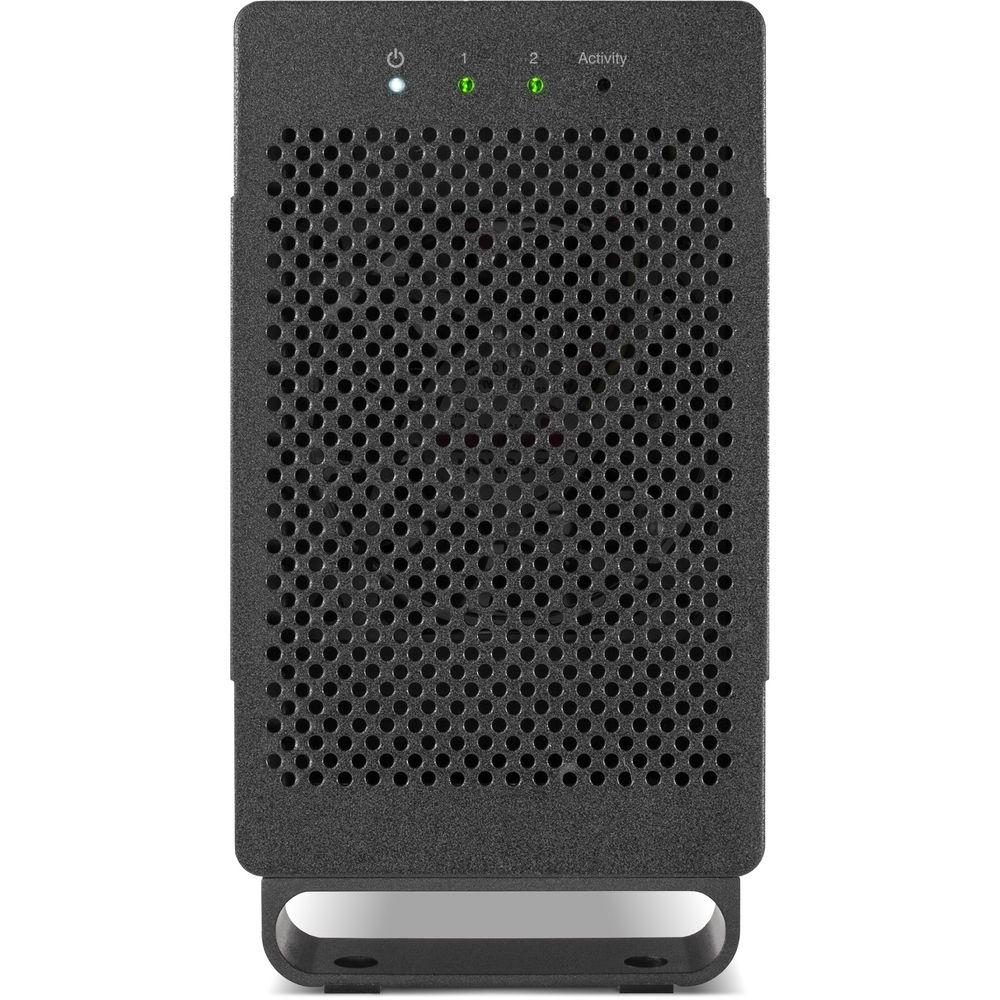

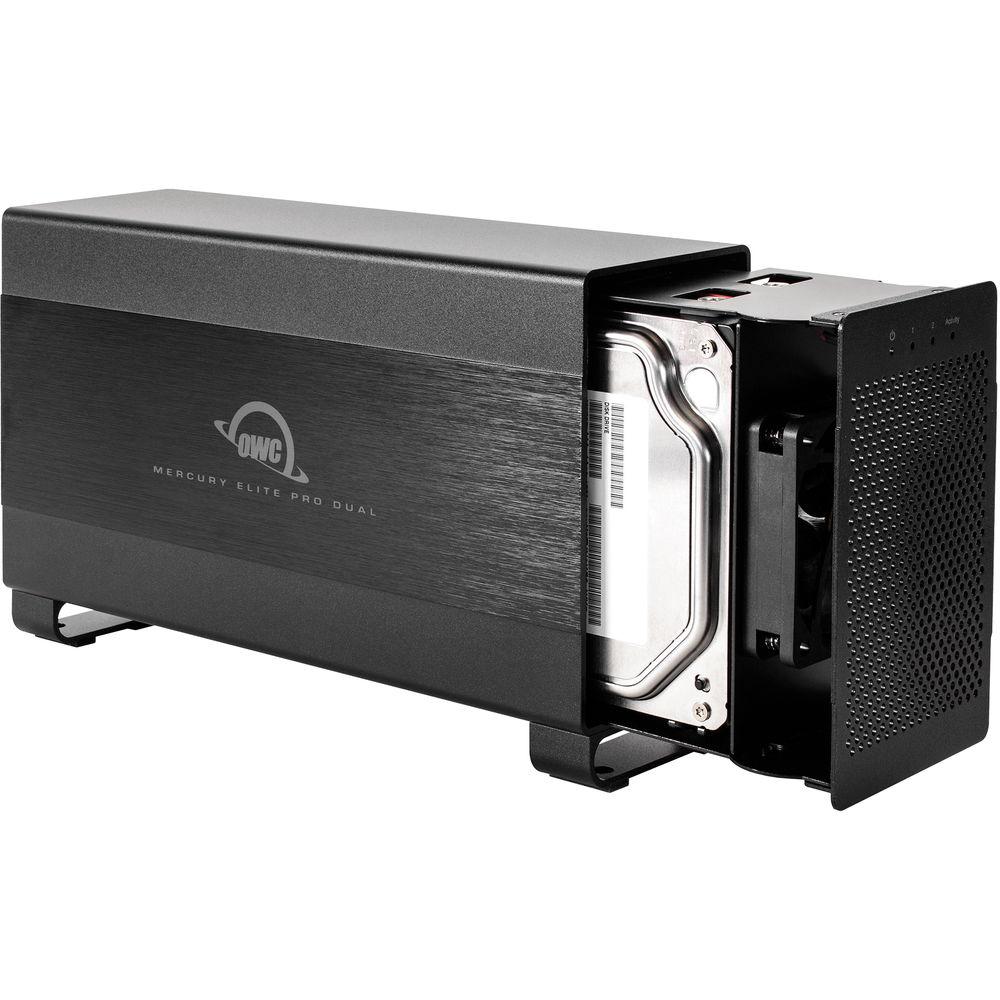

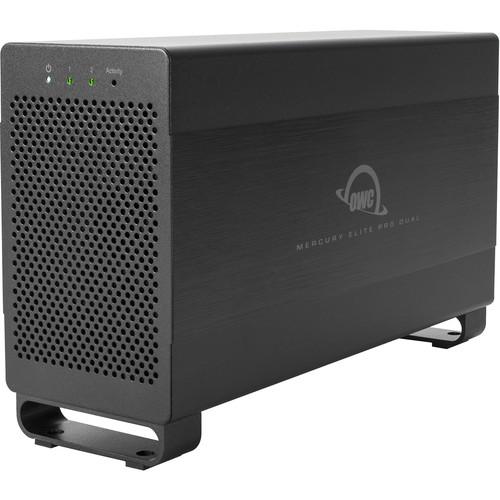

Product description RAID Arrays for Photography and Pro Video Read More The Mercury Elite Pro Dual Thunderbolt 2 RAID Array from OWC / Other World Computing features two bays that each sport a 12TB hard drive to deliver a total raw capacity of 24TB to your Thunderbolt-equipped system. The two 3.5" hard drives are preconfigured in a hardware RAID 0 array that strips the data across both drives to provide speeds of up to 474 MB/s. You can reconfigure the drives in a RAID 1, SPAN, or individual mode utilizing the hardware RAID controller. Other features include an aluminum enclosure and a quiet fan to cool the drives and internal components.

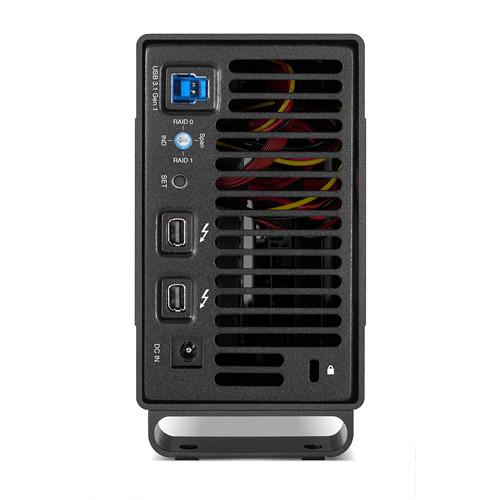

To keep up with the fast transfer speeds from the drives, the dual Thunderbolt 2 ports have a 20 Gb/s bi-directional channel for each port. The Mercury Elite Pro also has a USB 3.0 connection for greater compatibility with a wider range of systems. Moreover, Thunderbolt and USB 3.0 cables are included so you can start storing and editing right out of the box. - Software Included
-
- Intech Hard Disk SpeedTools Utilities OEM for Mac OS X 10.4
- ProSoft Engineering Data Backup 3 for Mac OS X 10.4 or later
- NovaStor NovaBACKUP for Windows 7
UPC: 812437029062 In the Box OWC / Other World Computing Mercury Elite Pro Dual 24TB 2-Bay Thunderbolt 2 RAID Array (2 x 12TB) USB 3.1 Cable (2') Thunderbolt Cable (3.3') Power Supply Power Cable Software Bundle CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Mercury Elite Pro Dual 24TB 2-Bay Thunderbolt 2 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing Mercury Elite Pro... Specs | Drives | 2 x 12 TB Seagate Enterprise Capacity SED (Helium) Hard Disk drives | | Ports | 2 x Thunderbolt 2 (20 Gbps)
1 x USB 3.0 (ASMedia ASM1153E)
SATA controller (ASMedia ASM1062)
RAID controller (ASMedia ASM1092R) | | Software Requirements | Thunderbolt
Mac OS X 10.9.3 or later
Windows 7 or higher
USB 3.0
Mac OS X 10.6.8 or later
Windows XP or higher
Drivers not required for Windows/OS X | | Hardware Requirements | Minimum
Mac or PC featuring Thunderbolt or USB 2.0 interface
Recommended
Mac or PC featuring Thunderbolt 2 or USB 3.0 interface | | Bootability | Thunderbolt: Any Mac that supports booting via Thunderbolt
USB: Any Mac that supports booting via USB | | Initial Configuration | RAID 0
Included Drive Guide software will format the drive for either OS X or Windows | | RAID Modes Supported | RAID 0, 1, SPAN, and Independent drive mode | | UASP Support | Yes | | Power Supply Type | External UL-listed universal auto-switching | | Input Power | 100 to 240 VAC, 50/60 Hz | | Output Power | 12 VDC, 6 A | | Operating Temperature | 32 to 107°F / 0 to 42°C | | Storage Temperature | 40 to 149°F / 4 to 65°C | | Dimensions (H x W x L) | 5.3 x 2.8 x 8.9" / 135 x 72 x 226 mm | | Weight | 2.5 lb / 1.1 kg | | | | Type | 12 TB Seagate Enterprise Capacity SED (Helium) Hard Disk Drive | | Form Factor | 3.5" | | Interface | SATA 6 Gb/s | | Capacity | 12 TB | | Formatted Capacity | 11176 GB | | Rotational Speed | 7200 rpm | | Data Buffer | 256 MB | | | | MTBF | 2,500,000 hours | | Contact Start/Stop Cycles | 600,000 | | Annual Failure Rate | 0.35% | | Non-Recoverable Read Errors | 1 per 1015 bits read | | | | Transfer Rate | I/O Transfer rate (Max): 600 MB/s | | Average Latency | 4.16 ms | | | | Maximum Start Current, DC | 2 A | | Read Power | Random Read 4K16Q: 9.48 W | | Write Power | Random Read 4K16Q: 6.21 W | | Idle Current | Average Idle Current: 5.06 W | | Power Supply Requirements | +12 V and +5 V | | | | Operating | Shock (read/write): 70/40 Gs max at 2 ms (operating) / 250 Gs maximum at 2 ms (non-operating) | | Ambient Temperature | 41 to 140°F / 5 to 60°C | | Relative Humidity (non-condensing) | 5 to 95% | | Altitude | -1000 to 10,000' / -304.8 to 3048 m | | | | Idle | 2.8 bels | | Seek | 3.2 bels | | | | Data Heads | 16 | | Number of Disks | 8 | | Guaranteed Sectors | 23,437,770,752 | | Bytes per Sector | 4096 | | Areal Density | 923 Gb/in2 | | Dimensions (H x W x D) | 1 x 4 x 5.7" / 26.11 x 101.85 x 147 mm | | Weight | 1.55 lb / 0.7 kg | | | | Package Weight | 7.255 lb | | Box Dimensions (LxWxH) | 11.4 x 8.6 x 5.1" |
