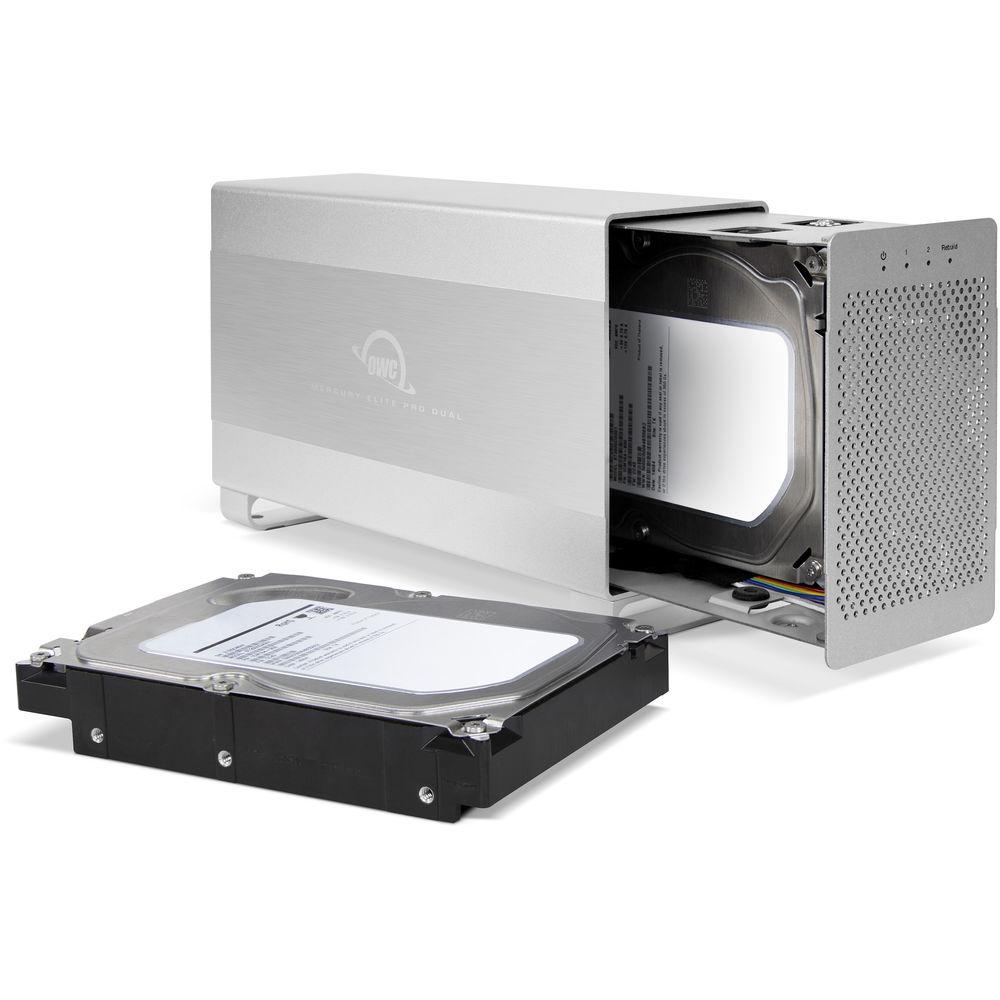

User Manual for OWC Other World Computing Mercury Elite Pro Dual 24TB 2-Bay USB 3.1 eSATA RAID Array Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing Mercury Elite
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing Mercury Elite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More Add 24TB of USB 3.1 and eSATA 6G storage to your compatible Windows or Mac system with the Mercury Elite Pro Dual 20TB 2-Bay USB 3.1/eSATA RAID Array (2 x 12TB) from OWC / Other World Computing. These drives are pre-configured in RAID 0 via hardware, and the array itself is designed for creative workflows, HD video, project archives, and system backups in environments ranging from production studios to home offices. When configured as RAID 0, this array provides data transfer speeds up to 407 MB/s.
Within the array are two SATA III 3.5" drive bays that each house a single 12TB 7200 rpm SATA III 3.5" hard drive, each of which has a 256MB cache, for a total system cache of 512MB. Since the array ships with two drives, they can be hardware configured as RAID 0, 1, SPAN, or Independent modes, each of which offers performance, data redundancy, or a combination of both. The array comes with USB 3.1 Gen 1 and eSATA ports.
A brushed aluminum enclosure with a cooling fan ensures cool and quiet operation. The drive-activity LEDs give you an instant snapshot of the status of your RAID, and power management conserves energy and reduces wear by automatically spinning down the drives when inactive. - Hardware RAID 0, 1, span, and independent modes
- USB 3.1 Gen 1 and eSATA connectivity
- Accelerate your workflows with transfer speeds up to 407 MB/s
- Included Software
- Intech Hard Disk SpeedTools Utilities OEM for Mac OS X 10.4
ProSoft Engineering Data Backup 3 for Mac OS X 10.4 or later
NovaStor NovaBACKUP for Windows 7 UPC: 812437029017 In the Box OWC / Other World Computing Mercury Elite Pro Dual 24TB 2-Bay USB 3.1/eSATA RAID Array (2 x 12TB) USB 3.1 Gen 1 Type-A to Type-B Cable (2') eSATA 6G Cable (3.3') External Power Supply and Power Cable Utility software Bundle CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Mercury Elite Pro Dual 24TB 2-Bay USB 3.1 eSATA RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing Mercury Elite Pro... Specs | | | Software Requirements | USB 3.1 Gen 1 & eSATA
Mac OS X 10.6.8 or later
Windows XP or later
Drivers not required | | Hardware Requirements | Minimum
Mac or PC with a USB 2.0 interface
Recommended
Mac or PC with a USB 3.1 Gen 1 interface
Mac or PC with an eSATA 6G interface | | Bootability | Any Mac that supports booting via USB and eSATA | | Interface (Chipset) | 1 x USB 3.1 Gen 1 (JMicron JMS562)
1 x eSATA (JMicron JMS562)
Interface Controller: ASMedia ASM1456B | | Standard Mechanism | 2 x 12 TB Seagate Enterprise Capacity SED (Helium) Hard Disk Drives | | RAID Modes Supported | Hardware
RAID 0, 1, SPAN, and Independent drive mode | | Initial Configuration | RAID 0
Included Drive Guide software will format the drive for either OS X or Windows | | Power | External UL-listed universal auto-switching
AC Input: 100 to 240 VAC, 50/60 Hz
DC Output: 12 V at 4 A
Replacement power supply sold separately
- Adapter plugs for international use sold separately | | Environment | Operating Temperature: 41 to 107°F / 5 to 42°C
Non-Operating Temperature: -40 to 149°F / -40 to 65°C | | Dimensions | 5.3 x 2.8 x 8.9" / 134.6 x 71.1 x 226.1 mm | | Weight | Without Drives: 2.5 lb / 1.1 kg | | | | Type | 12 TB Seagate Enterprise Capacity SED (Helium) Hard Disk Drive | | HDD | Form Factor: 3.5" / 8.9 cm HDD
Interface: SATA 6 Gb/s
Capacity: 12 TB
Formatted Capacity: 11176 GB
Rotational Speed:7200 rpm
Cache / Data Buffer: 256 MB
RoHS compliant:Yes | | Reliability | MTBF (Mean Time Between Failures): 2,500,000 hours:
Contact Start-Stops: 600,000
Annual Failure Rate: 0.35%
Non-recoverable Read Errors: 1 per 1015 bits read | | Performance | I/O Transfer rate (Max): 600 MB/s
Average Latency: 4.16 ms | | Power | Maximum Start Current, DC (peak DC): 2 A
Read Power (random read 4K16Q): 9.48 W
Write Power (random write 4K16Q): 6.21 W
Average Idle Current: 5.06 W
Power Supply Requirements: 12 V and 5 V | | Environmental | Operating/Non-Operating
Shock (read/write): 70/40 Gs max at 2 ms (operating) / 250 Gs maximum at 2 ms (non-operating)
Ambient Temperature: 41 to 140°F / 5 to 60°C
Relative Humidity (non-condensing): 5 to 95%
Altitude: -1000 to 10,000' / -304.8 to 3048 m | | Acoustics | Idle (Typical): 2.8 bels
Seek (Typical): 3.2 bels | | Sector Size | Bytes per Physical Sector: 4096 | | Areal Density | 923 Gb/in | | Data Heads | 16 | | Guaranteed Sectors | 23,437,770,752 | | Number of Disks | 8 | | Dimensions | 1 x 4 x 5.7" / 26.11 x 101.85 x 147 mm | | Weight | 1.55 lb / 0.7 kg |
