User Manual for OWC Other World Computing Mercury Elite Pro Dual 6TB 2-Bay Thunderbolt 2 RAID Array Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing Mercury Elite
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing Mercury Elite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|

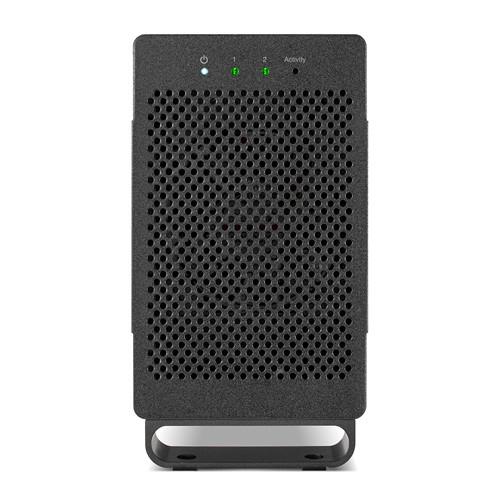

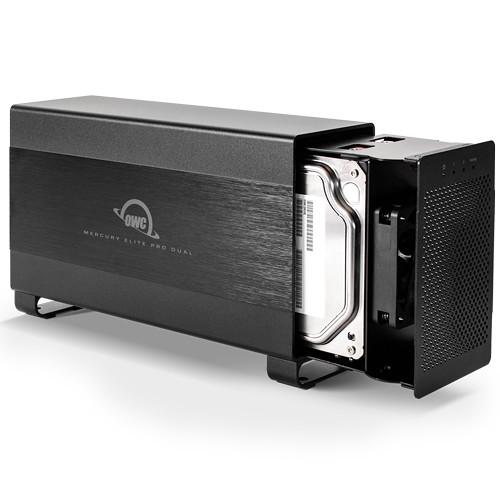

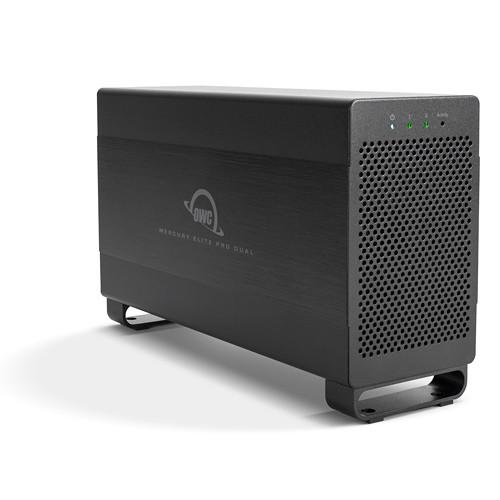

Product description RAID Arrays for Photography and Pro Video Read More The Mercury Elite Pro Dual Thunderbolt 2 RAID Array from OWC / Other World Computing features two bays that each sport a 3TB hard drive to deliver a total raw capacity of 6TB for your Thunderbolt-equipped system. The two 3.5" hard drives are preconfigured in a hardware RAID 0 array that strips the data across both drives to provide speeds of up to 474 MB/s. You can reconfigure the drives in a RAID 1, SPAN, or individual mode utilizing the hardware RAID controller. Other notable features include an aluminum enclosure and a quiet fan to cool the drives and internal components.
To keep up with the fast transfer speeds from the drives, the dual Thunderbolt 2 ports have a 20 Gbps bi-directional channel for each port. The Mercury Elite Pro also has a USB 3.0 connection for greater compatibility with a wider range of systems. Moreover, Thunderbolt and USB 3.0 cables are included so you can start storing and editing right out of the box. - Dual Drive Hardware RAID
- The Mercury Elite Pro Dual with Thunderbolt 2 technology is a suitable RAID solution for creative workflows, project archives, and system backups. Inside are two drives, easily configured in RAID 0, 1, span, or independent mode.
- Performance
- Thunderbolt 2 technology supports the full potential of two 3.5" hard drives in RAID 0, which offers a maximum sustained throughput speed of up to 474 MB/s. You can also reconfigure the Mercury Elite Pro Dual in a RAID 1 mode to enjoy instant mirroring of your data.
- Ready for You Right Out of the Box

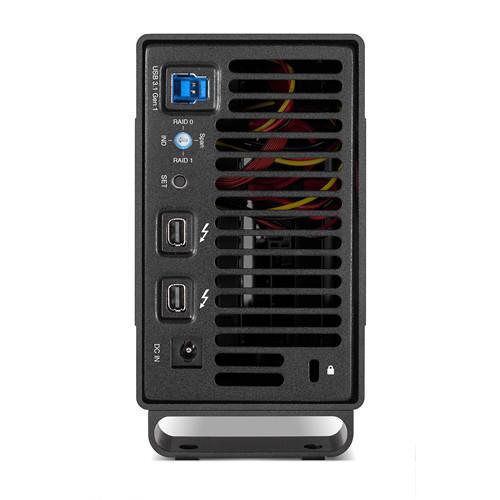

- The Mercury Elite Pro Dual comes with two Thunderbolt 2 ports, one USB 3.0 port, and all of the cables you need for use with almost any system. Ready to perform in RAID 0, it's also easily configured in RAID 1, span, and independent modes to match your workflow needs.
- Thunderbolt 2
- With dual Thunderbolt 2 ports, the Mercury Elite Pro Dual supports Thunderbolt daisy-chains that enable you to expand your workstation's capabilities with up to five additional Thunderbolt devices, including high-speed storage, expansion chassis for specialist workflows, and even a high-definition display.
- Cooling
- The Mercury Elite Pro Dual features a heat-dissipating, brushed-aluminum design with a whisper-quiet, variable-speed fan. In addition, smart power conserves energy and extends the life of the drives inside. The Elite Pro Dual automatically spins down during periods of inactivity, and powers on and off with your workstation.
- Software Included
-
- Intech Hard Disk SpeedTools Utilities OEM for Mac OS X 10.4
- ProSoft Engineering Data Backup 3 for Mac OS X 10.4 or later
- NovaStor NovaBACKUP for Windows 7
UPC: 812437024005 In the Box OWC / Other World Computing Mercury Elite Pro Dual 6TB 2-Bay Thunderbolt 2 RAID Array (2 x 3TB) 2' (0.6m) USB 3.0 Cable 3.3' (1m) Thunderbolt Cable Power Supply Power Cable Limited 3-Year Warranty Complimentary 1-Year Level 1 Data Recovery Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Mercury Elite Pro Dual 6TB 2-Bay Thunderbolt 2 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCTB2U3MED06T Specs | Drives | 2 x 3 TB 3.5" hard drives | | Ports | 2 x Thunderbolt 2 (20 Gbps, backwards compatible with Thunderbolt)
1 x USB 3.0 (5 Gbps, backwards compatible with USB 2.0) | | Software Requirements | Thunderbolt
Mac OS X 10.9.3 or later
Windows 7 or higher
USB 3.0
Mac OS X 10.6.8 or later
Windows XP or higher | | Controller | ASMedia ASM1153E (USB 3.0)
ASMedia ASM1062 (SATA)
ASMedia ASM1092R (RAID) | | RAID Modes Supported | RAID 0, 1, SPAN, and Independent drive mode | | UASP Support | Yes | | Input Power | 100 to 240 VAC, 50/60 Hz | | Output Power | 12 VDC, 6 A | | Operating Temperature | 32 to 107°F / 0 to 42°C | | Storage Temperature | 40 to 149°F / 4 to 65°C | | Dimensions (H x W x L) | 5.3 x 2.8 x 8.9" / 135 x 72 x 226 mm | | Weight | 2.4 lb / 1.1 kg | | | | Package Weight | 7.7 lb | | Box Dimensions (LxWxH) | 11.4 x 11.0 x 4.3" |
