User Manual for OWC Other World Computing Mercury Elite Pro Dual 8TB 2-Bay USB 3.1 Gen 1 RAID Array Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing Mercury Elite
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing Mercury Elite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More Add 8TB of USB 3.1 Gen 1 and eSATA 6G storage to your compatible Windows or Mac system with the Mercury Elite Pro Dual 8TB 2-Bay USB 3.1 Gen 1 RAID Array (2 x 4TB) from OWC / Other World Computing. These drives are pre-configured in RAID 0 via hardware, and the array itself is designed for creative workflows, HD video, project archives, and system backups in environments ranging from production studios to home offices. 8TB also provides you with plenty of space to store files such as music, photos, movies, and documents. When configured as RAID 0, this array provides data transfer speeds up to 407 MB/s.

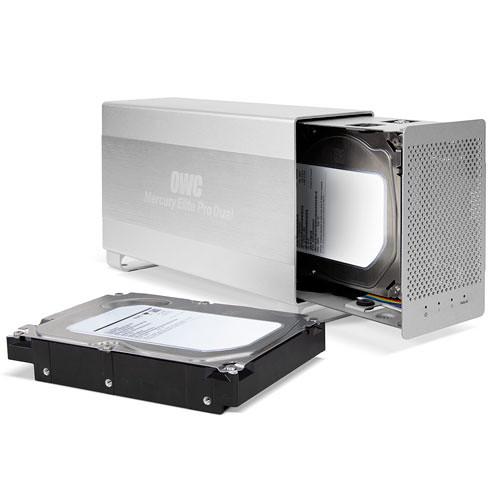

Within the array are two SATA III 3.5" drive bays that each house a single 4TB 7200 rpm SATA III 3.5" hard drive. Since the array ships with two drives, they can be hardware configured as RAID 0, 1, SPAN, or Independent modes, each of which offers performance, data redundancy, or a combination of both. However, please be aware this array is hardware configured as a RAID 0 volume, which provides increased read and write speeds, but no data redundancy.

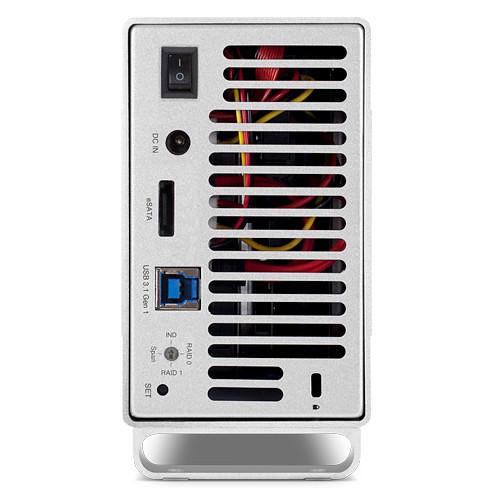

This volume will be recognized on systems running OS X 10.6.8 and later, as well as Windows XP and later. When connected to a compatible Mac via USB, the Mercury Elite Pro Dual may also be used as a boot drive, and connectivity is achieved using an integrated 5 Gb/s USB 3.1 Gen 1 Type-B port, or an integrated 6 Gb/s eSATA 6G port. For those who do not have USB 3.1 Gen 1, the USB 3.1 Gen 1 port is backwards compatible with USB 2.0 at speeds up to 480 Mb/s. To help ensure a smooth operating environment, the array uses a cooling fan, and its included 100~240 VAC power supply runs at 50/60 Hz to help ensure worldwide compatibility.
Also included with the with the OWC Mercury Elite Pro Dual is a 2.0' USB 3.1 Gen 1 Type-B to Type-A cable, a 3.3' eSATA 6G cable, and a power cable. Protection is provided by a limited 3-year warranty that includes complimentary Level 1 data recovery for one year. General Features - Hardware RAID Workhorse
- Reliable hardware RAID maximizes the full potential of two 3.5" 7200 rpm hard drives in the Mercury Elite Pro Dual. It comes configured in high-speed RAID 0 mode for the high sustained throughput from your drives. With speeds up to 407 MB/s, that's fast enough for HD video workflows. Configure the Mercury Elite Pro Dual in RAID 1 mode for the extra security of mirrored data, set up a span of the two drives, or use them independently.
- Performance by Design

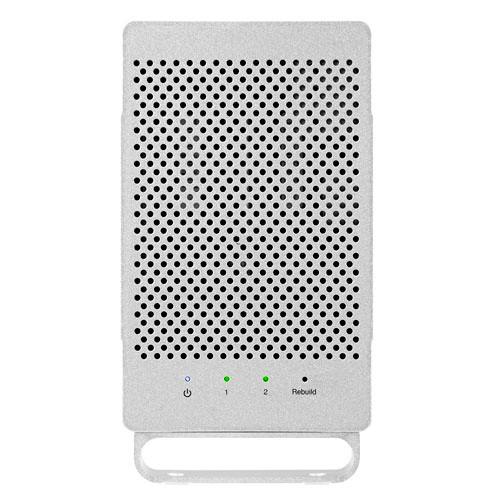

- Mercury Elite Pro Dual features both high-speed USB 3.0 (also known as USB 3.1 Gen 1) and eSATA 6G ports to offer the connectivity and versatility to work with your current equipment at fast speeds. A second-generation, free-flowing brushed-aluminum chassis with a high-performance fan delivers cool, quiet operation. In addition, drive-activity LEDs give you an instant snapshot of the status of your RAID, and intelligent power management helps conserve energy and reduce wear by automatically spinning down the drives when inactive.
UPC: 812437023756 In the Box OWC / Other World Computing Mercury Elite Pro Dual 8TB 2-Bay USB 3.1 Gen 1 RAID Array (2 x 4TB) USB 3.1 Gen 1 Type-B to Type-A Cable (2.0') eSATA 6G Cable (3.3') External Power Supply and Power Cable Complimentary 1-Year Level 1 Data Recovery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Mercury Elite Pro Dual 8TB 2-Bay USB 3.1 Gen 1 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCMED3ER7T08.0 Specs | | | Number of Bays | 2 x 3.5" | | Connections | 1 x USB Type-B (USB 3.1 Gen 1 (5 Gb/s))
1 x eSATA (SATA III (6 Gb/s)) | | Compatible Drive Interface | SATA III | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 407 MB/s | | RAID Modes | RAID 0, 1, JBOD, SPAN | | Operating System Support | Windows, macOS/OS X | | OS Compatibility | macOS 10.6.8 or Later
Windows XP or Later | | | | Total Raw Capacity | 8 TB (2 x 4 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Interface | SATA III | | Cache Memory per Drive | 128 MB | | Initial RAID Configuration | RAID 0 | | Pre-Format | None | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 4 A | | | | Operating Temperature | 41 to 107°F / 5 to 41°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | | | Material of Construction | Aluminum | | Cooling | 1 x Fan | | Bridge Chipset | JMicron JMS562
JMicron JMS562
ASMedia ASM1456B | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.3 x 2.8 x 8.9" / 134.6 x 71.1 x 226.1 mm | | Weight | 2.5 lb / 1.1 kg | | | | Package Weight | 7.9 lb | | Box Dimensions (LxWxH) | 11.4 x 10.9 x 4.3" |
