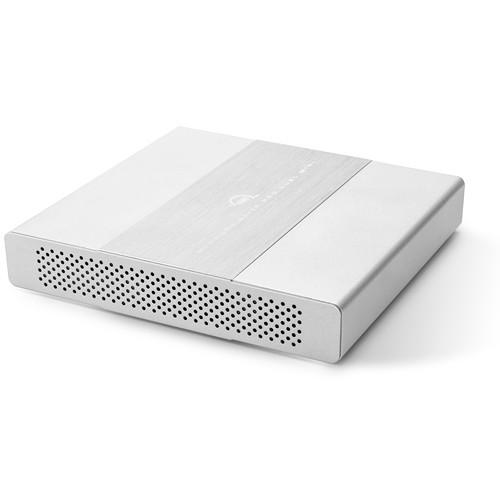

User Manual for OWC Other World Computing Mercury Elite Pro Dual mini 480GB 2-Bay USB 3.1 Type-C RAID Array Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing Mercury Elite
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing Mercury Elite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The Mercury Elite Pro Dual mini 2-Bay USB 3.1 RAID Array from OWC / Other World Computing comes with two 240GB SSDs to provide a total capacity of 480GB for Windows and Mac systems. The SSDs are preconfigured in a hardware RAID 0 array that delivers increased performance. You also can reconfigure the drives in a RAID 1, SPAN, or independent mode. To keep up with the fast performance of the SSDs, the Mercury Elite Pro Dual mini comes equipped with USB 3.1 technology, which transmits data to a system at speeds of up to 10 Gb/s. This technology has been outfitted a USB Type-C connector design so you can connect the Mercury Elite Pro Dual mini to a USB Type-C computer on the first try with the included USB-C cable. Furthermore, you can use an optional USB Type-C to USB Type-A cable to connect the Mercury Elite Pro Dual mini to a typical USB-enabled system. - RAID

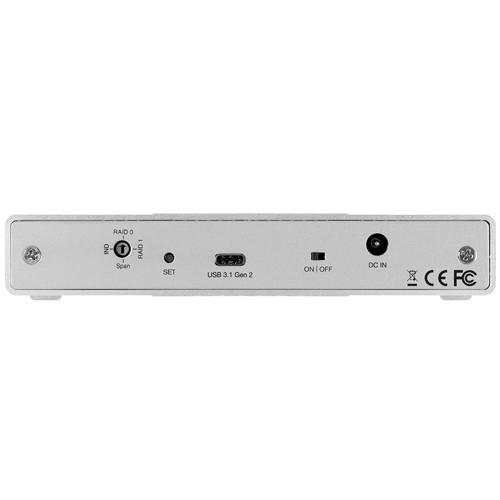

- The Mercury Elite Pro Dual mini sports a switch that lets you select from different RAID modes, letting you quickly choose the configuration that suits your needs. In RAID 0, experience fast data transfer speeds of up to 738 MB/s. Or select RAID 1 for data redundancy with mirrored disks.
- Design

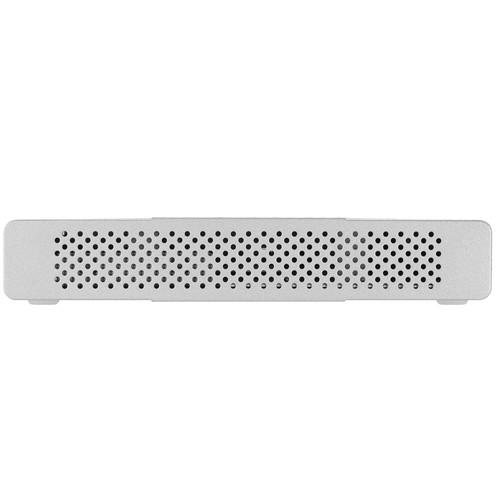

- A rugged aluminum chassis designed for near silent fanless cooling keeps your drives protected, cool, and quiet. It features a compact design that fits easily in your laptop or gear bag. With bus-powered support, the Mercury Elite Pro Dual mini is a suitable solution for your portable creative workflow.
- Software Included
- Intech Hard Disk SpeedTools Utilities OEM for Mac OS X 10.4
ProSoft Engineering Data Backup 3 for Mac OS X 10.4 or later
NovaStor NovaBACKUP for Windows 7 In the Box OWC / Other World Computing Mercury Elite Pro Dual mini 480GB 2-Bay USB 3.1 Type-C RAID Array (2 x 240GB SSDs) USB Type-C to USB Type-C Cable (18") External Power Supply with Cable Complimentary 1-Year Level 1 Data Recovery Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Mercury Elite Pro Dual mini 480GB 2-Bay USB 3.1 Type-C RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCMEMDC2SSD0.5 Specs | Drives | 2 x 240 GB SSDs | | Ports | 1 x USB 3.1 Type-C | | Software Requirements | Mac OS X 10.7 or later
Windows 7 or higher | | Controller | ASMedia ASM1352R (USB 3.1) RAID controller | | RAID Modes Supported | RAID 0, 1, SPAN, and Independent drive mode | | UASP Support | Yes | | Input Power | 100 to 240 V, 50/60 Hz | | Output Power | 12 V, 3 A | | Operating Temperature | 32 to 107°F / 0 to 42°C | | Storage Temperature | 104 to 185°F / 40 to 85°C | | Dimensions (H x W x L) | 1.1 x 6.1 x 5.7" / 27.9 x 154.9 x 144.8 mm | | Weight | 1.3 lb / 0.6 kg |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
