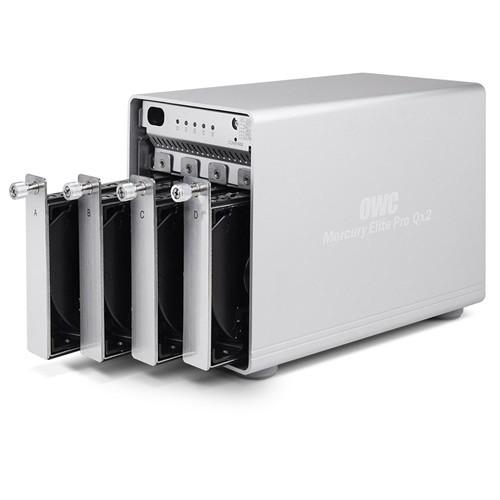

User Manual for OWC Other World Computing Mercury Elite Pro Qx2 20TB 4-Bay USB 3.0 RAID Array Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing Mercury Elite
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing Mercury Elite contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More The OWC / Other World Computing Mercury Elite Pro Qx2 20TB 4-Bay USB 3.0 RAID Array is a multi-interfaced RAID storage solution that provides a total capacity of 20TB for your Mac and Windows systems. This storage array offers USB 3.0, dual FireWire 800, and an eSATA port with maximum transfer speeds of 300, 100, and 300 MB/s respectively. The Mercury Elite Pro Qx2 has four 5TB 7200 rpm SATA drives and stores up to 20TB of data. Actual storage capacity depends on the RAID configuration. This storage array is pre-configured in RAID 5 mode, which is designed for optimized data protection, capacity, and performance. Hardware RAID levels 0, 1, 5, 10 can also be selected from the system's lockable front panel; each RAID level offers configuration options for capacity, data protection, redundancy, and speed.
This storage array is pre-formatted for Mac but can be re-formatted to work in a Windows environment. Included along with the Mercury Elite Pro storage array are USB 3.0, eSATA, and FireWire 800 cables. Furthermore, a free downloadable software suite is available for backing up and tuning your Mac and Windows systems. - Front Panel RAID Selector

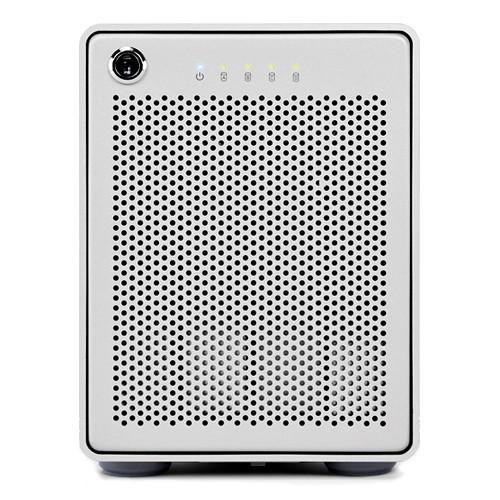

- Thanks to a front panel selector switch, the Mercury Elite Pro Qx2 enables easy configuration of the Hardware RAID settings - Span, 0, 1, 5, 10. These setting allow you to select the best combination of speed, capacity, redundancy, or any combination of the three.
- RAID Levels
- Span: Combines capacity of two or more drives of the same size without any RAID data distribution scheme into one logical desktop volume. Will also combine the capacity of varying size drives based on the lowest capacity drive in the set.
RAID 0 (Stripe): Data is split into blocks over two or more drives at same time for high speeds and large capacity.
RAID 1 (Mirror): Data is written at the same time to two drives only for the highest level of data safety and redundancy.
RAID 5 (Stripe with Parity): Data is Striped (RAID 0) while incorporating redundancy over three or more drives for the best combination of speed, capacity, and redundancy.
RAID 10 (1+0): Data is Striped (RAID 0) over two Mirrored sets (RAID 1) of drives for fast redundancy.
JBOD/Independent drive operation: Each drive can be operated as an individual volume using the Firewire 800/400 or eSATA connections. This feature is not supported for USB connections. - Downloadable Software Suite
- Prosoft Engineering Data Backup 3: Data Backup 3 is a software utility for Mac that allows you to backup, restore and synchronize your valuable data with minimal effort. Whether you are a new computer user or a seasoned professional, Data Backup 3 is designed for new and power users alike.
Intech Hard Disk Speed Utilities 3 OEM: SpeedTools Utilities 3 is designed to offer fast, easy, and automated Mac disk repair and maintenance. This utility software has the ability to optimize and tune your Mac system for optimal performance in a matter of minutes.
NovaStor NovaBACKUP: NovaBACKUP is designed for simple, fast, and reliable backup of your Windows software. NovaBACKUP offers automatic system backups and step-by-step wizards for simplified setup and configuration. UPC: 812437020267 In the Box OWC / Other World Computing Mercury Elite Pro Qx2 20TB 4-Bay USB 3.0 RAID Array (4 x 5TB) 4 x Internal Hard Drives 39" eSATA Cable 36" USB Cable 36" FireWire 800 Cable 2 Front Panel Lock Keys Limited 3-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Mercury Elite Pro Qx2 20TB 4-Bay USB 3.0 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCM3QX2T20.0S Specs | Chipset | JMicron 355 FW800 (1394B) / FW400 (1394A) and Micron 567 USB 3.0 (2.0/1.1 Backwards compatible) | | Interface Supported | eSATA (SATA-II)
FireWire 800 (1394B) (FireWire 400 Backwards compatible)

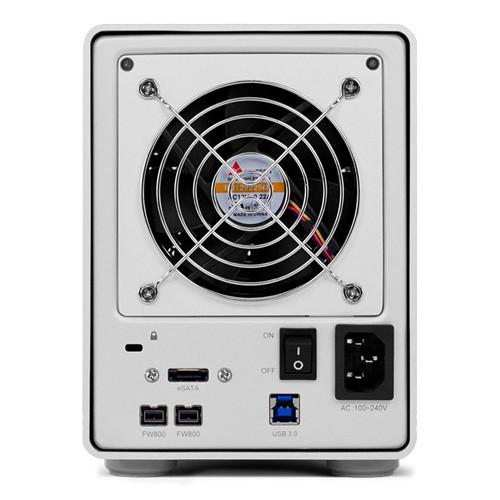

USB 3.0 (2.0 Backwards compatible) | | Ports | 1 x eSATA
2 x FireWire 800 - 9-pin ports
1 x USB 3.0 - 9-pin mini B port | | Maximum Data Transfer Rate | eSATA - 300 MB/sec
FireWire 800 - 100 MB/sec
FireWire 400 - 50 MB/sec
USB 3.0 - 300 MB/sec
USB 2.0 - 60 MB/sec | | Capacity | Up to 20 TB | | Bays | 4 | | Drives | 5 TB 3.5" hard drives
7200 rpm
128 MB per drive | | RAID Levels | RAID 0, 1, 5, 10 Hardware RAID Mode, and NRAID Span Options | | Format | Pre-formatted for Mac OSX | | Shock | Operating: 65 G 2 mS
Non-operating: 175 G 2 mS | | Vibration | Operating: 1.0 G (5 - 300 Hz)
Non-operating: 5.0 G (5 - 500 Hz) | | Temperature | Operating: 41 to 108°F / 5 to 42°C
Non-operating: -40 to 149°F / -40 to 65°C | | Humidity | Operating: 8 - 90% RH (Non-condensing)
Non-operating: 5 - 95% RH (Non-condensing) | | Power Supply | Power Supply: Internal UL Listed 100 - 240 VAC 50 / 60 Hz Auto Switching
Protection: OCP, OVP, Short | | Mac System Requirements | Minimum Apple G4 processor, 128 MB RAM
Mac OS 8.6 to 9.2.2, 10.0.x or later and an available FireWire 400 port
Mac OS X 10.2.8 or later including 'Lion' 10.7.x and an available USB 3.0/2.0, FireWire 800/400 port, or eSATA port
For Time Machine: Mac OS X 10.5 and later. | | Windows System Requirements | Minimum Intel Pentium III CPU 500 MHz, 128 MB RAM
Windows XP (64-bit) or later and an available USB 3.0/2.0, FireWire 800/400, or eSATA port. | | Linux System Requirements | Linux compatible via supported USB and FireWire interfaces | | Dimension (D x W x H) | 9.65 x 5.31 x 6.96" (24.51 x 13.49 x 17.68 cm) | | Weight | Enclosure: 8.6 lb (3.9 kg) | | | | Package Weight | 19.7 lb | | Box Dimensions (LxWxH) | 16.3 x 15.0 x 10.8" |
