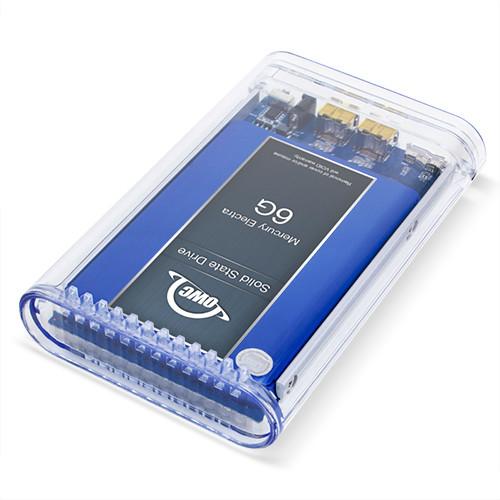

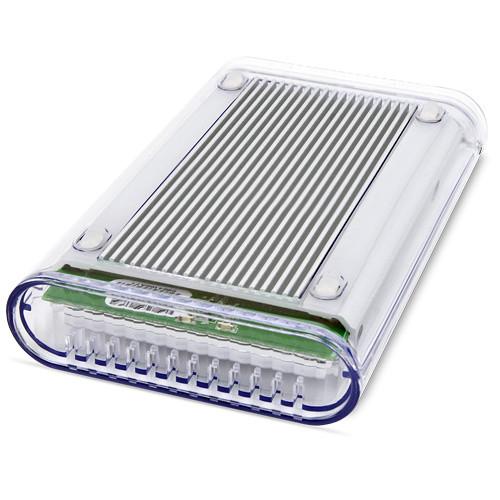

Product description NAB 2019: G-Tech, SanDisk, and WD Show Off Latest Storage Solutions Read More The 1TB Mercury On-The-Go Pro SSD Storage Solution from OWC features USB 3.0 and FireWire 800 interfaces, thereby allowing you to transfer data quickly. It uses Oxford and ASMedia chipset for both USB 3.0 and FireWire 800. SSD's fanless design offers near-silent operation while still keeping your drive cool. The built-in aluminum heatsink underneath the drive and pass-through cooling vents on the top of the case work in tandem to provide optimum results. Being bus-powered, Mercury On-The-Go Pro SSD doesn't require a power adapter. - Global wear leveling algorithms automatically distribute data evenly and manage program/erase count, maximizing SSD lifespan
- StaticDataRefresh technology manages free space, gradually refreshing data across the SSD over time, limiting data corruption
- Hardware BCH ECC corrects errors up to 66-bit/1 kB for superior data retention and drive life
- Power consumption of 60mW
- Advanced security protocols support 128/256-bit-AES and TCG Opal full-disk encryption
UPC: 812437023428 In the Box OWC / Other World Computing Mercury On-The-Go Pro Bus-powered Multi-Interface SSD Storage Solution (1TB) 15" Double Shielded FireWire 800 Connecting Cable 16" Double Shielded USB 3.0/2.0/1.1 Certified Connecting Cable Carrying Case Pre-installed Backup and Utility Software Limited 3-Year Warranty User Manual PDF 1.2mbsavtbxzqwsfafufubexxw Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Mercury On-The-Go Pro Bus-powered Multi-Interface SSD Storage Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCMS8U3SSDT1.0 Specs | Standard Mechanism | 1 TB OWC Mercury EXTREME Pro 6G SSD | | Interface | Bus:

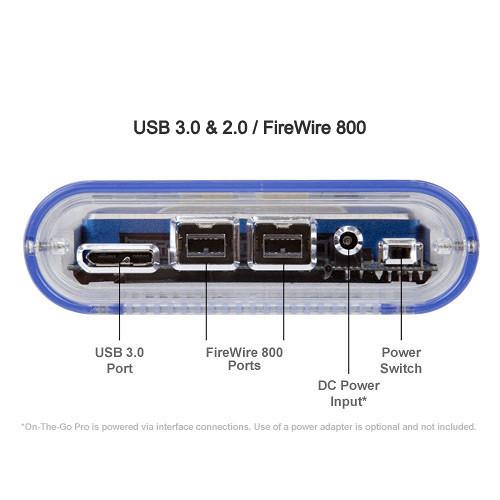

FireWire 1394B (IEE1394A/B/iLink Compliant), 2 9 Pin (powered) ports, backwards compatible with FireWire 400 (9-Pin to 6-Pin Cable); requires FireWire 800 to 400 Cable/Adapter for use with 1394A Interface
USB 3.0 / 2.0 / 1.1 backwards compatible 9 pin mini B port
Drive:
SATA | | Port Configuration | 2 x FireWire 800
1 x USB 3.0 | | Max Data Transfer Rate | 100 MB/sec via FireWire 800
50 MB/sec via FireWire 400
500 MB/sec via USB 3.0
60 MB/sec via USB 2.0
1.5 MB/sec via USB 1.1 | | Format | Included Drive Guide software will format drive for either OS X, or Windows | | Macintosh System Requirements | Mac OS 8.6 to 9.2.2 compatible, OS X 10.1.x and later (10.2 or later required for FW800 and USB 3.0)
FireWire 800: Macintosh with FireWire 800 interface, either built in or via PCI FireWire 800 card
FireWire 400: Macintosh with FireWire 400 interface, either built in or via PCI FireWire 400 card
USB 3.0: Macintosh with USB 3.0 interface, either built in or via PCI USB 3.0 card
USB 2.0: Macintosh with USB 2.0 interface, either built in or via PCI USB 2.0 card | | Windows System Requirements | FireWire 800: PC with FireWire 800 interface, either built in or via PCI FireWire 800 card
FireWire 400: PC with FireWire 400 interface, either built in or via PCI FireWire 400 card
USB 3.0: PC with USB 3.0 interface, either built in or via PCI USB 3.0 card
USB 2.0: PC with USB 2.0 interface, either built in or via PCI USB 2.0 card | | Linux Requirements | Linux compatible via supported USB and FireWire interfaces | | Included Software | Intech Hard Disk SpeedTools Utilities OEM (For Mac OS 8.6 - X only)
ProSoft Engineering Data Backup for Mac OS X v10.2.8 or later
NovaStor NovaBACKUP for Windows 2000 or later
Over 1.5 GB of Freeware, Shareware, Public domain software installed | | Power Supply | Bus-powered
Optional AC adapter available separately | | Temperature | Operating: 32 to 158°F (0 to 70°C)
Non-operating: -40 to 185°F (-40 to 85°C) | | Relative Humidity | Operating: 8 to 90% RH (non-condensing)
Non-operating: 5 to 95% RH (non-condensing) | | Shock | Up to 1500 G | | Vibration | 16 G (16 to 1600 Hz) | | Dimensions | 3.5 x 5.5 x 1.0" (8.9 x 13.9 x 2.5 cm) | | Weight | 0.61 lb (0.27 kg) | | | | Package Weight | 1.25 lb | | Box Dimensions (LxWxH) | 7.4 x 6.1 x 2.6" |
