User Manual for OWC Other World Computing Mercury Rack Pro 32TB Four-Bay 1U Rack SAS Storage Solution Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing Mercury Rack
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing Mercury Rack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|

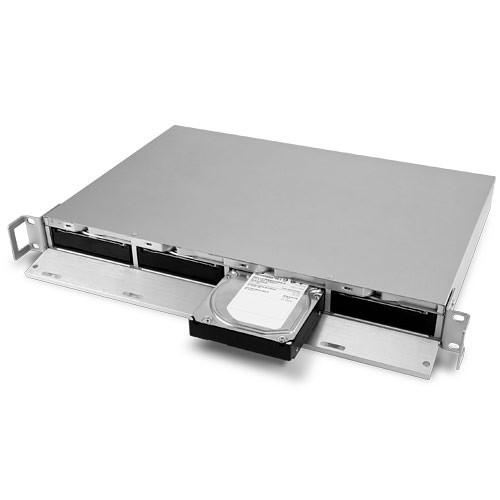

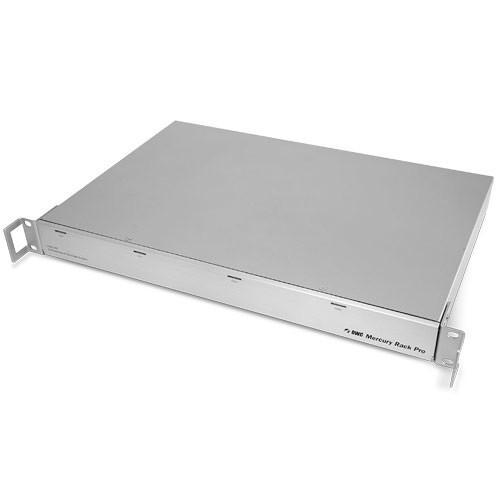

Product description RAID Arrays for Photography and Pro Video Read More The OWC / Other World Computing Mercury Rack Pro 32TB (4 x 8TB) Four-Bay 1U Rack SAS Storage Solution comes with four 8TB enterprise hard drives that provide a total storage capacity of 32TB for your workstation. These drives have been designed to be more reliable than standard hard drives. It connects to your system via the single mini-SAS port and the included 3.3' mini-SAS cable. When used with a separately sold external mini-SAS card, the Mercury Rack Pro offers drive transfer rates of up to 24 Gb/s.
The 3.5" drives spin at 7200 RPM and have 64MB of cache per drive, 256MB total for the solution. You may configure these drives into a RAID array that delivers data performance, redundancy, or a combination of both. For cooling, the Mercury Rack Pro sports three quiet 40mm fans that spin at a constant speed. Furthermore, the flexible form design allows you to convert the Mercury Rack Pro Storage Solution to a desktop form factor using a Phillips screwdriver, and simply removing the rack ears and installing the included anti-skid, vibration-dampening feet. - External mini-SAS hard drive enclosure
- 7200 RPM rotation speed and 64MB of cache per drive, 256MB total for the solution
- Suitable for use in audio/video production environments
- Offers 4 full channels of data (1 per drive) via a single external mini-SAS cable

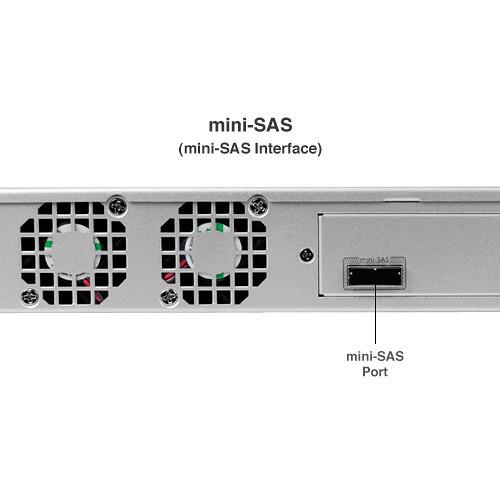

- Single external mini-SAS interface that provides a hassle-free cable management solution
- High-speed external mini-SAS card (not included) offers transfer rates up to 24 Gb/s
- Flexible form design - easily convert the 1U Rack Storage Solution to a desktop form factor using the Phillips screwdriver and by simply removing the rack ears and installing the included anti-skid, vibration dampening feet
UPC: 812437021660 In the Box OWC / Other World Computing Mercury Rack Pro 32TB (4 x 8TB) Four-Bay 1U Rack SAS Storage Solution (Enterprise Edition) 3.3' Mini-SAS Cable Rack Mounting Handles Anti-skid, Vibration Dampening Desktop Mounting Feet Kit Screw Kit for Rack / Desktop Conversion Limited 5-Year Warranty 6-Month Level 1 Data Recovery Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Mercury Rack Pro 32TB Four-Bay 1U Rack SAS Storage Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWMRPMSS4B32.0E Specs | Interfaces Supported | Unit provides 1 External mini-SAS, supporting up to 24 Gb/s
Enclosure uses 3.5" Serial ATA (SATA) hard drives | | RAID / JBOD Support | RAID-Ready and JBOD; 4 independent drive channels | | Drives Included | 4 x 8 TB Hard Drives
7200 RPM
64 MB of cache per drive, 256 MB total for the solution | | Port Configuration | External mini-SAS up to 24 Gb/s | | Format | Included Drive Guide software will format drive for either OS X or Windows | | Data Transfer Rate | External mini-SAS - up to 24 Gb/s (or 2400 MB/s) | | Macintosh System Requirements | Macintoshes with an external mini-SAS port via a 3rd party controller interface card (not included). External mini-SAS connectivity requires Mac OS X 10.2 or later, including Mavericks 10.9.x.
Time Machine Compatible: Mac OS X 10.5 (version introduced) and later | | Windows System Requirements | Windows systems with an external mini-SAS port via a 3rd party controller interface card (not included). External mini-SAS connectivity requires Microsoft Windows 2000 or XP | | Software | Intech Hard Disk SpeedTools Utilities OEM (For Mac OS 8.6 - X only)
ProSoft Engineering Data Backup for Mac OS X v10.2.8 or later
NovaStor NovaBACKUP for Windows 2000 or later
Over 1.5 GB of Freeware, Shareware, Public domain software installed | | Cooling | Three 40mm brush-less, quiet, and constant-speed fans | | Power Supply | Input: 100 to 240 VAC
Output: 50 to 60 Hz, 200 W (Max.) | | Temperature | Operating: 41 to 108°F / 5 to 42°C
Non-operating: -40 to 149°F / -40 to 65°C | | Relative Humidity | Operating: 8 to 90% RH (Non-condensing)
Non-operating: 5 to 95% RH (Non-condensing) | | Shock | 65G 2mS; (non-operating) 175G 2mS | | Vibration | Operating: 1.0G (5 to 300 Hz)
Non-operating: 5.0G (5 to 500 Hz) | | Dimensions (W x H x D) | 17.3 x 1.7 x 11.9" / 43.9 x 4.3 x 30.2 cm
With Feet: 17.3 x 2.2 x 11.9" / 43.9 x 5.6 x 30.2 cm
With Rack Mounting Handles: 19.2 x 1.7 x 11.9" / 48.8 x 4.3 x 30.2 cm | | Weight | 10.0 lb / 4.5 kg |
