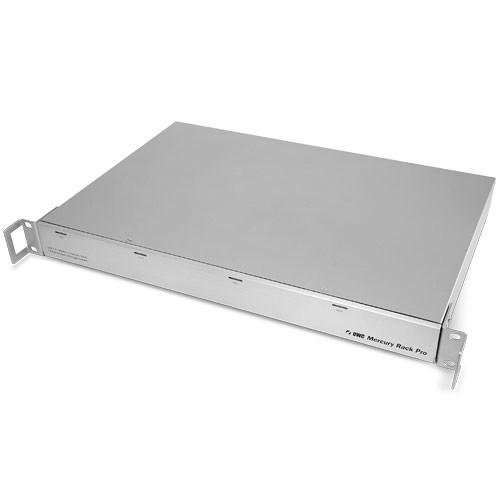

Product description RAID Arrays for Photography and Pro Video Read More The Mercury Rack Pro 40TB 1 RU Multi-Interface 4-Bay Enterprise Class Performance RAID Solution from Other World Computing comes pre-configured as a hardware controlled RAID 5 "stripe with parity" array to provide both speed and data protection. It consists of four 10TB matched enterprise class SATA hard drives up to 7200 rpm.The Mercury Rack Pro provides data transfer rates of over 300 MB/s and supports plug-and-play operation. You can also control and manage your RAID settings with the OWC RAID manager visual interface. - High Performance
- The custom high-performance eSATA chipset with port-multiplier capability, FireWire 800 (1394B), FireWire 400 (1394A), and USB 3.0 chipset, combined with the SATA drive mechanisms offer data transfer rates of up to 300 MB/s.
- Multi-Interface

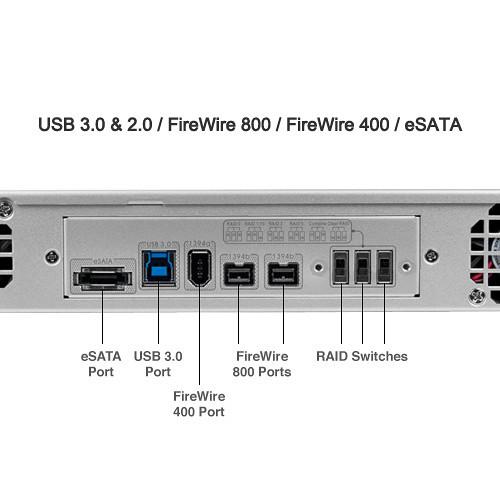

- The OWC Mercury Rack Pro RAID solution offers an eSATA port with eSATA port-multiplier capability, two FireWire 800 (1394B) ports, a FireWire 400 (1394A) port, and USB 3.0 port for easy plug and play on any system. The solution even includes all needed connection cables.
- Swap Drives as Required

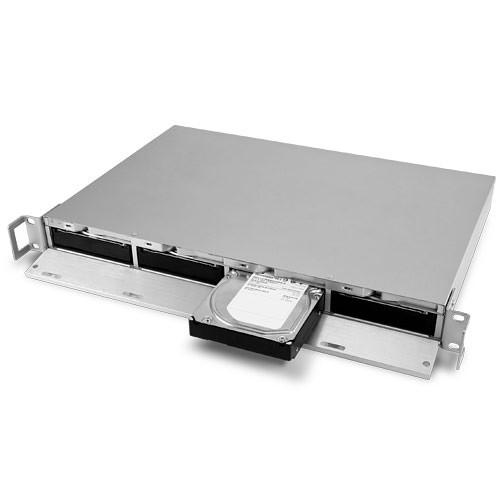

- When using the Mercury Rack Pro in Independent mode, all 4 drives appear on your system as individual volumes drives, so you can mix and match drives of any size and brand and hot swap the drives too.
- Smart Power
- Smart power regulates power during prolonged periods of inactivity to save energy and prolong component lifespan.
- Flexible Form
- The Mercury Rack Pro can easily be converted to a desktop form-factor via a Phillips screwdriver by simply removing the rack ears and installing the included anti-skid, vibration dampening feet.
UPC: 812437028058 In the Box OWC / Other World Computing Mercury Rack Pro 40TB 1U Multi-Interface 4-Bay Enterprise Class Performance RAID Solution eSATA Cable USB 3.1 Gen 1 (A to Standard-B) Cable Power Cable FireWire 400 (1394a) Cable FireWire 800 (1394b) Cable 2 x Rack Handle 8 x Phillips Screw for Rack Handles 2 x Bumper 4 x Desktop Feet with Phillips Screws Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing Mercury Rack Pro 40TB 1U Multi-Interface 4-Bay Enterprise Class Performance RAID Solution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWMRPM3F8Q40.0E Specs | Chipset | Custom High Performance eSATA with Port-Multiplier capability, FireWire 800 (1394B), FireWire 400 (1394A) and USB 3.0 Chipset | | RAID / JBOD Support | Rear panel selectable Hardware RAID settings - SPAN, 0, 1, 3, 5, 10
Non-RAID/Raid Ready: Independent Mode (each drive appears as independent volume)
All drives must be ejected (unmounted) in independent mode, from the Desktop to avoid data corruption | | Standard Mechanism | 4 x 10 TB Seagate Enterprise capacity HDDs | | Drive Rotation Speed | 7200 rpm | | Drive Cache Size | 64 MB per drive, 256 MB total for the solution | | Port Configuration | 1 x eSATA port with Port-Multiplier capability
2 x FireWire 800 (9-pin)
1 x FireWire 400 (4-pin)
1 x USB 3.0 (Type A) | | Format | Included Drive Guide Software will format drive for either OS X, or Windows | | Max Data Transfer Rate | eSATA: 300 MB/s
FireWire 800:100 MB/s
•FireWire 400: 50 MB/s
•USB 3.0: 500 MB/s
USB 2.0: 60 MB/s
USB 1.1: 1.5 MB/s | | Software Included | OWC RAID Manager Visual Interface (for Mac OS X 10.5.x or later with Intel processor)
Intech Hard Disk SpeedTools Utilities OEM (For Mac OS 8.6 - X only)
ProSoft Engineering Data Backup for Mac OS X v10.2.8 or later
NovaStor NovaBACKUP for Windows 2000 or later
Over 1.5 GB of Freeware, Shareware, and Public domain software installed | | Cooling | 3 x 1.1" / 4 cm Brushless, whisper quiet, and constant speed fans | | Power Supply | UL Listed U.S./International adjustable 100 to 240 V, 50/60 Hz, 200 W (maximum) input | | Temperature | Operating: 41 to 107°F / 5 to 42°C
Non-operating: -40 to 149°F / -40 to 65°C | | Relative Humidity | Operating: 8 to 90% RH (non-condensing)
Non-operating: 5 to 95% RH (non-condensing) | | Shock | 65G 2 ms
Non-operating: 175 G, 2 ms | | Vibration | Operating: 1G (5 to 300 Hz
Non-operating: 5G (5 to 500 Hz) | | Dimensions (D x W x H) | 11.9 x 17.3 x 1.7" / 30.3 x 44 x 4.5 cm
With Feet: 11.9 x 17.3 x 2.2" / 30.3 x 44 x 5.5 cm
With Rack Mounting Handles: 11.9 x 19.2 x 1.7" / 30.3 x 48.7 x 4.5 cm | | Weight | Approximately 10 lb / 4.5 kg | | | | Package Weight | 23.3 lb | | Box Dimensions (LxWxH) | 21.8 x 16.3 x 10.1" |
