User Manual for OWC Other World Computing ThunderBay 4 16TB 4-Bay Thunderbolt 3 RAID 0 Array Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing ThunderBay 4
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing ThunderBay 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|

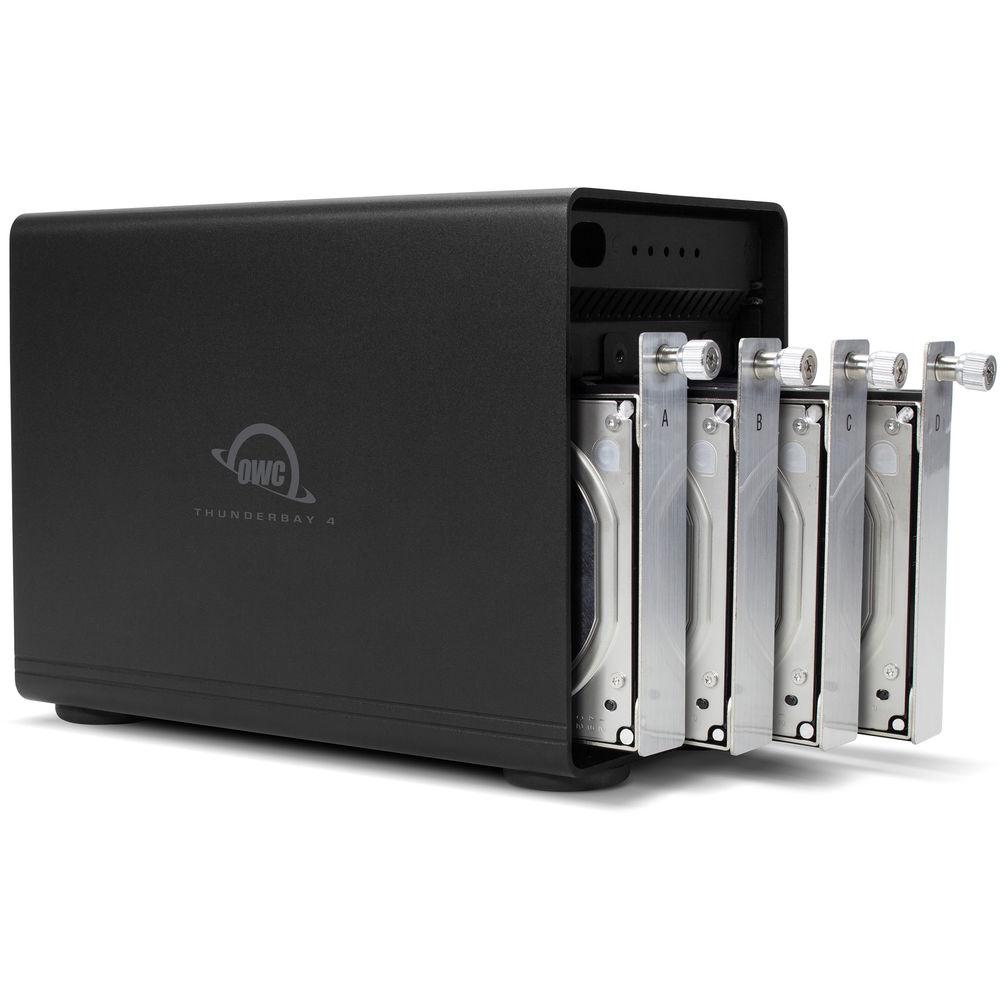

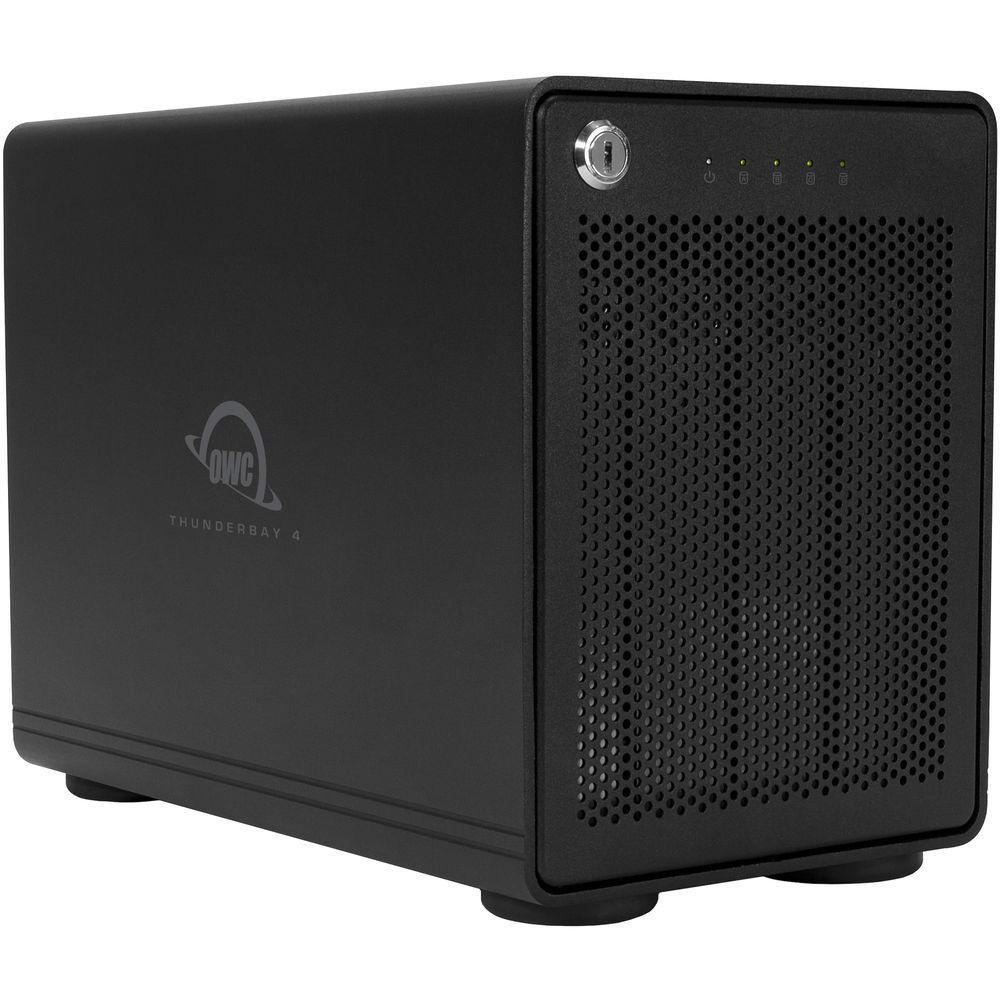

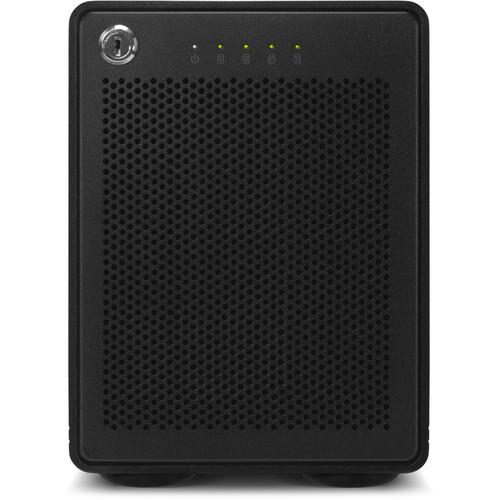

Product description RAID Arrays for Photography and Pro Video Read More Add RAID 0 storage to your Mac or Windows computer with the ThunderBay 4 16TB 4-Bay Thunderbolt 3 RAID 0 Array from OWC / Other World Computing. As you can guess from its name, the ThunderBay 4 features dual Thunderbolt 3 ports, which utilize the USB Type-C connector. There is also a DisplayPort 1.2 port for connecting up to a 4K display. The ThunderBay 4 has four drive bays, which supports both 2.5" and 3.5" hard drives (2.5" HDDs do not need adapters). This particular ThunderBay 4 model comes with four 4TBTB 3.5" 7200 rpm drives for a total of 16TB storage capacity. The included drives are configured in RAID 0. RAID 0 stripes all the drives in the array together so a RAID 0's read and write speeds will be nearly as fast as the combined speed of all the drives in it. Please note that RAID 0 does not offer data redundancy. If you want that, you can use the included SoftRAID Lite software to format the ThunderBay 4 to RAID 1, with an option to upgrade to support RAID 5 and 1+0. General Features - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- RAID & JBOD Support
- The ThunderBay 4 comes pre-configured in RAID 0, but also supports RAID 1, 4, 5, 1+0, and JBOD.
- Time-Tested Cooling

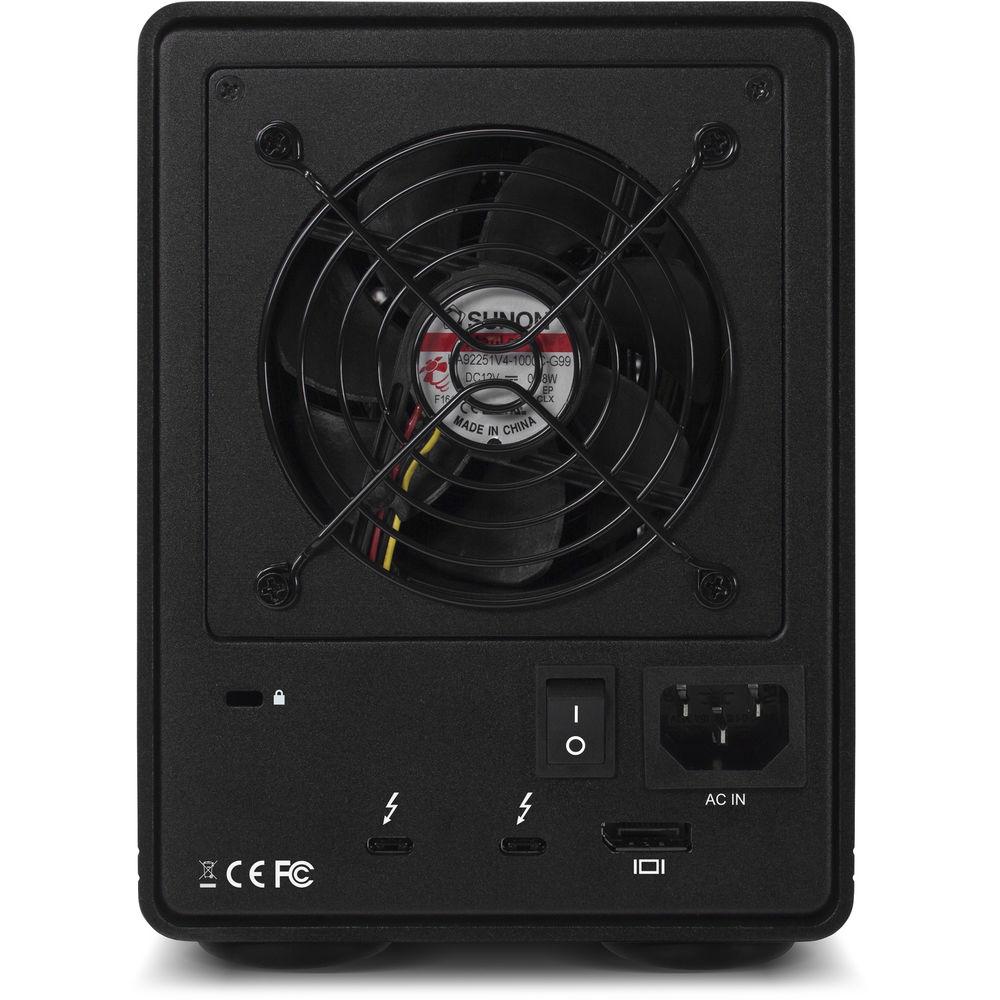

- Built on OWC's time-tested enclosure cooling technology, the Thunderbay 4 utilizes an open "flow-thru" vented design with an over-sized 92mm, low turbulence, noise-quieting fan to keep the drives running cool and reliably.
- Multi-Drive
- Daisy-chain up to six ThunderBay 4s for more storage capabilities and increased performance, or connect multiple ThunderBay 4s to multiple Thunderbolt 3 ports to achieve higher speed capabilities.
- Vibration Dampened
- The ThunderBay 4's drive isolating design reduces sonic resonance and is aided by over-sized, rugged, vibration-absorbing, non-skid feet.
- DisplayPort 1.2 Support
- Dual Thunderbolt ports let you connect the display of your choice that your computer can support, including 4K displays.
- OWC Thunderbolt Cable
- The ThunderBay 4 comes with a certified OWC Thunderbolt 3 cable.

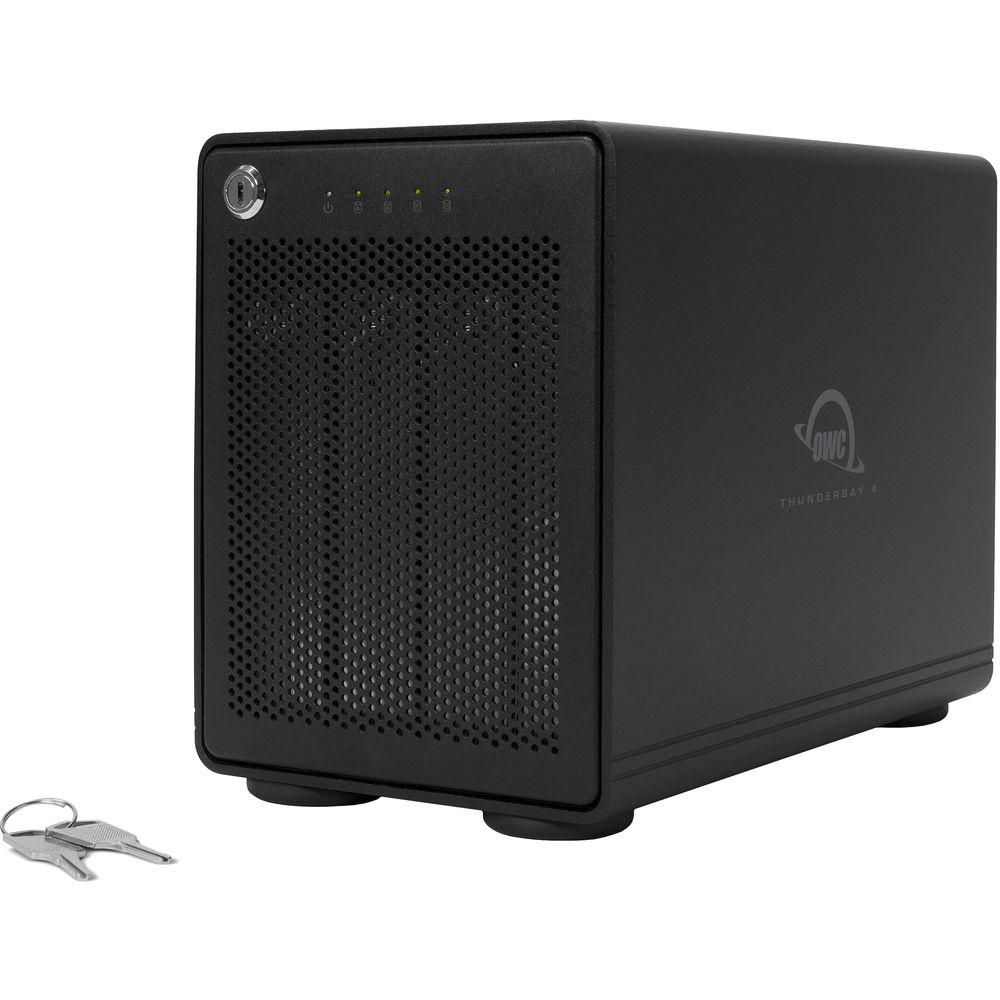

UPC: 812437029604 In the Box OWC / Other World Computing ThunderBay 4 16TB 4-Bay Thunderbolt 3 RAID 0 Array (4 x 4TB) Thunderbolt 3 Cable External Power Cable 2 x Security Keys SoftRAID Lite Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing ThunderBay 4 16TB 4-Bay Thunderbolt 3 RAID 0 Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing Thunderbay 4 Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x DisplayPort (DisplayPort 1.2) | | Compatible Drive Interface | SATA III | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 826 MB/s (Read)
837 MB/s (Write) | | RAID Modes | RAID 0, 1, 10, 4, 5, JBOD | | Operating System Support | Windows, macOS/OS X | | OS Compatibility | Windows 10 or Later
macOS 10.12.2 or Later | | | | Total Raw Capacity | 16 TB (4 x 4 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Interface | SATA III | | Cache Memory per Drive | 128 MB | | Initial RAID Configuration | RAID 0 | | | | Power Source | Internal Power Supply | | AC Input Power | 100 to 230 VAC, 50 / 60 Hz | | | | Security Features | Kensington Security Slot | | | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | | | Cooling | 1 x 92 mm Fan | | RAID Controller | None | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.3 x 7.0 x 9.6" / 134.6 x 177.8 x 243.8 mm | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 19.05 lb | | Box Dimensions (LxWxH) | 15.8 x 14.2 x 11.0" |
