User Manual for OWC Other World Computing ThunderBay 4 16TB Four-Bay Thunderbolt 2 External Drive Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing ThunderBay 4
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing ThunderBay 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|

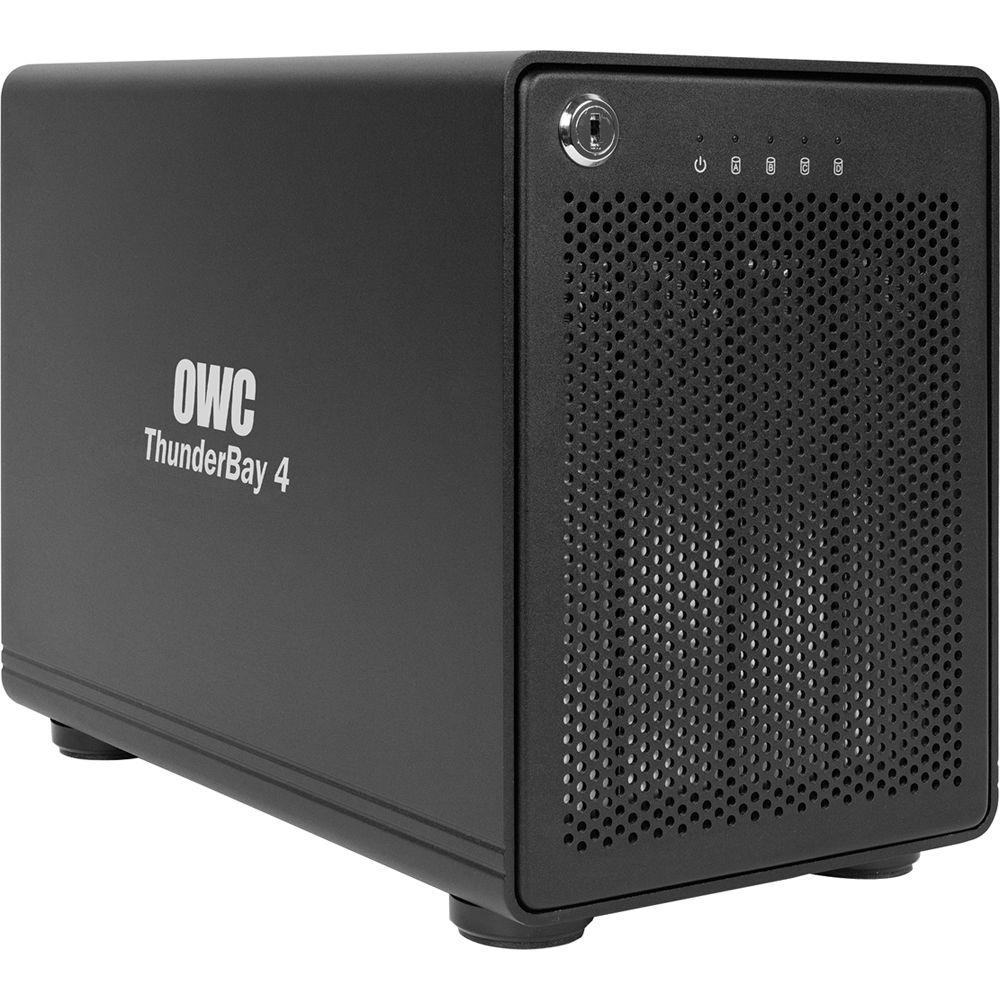

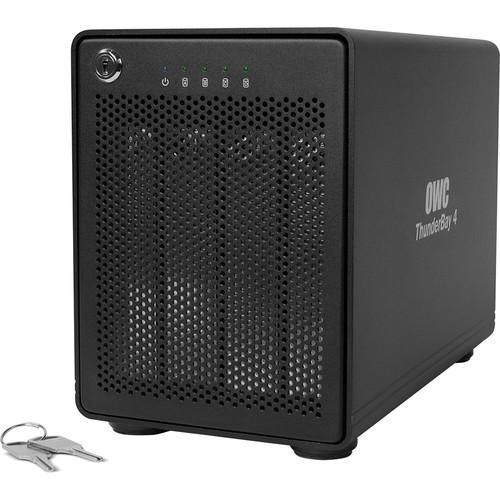

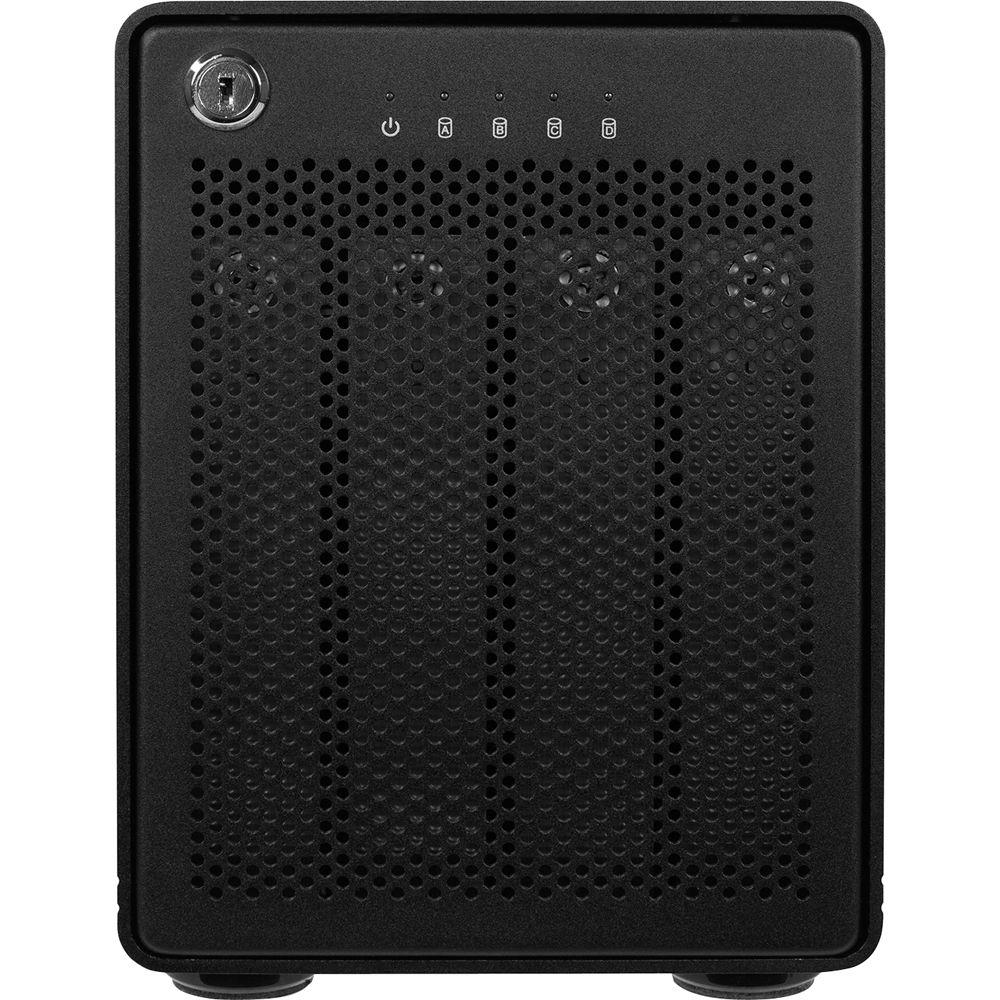

Product description RAID Arrays for Photography and Pro Video Read More The ThunderBay 4 16TB (4 x 4TB) Four-Bay Thunderbolt 2 External Drive from OWC / Other World Computing comes with four pre-installed 7200 rpm hard drives and a pair of Thunderbolt 2 ports, allowing you to daisy-chain up to six devices such as additional ThunderBays, 4K displays, and more. Capable of RAID 0 read/write speeds up to 742 MB/s, the Thunderbay 4's drives can be used independently, or you can configure it with a software RAID utility. SoftRAID Lite XT for Mac is included. Compatible with both Mac and Windows systems, the plug-and-play 4-bay external drive also features a lockable front panel, a 92mm cooling fan, and a detachable 1.6' Thunderbolt 2 cable. - Cooling

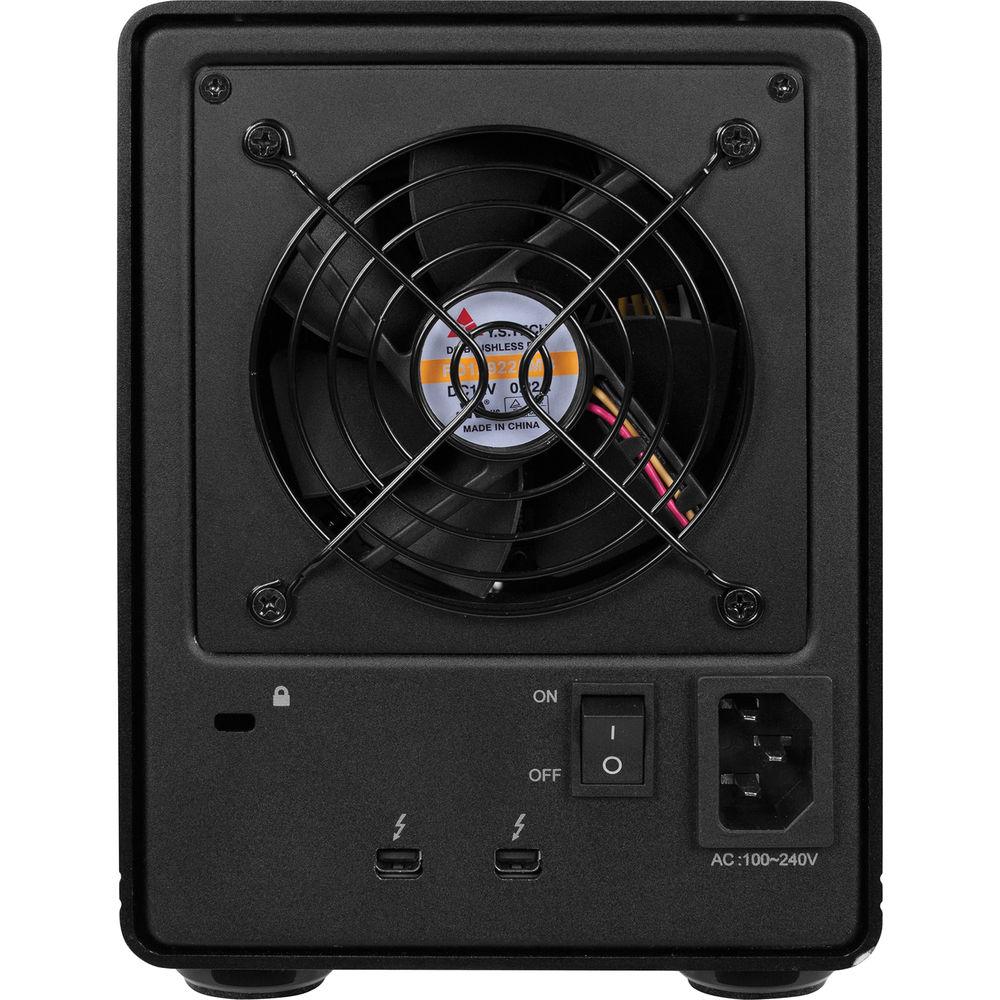

- ThunderBay utilizes an open "flow-thru" vented design with a 92mm, low-turbulence, noise-quieting fan to keep the drives running cool and reliably.
- Multi-Drive
- Daisy-chain up to six ThunderBays for massive storage capabilities and increased performance, or connect multiple ThunderBays to multiple Thunderbolt 2 ports to achieve exponential speed capabilities.
- Vibration Dampened
- ThunderBay's drive isolating design reduces sonic resonance, and is aided by over-sized, rugged, vibration-absorbing, non-skid feet.
- DisplayPort 1.2 Support
- The Thunderbolt ports also support DisplayPort 1.2 that allows daisy-chaining displays through the drive.
- Certified and Tested
- Each ThunderBay undergoes OWC's multi-hour drive "burn-in" performance certification procedure prior to shipping. This helps to ensure your ThunderBay arrives operating properly and ready for demanding use.
- Configuration Options

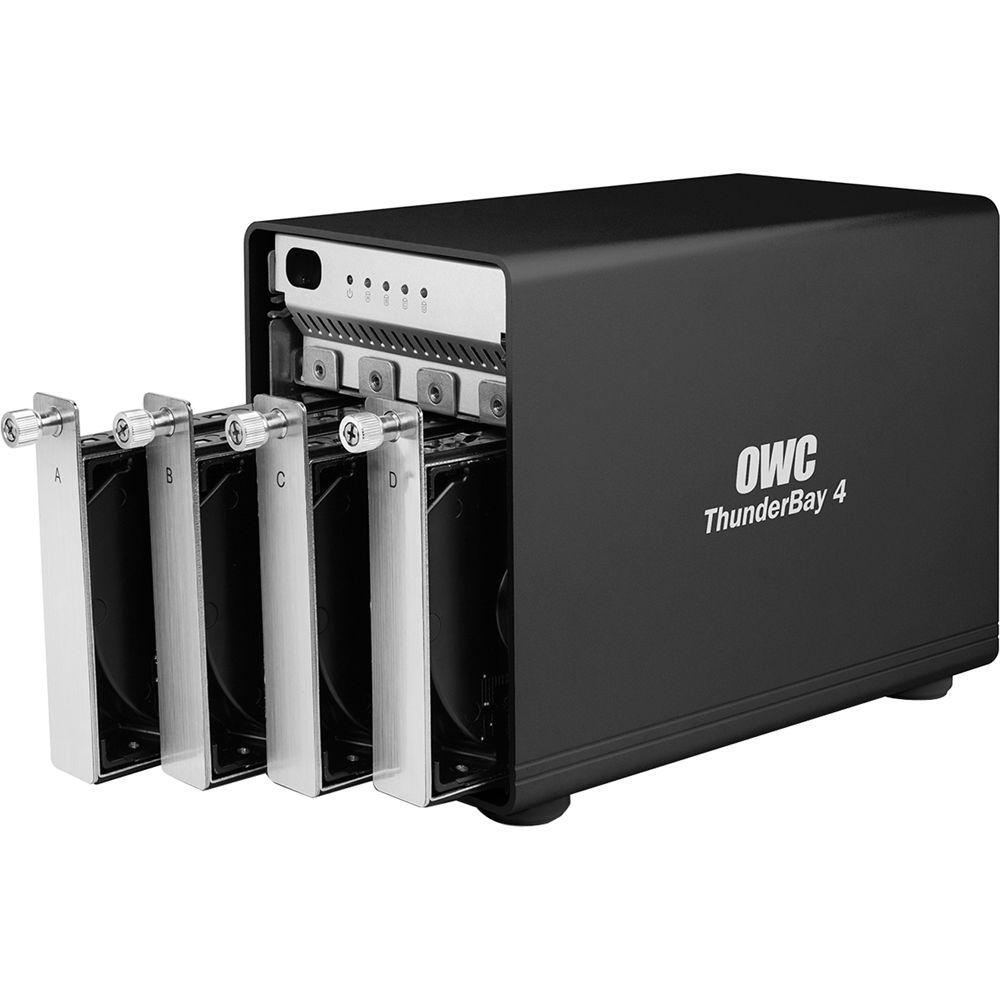

- Utilize each of the four internal drives independently in JBOD mode, or use the software RAID of your choice to setup a multi-drive array for high performance or data redundancy.
- SoftRAID Lite XT for ThunderBay Included
- The SoftRAID engine offers software RAID support for Mac with RAID 0 and 1.
- System Requirements
- macOS 10.9 or later (Boot Camp is not supported)
Windows 7 Service Pack 1 or later
Thunderbolt port UPC: 812437020434 In the Box OWC / Other World Computing ThunderBay 4 16TB (4 x 4TB) Four-Bay Thunderbolt 2 External Drive SoftRAID Lite XT Thunderbolt Cable (3.3') 3-Prong UL Listed Power Cable 2 x Keys for Front Panel Lock Limited 3-Year Warranty Limited 1-Year Level 1 Data Recovery User Manual PDF 2.8mbszybqfuqzffxdu Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing ThunderBay 4 16TB Four-Bay Thunderbolt 2 External Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing ThunderBay IV Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Connections | 2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s)) | | Maximum RAID Transfer Rate | 733 MB/s (Write in RAID 0)
742 MB/s (Write in RAID 0) | | RAID Modes | RAID 0, 1 | | Operating System Support | Windows, macOS/OS X | | OS Compatibility | macOS 10.9 or Later
Windows 7 or Later | | | | Total Raw Capacity | 16 TB (4 x 4 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Cache Memory per Drive | 128 MB | | Initial RAID Configuration | None | | Pre-Format | None | | | | Power Source | Internal Power Supply | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | DC Input Power | 12 VDC at 16.66 A | | | | Operating Temperature | 41 to 107°F / 5 to 42°C | | Operating Humidity | 8 to 90% | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Storage Humidity | 5 to 95% | | Operating Vibration | 1 G / 5 to 300 Hz | | Storage Vibration | 5 G / 5 to 500 Hz | | Operating Shock | 65 G / 2.0 ms | | Certifications | UL, as per Manufacturer | | | | Cable Length | 1.64' / 0.5 m | | Cooling | 1 x 92 mm Fan | | Dimensions (W x H x D) | 9.7 x 5.3 x 7.0" / 246.4 x 134.6 x 177.8 mm | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 20.05 lb | | Box Dimensions (LxWxH) | 16.6 x 15.5 x 11.7" |
