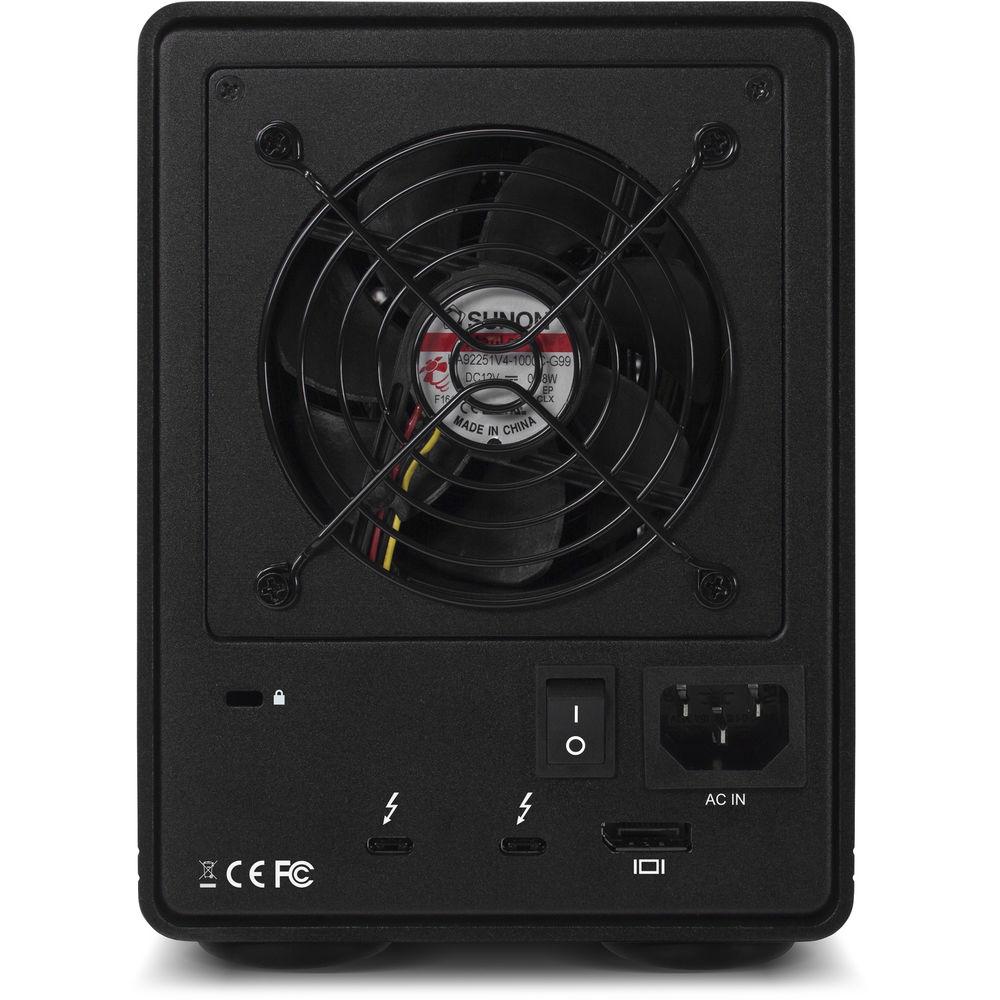

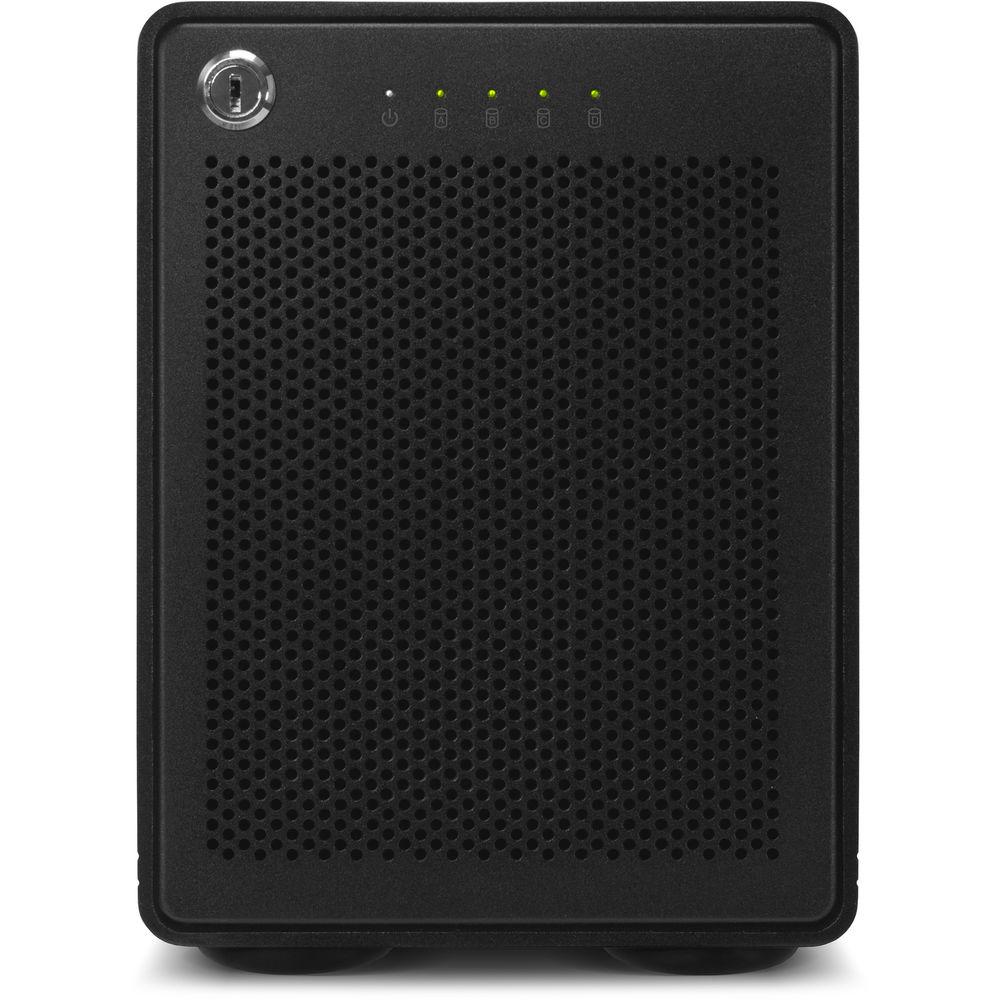

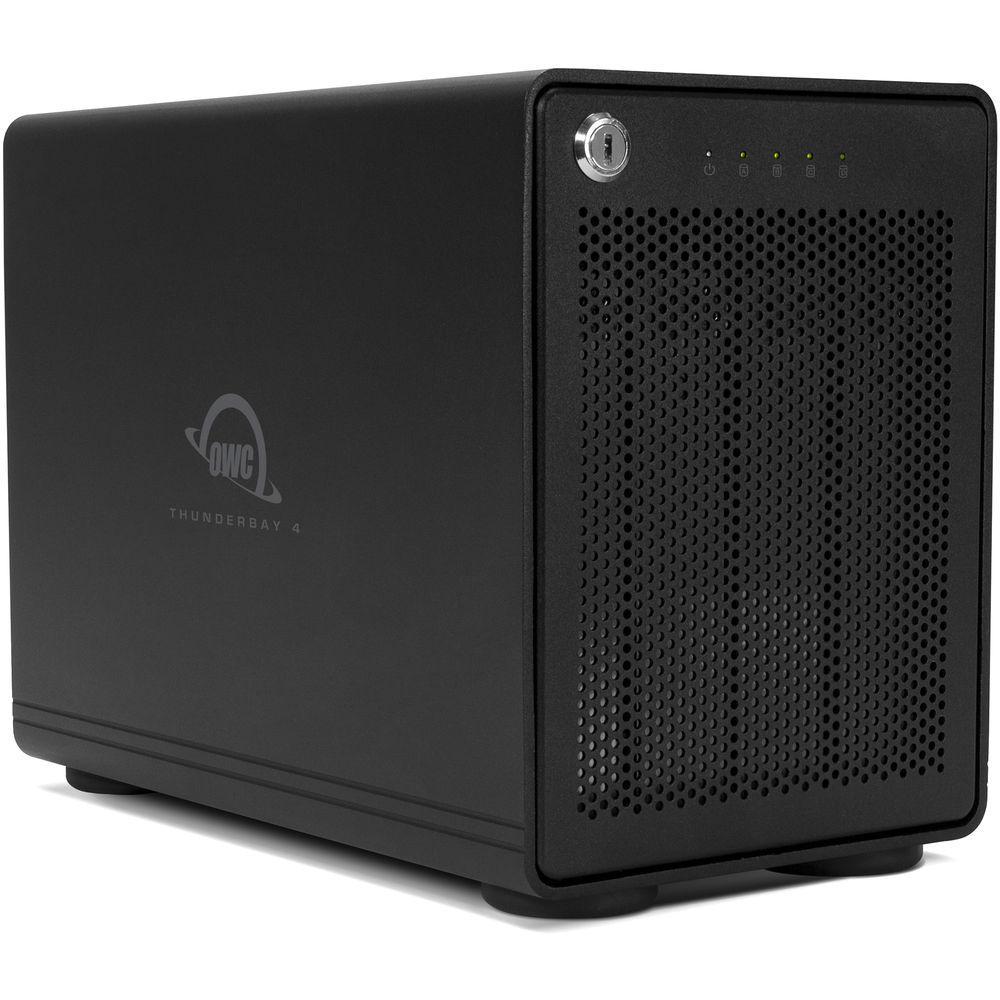

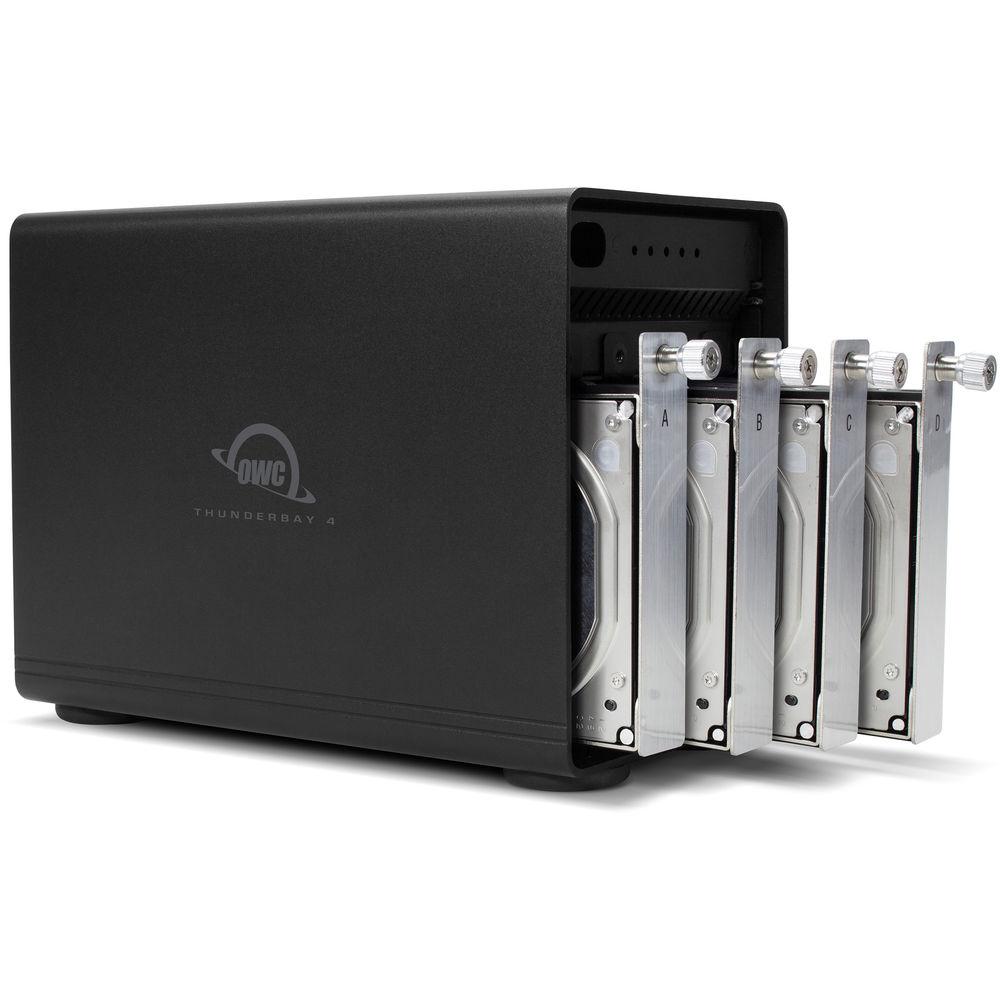

Product description RAID Arrays for Photography and Pro Video Read More zeaxwzcsrdrtvydc Add RAID 4 storage to your Mac or Windows computer with the ThunderBay 4 2TB 4-Bay Thunderbolt 3 RAID 4 Array from OWC / Other World Computing. As you can guess from its name, the ThunderBay 4 features dual Thunderbolt 3 ports, which utilize the USB Type-C connector. There is also a DisplayPort 1.2 port for connecting up to a 4K display. The ThunderBay 4 has four drive bays, which supports both 2.5" and 3.5" hard drives (2.5" HDDs do not need adapters). This particular ThunderBay 4 model comes with four 480GBTB 3.5" 7200 rpm drives for a total of 2TB storage capacity. The included drives are configured in RAID 4. RAID 4 consists of block-level striping with a dedicated parity disk. As a result of its layout, RAID 4 provides good performance of random reads, while the performance of random writes is low due to the need to write all parity data to a single disk.. If you want to reformat to RAID 0, 1, 5, or 1+0, you can use the included SoftRAID software. General Features - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- RAID & JBOD Support
- The ThunderBay 4 comes pre-configured in RAID 4, but also supports RAID 0, 1, 5, 10, and JBOD.
- Time-Tested Cooling
- Built on OWC's time-tested enclosure cooling technology, the Thunderbay 4 utilizes an open "flow-thru" vented design with an over-sized 92mm, low turbulence, noise-quieting fan to keep the drives running cool and reliably.
- Multi-Drive
- Daisy-chain up to six ThunderBay 4s for more storage capabilities and increased performance, or connect multiple ThunderBay 4s to multiple Thunderbolt 3 ports to achieve higher speed capabilities.
- Vibration Dampened
- The ThunderBay 4's drive isolating design reduces sonic resonance and is aided by over-sized, rugged, vibration-absorbing, non-skid feet.
- DisplayPort 1.2 Support
- Dual Thunderbolt ports let you connect the display of your choice that your computer can support, including 4K displays.
- OWC Thunderbolt Cable
- The ThunderBay 4 comes with a certified OWC Thunderbolt 3 cable.

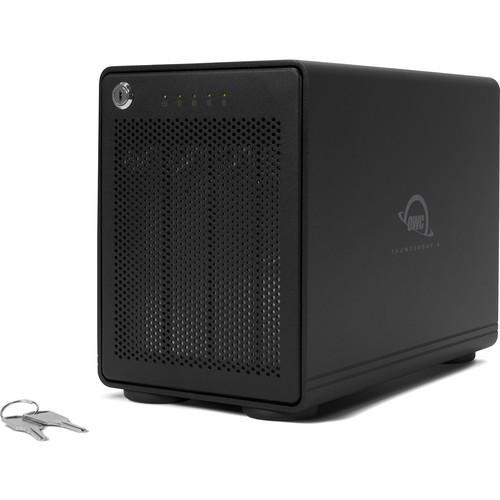

In the Box OWC / Other World Computing ThunderBay 4 2TB 4-Bay Thunderbolt 3 RAID 4 Array (4 x 480GB) Thunderbolt 3 Cable External Power Cable 2 x Security Keys SoftRAID Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing ThunderBay 4 2TB 4-Bay Thunderbolt 3 RAID 4 Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing ThunderBay 4 Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x DisplayPort (DisplayPort 1.2) | | Compatible Drive Interface | SATA III | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 1155 MB/s (Read)
870 MB/s (Write) | | RAID Modes | RAID 0, 1, 10, 4, 5, JBOD | | Operating System Support | Windows, macOS/OS X | | OS Compatibility | Windows 10 or Later
macOS 10.12.2 or Later | | | | Total Raw Capacity | 2 TB (4 x 480 GB) | | Type | Solid-State Drive | | Interface | SATA III | | Initial RAID Configuration | RAID 4 | | | | Power Source | Internal Power Supply | | AC Input Power | 100 to 230 VAC, 50 / 60 Hz | | | | Security Features | Kensington Security Slot | | | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | | | Cooling | 1 x 92 mm Fan | | RAID Controller | None | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.3 x 7.0 x 9.6" / 134.6 x 177.8 x 243.8 mm | | Weight | 12.6 lb / 5.7 kg |
