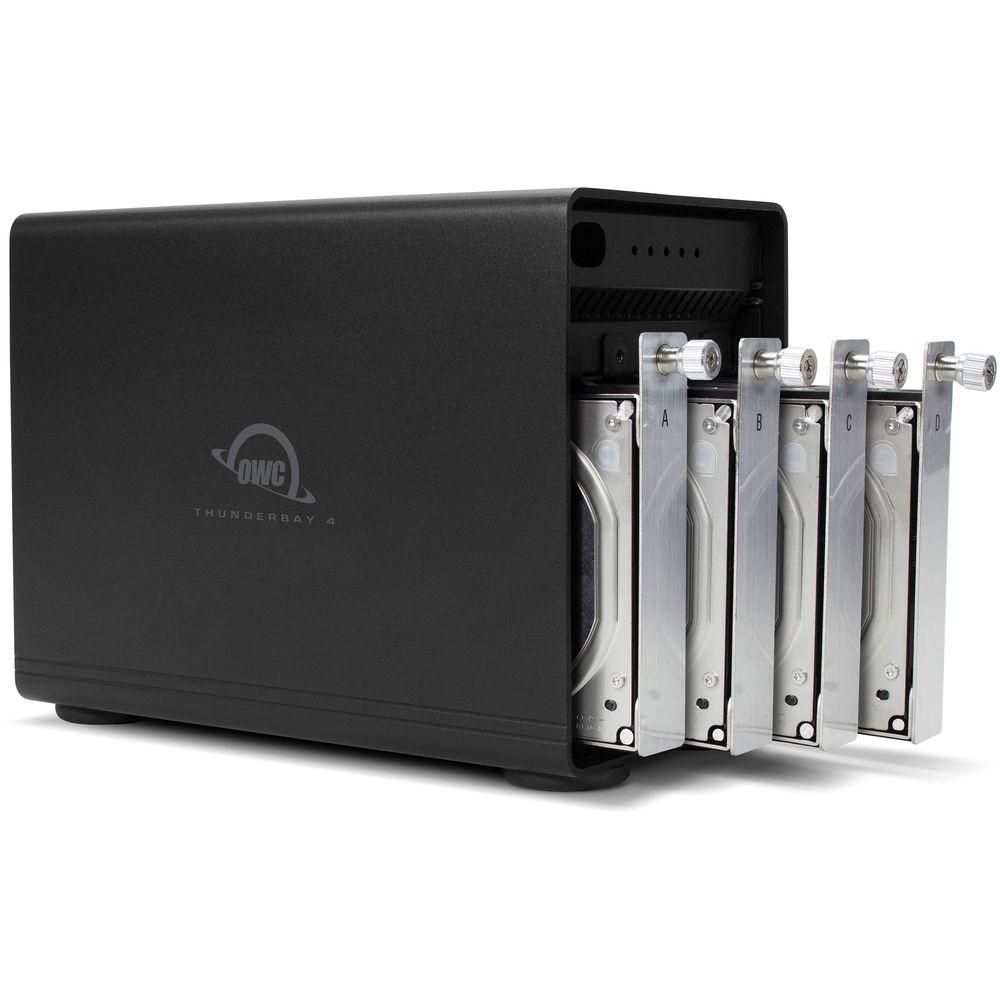

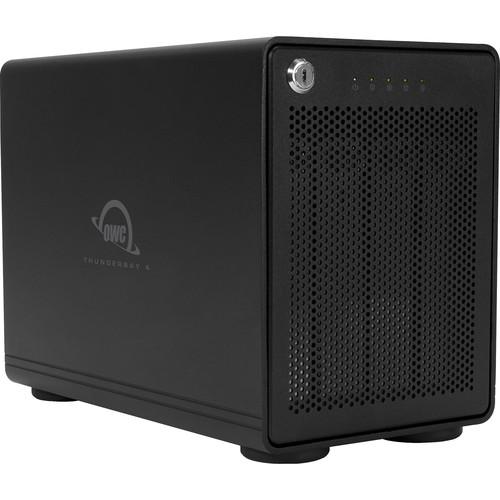

User Manual for OWC Other World Computing ThunderBay 4 48TB 4-Bay Thunderbolt 3 RAID Array Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing ThunderBay 4
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing ThunderBay 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description RAID Arrays for Photography and Pro Video Read More wbstxwwdxbwvy This ThunderBay 4 48TB 4-Bay Thunderbolt 3 RAID Array from OWC / Other World Computing is pre-configured with four 12TB HGST Ultrastar Enterprise-grade drives set up in RAID 5 via SoftRAID XT software. With two Thunderbolt 3 ports featuring transfer speeds of up to 40 Gb/s, it's suitable for a wide variety of workflows such as video and photo editing, audio production, and much more. Actual read and write performance in RAID 5 are around 453 MB/s and 456 MB/s respectively. If needed, Thunderbolt 3 connectivity also supports daisy-chaining with up to six devices as well as DisplayPort-equipped displays. Using the SoftRAID XT software, you can reconfigure these drives from RAID 5 to alternate configurations including RAID 0, 1, 4, 1+0, and JBOD. - Cooling

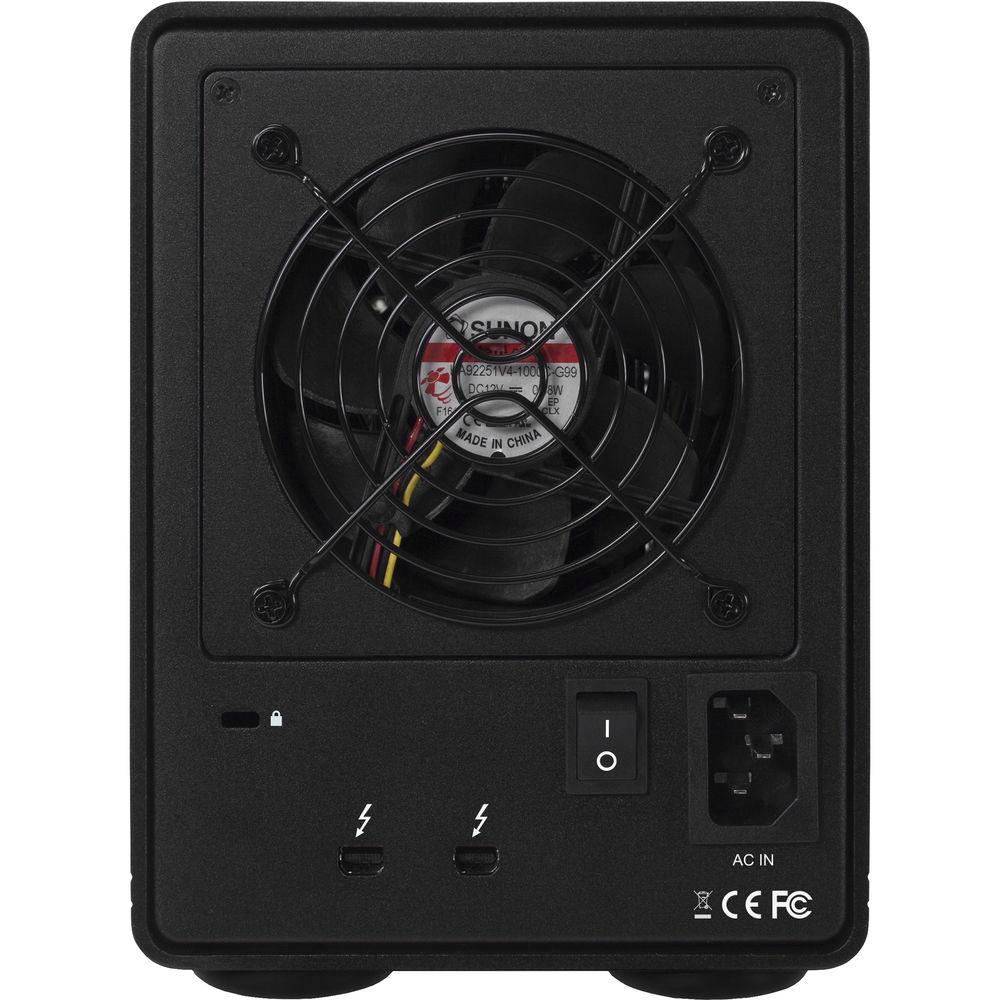

- ThunderBay utilizes an open "flow-thru" vented design with a 92mm, low-turbulence, noise-quieting fan to keep the drives running cool and reliably.
- Multi-Drive
- Daisy-chain up to six ThunderBays for massive storage capabilities and increased performance, or connect multiple ThunderBays to multiple Thunderbolt 3 ports to achieve exponential speed capabilities.
- Vibration Dampened
- ThunderBay's drive isolating design reduces sonic resonance and is aided by over-sized, rugged, vibration-absorbing, non-skid feet.
- DisplayPort 1.2 Support
- The Thunderbolt 3 ports also support DisplayPort 1.2 that allows daisy-chaining displays through the drive.
UPC: 810586030991 In the Box OWC / Other World Computing ThunderBay 4 48TB 4-Bay Thunderbolt 3 RAID Array (4 x 12TB, RAID 5 Enterprise Edition) Thunderbolt 3 20 Gb/s Cable External Power Cable 2 x Security Keys Free 1-Year, Level-1 Data Recovery Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing ThunderBay 4 48TB 4-Bay Thunderbolt 3 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing OWCTB3SRE48.0S Specs | | | Number of Bays | 4 x 2.5"/3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x DisplayPort | | Compatible Drive Interface | SATA III | | Form Factor | Desktop | | Maximum RAID Transfer Rate | 453 MB/s (Read in RAID 5)
456 MB/s (Write in RAID 5) | | RAID Modes | RAID 0, 0+1, 1, 4, 5, JBOD | | | | Total Raw Capacity | 48 TB (4 x 12 TB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Interface | SATA III | | Initial RAID Configuration | RAID 5 | | | | Power Source | Internal Power Supply | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Encryption | None | | Security Features | Kensington Security Slot | | | | Operating Temperature | 50 to 95°F / 10 to 35°C | | Storage Temperature | -40 to 149°F / -40 to 65°C | | | | Cooling | 1 x 92 mm Fan | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 5.3 x 7.0 x 9.6" / 135.0 x 177.0 x 245.0 mm | | Weight | 12.6 lb / 5.7 kg | | | | Package Weight | 18.4 lb | | Box Dimensions (LxWxH) | 15.6 x 14.0 x 11.0" |
