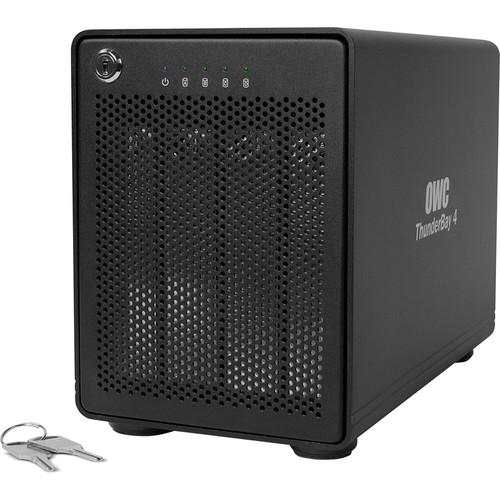

User Manual for OWC Other World Computing ThunderBay 4 Four-Bay Thunderbolt 2 RAID Array Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing ThunderBay 4
- Product category: Hard Drive Enclosures & Docks OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Enclosures & Docks
 |
User manual for the OWC Other World Computing ThunderBay 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|
Product description Add the capabilities of Thunderbolt 2 speed and storage to your Windows or Mac system with the ThunderBay 4 Hard Drive Enclosure from OWC / Other World Computing. This is a four bay, SATA III 6 Gb/s enclosure and each bay will support a 3.5" hard drive or a 2.5" hard drive or SSD. Each 2.5" drive requires an optional NewerTech AdaptaDrive adapter. Once drives are installed, you can RAID them using the software RAID of your choice to setup the ThunderBay 4 for multi-drive performance or data redundancy.
The ThunderBay 4 will provide you with plenty of space to store files such as music, photos, movies, and documents. It also allows you to operate a production workflow with 2K and 4K video in Apple Final Cut Pro, Adobe Premiere, and Avid Media Composer, audio in Avid Pro Tools and Logic Pro X, and photos in Adobe Photoshop, Apple Aperture and Adobe Lightroom. When configured as a RAID 0, this array features read speeds up to 859 MB/s and write speeds up to 838 MB/s.

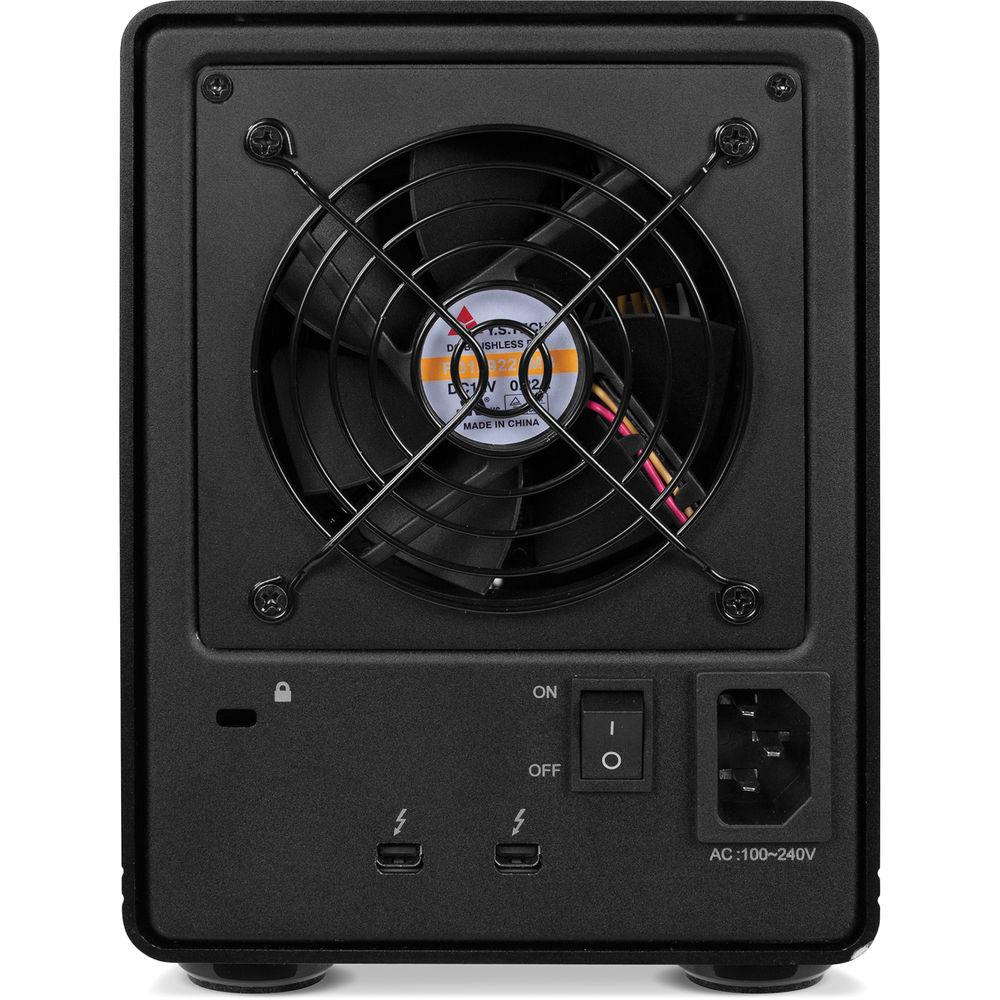

The ThunderBay 4 comes with two Thunderbolt 2 ports that provide bi-directional data transfer rates of 20 Gb/s. Dual Thunderbolt 2 ports allow you to daisy-chain up to six devices such as additional ThunderBays, 4K displays, and more. To help ensure a smooth operating environment, the array uses a 92mm nosie-quieting fan. The ThunderBay 4 is compatible with Windows 7 SP1 and later and Mac OS 10.9 and later. It may be used as a boot drive On Mac systems, but does not support Boot Camp. It operates using a 100-240 VAC power supply that runs at 50/60 Hz. Included with this ThunderBay 4 array is a 3.3' / 1.0m Thunderbolt cable, an 3-prong power cable, 2 keys for the front panel lock, and a PC & Mac compatible software bundle. Please bear in mind that while users are free to select drives of their choice for this RAID, variable spin drives, such as WD Red and WD Green, are not recommended. The issue with variable spin drives is that because the drives could potentially be spinning at different speeds, this could lead to constant rebuilds within the RAID, as it could think that one or more drives are not in operation. While WD Red and WD Green drives are specifically being mentioned, please bear in mind that variable speed drives also manufactured by other companies, such as Seagate, are also not recommended. - Cooling
- ThunderBay utilizes an open "flow-thru" vented design with a 92mm, low-turbulence, noise-quieting fan to keep the drives running cool and reliably
- Multi-Drive
- Daisy-chain up to six ThunderBays for massive storage capabilities and increased performance, or connect multiple ThunderBays to multiple Thunderbolt 2 ports to achieve exponential speed capabilities
- Vibration Dampened
- ThunderBay's drive isolating design reduces sonic resonance and is aided by over-sized, rugged, vibration-absorbing, non-skid feet
- DisplayPort 1.2 Support
- The Thunderbolt ports also support DisplayPort 1.2 that allows daisy-chaining displays through the drive
UPC: 812437020410 In the Box OWC / Other World Computing ThunderBay 4 Four-Bay Thunderbolt 2 RAID Array 3.3' / 1.0m Thunderbolt Cable External UL listed 3-Prong Power Cable 2 x Keys for Front Panel Lock Utility Software Bundle for Mac and PC Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing ThunderBay 4 Four-Bay Thunderbolt 2 RAID Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWC / Other World Computing ThunderBay IV Specs | Number of Bays | 4 x 2.5"/3.5" | | Connections | 2 x Mini DisplayPort (Thunderbolt 2 (20 Gb/s)) | | Compatible Drive Interface | SATA | | Operating System Support | Windows, macOS/OS X | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 16.66 A | | | | Operating Temperature | 41 to 107°F / 5 to 42°C | | Operating Humidity | 8 to 90% | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Storage Humidity | 5 to 95% | | | | Dimensions (W x H x D) | 9.7 x 5.3 x 7.0" / 245.1 x 134.9 x 176.8 mm | | Weight | 8.6 lb / 3.9 kg | | | | Package Weight | 10.55 lb | | Box Dimensions (LxWxH) | 13.1 x 10.2 x 8.6" |
