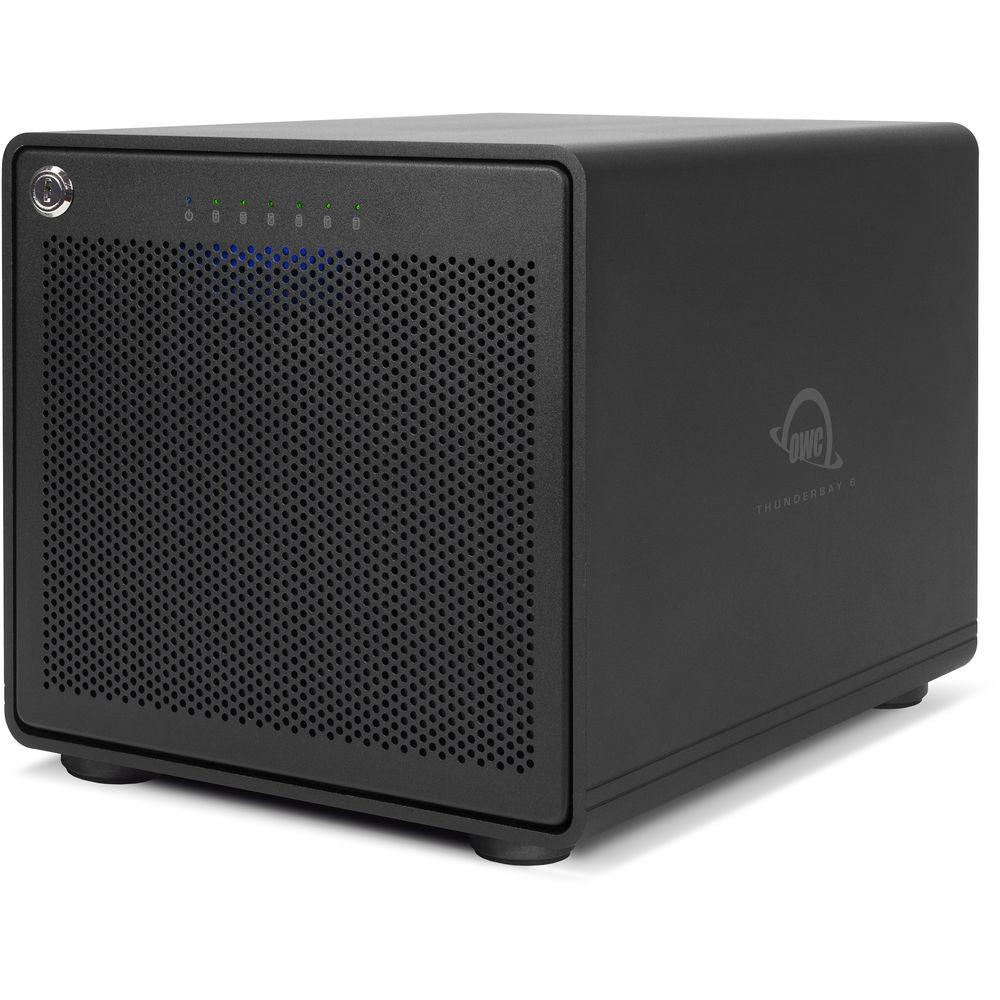

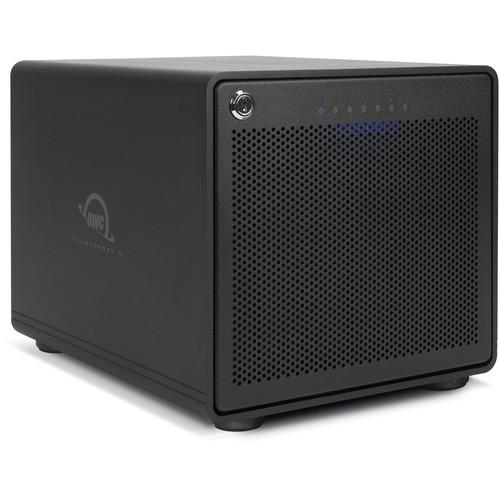

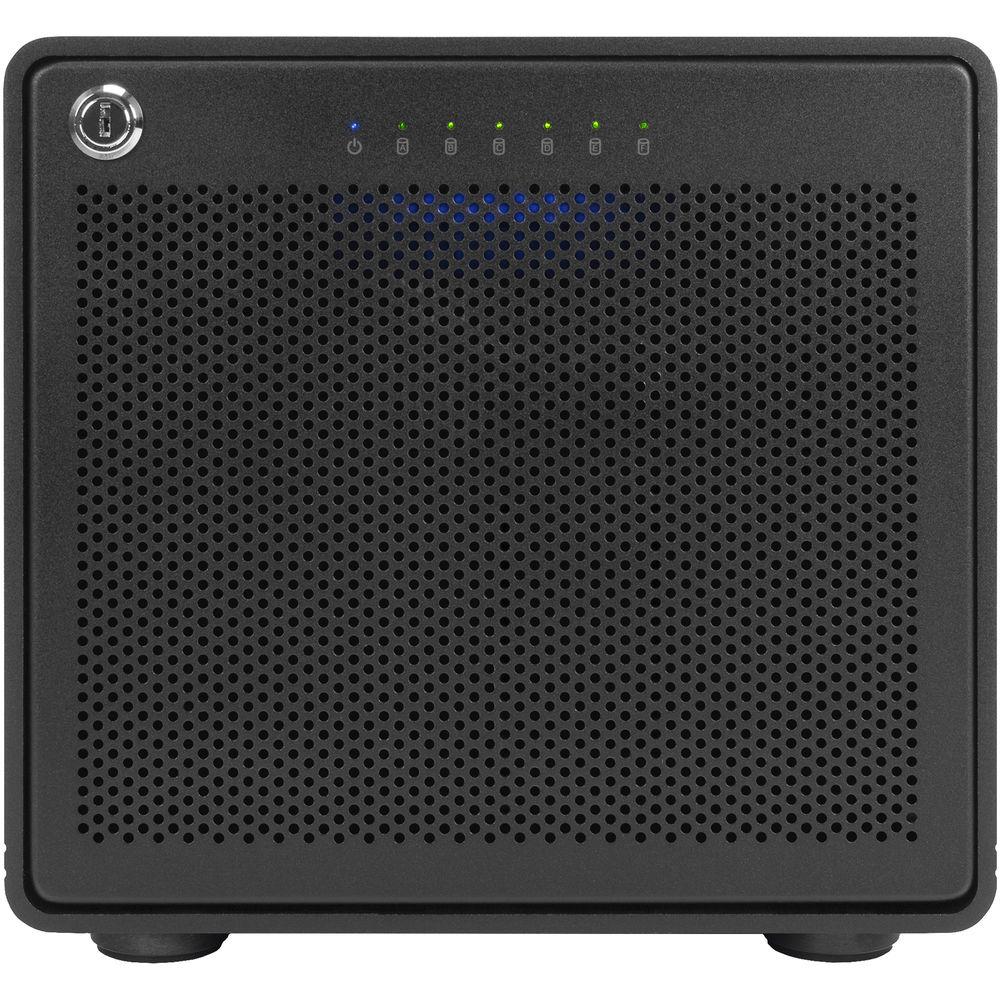

User Manual for OWC Other World Computing ThunderBay 6 72TB 6-Bay Thunderbolt 3 RAID 5 Array Click to enlarge the picture
Contents of the user manual for the OWC Other World Computing ThunderBay 6
- Product category: Hard Drive Arrays OWC / Other World Computing
- Brand: OWC / Other World Computing
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWC / Other World Computing Hard Drive Arrays
 |
User manual for the OWC Other World Computing ThunderBay 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWC / Other World Computing product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWC / Other World Computing user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWC / Other World Computing product will considerably shorten its lifespan!
|

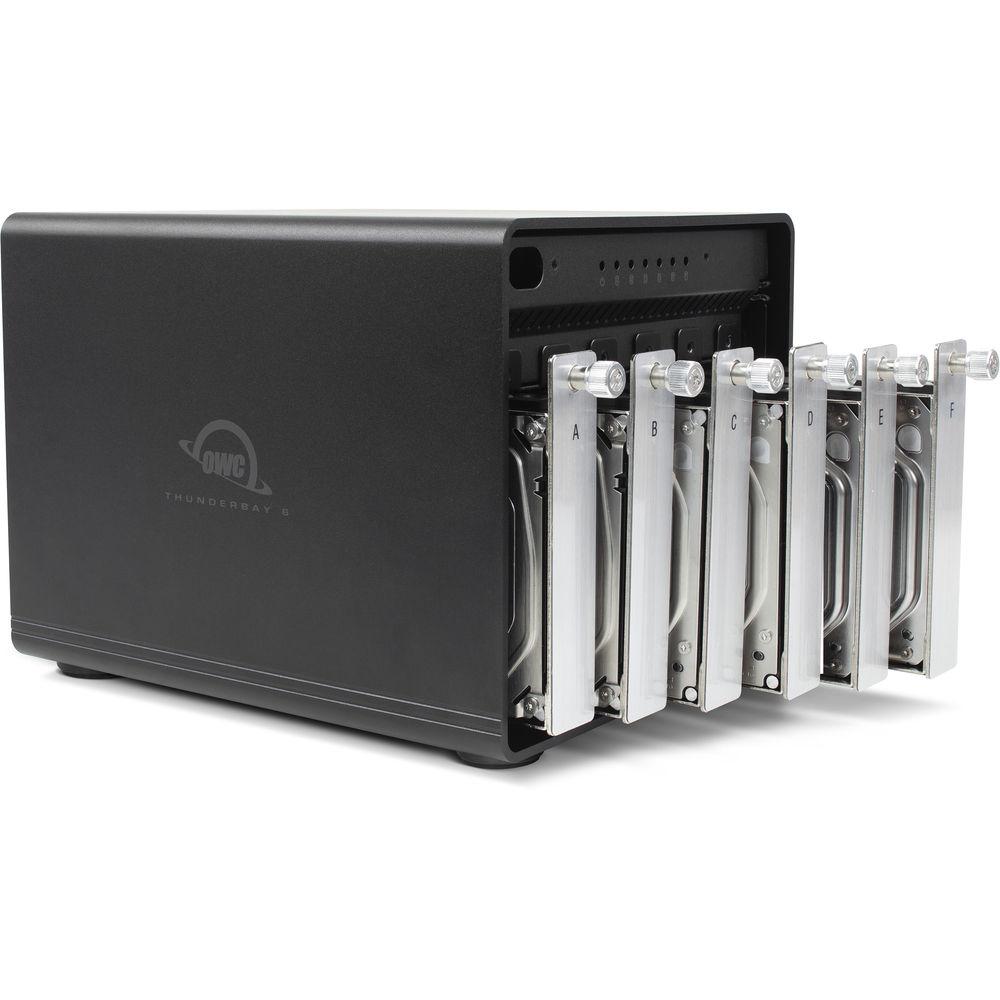

Product description RAID Arrays for Photography and Pro Video Read More This ThunderBay 6 72TB 6-Bay Thunderbolt 3 RAID 5 Array from OWC / Other World Computing is pre-configured with six 12TB 7200 rpm Seagate Enterprise-grade drives set up in RAID 5 for data redundancy via SoftRAID XT software. With two Thunderbolt 3 port featuring transfer speeds of up to 40 Gb/s, it's suitable for a wide variety of workflows such as video and photo editing, audio production, and much more. Its sustained performance is rated at up to 1500 MB/s. If needed, Thunderbolt 3 connectivity also supports daisy-chaining with up to six devices as well as DisplayPort-equipped displays. Using the SoftRAID XT software, you can reconfigure these drives from RAID 5 to alternate configurations including RAID 0, 1, 4, 10, and JBOD. - Thunderbolt 3
- Thunderbolt 3 is a hardware interface that utilizes the reversible USB Type-C connector. Doubling the speed of its predecessor, Thunderbolt 3 features a maximum throughput of 40 Gb/s when used with compatible devices. The connector also transmits data via USB 3.1 at up to 10 Gb/s, and dual-bandwidth DisplayPort 1.2 allows you to connect up to two 4K displays simultaneously. Additionally, you can daisy chain up to six devices from a single Thunderbolt 3 port.
- Optional NVMe M.2 SSD Storage
- For improved performance, you can install an optional NVMe M.2 SSD. The NMVe protocol offers improved efficiency, suitable for the fast transfer rates of SSDs.
UPC: 810586030830 In the Box OWC / Other World Computing ThunderBay 6 72TB 6-Bay Thunderbolt 3 RAID 5 Array (6 x 12TB, Enterprise Edition ) Thunderbolt 3 Cable External Power Cable 2 x Keys for Front Panel Lock Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWC Other World Computing ThunderBay 6 72TB 6-Bay Thunderbolt 3 RAID 5 Array in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

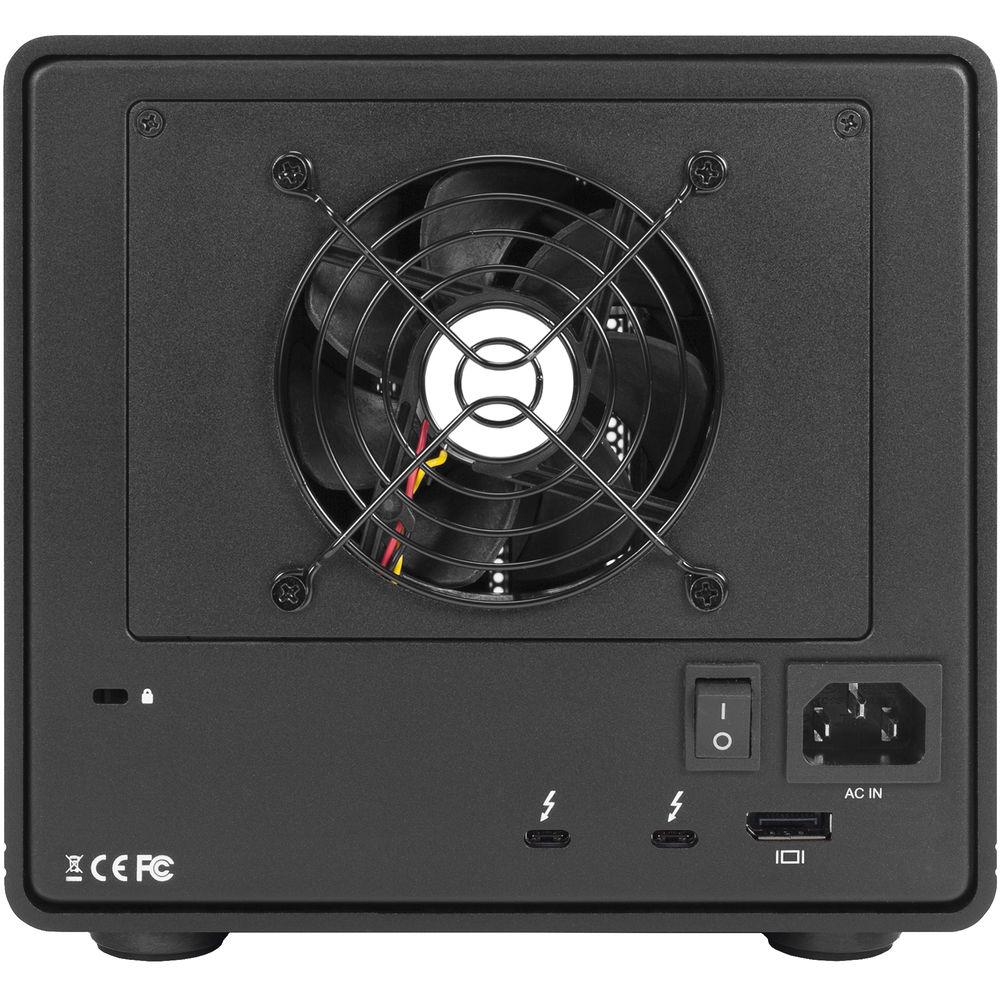

Technical parametersOWC / Other World Computing ThunderBay 6 Specs | | | Number of Bays | 6 x 2.5"/3.5" | | Connections | 2 x USB Type-C (Thunderbolt 3 (40 Gb/s))
1 x DisplayPort | | Compatible Drive Interface | SATA III, NVMe | | Maximum RAID Transfer Rate | 1500 MB/s | | RAID Modes | RAID 0, 1, 10, 4, 5, JBOD | | Hot-Swap Support | Yes | | Operating System Support | Windows, macOS/OS X | | | | Total Raw Capacity | 72 TB (6 x 12 GB) | | Type | Hard Disk Drive | | Rotational Speed | 7200 rpm | | Interface | SATA III | | Initial RAID Configuration | RAID 5 | | | | Power Source | AC Adapter | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Security Features | Kensington Security Slot | | | | Operating Temperature | 41 to 107°F / 5 to 42°C | | Operating Humidity | 8 to 90% | | | | Status Monitoring | LED Indicator | | Dimensions (W x H x D) | 7.8 x 7.2 x 9.5" / 19.7 x 18.3 x 24.1 cm | | Weight | 11.7 lb / 5.3 kg | | | | Package Weight | 25.65 lb | | Box Dimensions (LxWxH) | 17.0 x 13.9 x 13.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
