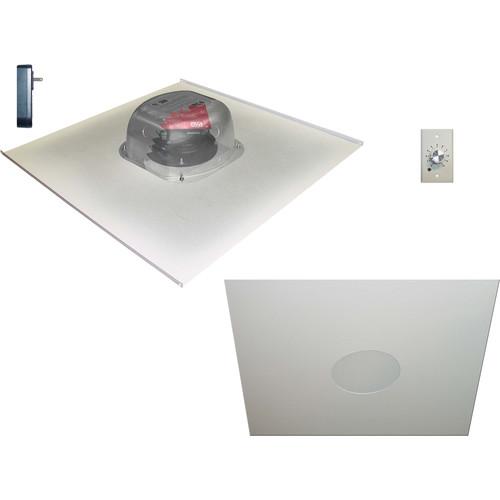

User Manual for OWI Inc. 2X2AMP-BT2S62SVC 6.5" Two-Source Drop Ceiling Bluetooth Amplified Speaker with Volume Control Click to enlarge the picture
Contents of the user manual for the OWI Inc. 2X2AMP-BT2S62SVC 6.5" Two-Source Drop
- Product category: Installed Speakers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Installed Speakers
|
User manual for the OWI Inc. 2X2AMP-BT2S62SVC 6.5" Two-Source Drop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The OWI 2X2AMP-BT2S62SVC 6.5" Two-Source Drop Ceiling Bluetooth Amplified Speaker is a 2-speaker 2x2 tile assembly built onto the IC6 In-Ceiling Speaker with a backcan enclosure. This speaker package also includes the PS15VDC35AL5 15 VDC Level 5 Power Supply and AMPSTVCW Volume Control. One line can drive up to 10 self-amplified speakers. Additionally, the speaker produces lower noise and offers protection from shorts and overheating.The PS15VDC35AL5 Power Supply is UL listed, Level 5 (Energy Star) certified. The AMPSTVCW Dual Stereo Volume Control fits into a single-gang electrical box and offers line-level volume control for balanced or limited-length single-ended wiring configurations. It also has a 3.5mm input for connecting audio sources. - Speaker
-
- Built onto the IC6 In-ceiling Speaker on a 2X2 tile and backcan assembly (included)
- 2-line level input/sources
- Up to 40W of power
- Priority override feature
- Built-in stereo combiner
- Balanced line-level output
- Bluetooth connectivity
- 3.5mm stereo jack line input
- Offers protection from shorts and overheating
- Lower noise feature
- Fast and easy on-field installation
- Power Supply
-
- 15 VDC 3.5A power supply
- UL listed, Level 5 (Energy Star)
- Volume Control
-
- Rotary knob with 11 detent positions, 0-10
- Fits a single-gang electrical box
- Balanced or limited-length single-ended wiring configuration
- 3.5mm aux audio input on the face
UPC: 092087110956 In the Box OWI Inc. 2X2AMP-BT2S62SVC 6.5" Two-Source Drop Ceiling Bluetooth Amplified Speaker with Volume Control (2X2 Tile, 2-Speaker Package) 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker ffrwrsrx AMPSTVCW Dual Stereo Volume Control (White) Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. 2X2AMP-BT2S62SVC 6.5" Two-Source Drop Ceiling Bluetooth Amplified Speaker with Volume Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. 2X2AMP-BT2S62SVC Specs | | | Electrical | Input Voltage, Nominal:(25 W) 15 VDC
Input Current, Operating (15 VDC): 1.667 A (Peak)
Input Volt-Amperes, Peak (15 VDC): 25 V A
Input Voltage Maximum:16.5 VDC | | Woofer | 6.5" () | | EQ Frequency Bands (Fixed) | 50 Hz to 15 kHz | | Bass Capability | ⁺10 dB @ 50 Hz | | Treble Boost | ⁺10 dB @ 10 kHz | | THD + Noise | <1% at 15 W, "A" Weighted | | S/N | >90 dB | | Maximum Power Output | 2 x 20 or 40 W Total (20 V In) | | Standby Power | 1.5 W | | Power Sleep Mode | >1 W (Energy Star) | | DC Power Input | Short Circuit Protected: Yes
Over Current Protected: Yes
Over Voltage Protected: Yes
Over Temperature Protected: Yes
Minimum Load Impedance: 4.0 Ω (Two 8 Ω Speakers in Parallel)
Minimum Input Impedance, Priority In: 20,000 Ω
Minimum Input Impedance, Balance Line In: 820 Ω
Minimum Input Impedance, Mini-Jack: 2300 Ω
Dynamic Mic Input Impedance: 300 Ω | | Bluetooth | Certified SIG Bluetooth Version 3.0
Frequency Range: 2.40 to 2.48 MHz
Supports A2DP, AVRCP, HFP/HSP and SPP
Password Protected: Yes | | | | Dimensions (H x W x D) | 4.7 x 2.0 x 1.2" (12 x 5.1 x 3.0 cm) | | Wire Size | Recommended
10' (3.0 m) (22 gauge)
25' (7.6 m) (20 gauge)
50' (15 m) (18 gauge)
70' (21 m) (14 gauge)
100' (30.5 m) (12 gauge) | | Power Input | 100 to 240 V, 50 to 60 Hz , 1.4 A | | | | Dimensions | 9.25 x 9.62 x 4.5" (23.5 x 24.4 x 11.4 cm) | | | | Impedance | 10 kOhms | | Attenuation / Gain | 60 dB | | | | Package Weight | 25.4 lb | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 12.0" |
