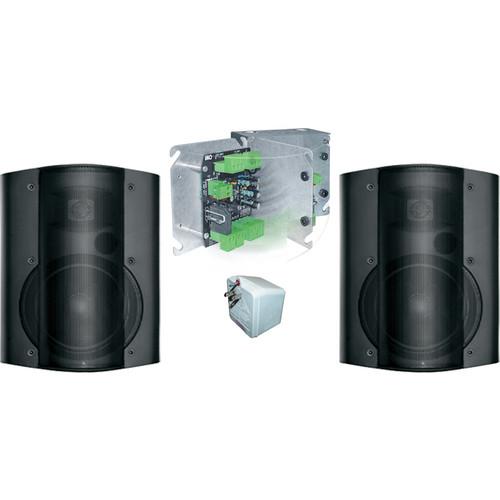

Product description The black 40W Amplifier and Surface Mounted Speaker Combination from OWI Inc. includes a 40W single source amplifier (AMP1SGB), a 12V UL Listed power supply, and 2 black 5.0" (12.7 cm), 2-way, ported speakers (P5278) with a maximum power of 40W RMS.The single input / single source wall amplifier and the P-series surface mount speaker comes placed in a UL Rated double gang-box. It can drive up to a maximum of 4 speakers (sold separately). 12VAC power supply is included. - 40W single source amplifier
- Amplified speaker for schools, hotels, conference rooms, training rooms, and homes
- Comes in a UL Listed double gang-box (surface mount)
- Can drive up to 4 surface mounted or in-ceiling speakers
- Up to 20 amplifiers on 1 line
- Fast and easy install in the field
- Up to 40W of Class AB power right at the speaker
- 12VAC power supply included
- Protected from shorts and overheating
- Line level volume controls available
- Completely hidden from view
- Maximum current protected
- One wire to ground protected
In the Box OWI Inc. 40W Amplifier and Surface Mounted Speaker Combination (Black) AMP1SGB Amplifier 2 x P5278PB Patio Blaster P Series Speaker (Black) ayxuytcbveyrcrsubbedxt 12 VAC Power Supply Limited 1-Year Warranty (Amplifier) Limited 5-Year Warranty (Speaker) Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. 40W Amplifier and Surface Mounted Speaker Combination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. AMP1SGB Specs | | | Frequency Response | 50 Hz to 15 kHz, HF is optimized to enhance frequency response of the speaker | | Total Harmonic Distortion | < 1% | | Signal to Noise Ratio | > 90 dB | | Configuration | Input Configuration: Differential (Noise Reducing) | | Minimum Common Mode Rejection | 40 dB | | Maximum Power Output | 40 W | | Impedance | At Load Impedance: 4 Ω Maximum (2 speakers in parallel or 4 speakers in series parallel)Minimum Load Impedance: 3.2 ΩInput Load Impedance: 10 kΩ | | Voltage | Minimum Power Supply Voltage: 8 VMaximum Supply Voltage: 14 V | | Amplifiers | Maximum Number of Amplifiers on 1 Line: 20 | | Dimensions (H x W x D) | 4.00 x 4.00 x 2.00" (10.16 x 10.16 x 5.08 cm) | | Weight | 3.00 lb (1.36 kg) (including power supply) | | Unit Weight | 18.00 lb (8.16 kg) |
