User Manual for OWI Inc. 40W Amplifier and Surface Mounted Speaker Combination Click to enlarge the picture
Contents of the user manual for the OWI Inc. 40W Amplifier and Surface
- Product category: Installed Speakers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Installed Speakers
|
User manual for the OWI Inc. 40W Amplifier and Surface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The black 40W Amplifier and Surface Mounted Speaker Combination from OWI Inc. includes a 40W single source amplifier (AMP1SGB), a 12V UL Listed power supply, and 2 black 8.00” (20.32 cm), 3-way, ported speakers (P8378) with a maximum power of 80W RMS.The single input / single source wall amplifier and the P-series surface mount speaker comes placed in a UL Rated double gang-box. It can drive up to a maximum of 4 speakers (sold separately). 12VAC power supply is included. It also features a volume control on the front metal faceplate. - 40W single source amplifier
- Amplified speaker for schools, hotels, conference rooms, training rooms, and homes
- Comes in a UL Listed double gang-box (surface mount)
- Can drive up to 4 surface mounted or in-ceiling speakers
- Up to 20 amplifiers on 1 line
- Fast and easy install in the field
- Up to 40W of Class AB power right at the speaker
- 12VAC power supply included
- Protected from shorts and overheating
- Line level volume controls available
- Volume control on the front metal faceplate (stud installation)
- Completely hidden from view
- Maximum current protected
- One wire to ground protected

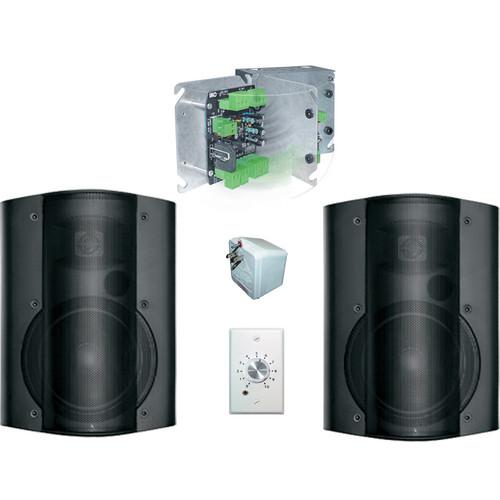

In the Box OWI Inc. 40W Amplifier and Surface Mounted Speaker Combination (Black) AMP1SGB Amplifier Stereo AMP-STVC Volume Control 2 x P8378PB Patio Blaster P Series Speaker (Black) 12 VAC Power Supply Limited 1-Year Warranty (Amplifier) Limited 5-Year Warranty (Speaker) Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. 40W Amplifier and Surface Mounted Speaker Combination in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. AMP1SGB Specs | | | Frequency Response | 50 Hz to 15 kHz, HF is optimized to enhance frequency response of the speaker | | Total Harmonic Distortion | < 1% | | Signal to Noise Ratio | > 90 dB | | Configuration | Input Configuration: Differential (Noise Reducing) | | Minimum Common Mode Rejection | 40 dB | | Maximum Power Output | 40 W | | Impedance | At Load Impedance: 4 Ω Maximum (2 speakers in parallel or 4 speakers in series parallel)Minimum Load Impedance: 3.2 ΩInput Load Impedance: 10 kΩ | | Voltage | Minimum Power Supply Voltage: 8 VMaximum Supply Voltage: 14 V | | Amplifiers | Maximum Number of Amplifiers on 1 Line: 20 | | Dimensions (H x W x D) | 4.00 x 4.00 x 2.50" (10.16 x 10.16 x 6.35 cm) | | Weight | 3.00 lb (1.36 kg) (including power supply) | | Unit Weight | 43.00 lb (19.50 kg) |
