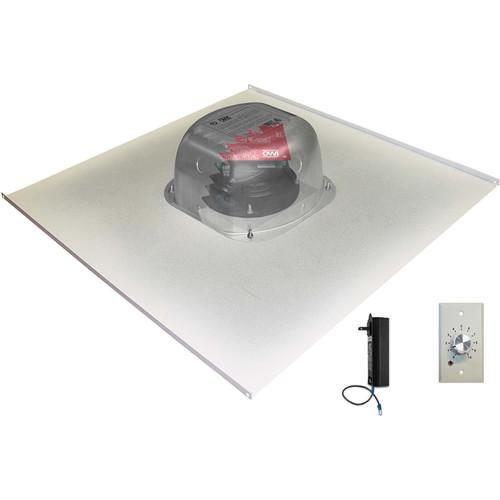

User Manual for OWI Inc. 6.5" Amplified Drop-Ceiling Speaker on a 2 x 2' Tile with Volume Control Click to enlarge the picture
Contents of the user manual for the OWI Inc. 6.5" Amplified Drop-Ceiling Speaker
- Product category: Installed Speakers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Installed Speakers
|
User manual for the OWI Inc. 6.5" Amplified Drop-Ceiling Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The OWI Inc. 2X2AMP-R2S61SVC is a self-amplified ceiling speaker on a 2 x 2' ceiling tile with stereo/mono volume control. The 6.5" speaker is powered by an on-board amplifier, which is powered by a 15 VDC power supply. The speaker features two line-level inputs, a balanced line-level output, and a priority override feature. Optional accessories are available including Bluetooth and additional speakers, which can be powered by the on-board amplifier.
The speaker assembly consists of one 6.5" amplified speaker, a 15 VDC power supply, a backcan enclosure, a 2 x 2' ceiling tile, and a stereo/mono volume control. The entire package is assembled and ready for easy installation out of the box. - Drop Ceiling Speaker
-
- Two line-level inputs (balanced Phoenix-style screw terminal and unbalanced 3.5mm)
- Up to 40W of power, right at the speaker
- With priority override feature
- Balanced line-level output
- 15 VDC power supply (UL Listed-Level 5) included
- Protected from shorts and overheating
- Lower noise feature
- Fast and easy installation in the field
- Optional Bluetooth available
- Volume Control
-
- One volume control for stereo or mono sources
- One 1/8" mini stereo input on the faceplate
- Two 1/8" mini stereo inputs on circuit board
- One balanced mono Input
- One balanced mono output
- One Cat. 5 output
- Fits into a single gang box
- Wall mounted
UPC: 092087110604 In the Box OWI Inc. 6.5" Amplified Drop-Ceiling Speaker on a 2 x 2' Tile with Volume Control 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker AMPSTVCW Dual Stereo Volume Control (White) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. 6.5" Amplified Drop-Ceiling Speaker on a 2 x 2' Tile with Volume Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. 2X2AMP-R2S61SVC Specs | Speaker Size | Woofer: 6.5" / 16.5 cm | | Frequency Response | EQ Set to Flat: 50 Hz to 15 kHz
Bass: +10 dB @ 50 Hz
Treble: +10 dB @ 10 kHz | | THD + N | <1% at 15 W, (A-weighted) | | Signal-to-Noise Ratio (SNR) | >90 dB | | Impedance | Minimum Load Impedance: 4 Ohms (Two 8 Ohm speakers in parallel)
Minimum Input Impedance, Priority In: 20 kOhms
Minimum Input Impedance, Balanced Line In: 820 Ohms
Minimum Input Impedance, Mini-Jack: 2300 Ohms
Dynamic Mic Input Impedance: 300 Ohms | | Protection Features | Short Circuit Protected: Yes
Over Current Protected: Yes
Over Voltage Protected: Yes
Over Temperature Protected: Yes | | Power | Maximum Power Output (20 V In): 2 x 20 W or 40 W total
DC Power (Standby): 1.5 W
AC Power, Sleep Mode: >1 W (Energy Star) | | Amplifier | Input Voltage, Nominal: (25 W) 15 VDC
Input Current, Operating (15 VDC): 1.667 A, peak
Input Volt-Amperes, Peak (15 VDC): 25 VA
Input Voltage Maximum: 16.5 VDC | | Controller | Volume Control Input/Output
1 x 1/8" / 3.5 mm mini stereo input on the faceplate
2 x 1/8" / 3.5 mm mini stereo input (back)
1 x balanced mono input
1 x balanced mono output
1 x Cat. 5 output | | Certifications & Approvals | Backcan: UL listed enclosure
Tile Bridge: UL listed support truss | | Dimension | 2 x 2' Tile: 24.0 x 24.0" / 61.0 x 61.0 cm
Volume Control: 2.8 x 4.6 x 1.9" / 7.1 x 11.7 x 4.8 cm | | Height | Height of Amplifier/Speaker: 4.5" / 11.4 cm | | Weight | Weight of Amplifier/Speaker: 9.0 lb / 4.1 kg |
