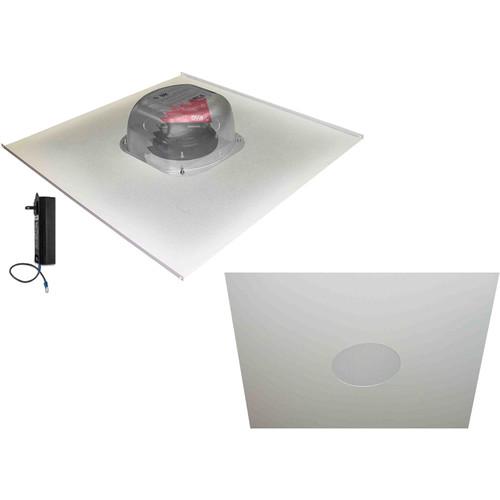

Product description The OWI Inc. 2X2AMP-R2S62 is a two-speaker package with a 6.5" self-amplified ceiling speaker on a 2 x 2' ceiling tile and a 6.5" non-amplified speaker on a 2 x 2' ceiling tile. The powered speaker features two line-level input/sources, a balanced line-level output, and a priority override feature. Optional accessories and packages are available including Bluetooth, a volume control panel, and additional speakers (three passive speakers can connect to the powered speaker). - Drop-Ceiling Amplified Speaker
-
- Two line-level inputs (balanced Phoenix-style screw terminal and unbalanced 3.5mm)
- Up to 40W of power, right at the speaker
- With priority override feature
- Balanced line-level output
- 15 VDC power supply (UL Listed-Level 5) included
- Protected from shorts and overheating
- Lower noise feature
- Fast and easy installation in the field
- Optional stereo/mono volume controls available
- Optional Bluetooth available
- Drop-Ceiling Passive Speaker
-
- 8 Ohm, 2-way speaker
- 25-50W power
- Mounted on a 2 x 2' tile with a backcan
UPC: 092087110581 In the Box OWI Inc. 6.5" Drop-Ceiling Speaker Bundle 6.5" Amplified Drop-Ceiling Speaker on a 2 x 2' Tile 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker 2-Way Non-Amplified In-Ceiling Speaker (6.5") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. 6.5" Drop-Ceiling Speaker Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. 2X2AMP-R2S62 Specs | | | Speaker Size | Woofer: 6.5" / 16.5 cm | | Frequency Response | EQ Set to Flat: 50 Hz to 15 kHz
Bass: +10 dB @ 50 Hz
Treble: +10 dB @ 10 kHz | | THD + N | <1% at 15 W, (A-weighted) | | Signal-to-Noise Ratio (SNR) | >90 dB | | Impedance | Minimum Load Impedance: 4 Ohms (Two 8 Ohm speakers in parallel)
Minimum Input Impedance, Priority In: 20 kOhms
Minimum Input Impedance, Balanced Line In: 820 Ohms
Minimum Input Impedance, Mini-Jack: 2300 Ohms
Dynamic Mic Input Impedance: 300 Ohms | | Protection Features | Short Circuit Protected: Yes
Over Current Protected: Yes
Over Voltage Protected: Yes
Over Temperature Protected: Yes | | Power | Maximum Power Output (20 V In): 2 x 20 W or 40 W total
DC Power (Standby): 1.5 W
AC Power, Sleep Mode: >1 W (Energy Star) | | Amplifier | Input Voltage, Nominal: (25 W) 15 VDC
Input Current, Operating (15 VDC): 1.667 A, peak
Input Volt-Amperes, Peak (15 VDC): 25 VA
Input Voltage Maximum: 16.5 VDC | | Certifications & Approvals | Backcan: UL listed enclosure
Tile Bridge: UL listed support truss | | Dimensions | Ceiling Tile: 24.0 x 24.0" / 61.0 x 61.0 cm | | Height | Height of Amplifier/Speaker: 4.5" / 11.4 cm | | Weight | Weight of Amplifier/Speaker: 9.0 lb / 4.1 kg | | | | Type | 2-way, in-ceiling speaker | | Impedance | 8 Ohms | | Sensitivity | Sensitivity (1 W / 1 M): 87 dB | | Dispersion | 140° | | Power | Max Power: 50 W
Nominal Power: 25 W | | Frequency Response | 65 Hz to 20 kHz | | Woofer | Size: 6.5" / 16.5 cm
Material: Paper-coated woofer with foam surround | | Tweeter | Size: 0.5" / 12.7 mm
Material: Ferrite magnet with Mylar diaphragm | | Grille Material | Metal | | Dimensions (L x W x D) | 24.0 x 24.0 x 4.5" / 61.0 x 61.0 x 11.4 cm | | Weight | 11.0 lb / 5.0 kg | | | | Box Dimensions (LxWxH) | 24.0 x 24.0 x 12.0" |
