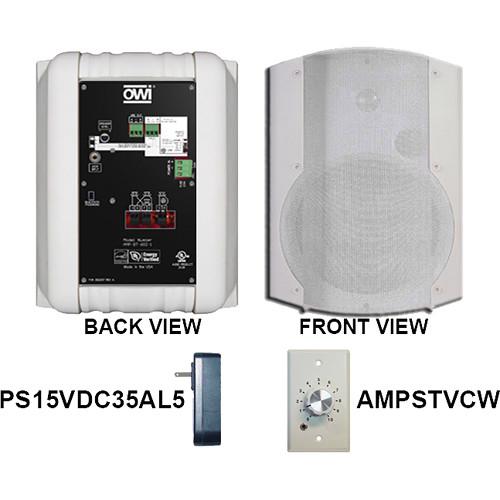

User Manual for OWI Inc. AMP-BT-602-1WVC Two-Way 6.5" Dual Source Powered Surface Mount Speaker with Bluetooth and Volume Control Panel Click to enlarge the picture
Contents of the user manual for the OWI Inc. AMP-BT-602-1WVC Two-Way 6.5" Dual
- Product category: Installed Speakers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Installed Speakers
|
User manual for the OWI Inc. AMP-BT-602-1WVC Two-Way 6.5" Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The AMP-BT-602-1WVC Two-Way 6.5" Dual Source Powered Surface Mount Speaker from OWI Inc. is a speaker and volume control kit with Bluetooth features. It includes the AMP-BT-602-1W speaker, the AMPSTVCW volume control, and the PS15VDC35AL5 power supply.
The AMP-BT-602-1W self-amplified surface mount Bluetooth speaker is a two-way 6.5" speaker which features a woofer & tweeter, and can be mounted on a wall or ceiling. The speaker is Bluetooth capable, and its built-in amplifier delivers up to 40W of power directly to the speaker.
The AMPSTVCW dual stereo volume control fits into a single gang electrical box and offers line level volume control for balanced or limited-length single-ended wiring configurations. It also has a 3.5mm phone jack input for connecting audio sources.
The PS15VDC35AL5 is a 15VDC, 3.5A power supply. It is a UL listed, and Level 5 (Energy Star) power supply. - 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker The 15VDC 3.5A Power Supply from OWI Inc. is a UL listed, Level 5 (Energy Star) power supply for the AMP1SGRN amplified speaker and the 3-source self-amplified AMP3IC6 and MC4DNGL speakers.
- UL listed, Level 5 (Energy Star)
- Compatible with the AMP1SGRN, AMPIC5, AMP3IC6, AMP4IC6, AMPLV602, and the MC4DNGL media control mixer
- AMPSTVCW Dual Stereo Volume Control (White) The AMPSTVCW Dual Stereo Volume Control from OWI Inc is designed for use with OWI's AMP-IC5, AMP-IC6, AMP-3IC6 and AMP-04TRP self-amplified speakers. It fits into a single gang electrical box and offers line level volume control for balanced or limited-length single-ended wiring configurations. It also has a 3.5mm input for connecting audio sources.
- Rotary knob with 11 detented positions, 0-10
- Designed for the AMP-IC5, AMP-IC6, AMP-3IC6 and AMP-04TRP speakers
- Fits in a single gang electrical box
- Balanced or limited-length single-ended wiring configuration
- 3.5mm aux audio input on the face
UPC: 092087914783 In the Box Bundle Items 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker vwecuxrucxeay AMPSTVCW Dual Stereo Volume Control (White) Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. AMP-BT-602-1WVC Two-Way 6.5" Dual Source Powered Surface Mount Speaker with Bluetooth and Volume Control Panel in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker
| Dimensions (H x W x D) | 4.7 x 2.0 x 1.2" | | Wire Size | Recommended
10' (22 gauge)
25' (20 gauge)
50' (18 gauge)
70' (14 gauge)
100' (12 gauge) | | Power Input | 100 to 240 V, 50 to 60 Hz , 1.4 A | | | | Box Dimensions (LxWxH) | 5.7 x 3.3 x 3.3" | - AMPSTVCW Dual Stereo Volume Control (White)
| Impedance | 10 kOhms | | Attenuation / Gain | 60dB | | Finish | White | | | | Box Dimensions (LxWxH) | 5.9 x 3.5 x 3.2" |
