User Manual for OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and Amplifier Click to enlarge the picture
Contents of the user manual for the OWI Inc. AMP-IW4S In-Wall Four-Source Digital
- Product category: Mixer/Amplifiers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Mixer/Amplifiers
|
User manual for the OWI Inc. AMP-IW4S In-Wall Four-Source Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|

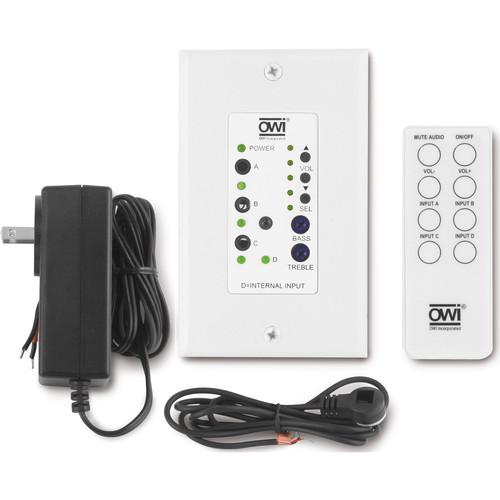

Product description The AMP-IW4S from OWI is an in-wall four-source digital mixer and 15W amplifier suitable for AV and standalone audio-only communication systems. The unit is ideal for most small room applications including education, healthcare, corporate, retail, church, government, entertainment, and sporting facilities. The easy-to-install system fits into a standard 1-gang electrical box and provides full fidelity output capable of driving 1 to 4 speakers. The AMP-IW4S is compatible with all 4 to 8 Ohm speakers and may be used in larger 25V to 70V distributed audio systems serving as a stand-alone interface for the end user control of the multimedia equipment it supports. -
- Robust digital Class-D amplifier operating at 90%+ efficiency
- Stereo sum to mono operation with dual 15 W, 4 or 8 Ohm output
- Full audio bandwidth operating at 20 Hz to 20 kHz
- 1-gang “Form” factor for simple installation in 1-gang electrical box
- Compatible with Decora style “80401” wall plate
- 3 x audio inputs with 1 x master override with automatic ducking
- Front panel soft push buttons control for audio volume (+/-)
- Front panel visual LEDs (Green) for instant status of volume
- Automatic over-current, over-temperature and power reverse polarity protection
- Audio line output 1V nominal to drive higher power amplifier or remote recording device
- 24VDC / 2.5A external regulated in-line switching power supply UL/CUL/CE/Energy-Star rated
- IR remote control included
UPC: 092087110475 In the Box OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and Amplifier Decora Plate Remote Control Sensor Power Supply Limited 1-Year Warranty User Manual PDF 18.8mbutuvszer Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. AMP-IW4S In-Wall Four-Source Digital Mixer and Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. AMP-IW4S Specs | Architecture | Type Architecture: 2 channel mixer amplifier digital class D | | Input Connections | External Front Audio Input: 3 x 3.5 mm
Internal Audio-In Connector: 3-Pin
Internal Override Connector: 2-Pin | | Frequency Response | 20 Hz to 20 kHz (±1.5 dB) | | THD+N | THD + N (Mono-Each Channel):
≤1.0% at 1 kHz rated output
≤0.1% at 1 kHz at 10 W, 4 Ohms | | Signal to Noise Ratio | 90 dB A-weighted (band pass 20 Hz to 20 kHz) | | Channel Separation | 60 dB | | Dynamic Range | 100 dB | | Input Sensitivity and Impedance | Program: 0.775 V, 10 kOhms electronically balanced, with RF filter (ferrite) | | Speaker Output | 4 Ohms (optimum) or 8 Ohms | | Output Regulation | Less than 2 dB, no load to full load at 1 kHz
Automatic "Duck" manual adjust
1 to -50 dB for Mic input | | Internal Controls | "Duck" Level: Screwdriver adjust | | Front Controls | Volume Gain (+/-): Soft push buttons | | Power Efficiency | <80% at 25 W @ 4 Ohms, <85% @ 8 Ohms
<90% at 10 W @ 4 Ohms, <95% @ 8 Ohms | | Operating/Storage Temperature | Operating: -14 to 104°F / -26 to 40°C
Storage: -4 to 149°F / -20 to 65°C | | Compliance | FCC, UL, CUL, CE | | Power | Main Input Power: 100-240 VAC, 50 - 60 Hz
Input Power (to HNB): 24 VDC in-line regulated power supply, 2.5 A
Output Power: 15 W peak per channel at 4 Ohms | | Dimensions | Decora Plate: 2.8 x 4.5" / 7.0 x 11.4 cm
Internal Circuit Board: 1.5 x 4.1 x 3.0" / 3.8 x 10.5 x 7.5 cm
Wireless Remote: 1.3 x 3.4" / 3.3 x 8.6 cm | | Weight | Not Specified by Manufacturer | | | | Box Dimensions (LxWxH) | 12.0 x 8.0 x 4.0" |
