User Manual for OWI Inc. AMP-R2SIC54 Two-Source 5.25" Amplified Drop Ceiling One-Speaker Package Click to enlarge the picture
Contents of the user manual for the OWI Inc. AMP-R2SIC54 Two-Source 5.25" Amplified
- Product category: Installed Speakers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Installed Speakers
|
User manual for the OWI Inc. AMP-R2SIC54 Two-Source 5.25" Amplified contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The OWI Inc. AMP-R2SIC52 One-Speaker Combination Package consists of an AMP-R2SIC5 5.25” Two-Source Amplified Drop Ceiling Speaker, three Backcan Enclosures, four IC5 In-ceiling Speakers, and four 5TB Speaker Tile Bridges.The 5.25" AMP-R2SIC5 Ceiling Speaker is a self-powered speaker and amplifier which can drive 3 additional speakers. One line can drive up to 10 self-amplified speakers. This speaker features options for lower noise as well as for protection from shorts and overheating. An included UL-Listed, 15 VDC power supply allows the amplifier to output 40W, or 10W per speaker in a four speaker hookup.The IC5 In-Ceiling Speaker (Paintable white) is perfect for use in commercial settings. Play music, broadcast pages or other audio with this 2-way system. The included Kwik Klamps provide for fast and easy installation. The IC5 works indoors and in covered outdoors.The Backcan Enclosure is meant for the installation of the IC5 and the IC6 in-ceiling speakers. The backcan has dimensions of 9.25 x 9.62 x 4.5". The 5TB Speaker Tile Bridge is a support truss for the IC5 speaker series. This tile bridge secures back can enclosures with only 4 screws and supports all loud speakers and baffles that mount on a 6 6/8" diameter circle. Made from 24-guage, galvanized steel the support mounts the speaker or baffle flush. - AMP-R2SIC5 Two-Source Amplified Drop Ceiling Speaker - 5.25" The 5.25" AMP-R2SIC5 Two-Source Amplified Drop Ceiling Speaker from OWI Inc. is a self powered, coaxial speaker and amplifier which can drive three additional speakers. One line can drive up to 10 self-amplified speakers. This speaker features options for lower noise as well as for protection from shorts and overheating. An included UL Listed, 15 VDC power supply allows the amplifier to output 40W, or 10W per speaker in a four speaker hookup. It also has a built-in stereo combiner which combines two-channel stereo audio into a mono audio signal.
- Up to 40W of power right at the speaker
- Two line level input/sources
- Priority override feature
- Protection from shorts and overheating
- Fast and easy installation
- Includes 15 VDC, UL rated level 5 power supply
UPC: 092087110338 - 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker The 15VDC 3.5A Power Supply from OWI Inc. is a UL listed, Level 5 (Energy Star) power supply for the AMP1SGRN amplified speaker and the 3-source self-amplified AMP3IC6 and MC4DNGL speakers.
- UL listed, Level 5 (Energy Star)
- Compatible with the AMP1SGRN, AMPIC5, AMP3IC6, AMP4IC6, AMPLV602, and the MC4DNGL media control mixer
- In-Ceiling Speaker (Pair) The OWI IC5 In-Ceiling Speaker (Paintable white) is perfect for use in commercial settings. Play music, broadcast pages or other audio with this 2-Way system. The included Kwik Klamps provide for fast and easy installation. The IC5 works indoors and in covered outdoors.
- The speaker is paintable white
UPC: 092087910129 - Backcan Enclosure The OWI Backcan Enclosure is meant for the installation of the IC5 and the IC6 in-ceiling speakers. The backcan has dimensions of 9.25 x 9.62 x 4.5". UPC: 092087912550
- 5TB Speaker Tile Bridge OWI's 5TB Speaker Tile Bridge is a support truss for the IC5 speaker series. This tile bridge secures back can enclosures with only four screws and supports all loud speakers and baffles that mount on a 6 6/8" diameter circle. Made from 24 guage, galvanized steel the support mounts the speaker or baffle flush. UPC: 092087911171

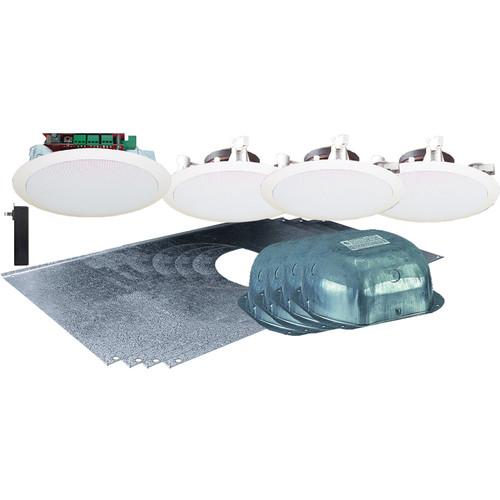

In the Box Bundle Items AMP-R2SIC5 Two-Source Amplified Drop Ceiling Speaker - 5.25" rvcbcwrdrfabfvzbfwzf - Cardboard Mounting Template
15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker 3 x In-Ceiling Speaker (Pair) 4 x Backcan Enclosure 4 x 5TB Speaker Tile Bridge Brochure PDF 223kb Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. AMP-R2SIC54 Two-Source 5.25" Amplified Drop Ceiling One-Speaker Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AMP-R2SIC5 Two-Source Amplified Drop Ceiling Speaker - 5.25"
| Speaker Size | 5.25" | | Nominal Input Voltage | 25 W, 15 VDC | | Input Current | 1.67 A peak @ 15 VDC | | Volt Amp Capacity | 25 VAC @ 15 VDC | | Maximum Input Voltage | 16.5 VDC | | Frequency Response | EQ Set to Flat: 50 Hz - 15 kHz
Bass: ±10 dB @ 50 Hz
Treble: ±10 dB @ 10 Hz | | THD + Noise | <1% at 15 W, "A" weighted | | S/N | >90 dB | | Maximum Power Output | 2 x 20 W or total of 40 W @ 28 VDC input | | Power Consumption | Standby: 1.5 W, DC power
Sleep Mode: Less than 1 W, AC power | | Minimum Load Impedance | 4 Ohms (two 8 Ohms; speakers in parallel) | | Input Impedance | Priority In: 20,000 Ohms minimum
Balance Line In: 820 Ohms minimum
Mini Jack: 2300 Ohms minimum
Dynamic Mic: 300 Ohms | | Dimensions (Ø x H) | 5.25 x 4.00" (13.34 x 10.16 cm) | | Weight | 2.55 lb (1.16 kg) | | | | Box Dimensions (LxWxH) | 13.0 x 10.0 x 5.0" | - 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker
| Dimensions (H x W x D) | 4.7 x 2.0 x 1.2" | | Wire Size | Recommended
10' (22 gauge)
25' (20 gauge)
50' (18 gauge)
70' (14 gauge)
100' (12 gauge) | | Power Input | 100 to 240 V, 50 to 60 Hz , 1.4 A | | | | Box Dimensions (LxWxH) | 5.7 x 3.3 x 3.3" | - In-Ceiling Speaker (Pair)
| System | 2-Way | | Impedance | 8 Ohms | | Sensitivity | 85.2dB | | Power Taps | N/A | | Maximum Power | 40W | | Frequency Response | 70HZ-20KHz | | Crossover | 4KHz | | Woofer | 5.25"
Paper coated polyurethane surround | | Tweeter | 0.5"
Hard dome | | Dimensions | 8 x 2 1/2" (diameter x height) (20.32 x 6.4cm) | | Weight | 2.6 lbs (1.18kg) | | | | Box Dimensions (LxWxH) | 18.0 x 8.9 x 3.7" | - Backcan Enclosure
| Dimensions | 9.25 x 9.62 x 4.5" | | | | Box Dimensions (LxWxH) | 10.0 x 9.3 x 4.3" | - 5TB Speaker Tile Bridge
| | | Box Dimensions (LxWxH) | 24.0 x 12.0 x 0.5" |
