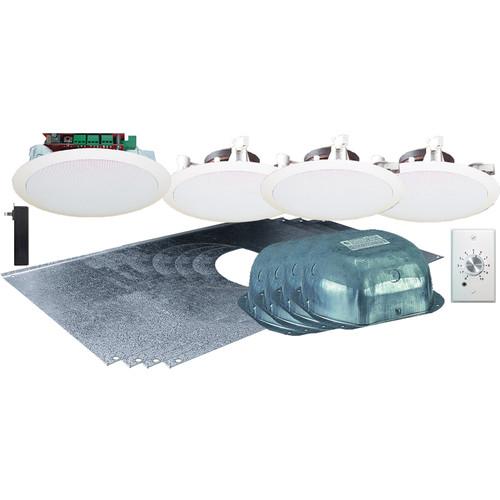

User Manual for OWI Inc. AMP-R2SIC54SVC Two-Source 5.25" Amplified Drop Ceiling Four-Speaker Package with Volume Control

• Product category: Installed Speakers OWI Inc.
• Brand: OWI Inc.
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for OWI Inc. Installed Speakers

Product description

• AMP-R2SIC5 Two-Source Amplified Drop Ceiling Speaker - 5.25" The 5.25" AMP-R2SIC5 Two-Source Amplified Drop Ceiling Speaker from OWI Inc. is a self powered, coaxial speaker and amplifier which can drive three additional speakers. One line can drive up to 10 self-amplified speakers. This speaker features options for lower noise as well as for protection from shorts and overheating. An included UL Listed, 15 VDC power supply allows the amplifier to output 40W, or 10W per speaker in a four speaker hookup. It also has a built-in stereo combiner which combines two-channel stereo audio into a mono audio signal.
  • Up to 40W of power right at the speaker
  • Two line level input/sources
  • Priority override feature
  • Lower noise feature
  • Protection from shorts and overheating
  • Fast and easy installation
  • Includes 15 VDC, UL rated level 5 power supply
  UPC: 092087110338
• 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker The 15VDC 3.5A Power Supply from OWI Inc. is a UL listed, Level 5 (Energy Star) power supply for the AMP1SGRN amplified speaker and the 3-source self-amplified AMP3IC6 and MC4DNGL speakers.
  • 15VDC 3.5A power supply
  • UL listed, Level 5 (Energy Star)
  • Compatible with the AMP1SGRN, AMPIC5, AMP3IC6, AMP4IC6, AMPLV602, and the MC4DNGL media control mixer
• In-Ceiling Speaker (Pair) The OWI IC5 In-Ceiling Speaker (Paintable white) is perfect for use in commercial settings. Play music, broadcast pages or other audio with this 2-Way system. The included Kwik Klamps provide for fast and easy installation. The IC5 works indoors and in covered outdoors.
  • Works in covered outdoor
  • The speaker is paintable white
  UPC: 092087910129
• Backcan Enclosure The OWI Backcan Enclosure is meant for the installation of the IC5 and the IC6 in-ceiling speakers. The backcan has dimensions of 9.25 x 9.62 x 4.5". UPC: 092087912550
• 5TB Speaker Tile Bridge OWI's 5TB Speaker Tile Bridge is a support truss for the IC5 speaker series. This tile bridge secures back can enclosures with only four screws and supports all loud speakers and baffles that mount on a 6 6/8" diameter circle. Made from 24 guage, galvanized steel the support mounts the speaker or baffle flush. UPC: 092087911171

• 15 VDC Power Supply

• 4 x Mounting Screw

• Cardboard Mounting Template

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 5-Year Limited Warranty

• 5-Year Limited Warranty

• 5-Year Limited Warranty

Also Includes

• Stereo/Mono Volume Control

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AMP-R2SIC5 Two-Source Amplified Drop Ceiling Speaker - 5.25"

  Speaker Size	5.25"
  Nominal Input Voltage	25 W, 15 VDC
  Input Current	1.67 A peak @ 15 VDC
  Volt Amp Capacity	25 VAC @ 15 VDC
  Maximum Input Voltage	16.5 VDC
  Frequency Response	EQ Set to Flat: 50 Hz - 15 kHz Bass: ±10 dB @ 50 Hz Treble: ±10 dB @ 10 Hz
  THD + Noise	<1% at 15 W, "A" weighted
  S/N	>90 dB
  Maximum Power Output	2 x 20 W or total of 40 W @ 28 VDC input
  Power Consumption	Standby: 1.5 W, DC power Sleep Mode: Less than 1 W, AC power
  Minimum Load Impedance	4 Ohms (two 8 Ohms; speakers in parallel)
  Input Impedance	Priority In: 20,000 Ohms minimum Balance Line In: 820 Ohms minimum Mini Jack: 2300 Ohms minimum Dynamic Mic: 300 Ohms
  Dimensions (Ø x H)	5.25 x 4.00" (13.34 x 10.16 cm)
  Weight	2.55 lb (1.16 kg)

  Box Dimensions (LxWxH)	13.0 x 10.0 x 5.0"

• 15VDC 3.5A Power Supply for AMP1SGRN Amplified Speaker

  Dimensions (H x W x D)	4.7 x 2.0 x 1.2"
  Wire Size	Recommended 10' (22 gauge) 25' (20 gauge) 50' (18 gauge) 70' (14 gauge) 100' (12 gauge)
  Power Input	100 to 240 V, 50 to 60 Hz , 1.4 A

  Box Dimensions (LxWxH)	5.7 x 3.3 x 3.3"

• In-Ceiling Speaker (Pair)

  System	2-Way
  Impedance	8 Ohms
  Sensitivity	85.2dB
  Power Taps	N/A
  Maximum Power	40W
  Frequency Response	70HZ-20KHz
  Crossover	4KHz
  Woofer	5.25" Paper coated polyurethane surround
  Tweeter	0.5" Hard dome
  Dimensions	8 x 2 1/2" (diameter x height) (20.32 x 6.4cm)
  Weight	2.6 lbs (1.18kg)

  Box Dimensions (LxWxH)	18.0 x 8.9 x 3.7"

• Backcan Enclosure

  Dimensions

  9.25 x 9.62 x 4.5"

  Box Dimensions (LxWxH)	10.0 x 9.3 x 4.3"

• 5TB Speaker Tile Bridge

  Box Dimensions (LxWxH)	24.0 x 12.0 x 0.5"
