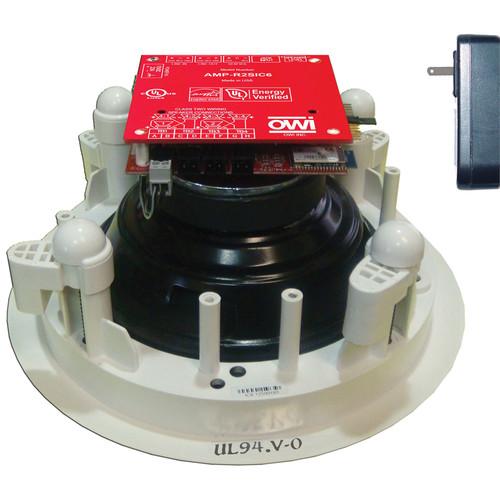

User Manual for OWI Inc. AMP-R2SIC6 Two-Source Amplified Drop Ceiling Speaker - 6.5" Click to enlarge the picture
Contents of the user manual for the OWI Inc. AMP-R2SIC6 Two-Source Amplified Drop
- Product category: Installed Speakers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Installed Speakers
|
User manual for the OWI Inc. AMP-R2SIC6 Two-Source Amplified Drop contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The 6.5" AMP-R2SIC6 Two-Source Amplified Drop Ceiling Speaker from OWI Inc. is a self powered, coaxial speaker and amplifier which can drive three additional speakers. One line can drive up to 10 self-amplified speakers. This speaker features options for lower noise as well as for protection from shorts and overheating. An included UL Listed, 15 VDC power supply allows the amplifier to output 40W, or 10W per speaker in a four speaker hookup. It also has a built-in stereo combiner which combines two-channel stereo audio into a mono audio signal. - Up to 40W of power right at the speaker
- Two line level input/sources
- Priority override feature
- Protection from shorts and overheating
- Fast and easy installation
- Includes 15 VDC, UL rated level 5 power supply
UPC: 092087110406 In the Box OWI Inc. AMP-R2SIC6 Two-Source Amplified Drop Ceiling Speaker - 6.5" 15 VDC Power Supply 4 x Mounting Screw Cardboard Mounting Template Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. AMP-R2SIC6 Two-Source Amplified Drop Ceiling Speaker - 6.5" in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. AMP-R2SIC6 Specs | Speaker Size | 6.5" | | Nominal Input Voltage | 25 W, 15 VDC | | Input Current | 1.67 A peak @ 15 VDC | | Volt Amp Capacity | 25 VAC @ 15 VDC | | Maximum Input Voltage | 16.5 VDC | | Frequency Response | EQ Set to Flat: 50 Hz - 15 kHz
Bass: ±10 dB @ 50 Hz
Treble: ±10 dB @ 10 Hz | | THD + Noise | <1% at 15 W, "A" weighted | | S/N | >90 dB | | Maximum Power Output | 2 x 20 W or total of 40 W @ 28 VDC input | | Power Consumption | Standby: 1.5 W, DC power
Sleep Mode: Less than 1 W, AC power | | Minimum Load Impedance | 4 Ohms (two 8 Ohms; speakers in parallel) | | Input Impedance | Priority In: 20,000 Ohms minimum
Balance Line In: 820 Ohms minimum
Mini Jack: 2300 Ohms minimum
Dynamic Mic: 300 Ohms | | Dimensions (Ø x H) | 6.50 x 4.50" (16.50 x 11.43 cm) | | Weight | 3.15 lb (1.43 kg) | | | | Box Dimensions (LxWxH) | 14.0 x 10.0 x 6.0" |
