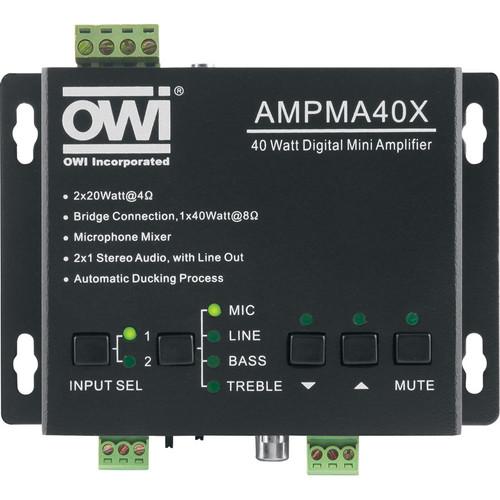

User Manual for OWI Inc. AMPMA40X 40-Watt Digital Mini Amplifier with Mic Mixer and EQ Click to enlarge the picture
Contents of the user manual for the OWI Inc. AMPMA40X 40-Watt Digital Mini
- Product category: Mixer/Amplifiers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Mixer/Amplifiers
|
User manual for the OWI Inc. AMPMA40X 40-Watt Digital Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The AMPMA40X 40-Watt Digital Mini Amplifier from OWI Inc. is a compact Class D amplifier capable of up to 20 watts per output channel at 4 ohms. It has selectable stereo RCA and 3.5mm line inputs as well as a 3-pin phoenix mic level input with assignable 48-volt phantom power. The AMPMA40X can function in stereo, bridged, or dual mono output modes to integration into a variety of set-ups.
The unit features bass and treble EQ controls to help shape your sound. The EQ, volume, and input levels can be controlled via the buttons on the unit or with the included OWI Inc. remote control and sensor. - Two Stereo Audio Inputs Switchable by Button, IR Remote or RS232
- Volume, Bass, and Treble Controllable by Button, IR Remote or RS232
- Line Audio Output at 3.5 mm Jack with Volume Control
- Bridge Connection Function
- Microphone Mixer Function
- Mic Input Supports 48 V Phantom Power, Dynamic Mics and Wireless Mics
- Mic Port Supports Balanced & Unbalanced Signals
- Auto Noise Gate Detects Audio and MIC Inputs
- Ultra-Low Inrush Current - No Power Sequencing, No Overload for Multiple AMPMA40X Units
- Convection Cooler; Fan Not Needed
- Protective, Anti-Static Case Design
- LED Indicator for Power and Working Status
- International Power Supply - 100-240V AC, 50/60 Hz
UPC: 092087110154 In the Box OWI Inc. AMPMA40X 40-Watt Digital Mini Amplifier with Mic Mixer and EQ Remote Control & Sensor for AMPMA40X Digital Amplifier Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. AMPMA40X 40-Watt Digital Mini Amplifier with Mic Mixer and EQ in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. AMPMA40X Specs | Power Output | 2x 20 W @ 4 Ω | | Inputs | 2x line RCA
1x line 1/8" (3.5 mm) stereo
1x captive screw connector | | Input Impedance | > 10 kΩ | | Outputs | 1x 1/8" (3.5 mm) stereo or mono jack
1x captive screw connector | | Output Impedance | Stereo: 50 Ω
Amplifier: 4 to 8 Ω | | Frequency Response | 20 Hz to 20 kHz | | CMRR | >70 dB @20 Hz to 20 kHz | | Signal to Noise Ratio | 80 dB @ maximum output | | Bandwidth | 20 Hz to 25 kHz | | Channel Separation | >75 dB @ 20 Hz to 20 kHz | | THD & Noise | 1% @ 1 kHz, 0.3% @ 20 kHz @ nominal level | | Voltage Gain | 32 dB | | Maximum DC Compensation | 1.5 V | | Humidity | 10% to 90% | | Operating temperature | -4° to 158°F (-20° to 70°C) | | Power Supply | 100 V AC ~ 240 V AC, 50/60 Hz | | Power Consumption | 24 V DC, 3 A | | Dimensions (WxLxD) | 4.9 x 3.4 x 1.4" (123 x 87 x 38 mm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 10.3 x 7.9 x 2.6" |
