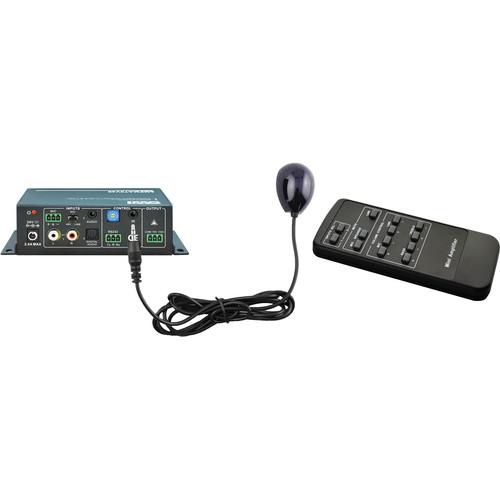

User Manual for OWI Inc. AMPMA70V40 70V, 40W Digital Mini Amplifier Mic Mixer EQ with Remote Control Click to enlarge the picture
Contents of the user manual for the OWI Inc. AMPMA70V40 70V, 40W Digital
- Product category: 70-Volt Amplifiers OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. 70-Volt Amplifiers
|
User manual for the OWI Inc. AMPMA70V40 70V, 40W Digital contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The small yet powerful AMPMA70V40 70V, 40W Digital Mini Amplifier with EQ control and mic mixer functions is a 40W Class-D power amplifier with alternative 70 or 100V output. It has two stereo (1 x 3.5mm jack for line in, 2 x RCA for L&R), one digital, & one balanced mic inputs. This amplifier is integrated with powerful functions, including ducking function, EQ control, mic mixer, etc. The 3-level mic input supports condenser and dynamic mics, and line audio input. The amplifier is suitable for use in classrooms, meeting rooms, restaurants, and bars. An IR remote control (AMPIRMA70V40) is included for ease of control. Amplifier - For use with all OWI speakers, including the P-Series, C9278, 703i, and in-ceiling speakers
- Two stereo audio inputs and one digital audio input, switchable by button, IR remote, & RS232
- 70 and 100V switchable output
- 16 ID code control for controlling between different AMPMA70V40 amplifiers
- 3-level mic input supports condenser, dynamic, and wireless microphones
- Mic port supports balanced/unbalanced signal and provides external noise suppression
- Switchable from stereo to digital
- Volume/bass/treble controllable by buttons, IR remote, & RS232
- Convection cooler (fan not needed)
- Comes with IR Remote Control
- LED indicator for power and working status
- Universal power supply (100 to 240 VAC)
- Antistatic case design to provide good long-term protection and stable performance
Remote Controller - Powered by 1 lithium battery (CR2025, battery not included)
Receiver - Receiver with 3.5mm phone jack
- 23' effective receiving range
UPC: 092087110239 In the Box OWI Inc. AMPMA70V40 70V, 40W Digital Mini Amplifier/Mic Mixer/EQ with Remote Control 24 VDC Power Adapter AMPIRMA70V40 IR Remote IR Receiver 2 x Mounting Ear RS232 Cable 4 x Screws Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. AMPMA70V40 70V, 40W Digital Mini Amplifier Mic Mixer EQ with Remote Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. AMPMA70V40 Specs | For Use with | All OWI Speakers including P-Series, C9278, 703i, and in-ceiling speakers | | Audio Input | 1 x Stereo audio (L & R RCA)
1 x Stereo audio (3.5 mm mini jack)
1 x Digital audio (optical cable)
1 x Mic | | Audio Output | 1 x Mono Amplifier | | Audio Input Connectors | 1 x RCA L / R
1 x 3.5 mm jack
1 x SPF fiber connector optical
1 x 3-pole 3.81 mm captive screw | | Audio Output Connector | 3-pole 3.81 mm captive screw | | Input Impedance | > 10 kΩ | | Frequency Response | 120 Hz to 20 kHz | | SNR | 80 dB (maximum) | | Rated Power Output | 40 W @ 8 Ω | | Voltage Gain | 26 dB | | CMRR | >70 dB @ 20 Hz to 20 kHz | | Bandwidth | 120 Hz to 20 kHz | | THD + Noise | 1% @ 1 kHz, 0.3% @ 20 kHz at nominal level | | RS232 | 1 x 3-pole 3.81 mm captive screw | | Number of ID Codes | 16 ID Codes for Control | | IR Remote | Buttons: 14 in total
Button Material: Rubber | | Effective Range | Receiver: 23' (7 m) | | Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | 10 to 90% | | Receiver Voltage | 2.5 to 5 V | | Power Supply | Amplifier: 24 VDC Power Adapter (included)
Remote: 1 x lithium battery (CR2025, not included) | | Power Consumption | Amplifier: 5 W
Remote: 3 VDC | | Dimensions | 6.0 x 6.5 x 1.7" (15.2 x 16.5 x 4.3 cm)
Receiver Cord Length: 5.0' (1.5 m) | | Weight | 1.9 lb (0.9 kg) | | | | Package Weight | 3.8 lb | | Box Dimensions (LxWxH) | 12.3 x 8.3 x 3.4" |
