Product description The OWI CRS-1015278W Infrared Wireless Microphone and Speaker Package (White) delivers a complete, all-in-one audio solution for boardrooms, meeting rooms, classrooms, etc. At the heart of the system is the CRS-CASE which features a built-in 30W amplifier, 4-channel mixer, IR (Infrared) sensor inputs and locking storage compartment.In addition, two (2) P5278PW speakers, two (2) IR sensors, an IR pendant microphone, pendant microphone charger and a wired lapel microphone complete the system. The IR sensors connect to the CRS-CASE and receive audio from the pendant microphone which is worn around the talkers neck, using the included lanyard. Attach the included lapel microphone to the pendant microphone for hands-free, low-profile wireless microphone operation. The system can accept 3 line level inputs from TV/DVD players, computers, etc., while simultaneously receiving signal from 2 IR wireless microphones. The pair of P5278PW P Series Speakers included in this package provide wide dispersion and easy mounting indoors or outdoors. - Complete Infrared Wireless PA Solution
- The OWI CRS-1015278W delivers a complete wireless microphone and speaker package; complete with internal amplifier, 4-channel mixer, speakers and wireless microphone.
- Infrared Wireless Technology
- Infrared wireless elliminates the possibility of noise and interference form nearby VHF and UHF transmission. Small meeting facilities and gathering halls benefit from noiseless, clear audio reproduction.
- Storage Space
- The CRS-101 Mixer/Amplifier features a locking storage space for housing additional microphones, cables and accessories.
- Includes Speakers
- P5278PW P Series Speakers can be wall or ceiling mounted indoors or outdoors.

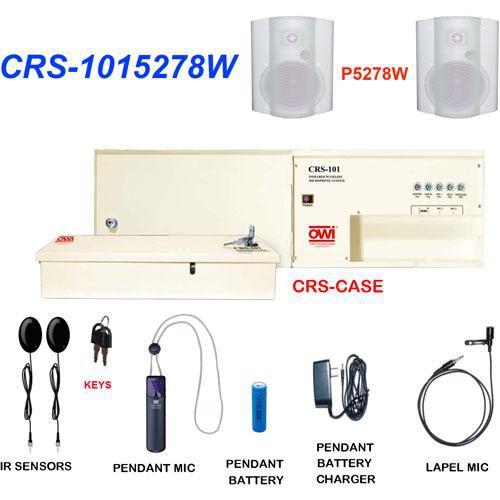

In the Box OWI Inc. CRS-1015278W Infrared Wireless Microphone & Speaker Package (White) CRS-CASE with Keys 2 x P5278PW Speakers (White) 2 x U-Mount Brackets 2 x IR Sensors Pendant Mic with Battery Pendant Battery Charger Lapel Mic 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. CRS-1015278W Infrared Wireless Microphone & Speaker Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. CRS-1015278-2W Specs | Receiver | IR Carrier Frequency: 2.06MHz and 2.56MHz
Frequency Response: 60-14,000Hz±3dB
Dimensions: 14.7 x 8.1 x 2.6" (372.2 x 2.4.2 x 65.5mm)
Weight: 4.74 lbs (2.15kg) | | Microphone | Polar Pattern: Unidirectional electret condenser mic
Transmitting Frequency: 2.06MHz or 2.56MHz
Battery: 3.7V, 800mAh "AA" Appropriate Lithium
Battery Life: 4 hours
Dimensions: 4.7 x 1.3 x 0.7" (120 x 34 x 18mm)
Weight: 0.13 lbs (0.57g)
Charging Time: 3 Hours with included charger | | Sensor | Carrier Frequency: 2.06MHz and 2.56MHz
Off Axis Performance: 140°
Cable Length: 50'
Operating Range: 66' (20m)
Dimensions: 3.25 x 1.25 x 2" (82.55 x 31.75 x 50.8mm) | | Speakers | Type: 2Way Ported
LF Driver: 5" Polyprolene
HF Driver: 0.75" Polycarbonate
Frequency Response: 75-20,000Hz
Impendace: 70V
Dispersion: 120°
Power Handling: 40W
Crossover: 4KHz | | | | Package Weight | 29.3 lb | | Box Dimensions (LxWxH) | 24.5 x 15.2 x 14.0" |
