User Manual for OWI Inc. CRS-101IC5 Infrared Wireless Microphone & Speaker Package Click to enlarge the picture
Contents of the user manual for the OWI Inc. CRS-101IC5 Infrared Wireless Microphone
- Product category: Assistive Listening Systems OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Assistive Listening Systems
|
User manual for the OWI Inc. CRS-101IC5 Infrared Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description With the CRS-101IC5 Infrared Wireless Microphone & Speaker Package from OWI, people will be able to hear in the back of the room as well as those in the front. This package includes the CRS-CASE amplifier mixer/receiver, two IC5 speakers, IR pendant microphone, pendant microphone charger and a wired lapel microphone. The CRS-101 can accept 3 line level inputs while controlling 2 IR wireless microphones simultaneously. This packages includes a pair of IC5 In-Ceiling Speakers (White), which provide wide dispersion and easy mounting indoors or outdoors. - System includes locking case for mixer and storage for microphones
- IR wireless pendant microphone includes two sensors plus rechargeable battery and charger
- IC5 In-Ceiling Speakers are 2-Way ported speakers, which can be used indoors or outdoors

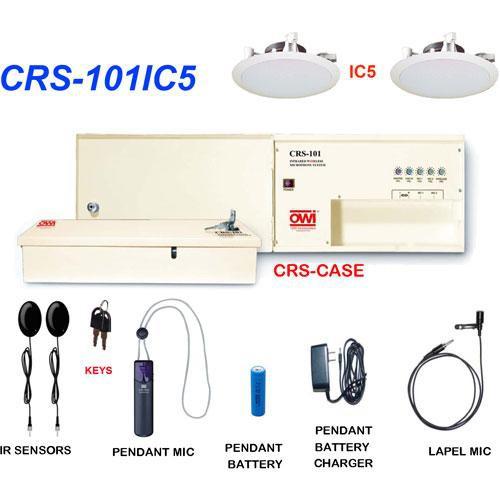

In the Box OWI Inc. CRS-101IC5 Infrared Wireless Microphone & Speaker Package CRS-CASE with Keys 2 x IC5 Speakers 2 x IR Sensors Pendant Mic with Battery Pendant Battery Charger Lapel Mic 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. CRS-101IC5 Infrared Wireless Microphone & Speaker Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. CRS-101IC5 Specs | Receiver | IR Carrier Frequency: 2.06MHz and 2.56MHz
Frequency Response: 60-14,000Hz±3dB
Dimensions: 14.7 x 8.1 x 2.6" (372.2 x 2.4.2 x 65.5mm)
Weight: 4.74 lbs (2.15kg) | | Microphone | Polar Pattern: Unidirectional electret condenser mic
Transmitting Frequency: 2.06MHz or 2.56MHz
Battery: 3.7 V, 800 MAh "AA" Appropriate Lithium
Battery Life: 4 hours
Dimensions: 4.7 x 1.3 x 0.7" (120 x 34 x 18mm)
Weight: 0.13 lbs (0.57g)
Charging Time: 3 Hours with included charger | | Sensor | Carrier Frequency: 2.06MHz and 2.56MHz
Off Axis Performance: 140°
Cable Length: 50'
Operating Range: 66' (20 m)
Dimensions: 3.25 x 1.25 x 2" (82.55 x 31.75 x 50.8mm) | | Speakers | Type: 2-Way
LF Driver: 5.25" Polyprolene
HF Driver: 0.5" Hard Dome
Frequency Response: 70-20,000Hz
Impendace: 70/100V
Power Taps: 0.62, 1.25, 2.5, 5 & 10W
Crossover: 4KHz | | | | Package Weight | 28.0 lb | | Box Dimensions (LxWxH) | 24.0 x 17.5 x 15.5" |
