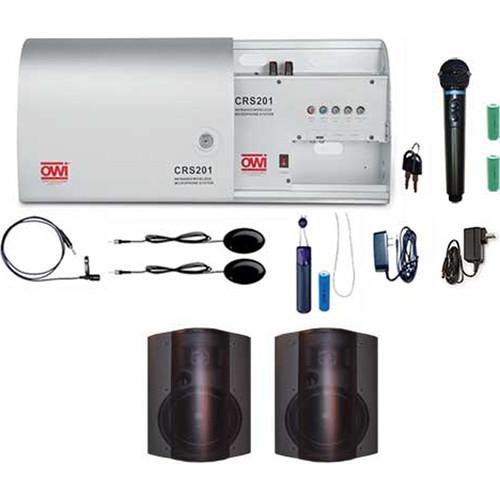

User Manual for OWI Inc. CRS201-HP-5278B2 Infrared Wireless Microphone System with 2 P5278P-B 5" Speaker Combo Package Click to enlarge the picture
Contents of the user manual for the OWI Inc. CRS201-HP-5278B2 Infrared Wireless Microphone
- Product category: Assistive Listening Systems OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Assistive Listening Systems
|
User manual for the OWI Inc. CRS201-HP-5278B2 Infrared Wireless Microphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The CRS201-HP-5278B2 Infrared Wireless Microphone System with 2 P5278P-B 5" Speaker Combo Package from OWI Inc. includes a CRS201 infrared wireless microphone system that comprises of the CRS201AMPMIX amplifier mixer with 2 IR sensors, 1 OWCRSHHMIC2 Handheld Microphone, 2 CRSHHBAT12 Rechargeable Batteries, 1 CRSHHCHARGER Handheld Microphone Charger, 1 CRSPMIC Pendant Microphone, 1 CRSPBAT37 Pendant Microphone Rechargeable Battery, 1 CRSPCH Pendant Microphone Charger, 1 CRSLMIC Lapel Microphone, 2 x 1/4" Phono Jack to 3.5 mini adapters, 2 keys, and 2 black P5278P-B Patio Blaster P Series Speakers. The CRS201 Infrared Wireless Microphone System is suitable for classrooms, boardrooms, training and meeting rooms. The slim, fully lockable, wall-mounted infrared receiver/amplifier/mixer accepts three different line level inputs. Because the CRS201 is wall-mounted, there are no freestanding or rack-mounted components to take up closet space or be knocked off a shelf, and no unsightly tangle of wires. The OWCRSHHMIC2 Infrared Wireless Handheld Microphone is designed for use with the OWI infrared classroom systems. The microphone features an on/off switch and cardioid polar pattern. The CRSHHBAT12 Rechargeable AA Ni-MH Batteries is an economical way to power all your AA needs. They offer reliable performance in a variety of situations. The CRSHHCHARGER Replacement Power Adapter is a reliable wall wart for use with the Handheld Microphone charging station. The CRSPMIC is a wireless neck-worn cardioid microphone for use with the OWI CRS-101 IR wireless microphone and speaker system. The CRSPBAT37 Replacement Rechargeable Battery replaces the battery included with the CRS-PMIC Pendant Microphone. The CRSPCH Pendant Microphone Charger is used to recharge the battery on the CRS-PMIC Pendant Microphone. The CRSLMIC Lapel Microphone connects to the CRS-PMIC IR (Infrared) Pendant Microphone for hands-free, unobtrusive microphone operation during presentations and speeches. The black P5278P-B is a weatherized 2-way speaker system for indoor or outdoor use. You can play your favorite music or other audio from this wall or ceiling mountable speaker, via the included U bracket. - CRS201 Infrared Wireless Microphone System The CRS201 Infrared Wireless Microphone System from OWI Inc. is suitable for classrooms, boardrooms, training, and meeting rooms. The slim, fully lockable, wall-mounted infrared receiver/amplifier/mixer accepts three different line level inputs. Because the CRS201 is wall-mounted, there are no freestanding or rack-mounted components to take up closet space or be knocked off a shelf, and no unsightly tangle of wires.The CRS201 system can simultaneously control two infrared wireless microphones, and each device can adjust its volume by independent controls to obtain the best audio effects for each individual room layout.Students pay greater attention and retain more when they clearly hear the presentation. Systems can be individually designed to offer communication solutions for classroom amplification, hard of hearing students, or any other difficult listening situation.
- With the CRS201 wireless system, people in the back of the room can hear just as well as those sitting up front
- A CRS201 system with two speakers can cover at least 400 ft2 and a four-speaker CRS201 system can cover approximately 800 ft2
- CRS201 Infrared Wireless Microphone System accepts three different line-level inputs
- It can also control two infrared wireless microphones at the same time
- Each source can have its volume adjusted by independent controls to get the immersive audio effects for each room layout
- Each room can be customized with two or four ceiling or surface mounted speakers (available separately)
- Line out feature - 3.5mm mini jack
UPC: 092087110512 - Infrared Handheld Microphone for OWI Classroom System (Channel 2) This OWI Infrared Wireless Handheld Microphone is designed for use with the OWI infrared classroom systems. The microphone features an on/off switch and cardioid polar pattern. UPC: 092087917890
- Handheld Microphone Battery for use with CRS-HHMIC2 The OWI Inc. Rechargeable AA Ni-MH Battery 1600MAh 1.2 V is an economical way to power all your AA needs. They offer reliable performance in a variety of situations.
- Ni-MH chemistry
- Nickel-metal hydride offers an economical solution for rechargeable batteries for a variety of applications.
UPC: 092087917906 - CRS-HHMCS Replacement Power Adapter The Owi Inc. CRS-HHMCS Replacement Power Adapter is a reliable wall wart for use with the Owi Inc. proprietary charging station.
- Replacement Power Adapter
- Proprietary wall wart for use with the HHMCS Microphone Charging Station
- Durable Construction
- Sturdy heavy-duty plastic for reliable continuous use
UPC: 092087917913 - CRS-PMIC Pendant Microphone for CRS-101 IR Wireless System The OWI CRS-PMIC Pendant Microphone is a wireless neck-worn cardioid microphone for use with the OWI CRS-101 IR wireless microphone and speaker system. The CRS-PMIC features an adjustable lanyard for securing the pendant mic around the neck. A microphone input connects optional OWI headset and lapel microphones for even further flexibility and hands-free microphone operation. A AA battery, not included, is required for operation. UPC: 092087917586
- CRS-PBAT3.7 - Replacement Rechargeable Battery for CRS-PMIC Pendant Mic The OWI CRS-PBAT3.7 Replacement Rechargeable Battery replaces the battery included with the CRS-PMIC Pendant Microphone. The CRS-PMIC Pendant Microphone is included with the OWI CRS-101 wireless IR microphone and speaker system. UPC: 092087917609
- CRS-PENCH Charger for the CRS-PMIC Pendant Microphone The OWI CRS-PENCH Charger is used to recharge the battery on the CRS-PMIC Pendant Microphone. The CRS-PMIC Pendant Microphone is included with the OWI CRS-101 wireless IR microphone and speaker system. UPC: 092087917593
- CRS-LMIC Lapel Microphone for CRS-LMIC IR Pendant Microphone The OWI CRS-LMIC Lapel Microphone connects to the CRS-PMIC IR (Infrared) Pendant Microphone for hands-free, unobtrusive microphone operation during presentations, speeches, etc. Its low-profile, cardioid element attaches to shirt lapels for easy concealment and hands-free microphone operation. The CRS-PMIC Pendant Microphone is included with the OWI CRS-101 wireless IR microphone and speaker system. UPC: 092087917616
- P5278PB Patio Blaster P Series Speaker (Black) OWI's P5278PB Patio Blaster P Series Speaker (Black) is a weatherized 2-Way speaker system for use indoors or out. Play your favorite music or other audio from this wall or ceiling mountable speaker, via the included "U" Bracket. Extruding feet allow for upward tilt of the speaker.
- "U" Bracket for wall or ceiling mounting
UPC: 092087914479 In the Box Bundle Items CRS201 Infrared Wireless Microphone System wsvbxtfdvybxadwfyvfrefyawfqcqcw - 2 x 1/4" Phono Jack to 3.5 Mini Adapter
Infrared Handheld Microphone for OWI Classroom System (Channel 2) wsvbxtfdvybxadwfyvfrefyawfqcqcw 2 x Handheld Microphone Battery for use with CRS-HHMIC2 CRS-HHMCS Replacement Power Adapter wsvbxtfdvybxadwfyvfrefyawfqcqcw CRS-PMIC Pendant Microphone for CRS-101 IR Wireless System CRS-PBAT3.7 - Replacement Rechargeable Battery for CRS-PMIC Pendant Mic CRS-PENCH Charger for the CRS-PMIC Pendant Microphone CRS-LMIC Lapel Microphone for CRS-LMIC IR Pendant Microphone 2 x P5278PB Patio Blaster P Series Speaker (Black)
Also Includes - 2 x 1/4" Phono Jack to 3.5 Mini Adapter
- 2 x Key
Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. CRS201-HP-5278B2 Infrared Wireless Microphone System with 2 P5278P-B 5" Speaker Combo Package in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - CRS201 Infrared Wireless Microphone System
| Supported IR Carrier Frequency | 2.06 MHz and 2.56 MHz | | Frequency Deviation Range | +40 kHz | | Input Sensitivity | 150 mV (unbalanced) | | Signal to Noise Ratio | Line: >70 dB (unbalanced)
Wireless Mic: >100 dB | | THD | <0.5% (at 1 kHz) | | Frequency Response | 60 Hz - 14 kHz, ±3 dB | | Output Power | 2 - 30 W | | Operating Voltage | 110 VAC, 60 Hz | | Input Impedance | 47 kOhms | | Maximum Power Consumption | 70 W | | Finish | Brushed aluminum | | Dimensions (W x H x D) | 13.8 x 10.2 x 4.1" (350 x 258 x 103 mm) | | Weight | 13.9 lb (6.3 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 8.0" | - Infrared Handheld Microphone for OWI Classroom System (Channel 2)
| | | Box Dimensions (LxWxH) | 10.1 x 1.9 x 0.9" | - Handheld Microphone Battery for use with CRS-HHMIC2
| Chemistry | Ni-MH Rechargeable AA | | | | Box Dimensions (LxWxH) | 4.0 x 2.2 x 0.4" | - CRS-HHMCS Replacement Power Adapter
| | | Box Dimensions (LxWxH) | 2.8 x 2.4 x 1.7" | - CRS-PMIC Pendant Microphone for CRS-101 IR Wireless System
| | | Box Dimensions (LxWxH) | 4.9 x 2.7 x 0.7" | - CRS-PBAT3.7 - Replacement Rechargeable Battery for CRS-PMIC Pendant Mic
| | | Box Dimensions (LxWxH) | 2.0 x 1.0 x 0.6" | - CRS-PENCH Charger for the CRS-PMIC Pendant Microphone
| Power | Voltage:
Input - 110VAC/60Hz Output - 6VDC
Output Current - 1000mA | | | | Box Dimensions (LxWxH) | 3.1 x 1.7 x 1.2" | - CRS-LMIC Lapel Microphone for CRS-LMIC IR Pendant Microphone
| Transducer | Condenser | | Polar Pattern | Cardioid | | Frequency Response | 55Hz - 17kHz +/- 2dB | | Dynamic Range (Typical) | Not Specified By Manufacturer | | Signal-to-Noise Ratio | 60dB 1kHz @ 1Pa | | Maximum Input Sound Level | Not Specified By Manufacturer | | Power Requirements | From Pendant Mic
5VDC, 0.5mA (Max) | | Output Impedance | Not Specified By Manufacturer | | Output Connectors | 1/8" (3.5mm) Mini | | Pad | No | | Low Frequency Roll-Off | No | | Dimensions | Not Specified By Manufacturer | | Weight | Not Specified By Manufacturer | | | | Box Dimensions (LxWxH) | 3.5 x 1.8 x 0.3" | - P5278PB Patio Blaster P Series Speaker (Black)
| System | 2-Way | | Impedance | 70V & 8 Ohms | | Sensitivity | 87dB +/-3dB | | Maximum Power | 40W | | Frequency Response | 75Hz-20KHz | | Crossover | 4KHz | | Woofer | 5"
Polypropylene rubber surround | | Midrange | N/A | | Tweeter | 1 x 3/4"
Dome polycarbonate | | Enclosure Material | Plastic | | Color | Black | | Dimensions | 7.25 x 7.12 x 9.75" (18.42 x 18.09 x 24.77cm) | | Weight | 5.25 lbs (2.38kg) | | | | Box Dimensions (LxWxH) | 16.2 x 11.1 x 9.6" |
