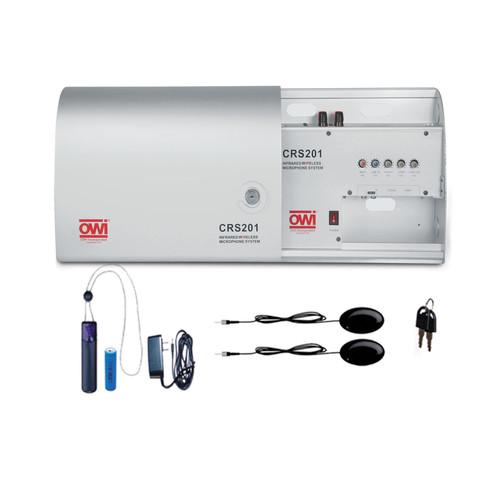

User Manual for OWI Inc. CRS201-P Amplifier Mixer & Wireless Pendant Microphone Kit Click to enlarge the picture
Contents of the user manual for the OWI Inc. CRS201-P Amplifier Mixer &
- Product category: Assistive Listening Systems OWI Inc.
- Brand: OWI Inc.
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for OWI Inc. Assistive Listening Systems
|
User manual for the OWI Inc. CRS201-P Amplifier Mixer & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any OWI Inc. product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official OWI Inc. user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a OWI Inc. product will considerably shorten its lifespan!
|
Product description The CRS201-P Amplifier Mixer & Wireless Pendant Microphone Kit from OWI Inc includes a CRS Amplifier/Mixer, two IR sensors, a pendant microphone, a pendant microphone charger, a pendant microphone rechargeable battery, a lapel microphone, two 1/4" Phono Jack to 3.5 Mini Adapters, a Power Cord, and two Keys.The CRS201 Infrared Wireless Microphone System (UL listed) is suitable for classrooms, boardrooms, training, and meeting rooms. The slim, fully lockable, wall-mounted infrared receiver/amplifier/mixer accepts three different line level inputs. As the CRS201 is wall-mounted, there are no freestanding or rack-mounted components to take up closet space or be knocked off a shelf, and no unsightly tangle of wires. The CRS201 system can simultaneously control two infrared wireless microphones, and each device can adjust its volume by independent controls to obtain immersive audio effects for each individual room layout.The system can be individually designed to offer communication solutions for classroom amplification, students that are hard of hearing, or any other difficult listening situation. - With the CRS201 wireless system, people in the back of the room can hear just as well as those sitting up front
- A CRS201 with 2 speakers can cover at least 400 sq. ft. while a four speaker CRS201 can cover approximately 800 sq. ft. 1
Please Note: Speakers are sold separately close - CRS201 Infrared Wireless Microphone System accepts 3 different line level inputs
- Can control 2 infrared wireless microphones at the same time
- Each source can have its volume adjusted by independent controls to get the immersive audio effects for each room layout
- Each room can be customized with two or four ceiling or surface mounted speakers 2
Please Note: Sold separately close - Line out feature - 3.5 mm mini jack
- Includes pendant microphone
UPC: 092087110185 In the Box OWI Inc. CRS201-P Amplifier Mixer & Wireless Pendant Microphone Kit CRS Amplifier/Mixer 2 x IR Sensor Wireless Pendant Microphone Pendant Microphone Charger Pendant Microphone Rechargeable Battery Lapel Microphone 2 x 1/4" Phono Jack to 3.5 Mini Adapter Power Cord 2 x Key Table of Contents
|
Upload User Manual
Have you got an user manual for the OWI Inc. CRS201-P Amplifier Mixer & Wireless Pendant Microphone Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersOWI Inc. CRS201-P Specs | Supported IR Carrier Frequency | 2.06 MHz and 2.56 MHz | | Frequency Deviation Range | +40 kHz | | Input Sensitivity | LINE: 150 mV
TV/DVD: 150 mV (Unbalanced Line Mono)
COMP: 150 mV (Unbalanced Line Mono) | | Signal to Noise Ratio | LINE: >70 dB
TV/DVD: >70 dB (Unbalanced Line Mono)
COMP: >70 dB (Unbalanced Line Mono)
WIreless Mic: >100 dB | | THD | <0.5% (at 1 kHz) | | Frequency Response | 60 Hz to 14 kHz +3 dB | | Output Power | 2 to 30 W (Max) | | Operating Voltage | 110 VAC / 60 Hz | | Input Impedance | LINE: 47 kOhms
TV/DVD: 47 kOhms (Unbalanced Line Mono)
COMP: 47 kOhms (Unbalanced Line Mono) | | Power Consumption | 70 W maximum | | Finish | Brushed aluminum | | Dimensions (W x H x D) | 13.8 x 10.2 x 4.1" (350 x 258 x 103 mm) | | Weight | 13.9 lb (6.3 kg) | | | | Box Dimensions (LxWxH) | 16.0 x 12.0 x 8.0" |
